Jig Pins / Precision(g6) / Shoulder / Threaded(Seznam čísel dílů: stránka 2)

Číslo dílu:

Nebyly nalezeny žádné nevyřízené. 61 návrhy.
Množství:

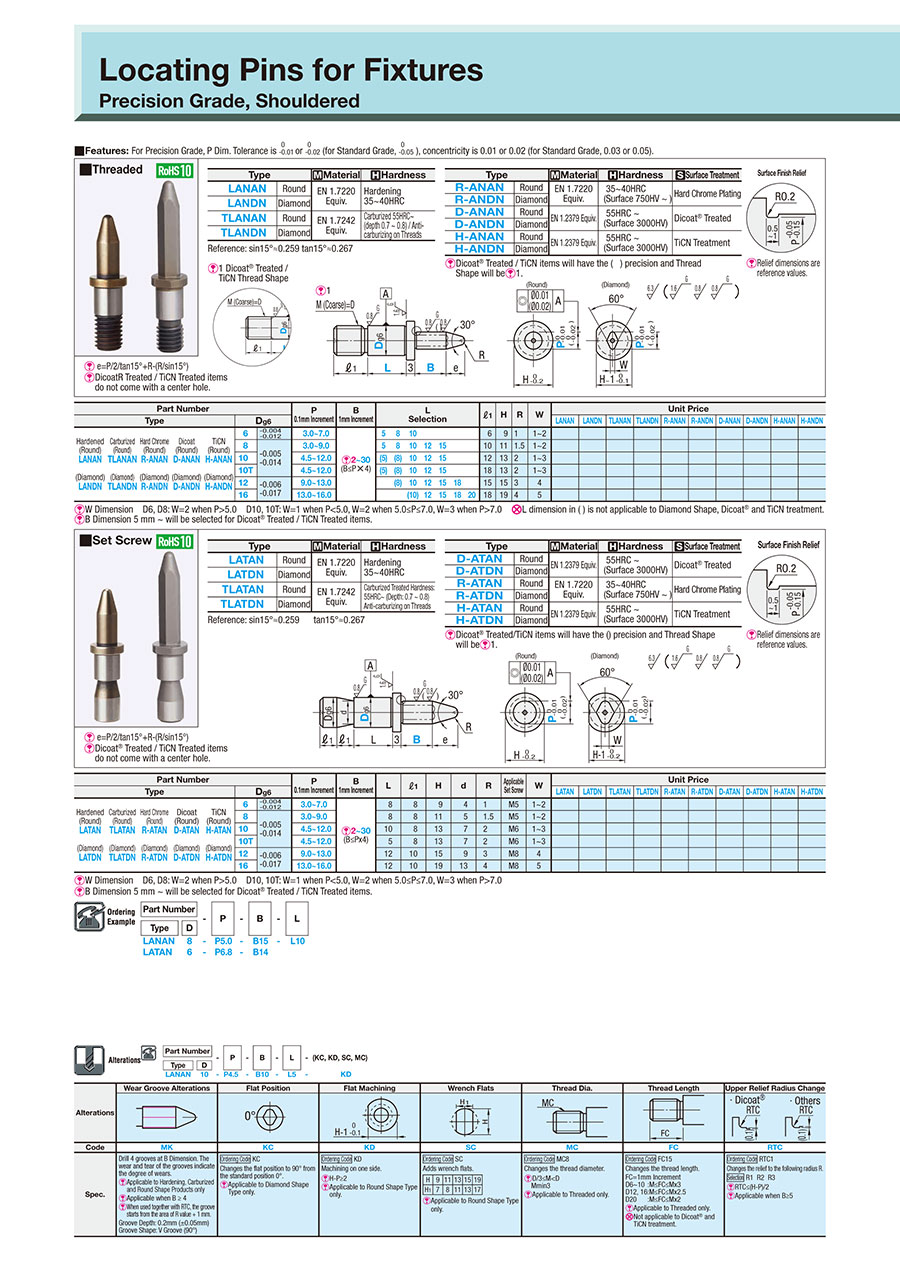

Obrysový výkres a tabulka specifikací

※1
Thread Shape of Dicoat Treated products / TiCN products


※1

(Round)

(Diamond)

Surface Finish Relief

[!] e = P/2 ÷ tan 15° + R - (R ÷ sin 15°) Reference: sin 15° ≒ 0.259, tan 15° ≒ 0.267
[!] Unless otherwise specified, the dimension tolerance conforms to JIS B 0405 Class m. However, threaded length and angular dimension tolerances are excluded.
[ ! ] Relief dimensions are reference values.
[ ! ] The P tolerance, coaxiality, and surface property of Dicoat treated and TiCN treated products will have the precision in (), and the thread shape will be *1.
[ ! ] Dicoat Treated / TiCN Treated items do not come with a center hole.
Type[M] Material[H] Hardness
LANANRoundEN 1.7220 Equiv.Hardened
35 to 40HRC
LANDNDiamond
TLANANRoundEN 1.7242 Equiv.Carburized
55HRC or more (Depth 0.7 to 0.8)
Anti-carburizing on Threads
TLANDNDiamond

Type[M] Material[H] Hardness[S] Surface Treatment
R−ANANRoundEN 1.7220 Equiv.35 to 40HRC
(Surface 750HV or more)
Hard Chrome Plating
R−ANDNDiamond
D−ANANRoundEN 1.2379 Equiv.55HRC or more
(Surface 3000 HV)
Dicoat Treated
D−ANDNDiamond
H−ANANRoundEN 1.2379 Equiv.55HRC or more
(Surface 3000 HV)
TiCN Treatment
H−ANDNDiamond

Specification Table

Part NumberPBL

Type D
LANAN 8P5.0B15L10
Part NumberP 0.1 mm IncrementsB 1 mm IncrementsL
Selection
1HRW
TypeDg6
Hardened
(Round)
LANAN

(Diamond)
LANDN
Carburized
(Round)
TLANAN

(Diamond)
TLANDN
Hard Chrome
(Round)
R-ANAN

(Diamond)
R-ANDN
Dicoat
(Round)
D-ANAN

(Diamond)
D-ANDN
TiCN
(Round)
H-ANAN

(Diamond)
H-ANDN
 6-0.004
-0.012
 3.0 to 8.0[ ! ]2 to 30
(B ≤ P × 4)
5810     6 911 to 2
 8-0.005
-0.014
 3.0 to 10.058101215  10111.51 to 2
10 4.5 to 12.0(5)(8)101215  121321 to 3
10T 4.5 to 12.0(5)(8)101215  181321 to 3
12-0.006
-0.017
 9.0 to 14.0 (8)10121518 151534
1613.0 to 18.0  (10)12151820181945
[!] W Dimension D6, D8: When P > 5.0 W = 2 D10, 10T: When P < 5.0, W = 1, When 5.0 ≤ P ≤ 7.0, W = 2, When P > 7.0, W = 3 [NG] L dimension in () is not applicable to Diamond Shape, Dicoat and TiCN treatment
[ ! ] For Dicoat Treated / TiCN products, the value of 5 mm or more can be configured for the B dimension.
* Not applicable when using locking materials or lock washers.

Alterations

Alterations
Code
Alteration DetailsApplication ConditionsOrdering Example
MKWear Groove Alterations
Drill 4 grooves on the B dimension area. Abrasion management can be facilitated by checking the wear and tear of the grooves.
Groove Depth: 0.2 mm (±0.05 mm)
Groove Shape: V Groove (90°)
[ ! ] Applicable to Hardening, Carburized and Round Shape Products only
[ ! ] Applicable when B ≥ 4

[ ! ] When used together with RTC, the groove starts from the area of R value + 1 mm.

LANAN8-P6.0-B15-L10-MK
KCFlat Position
Changes the flat position to 90° from the standard position 0°.[ ! ] Applicable to Diamond Shape Type only
[ ! ]H-P ≥ 2
LANDN8-P6.5-B10-L8-KC
KDFlat Machining
Machining on one side.[ ! ]H-P ≥ 2
[ ! ] Applicable to Round Shape Type only
[ ! ] KD cannot be combined with SC
TLANAN10-P8.8-B10-L10-KD
SCWrench Flats

Adds wrench flats.
Ordering Code: SC

H911131519
H178111317
[ ! ] Applicable to Round Shape Type onlyR-ANAN8-P6.5-B10-L10-SC
MCThread Dia.
Changes the thread diameter.
Ordering Code: MC8
[ ! ] D/3 ≤ M < D, Mmin3
[ ! ] Applicable to Threaded Type only
TLANAN10-P8.8-B10-L10-MC8
FCThread Length
Changes the thread length.
Ordering Code: FC15
FC = 1 mm Increments
D6 to 10:M ≤ FC ≤ Mx3
D12·16:M ≤ FC ≤ Mx2.5
D20: M ≤ FC ≤ Mx2
[ ! ] Applicable to Threaded Type only
[NG] Not applicable to Dicoat and TiCN treatment
TLANAN10-P8.8-B10-L10-FC15
RTCUpper Relief Radius Change

·Dicoat

·Others

Changes the relief to the following radius R.
Selection: R1, R2, R3
Ordering Code: RTC1
[ ! ]RTC ≤ (H-P)/2
[ ! ] Applicable when B ≥ 5
LANAN10-P8.8-B10-L10-RTC1
