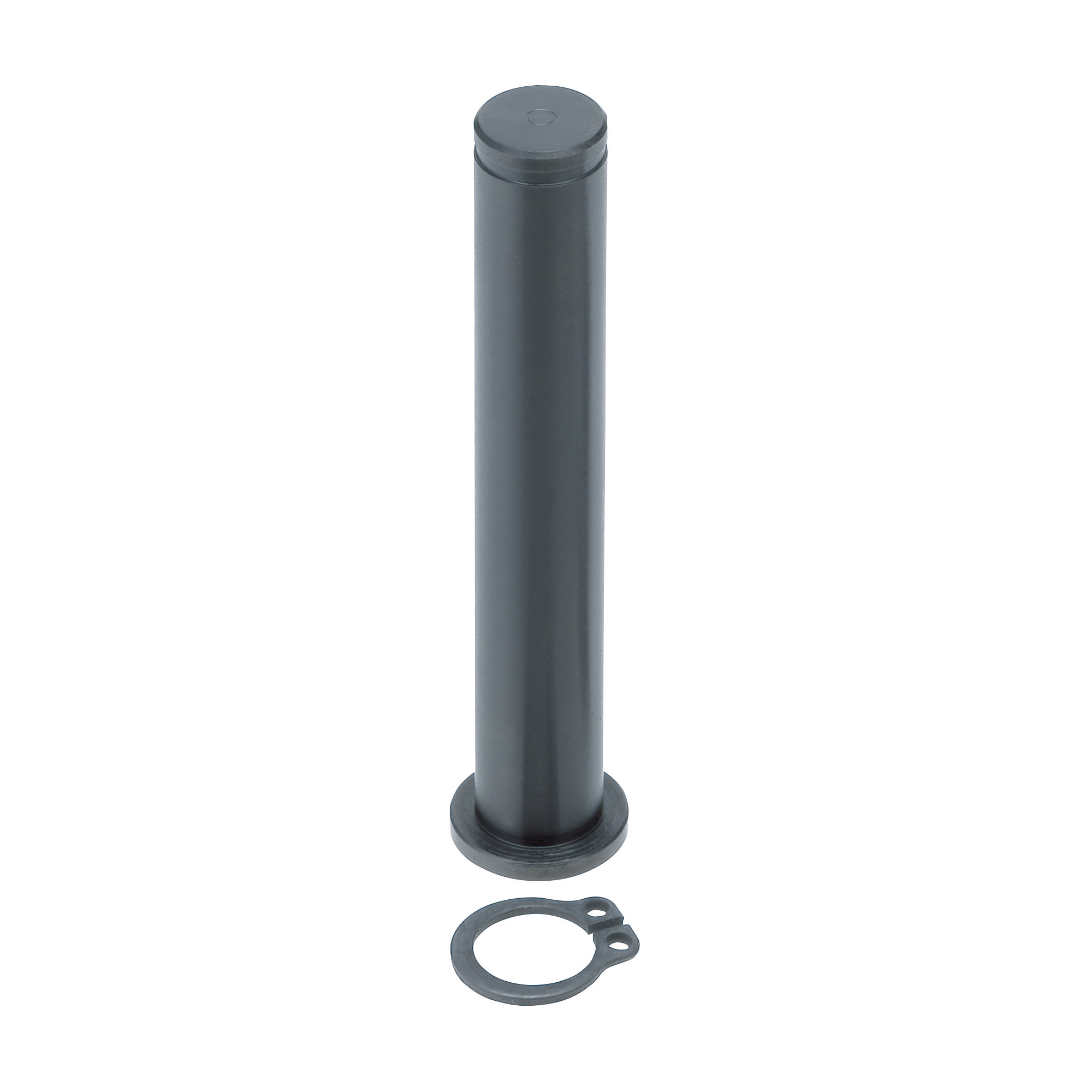

Hinge pins / stainless steel, steel / free choice of end shape / free choice of tolerance

Click on this image to zoom in.

Volume Discount

MISUMI

Order quantities extended (D-JIT)

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Drawing / Specifications
3D Preview 3D preview is available after complete configuration
Part Numbers
More Information
Catalog

Back to the Category Hinge Pin

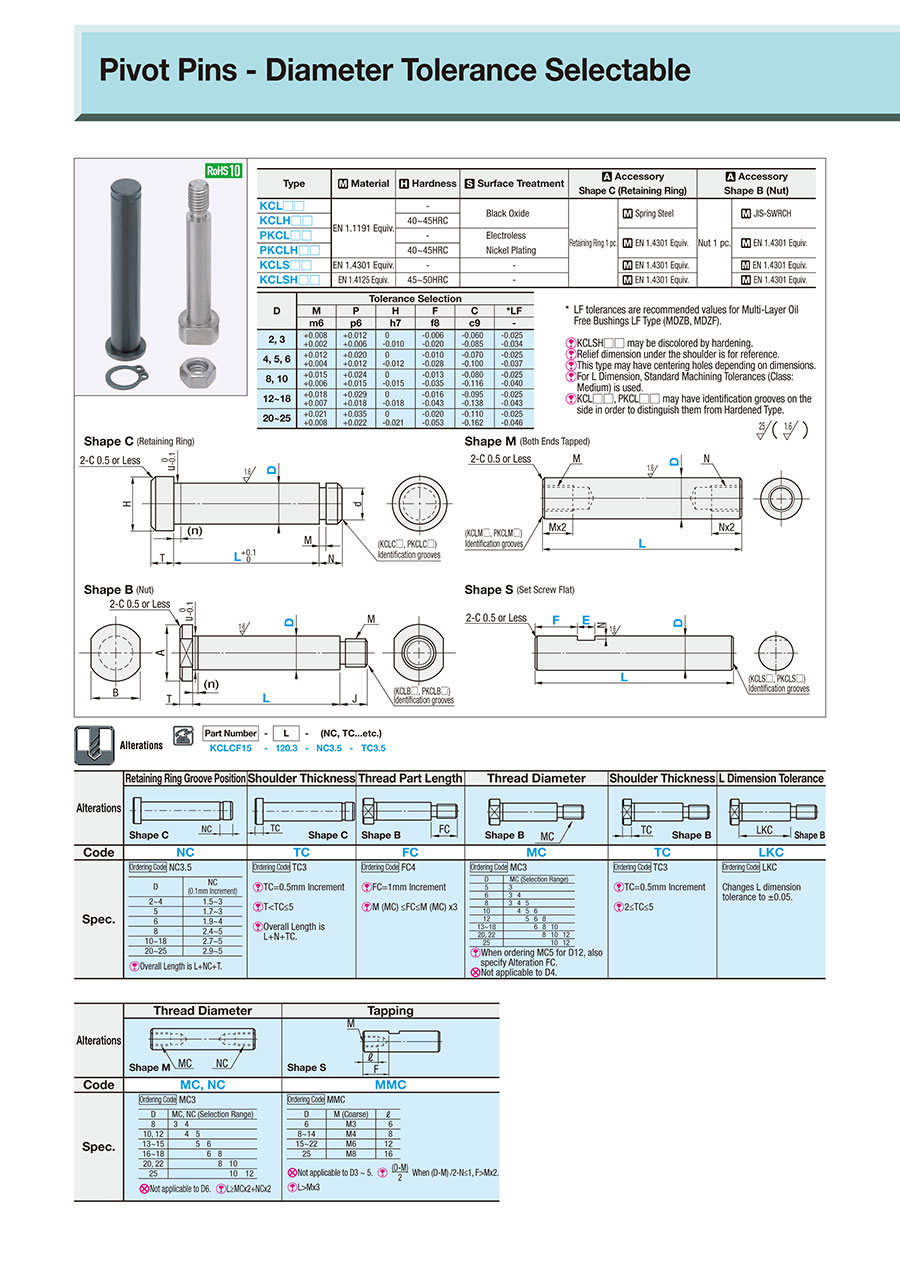

Technical Drawing - Hinge Pins / Pivot Pins

Precision Pivot Pins/D Tolerance Selectable:Related Image

Available dimensions and tolerances can be found under the tab More Information.

Basic Properties (e.g., material, hardness, coating, tolerance) - Hinge Pins / Pivot Pins

Type	Material	Hardness	Surface Treatment	Accessory		Accessory
				Shape C (Retaining Ring)		Shape B (Nut)
KCL□□	EN 1.1191 Equiv.	-	Black Oxide	Retaining Ring 1 pc.	Spring Steel	Nut 1 pc.	JIS-SWRCH
KCLH□□		40~45HRC
PKCL□□		-	Electroless Nickel Plating		EN 1.4301 Equiv.		EN 1.4301 Equiv.
PKCLH□□		40~45HRC
KCLS□□	EN 1.4301 Equiv.	-	-		EN 1.4301 Equiv.		EN 1.4301 Equiv.
KCLSH□□	EN 1.4125 Equiv.	45~50HRC	-		EN 1.4301 Equiv.		EN 1.4301 Equiv.

Further specifications can be found under the tab More Information.

Composition of a Product Code - Hinge Pins / Pivot Pins

Part Number			-	L	-	F	-	E

Type	D Tolerance Selection	D
KCLC	M	15	-	120.3
KCLS	F	15	-	50.5	-	F0	-	E10

Alterations - Hinge Pins / Pivot Pins

General Information - Hinge Pins / Pivot Pins

Hinge Bolt Selection Details

- Material: steel, stainless steel
- Coatings: untreated, burnished, nickel-plated, hard chrome-plated
- ISO tolerances: g6, m6, p6, h7, f8, c9
- Outer diameter: 2 mm to 30 mm
- Length: 5 mm to 200 mm
- End forms: external thread, internal thread, flat surface, hexagon socket, shoulder, flattened shoulder, retaining ring groove, cross holes for cotter pin, spring groove, V-groove

Description/Basics

Hinge bolts for mechanical engineering serve as a movable connecting element and pivot point between two assembly parts. Therefore, knuckle pins enable assembly parts to pivot, similar to a hinge. Furthermore, a hinge pin enables the connection of assembly parts in movable mechanisms, in which they can also serve for example as angular compensation in addition to their connecting function.

Application example: hinge bolts with retaining ring – (1) hinge base, (2) plug-in bolts with retaining ring, (3) link

In the case of knuckle pin connections, there should be play between the plug-in bolt and the receptacle (bore hole, eyelet, etc.) on the attachment parts in order to ensure smooth rotation. The clearance should be selected depending on the application and load. The most common tolerance is an H7 hole in conjunction with a g6 hinge pin, which is selected for most applications. In addition to tolerance g6, MISUMI also offers knuckle pins in tolerances m6, p6, h7, f8, c9 (type KCL). By selecting the tolerance of the plug-in bolt, the required clearance can be adapted to the respective requirement without having to change the tolerance of the bore hole/eyelets.

Bolts exposed to high motion cycles are subject to increased wear, which can be higher depending on the load applied. Due to abrasion, the play between the hinge bolt and the bore hole/eyelet can increase and lead to inaccuracies in the application.
MISUMI offers hinge bolts with hard chrome plating for particularly high stress. This knuckle pin surface treatment has a high surface hardness and thus a high wear resistance, which ensures an increased durability and requires less maintenance.

MISUMI offers various fasting options for retaining pins.
Hinge bolts with a flat surface on both sides are firmly connected to the hinge base via a set screw. Due to this rigid connection, the hinge pin is not mounted in a rotating manner, which specifically prevents wear on the hinge base.

Application example: hinge bolts with flat surfaces - (1) link, (2) plug-in bolts with flat surfaces, (3) hinge base

Bolts with cotter pins are suitable for applications that require a simple replacement of the parts. The very easy-to-lock cotter pins enable quick assembly and disassembly of the hinge bearing, hinge base or cotter pin by means of one or two cotter pins.
Care should be taken to ensure that no strong axial movements and forces occur when using a bolt with cotter pins. If strong forces are applied to the cotter pin, they can shear off and the cotter pins can detach from the connection.

Application example: cotter pins – (1) knuckle joint, (2) hinge base, (3) cotter pin bolts

A commonly used version of the knuckle pins are hinge bolts with retaining ring. This type of connection can be used in almost any application and is typically only loosened after assembly for maintenance purposes.
MISUMI offers the hinge bolts with retaining ring groove with up to four retaining ring grooves. The diameter of our plug-in bolts are selectable and can be configured in length. Therefore, they can be adjusted to your individual needs.

Application example: hinge bolt with retaining ring - (1) mounting plate, (2) roller bearing, (3) knuckle pin with retaining ring, (4) retaining ring

Hinge bolts with head, also called bolts with head or plug-in bolts with shoulder, have the advantage that there is no need for a lock on the side of the head. The head serves as a stop for the plug-in bolt, which can be fitted with a hexagon socket or wrench flat as a drive.
However, the bolts with head can only be assembled and disassembled from one side. This characteristic must be observed during construction and maintenance.
With MISUMI, the shoulder thickness of the hinge bolt can be configured in 0.5 mm increments using the [TC] option. With the option [HC], a flat surface can be attached to the shoulder, which can serve as an anti-rotation device.

Drawing: bolts with head

If a particularly high level of roundness is required, rotary shafts can be used. MISUMI rotary shafts have a roundness of ~ 0.007 to 0.004.

Function

Hinge bolts, also known as knuckle pins, belong to the group of machine and fastening elements. As the centre of a rotating joint, they generally connect two components via eyelets. Hinge bolts can be used among other things to attach doors, windows and flaps in a movable manner. This requires play between the hinge pin and the eyelet, which in most cases is constructed from the combination of an H7 bore hole and a g6 knuckle pin.

Areas of Application

MISUMI hinge bolts and plug-in bolts are indispensable for mechanical engineering and plant engineering, since hinge bolts allow a movable connection used in many applications.
Hinge bolts can be used for hinge mechanisms as in a typical hinge for windows, valves in industrial systems and doors of electrical up to a movable connection elements for links and knuckle joints.
Through our wide selection of end shapes, MISUMI knuckle pins offer versatile applications across various industries.

Materials

MISUMI socket pins are available in steel and stainless steel. As an option, our hinge bolts and socket pins are also available hardened. colour variations may occur with hardened hinge bolts.

Coatings

MISUMI hinge bolts are available in untreated, burnished, nickel-plated and hard chrome-plated versions to protect them from corrosion and wear.
The hard chrome plating offers knuckle pins a high surface hardness and thus a high wear resistance. Plug-in bolts with hard chrome plating help to achieve a high durability and reduced maintenance effort.

Dimensions

Head shapes

Shoulder

Shoulder with spanner flat

Hexagon socket

Straight

Instructions for Use / Installation Information - Hinge Pins / Pivot Pins

Installation Information

Hinge bolts can be secured against loss in different ways. At MISUMI, you will find a variety of different knuckle pins.

Straight

Cotter pin holes

Retaining ring groove

V-groove

External thread

Internal thread

Spring groove

Flat surface

Maintenance

Lubrication
Hinge bolts should be lubricated at regular intervals to prevent wear and to ensure smooth operation. For stroke or folding mechanisms, a long-term grease can be used for the plug-in bolts, as the movements are generally slow. Graphite oil or graphite spray can be used for flaps and doors, as this ensures good long-term lubrication even under high loads. In addition, this type of lubrication is often used with maintenance-free plain bearing bushings. Hinge bolts can also be combined with maintenance-free plain bearing bushings to extend the maintenance intervals.

Application Examples - Hinge Pins / Pivot Pins

Application example for hinge bolts
(1) Knuckle joint, (2) Plug-in bolts, (3) Hinge base

Application example for hinge bolts
(1) Hinge bolt, (2) Link, (3) Air cylinder, (4) Knuckle joint

Application example: hinge bolts with retaining ring
(1) Bolts with retaining ring, (2) Hinge base, (3) Link

Application example for hinge bolts
(1) Air cylinder, (2) Hinge bolt, (3) Hinge base

Supplementary Article

Hinge base

Hinged arms

Rod end bearings, spherical bearing

Plain bearing bushings

Rotary shafts

Industrial Applications

3D printer industry

Automotive industry

Pharmaceutical industry

Packaging industry

Part Number:

3D preview is not available, because the part number has not yet been determined.

In order to open the 3D preview, the part number must be fixed.

Plug-in is required for 3D Preview

CAD Download

Data to be displayed: 30; 45; 60

1
2
3
4
5
Next >>

Part Number
KCLBC4-[5-70/0.1]
KCLBC5-[5-100/0.1]
KCLBC6-[5-120/0.1]
KCLBC8-[5-120/0.1]
KCLBC10-[5-120/0.1]
KCLBC12-[10-200/0.1]
KCLBC13-[15-200/0.1]
KCLBC14-[15-200/0.1]
KCLBC15-[15-200/0.1]
KCLBC16-[20-200/0.1]
KCLBC17-[20-200/0.1]
KCLBC18-[20-200/0.1]
KCLBC20-[20-200/0.1]
KCLBC22-[20-200/0.1]
KCLBC25-[20-200/0.1]
KCLBF4-[5-70/0.1]
KCLBF5-[5-100/0.1]
KCLBF6-[5-120/0.1]
KCLBF8-[5-120/0.1]
KCLBF10-[5-120/0.1]
KCLBF12-[10-200/0.1]
KCLBF13-[15-200/0.1]
KCLBF14-[15-200/0.1]
KCLBF15-[15-200/0.1]
KCLBF16-[20-200/0.1]
KCLBF17-[20-200/0.1]
KCLBF18-[20-200/0.1]
KCLBF20-[20-200/0.1]
KCLBF22-[20-200/0.1]
KCLBF25-[20-200/0.1]
KCLBH4-[5-70/0.1]
KCLBH5-[5-100/0.1]
KCLBH6-[5-120/0.1]
KCLBH8-[5-120/0.1]
KCLBH10-[5-120/0.1]
KCLBH12-[10-200/0.1]
KCLBH13-[15-200/0.1]
KCLBH14-[15-200/0.1]
KCLBH15-[15-200/0.1]
KCLBH16-[20-200/0.1]
KCLBH17-[20-200/0.1]
KCLBH18-[20-200/0.1]
KCLBH20-[20-200/0.1]
KCLBH22-[20-200/0.1]
KCLBH25-[20-200/0.1]
KCLBLF4-[5-70/0.1]
KCLBLF5-[5-100/0.1]
KCLBLF6-[5-120/0.1]
KCLBLF8-[5-120/0.1]
KCLBLF10-[5-120/0.1]
KCLBLF12-[10-200/0.1]
KCLBLF13-[15-200/0.1]
KCLBLF14-[15-200/0.1]
KCLBLF15-[15-200/0.1]
KCLBLF16-[20-200/0.1]
KCLBLF17-[20-200/0.1]
KCLBLF18-[20-200/0.1]
KCLBLF20-[20-200/0.1]
KCLBLF22-[20-200/0.1]
KCLBLF25-[20-200/0.1]

Standard Unit Price	Minimum order quantity	Standard Shipping Days ?	RoHS	Basic Shape	Mounting Method	[D] Shaft Diameter (mm)	Material	Hardness	Surface Treatment	Material Detail	D Tolerance Selection	L Dimension (mm)	E (mm)	F (mm)
-	1	4 Days	10	Shouldered	Nut (Threaded)	4	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	C (c9)	5 ～ 70	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	5	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	C (c9)	5 ～ 100	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	6	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	C (c9)	5 ～ 120	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	8	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	C (c9)	5 ～ 120	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	10	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	C (c9)	5 ～ 120	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	12	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	C (c9)	10 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	13	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	C (c9)	15 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	14	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	C (c9)	15 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	15	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	C (c9)	15 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	16	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	C (c9)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	17	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	C (c9)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	18	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	C (c9)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	20	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	C (c9)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	22	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	C (c9)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	25	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	C (c9)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	4	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	F (f8)	5 ～ 70	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	5	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	F (f8)	5 ～ 100	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	6	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	F (f8)	5 ～ 120	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	8	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	F (f8)	5 ～ 120	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	10	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	F (f8)	5 ～ 120	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	12	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	F (f8)	10 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	13	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	F (f8)	15 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	14	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	F (f8)	15 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	15	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	F (f8)	15 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	16	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	F (f8)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	17	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	F (f8)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	18	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	F (f8)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	20	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	F (f8)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	22	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	F (f8)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	25	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	F (f8)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	4	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	H (h7)	5 ～ 70	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	5	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	H (h7)	5 ～ 100	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	6	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	H (h7)	5 ～ 120	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	8	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	H (h7)	5 ～ 120	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	10	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	H (h7)	5 ～ 120	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	12	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	H (h7)	10 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	13	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	H (h7)	15 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	14	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	H (h7)	15 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	15	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	H (h7)	15 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	16	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	H (h7)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	17	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	H (h7)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	18	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	H (h7)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	20	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	H (h7)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	22	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	H (h7)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	25	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	H (h7)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	4	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	LF (for Bushings)	5 ～ 70	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	5	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	LF (for Bushings)	5 ～ 100	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	6	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	LF (for Bushings)	5 ～ 120	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	8	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	LF (for Bushings)	5 ～ 120	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	10	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	LF (for Bushings)	5 ～ 120	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	12	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	LF (for Bushings)	10 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	13	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	LF (for Bushings)	15 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	14	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	LF (for Bushings)	15 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	15	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	LF (for Bushings)	15 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	16	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	LF (for Bushings)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	17	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	LF (for Bushings)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	18	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	LF (for Bushings)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	20	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	LF (for Bushings)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	22	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	LF (for Bushings)	20 ～ 200	-	-
-	1	4 Days	10	Shouldered	Nut (Threaded)	25	Steel	Not Specified	Black Oxide	EN 1.1191 Equiv.	LF (for Bushings)	20 ～ 200	-	-

1
2
3
4
5
Next >>

Back to the Category Hinge Pin

Technical Drawing - Hinge Pins / Pivot Pins

Specification Tables - Hinge Pins / Pivot Pins

D	Tolerance Selection
	M	P	H	F	C	*LF
	m6	p6	h7	f8	c9	-
2, 3	+0.008 +0.002	+0.012 +0.006	0 -0.010	-0.006 -0.020	-0.060 -0.085	-0.025 -0.034
4, 5, 6	+0.012 +0.004	+0.020 +0.012	0 -0.012	-0.010 -0.028	-0.070 -0.100	-0.025 -0.037
8, 10	+0.015 +0.006	+0.024 +0.015	0 -0.015	-0.013 -0.035	-0.080 -0.116	-0.025 -0.040
12~18	+0.018 +0.007	+0.029 +0.018	0 -0.018	-0.016 -0.043	-0.095 -0.138	-0.025 -0.043
20~25	+0.021 +0.008	+0.035 +0.022	0 -0.021	-0.020 -0.053	-0.110 -0.162	-0.025 -0.046

■ Shape C (Retaining Ring)
* For details, see P.2303.

Part Number			L=0.1mm Increment	M		N	u	(n)	d		T	H	Included Retaining Ring		Unit Price
Type	D Tolerance	D	L=0.1mm Increment		Tolerance	N	u	(n)		Tolerance	T	H	Shape	JIS Nominal*	KCLC	KCLHC	PKCLC	PKCLHC	KCLSC	KCLSHC
KCLC KCLHC PKCLC PKCLHC KCLSC KCLSHC	M (m6) P (p6) H (h7) F (f8) C (c9) LF (for Bushings)	2	5.0~30.0	0.5	+ 0.05 0	2	1.9	1.0	1.5	+ 0.06 0	1.5	4.5	E Type	No. 1.5
		3	5.0~50.0	0.5	+ 0.05 0		2.9		2	+ 0.06 0		5.5		No. 2
		4	5.0~50.0	0.7	+ 0.1 0		3.9		3	+ 0.075 0		6.5		No. 3
		5	10.0~60.0				4.9		4			8		No. 4
		6	10.0~100.0				5.8	1.5	5			9		No. 5
		8	10.0~100.0	0.9		3	7.8		7	+0.09 0	2	12		No. 7
		10	15.0~100.0	1.15	+ 0.14 0		9.8		9.6	0 - 0.09	2	14	C Type	No.10
		12	15.0~200.0				11.8		11.5	0 - 0.11	3	17		No.12
		13	25.0~200.0				12.8		12.4			18		No.13
		14					13.8		13.4			19		No.14
		15					14.8		14.3			20		No.15
		16	30.0~200.0				15.8		15.2			21		No.16
		17					16.8		16.2			22		No.17
		18		1.35			17.8		17			23		No.18
		20					19.8		19	0 - 0.21	4	26		No.20
		22					21.8		21			27		No.22
		25					24.8		23.9			30		No.25

■ Shape B (Nut)

Part Number			L=0.1mm Increment	A	B	T	J	u	(n)	M (Coarse)	Included Nut	Unit Price
Type	D Tolerance	D	L=0.1mm Increment	A	B	T	J	u	(n)	M (Coarse)	Included Nut	KCLB	KCLHB	PKCLB	PKCLHB	KCLSB	KCLSHB
KCLB KCLHB PKCLB PKCLHB KCLSB KCLSHB	M (m6) P (p6) H (h7) F (f8) C (c9) LF (for Bushings)	4	5.0~ 50.0	7	5	3	6	3.9	1.5	M 3	M 3x0.5
		5	5.0~ 60.0	9	7	4	6	4.9		M 4	M 4x0.7
		6	10.0~100.0	10	8	5	9	5.8		M 5	M 5x0.8
		8		13	10		9	7.8		M 6	M 6x1.0
		10		16	13		12	9.8		M 8	M 8x1.25
		12	15.0~200.0	18	14		16	11.8		M10	M10x1.5
		13	25.0~200.0	24	21		18	12.8		M12	M12x1.75
		14						13.8
		15						14.8
		16	30.0~200.0					15.8
		17						16.8
		18						17.8
		20		27	23		24	19.8		M16	M16x2.0
		22		27	23			21.8
		25		30	27			24.8

■ Shape M (Both Ends Tapped)

Part Number			L=0.1mm Increment	M (Coarse)	N (Coarse)	Unit Price
Type	D Tolerance	D	L=0.1mm Increment	M (Coarse)	N (Coarse)	KCLM	KCLHM	PKCLM	PKCLHM	KCLSM	KCLSHM
KCLM KCLHM PKCLM PKCLHM KCLSM KCLSHM	M (m6) P (p6) H (h7) F (f8) C (c9) LF (for Bushings)	6	20.0~100.0	M 3	M 3
		8	20.0~100.0	M 5	M 5
		10	25.0~100.0	M 6	M 6
		12	25.0~200.0	M 6	M 6
		13	35.0~200.0	M 8	M 8
		14
		15
		16	40.0~200.0	M10	M10
		17		M12	M12
		18
		20	50.0~200.0
		22		M16	M16
		25		M16	M16

■ Shape S (Set Screw Flat)

Part Number

L=0.1mm Increment

1mm Increment

Unit Price

Type

D Tolerance

KCLS

KCLHS

PKCLS

PKCLHS

KCLSS

KCLSHS

KCLS
KCLHS
PKCLS
PKCLHS
KCLSS
KCLSHS

M (m6)

P (p6)

H (h7)

F (f8)

C (c9)

LF (for Bushings)

5.0~ 50.0

F=0
or
2≤F≤L/2

1≤E≤50

0.5

10.0~ 60.0

10.0~100.0

15.0~100.0

15.0~200.0

25.0~200.0

30.0~200.0

Alterations - Hinge Pins / Pivot Pins

Products homepage

Basic information

Type	L Dimension Configurable

Configure

2,196Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.

The part number is completed.

Basic Attributes

Basic Shape
- Shouldered
- Straight
Clear
Mounting Method
- Retaining Ring
- Nut (Threaded)
- Tapped
- Set Screw (Set Screw Flat, D-Cut)
Clear
[D] Shaft Diameter(mm)
2

3

4

5

6

8

10

12

13

14

15

16

17

18

20

22

25
Clear
Material
- Steel
- Stainless Steel
Clear
Hardness
- Not Specified
- Hardness Spec-designed
Clear
Surface Treatment
- Not Provided
- Black Oxide
- Electroless Nickel Plating
Clear
Material Detail
- EN 1.1191 Equiv.
- EN 1.4125 Equiv.
- EN 1.4301 Equiv. (Equivalent)
Clear
D Tolerance Selection
- M (m6)
- P (p6)
- H (h7)
- F (f8)
- C (c9)
- LF (for Bushings)
Clear
L Dimension(mm)
[5-200/0.1mm Unit(s)]
Clear
E(mm)
[1-50/1mm Unit(s)]
Clear
F(mm)
[0-100/1mm Unit(s)]
Clear
Type
- KCLBC
- KCLBF
- KCLBH
- KCLBLF
- KCLBM
- KCLBP
- KCLCC
- KCLCF
- KCLCH
- KCLCLF
- KCLCM
- KCLCP
- KCLHBC
- KCLHBF
- KCLHBH
- KCLHBLF
- KCLHBM
- KCLHBP
- KCLHCC
- KCLHCF
- KCLHCH
- KCLHCLF
- KCLHCM
- KCLHCP
- KCLHMC
- KCLHMF
- KCLHMH
- KCLHMLF
- KCLHMM
- KCLHMP
- KCLHSC
- KCLHSF
- KCLHSH
- KCLHSLF
- KCLHSM
- KCLHSP
- KCLMC
- KCLMF
- KCLMH
- KCLMLF
- KCLMM
- KCLMP
- KCLSBC
- KCLSBF
- KCLSBH
- KCLSBLF
- KCLSBM
- KCLSBP
- KCLSC
- KCLSCC
- KCLSCF
- KCLSCH
- KCLSCLF
- KCLSCM
- KCLSCP
- KCLSF
- KCLSH
- KCLSHBC
- KCLSHBF
- KCLSHBH
- KCLSHBLF
- KCLSHBM
- KCLSHBP
- KCLSHCC
- KCLSHCF
- KCLSHCH
- KCLSHCLF
- KCLSHCM
- KCLSHCP
- KCLSHMC
- KCLSHMF
- KCLSHMH
- KCLSHMLF
- KCLSHMM
- KCLSHMP
- KCLSHSC
- KCLSHSF
- KCLSHSH
- KCLSHSLF
- KCLSHSM
- KCLSHSP
- KCLSLF
- KCLSM
- KCLSMC
- KCLSMF
- KCLSMH
- KCLSMLF
- KCLSMM
- KCLSMP
- KCLSP
- KCLSSC
- KCLSSF
- KCLSSH
- KCLSSLF
- KCLSSM
- KCLSSP
- PKCLBC
- PKCLBF
- PKCLBH
- PKCLBLF
- PKCLBM
- PKCLBP
- PKCLCC
- PKCLCF
- PKCLCH
- PKCLCLF
- PKCLCM
- PKCLCP
- PKCLHBC
- PKCLHBF
- PKCLHBH
- PKCLHBLF
- PKCLHBM
- PKCLHBP
- PKCLHCC
- PKCLHCF
- PKCLHCH
- PKCLHCLF
- PKCLHCM
- PKCLHCP
- PKCLHMC
- PKCLHMF
- PKCLHMH
- PKCLHMLF
- PKCLHMM
- PKCLHMP
- PKCLHSC
- PKCLHSF
- PKCLHSH
- PKCLHSLF
- PKCLHSM
- PKCLHSP
- PKCLMC
- PKCLMF
- PKCLMH
- PKCLMLF
- PKCLMM
- PKCLMP
- PKCLSC
- PKCLSF
- PKCLSH
- PKCLSLF
- PKCLSM
- PKCLSP
Clear
Filter by CAD data type
- 2D
- 3D
Clear
