Cam Followers / Hex Hole / Flat Type (CFFAS3-10)

Cam Followers / Hex Hole / Flat Type CFFAS3-10

Přesunutím myši nad obrázek ho zvětšíte

Číslo dílu:

CFFAS3-10
Vymazat
Množství:
Loading...

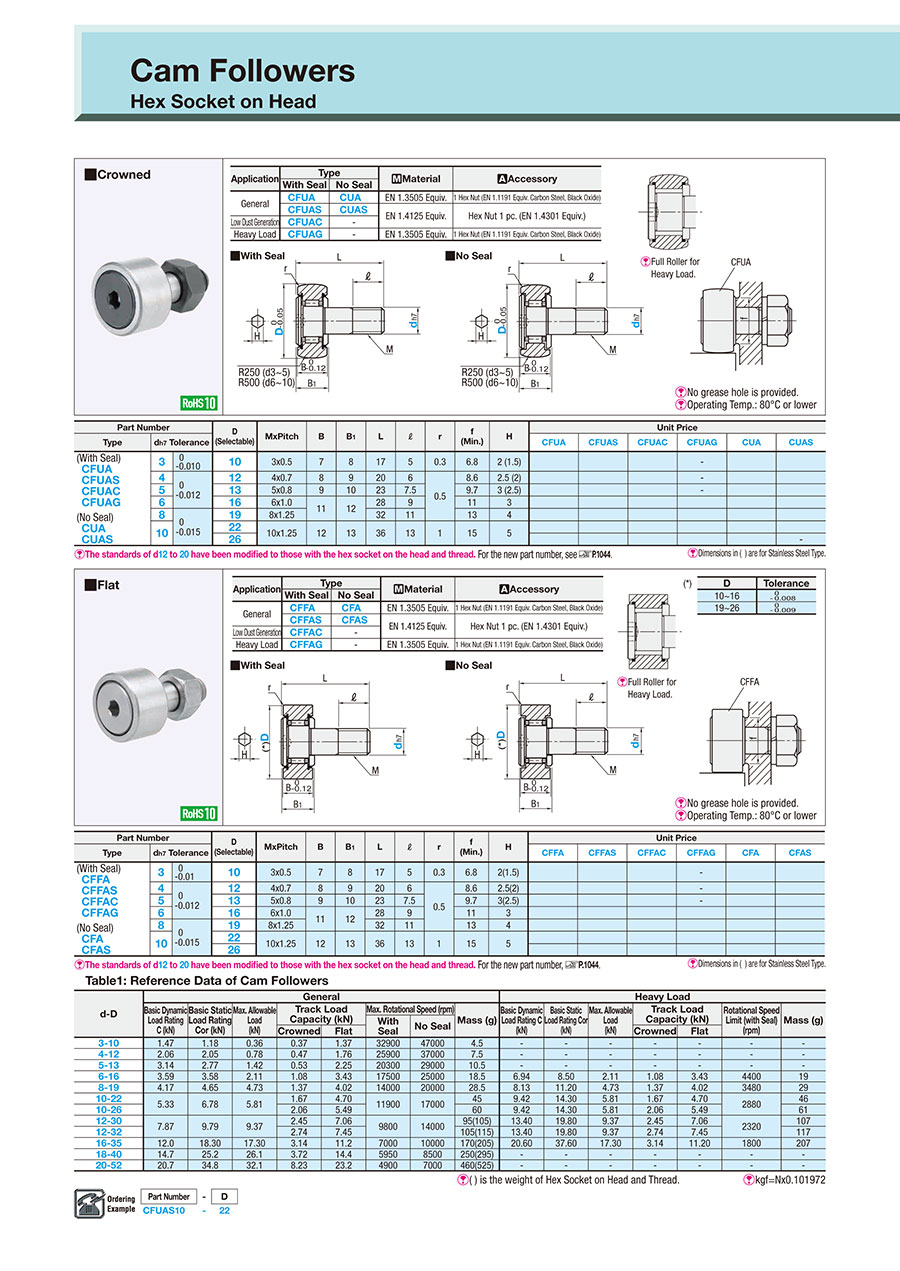

Obrysový výkres a tabulka specifikací

Cam Followers/Hex Hole/Flat Type:Related Image

Application Type Material Accessory
With Seal No Seal
General CFFA CFA EN 1.3505 Equiv. 1 Hex Nut (EN 1.1191 Equiv. Carbon Steel, Black Oxide)
CFFAS CFAS EN 1.4125 Equiv. Hex Nut 1 pc. (EN 1.4301 Equiv.)
Low Dust Generation CFFAC -
Heavy Load CFFAG - EN 1.3505 Equiv. 1 Hex Nut (EN 1.1191 Equiv. Carbon Steel, Black Oxide)

Specifications

Part Number - D
CFUAS10 - 22
Part Number D
(Selectable)		 MxPitch B B1 L ℓ r f
(Min.)		 H Unit Price
Type dh7 Tolerance CFFA CFFAS CFFAC CFFAG CFA CFAS
(With Seal)
CFFA
CFFAS
CFFAC
CFFAG
(No Seal)
CFA
CFAS		 3 0
-0.01		 10 3x0.5 7 8 17 5 0.3 6.8 2(1.5)       -
4 0
-0.012		 12 4x0.7 8 9 20 6 0.5 8.6 2.5(2)       -
5 13 5x0.8 9 10 23 7.5 9.7 3(2.5)       -
6 16 6x1.0 11 12 28 9 11 3
8 0
-0.015		 19 8x1.25 32 11 13 4
10 22 10x1.25 12 13 36 13 1 15 5
26
The standards of d12 to 20 have been modified to those with the hex socket on the head and thread. For the new part number,>>P.1044.
Dimensions in ( ) are for Stainless Steel Type.
Table1: Reference Data of Cam Followers
d-D Standard Heavy Load
Basic Dynamic
Load Rating
C (kN)		 Basic Static Load
Rating
Cor (kN)		 Max. Allowable
Load
(kN)		 Track Load
Capacity(kN)		 Max.
Rotational
Speed(rpm)		 Mass
(g)		 Basic Dynamic
Load Rating
C (kN)		 Basic Static
Load Rating
Cor (kN)		 Max. Allowable
Load
(kN)		 Track Load
Capacity(kN)		 Max.
Rotational
Speed
with Seal
(rpm)		 Mass
(g)
(With Seal) (No Seal)
Crowned Flat Crowned Flat
3-10 1.47 1.18 0.36 0.37 1.37 32900 47000 4.5 - - - - - - -
4-12 2.06 2.05 0.78 0.47 1.76 25900 37000 7.5 - - - - - - -
5-13 3.14 2.77 1.42 0.53 2.25 20300 29000 10.5 - - - - - - -
6-16 3.59 3.58 2.11 1.08 3.43 17500 25000 18.5 6.94 8.5 2.11 1.08 3.43 7700 19
8-19 4.17 4.65 4.73 1.37 4.02 14000 20000 28.5 8.13 11.2 4.73 1.37 4.02 6090 29
10-22 5.33 6.78 5.81 1.67 4.7 11900 17000 45 9.42 14.3 5.81 1.67 4.7 5040 46
10-26 2.06 5.49 60 2.06 5.49 61
12-30 7.87 9.79 9.37 2.45 7.06 9800 14000 105 13.4 19.8 9.37 2.45 7.06 4060 107
12-32 2.74 7.45 115 2.74 7.45 117
16-35 12 18.3 17.3 3.14 11.2 7000 10000 205 20.6 37.6 17.3 3.14 11.2 3150 207
18-40 14.7 25.2 26.1 3.72 14.4 5950 8500 295 25.2 51.3 26.1 3.72 14.4 2660 300
20-47 20.7 34.8 32.1 7.15 21 4900 7000 450 33.2 64.8 32.1 7.15 21 2380 455
20-52 8.23 23.2 525 8.23 23.2 530
24-62 30.6 53.2 49.5 10.5 34.2 4550 6500 915 46.7 92.9 49.5 10.5 34.2 2030 925
24-72 12.9 39.8 1150 12.9 39.8 1160
30-80 45.4 87.6 73.7 14.9 52.6 3500 5000 1880 67.6 145 73.7 14.9 52.6 1610 1890
30-85 16.1 56 1950 16.1 56 1960
30-90 17.3 59.3 2000 17.3 59.3 2010
kgf=Nx0.101972

Seznam čísel dílů

Počet položek
  • 1
    • Číslo dílu
    CFFAS3-10

    O.D. D

    (φ)

    Width B

    (mm)

    Material

    Basic Load Rating Cr (Dynamic)

    (kN)

    Basic Load Rating Cor (Static)

    (kN)

    Allowable Rotational Speed

    (1/min)

    Seals

    Application

    		RoHS?Minimální objednací množství
    10
    7
    [Stainless Steel] EN 1.4125 Equiv.
    1.47
    1.18
    32900
    Provided
    Regular
    10
    1 kusů
    Jednotková cena (bez DPH)(Jednotková cena včetně DPH)
    Standardní datum odeslání
    36.90 €
    ( 43.91 € )
    Skladová položka: 1 pracovní denK dispozici odeslání ve stejný den
  • 1

    • Podrobné údaje

    Náčrt a specifikace

    More Information

    Cam Followers - Hex Socket on Head, Flat:Related ImagePart Number Substitution Table for Cam Follower Standard Changes (D30~40, 52 only)

    Type Old Part Number (D30~40, 52) New Part Number
    Old Standard Old Hex Socket
    Type    		 Old Hex Socket on Thread Hex Socket on Head and Shank
    Cam Followers CFUR CFUA CFUB CFUH
    CFURS CFUAS - CFUSH
    CFURC CFUAC - CFUCH
    - CFUAG - CFUGH
    CFU CUA - CUH
    CFUS CUAS - CUSH
    CFFR CFFA CFFB CFFH
    CFFRS CFFAS - CFFSH
    CFFRC CFFAC - CFFCH
    - CFFAG - CFFGH
    CFR CFA - CFAH
    CFRS CFAS - CFASH
