      Servo couplings / hub clamping, key / 1 disc, 2 discs: CFRP / body: aluminium(Seznam čísel dílů: stránka 3)

      Servo couplings / hub clamping, key / 1 disc, 2 discs: CFRP / body: aluminium

      Přesunutím myši nad obrázek ho zvětšíte

      Číslo dílu:

      Nebyly nalezeny žádné nevyřízené. 146 návrhy.
      Množství:

      Obrysový výkres a tabulka specifikací

      d1 side
      d2 side
      d1 side
      d2 side

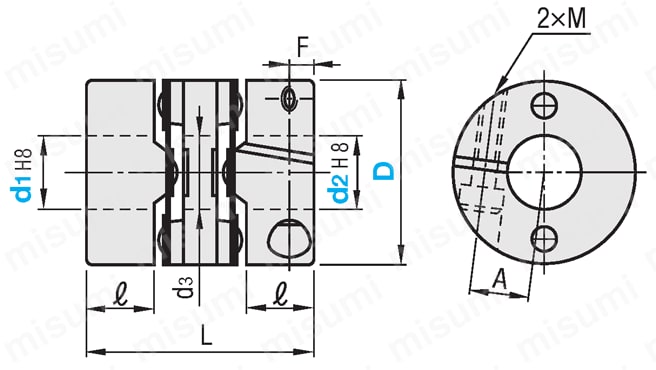

      Double Disc Type  

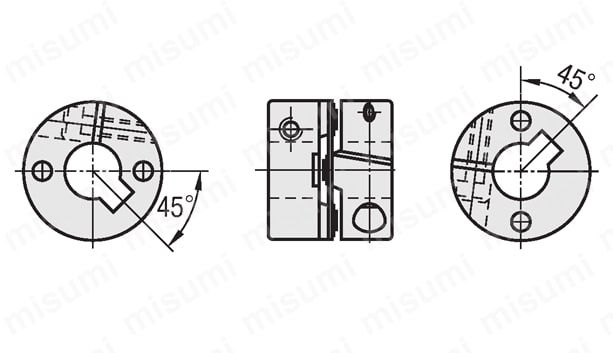

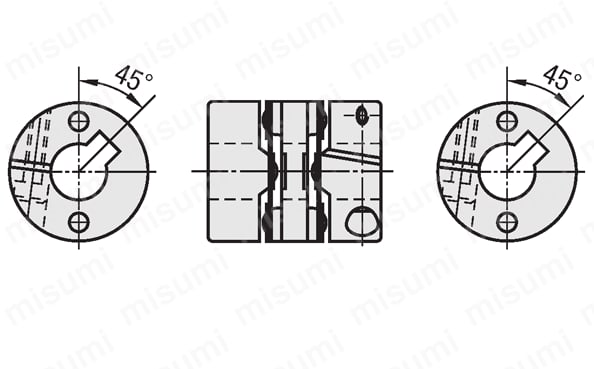

      MCKLC (Standard Bore)MCKLCLK (Keywayed Bore d1)
       MCKLCRK (Keywayed Bore d2)
       MCKLCWK (Keywayed Bore d1, d2)

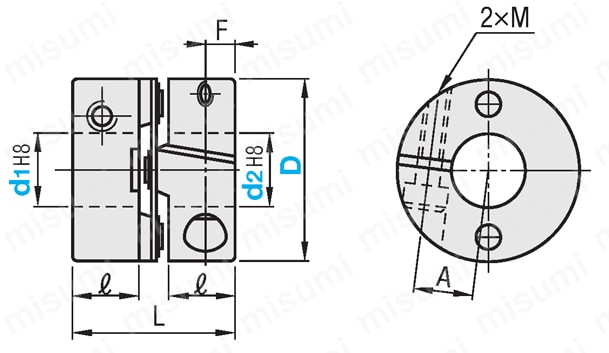

      Single Disc Type
      MCKSC (Standard Bore)MCKSCWK (Keywayed Bore d1, d2)

      [ ! ] Recommended Tolerance of Shaft Diameter: h7.
      [ ! ] Tolerances for d1 and d2 are values before slit machining.
      [ ! ] The lateral, angular, and axial misalignment values shown are for each occurring individually. When multiple misalignments are occurring simultaneously, the allowable maximum value of each will be reduced to 1/2.
      Standard BoreKeywayed Bore[M] Material[S] Surface Treatment
      d1 (One Side)d2 (One Side)d1, d2 (Both Sides)HubDiscHex Socket Head Cap ScrewHubHex Socket Head Cap Screw
      MCKLCMCKLCLKMCKLCRKMCKLCWKAluminum
      Diecast
      Carbon FiberEN 1.7220 Equiv.Electroless
      Nickel Plating
      Black Oxide Film
      MCKSCMCKSCWK

      Specification Table

      Part NumberShaft Bore Dia. d1Shaft Bore Dia. d2
      MCKLC1656
      MCKLCWK401215
      Part Numberd1, d2 Selection (However, d1 ≤ d2)
      [ ! ] Hole Dia. 6 or more is available for Keywayed Bore
      d3LAFClamp Screw
      TypeDMTightening Torque
      (N⋅m)
      Double Disc Type
      MCKLC
      MCKLCLK
      MCKLCRK
      MCKLCWK
      13* 3 4 5               5.5195.54.12.5M20.42
      16 * 4 56              6.823.2753M2.51
      20 * 4 566.3578           8.1267.56.53.7
      25  * 566.35789.5310         10.430.298.54M31.7
      32      89.5310111214      154112.4106M42.5
      40      89.5310111214151618   19.54715.513.17.8M57
      50           1415161820222425531816.79M612

      Part Numberd1, d2 Selection (However, d1 ≤ d2)
      [ ! ] Hole Dia. 6 or more is available for Keywayed Bore
      LAFClamp Screw
      TypeDMTightening Torque
      (N⋅m)
      Single Disc Type
      MCKSC
      MCKSCWK
      13* 3 4 5               13.55.54.12.5M20.42
      16 * 4 56              16.5753M2.51
      20 * 4 566.3578           18.47.56.53.7
      25  * 566.35789.5310         21.698.54M31.7
      32      89.5310111214      2912.4106M42.5
      40      89.5310111214151618   3515.513.17.8M57
      50           14151618202224411816.79M612
      [ ! ]When d1 is *3, *4, or *5, be sure to limit the load torque to 50% or less of the allowable torque value indicated on the table below to prevent slipping.
      ■ Double Disc Type
      Part NumberAllowable Torque
      (N⋅m)
      Allowable
      Angular Misalignment
      (°)
      Allowable
      Lateral Misalignment
      (mm)
      Static Torsional
      Spring Constant
      (N·m/rad)
      Max. Rotational Speed
      (r/min)
      Moment of Inertia
      (kg⋅m2)
      Allowable
      Axial Misalignment
      (mm)
      Mass
      (g)
      TypeD
      MCKLC
      MCKLCLK
      MCKLCRK
      MCKLCWK
      130.352.50.280120008.0 × 10-8±0.25
      160.613090002.4 × 10-7±0.39
      200.922076007.2 × 10-714
      252.244060002.2 × 10-6±0.427
      323.896048006.0 × 10-660
      406.80.3190040001.7 × 10-5±0.5104
      5011.0225035004.6 × 10-5210
      ■ Single Disc Type
      Part NumberAllowable Torque
      (N⋅m)
      Allowable
      Angular Misalignment
      (°)
      Allowable
      Lateral Misalignment
      (mm)
      Static Torsional
      Spring Constant
      (N·m/rad)
      Max. Rotational Speed
      (r/min)
      Moment of Inertia
      (kg⋅m2)
      Allowable
      Axial Misalignment
      (mm)
      Mass
      (g)
      TypeD
      MCKSC
      MCKSCWK
      130.3510.05100120007.0 × 10-8±0.14
      160.616090002.0 × 10-77
      200.929076006.0 × 10-711
      252.255060001.8 × 10-6±0.222
      323.8120048005.2 × 10-650
      406.80.1220040001.3 × 10-585
      5011.0260035003.6 × 10-5170

      Alteration:

      AlterationsShaft Bore Dia.Keyway WidthKeyway
      Spec.Keyway Width (b) is changed as the table below
      Ordering Code KLH4 KRH4
       Shaft bore diameter
      d1, d2
      KLH·KRH (b)t
      Reference Dim.ToleranceReference Dim.Tolerance
      82±0.01251.0 +0.1
        0
      104±0.01501.8
      1252.3
      228±0.01803.3 +0.2
        0

      [ NG ] Cannot be combined with shaft bore change (LDC, RDC) alterations.
      [ ! ] Applicable to Keywayed Bore only

       Shaft Dia. d1, d2LK·RK
      6 to 82
      8 to 103
      10 to 124
      12 to 175
      17 to 226
      22 to 248
       Ordering Code
      LK3
      RK4
      [ ! ] Keyway machining is available for ø6 or more.

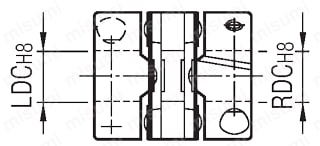

      0.1 mm Increments
       Ordering Code
      LDC7.8
      RDC9.3



        D  LDC·RDC
      133 to 5
      164 to 6
      204 to 8
      255 to 10
      328 to 14
      408 to 18
      5014 to 24
      CodeLDC (Left Shaft)RDC (Right Shaft)KLH (Left Shaft)KRH (Right Shaft)LK (Left Shaft)RK (Right Shaft)
