- Wrench Flats B (or D)(mm)
- 8
- 10
- 12
- 13
- 14
- 17
- 19
- 24
- 27
- 30
- 32
- Length L(mm)[15–800/0.5mm jednotek]
- Material
- Steel
- EN 1.0038 Equiv.
- Stainless Steel
- EN 1.4301 Equiv.
- Surface Treatment
- Pilot Dia. P, V(Ø)
- 20
- 24
- 28
- 30
- Thread Dia. M(mm)
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 16
- 20
- 24
- Screw Dia. N(mm)
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 16
- 20
- 24
- One Side Base Surface Width (W)(mm)
- 1
- 1.5
- 2
- 2.5
- 3
- 3.5
- 4
- H(mm)
- 0
[2–20/1mm jednotek] - Screw Length G(mm)
- 0
[2–20/1mm jednotek] - CAD
- 2D
- 3D
- Odhadované dodací dny
- Vše
- V rámci 4 pracovních dnů
- V rámci 6 pracovních dnů
Hexagonal rods / stainless steel, steel / black oxided, nickel-plated / end forms selectable(Seznam čísel dílů: stránka 3)
Pozor
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Číslo dílu:
návrhy.Obrysový výkres a tabulka specifikací
Back to the Category Distance elements (hexagonal, square, cylindrical)

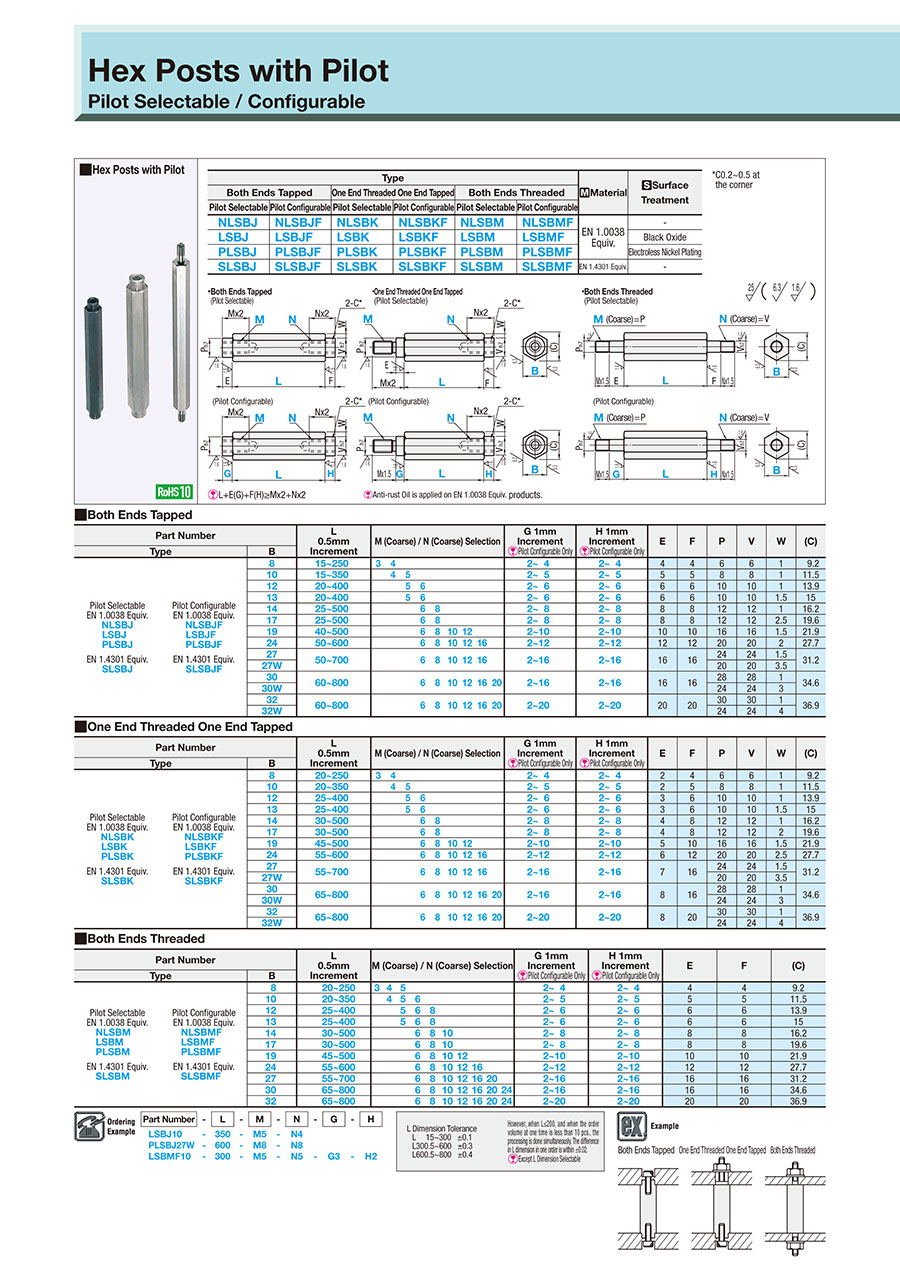

Technical Drawing - Hexagonal Rods
Open the technical drawing in the new window
Available dimensions and tolerances can be found under the tab More information.
Basic Properties (e.g., material, hardness, coating, tolerance) - Hexagonal Rods
| Type | Material | Surface Treatment | |||||
| Both Ends Tapped | One End Threaded One End Tapped | Both Ends Threaded | |||||
| Pilot Selectable | Pilot Configurable | Pilot Selectable | Pilot Configurable | Pilot Selectable | Pilot Configurable | ||
| NLSBJ | NLSBJF | NLSBK | NLSBKF | NLSBM | NLSBMF | EN 1.0038 Equiv. | - |
| LSBJ | LSBJF | LSBK | LSBKF | LSBM | LSBMF | Black Oxide | |
| PLSBJ | PLSBJF | PLSBK | PLSBKF | PLSBM | PLSBMF | Electroless Nickel Plating | |
| SLSBJ | SLSBJF | SLSBK | SLSBKF | SLSBM | SLSBMF | EN 1.4301 Equiv. | - |
Further specifications can be found under the tab More information.
Composition of a Product Code - Hexagonal Rods
| Part Number | - | L | - | M | - | N | - | G | - | H |
| LSBJ10 PLSBJ27W LSBMF10 | - - - | 350 600 300 | - - - | M5 M8 M5 | - - - | N4 N8 N5 | - | G3 | - | H2 |
Alterations - Hexagonal Rods
Seznam čísel dílů
| Číslo dílu |
|---|
Jednotková cena (bez DPH)(Jednotková cena včetně DPH) | Standardní datum odeslání |
|---|
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 4 pracovních dnů |
- ( - ) | 4 pracovních dnů |
- ( - ) | 4 pracovních dnů |
- ( - ) | 4 pracovních dnů |
- ( - ) | 4 pracovních dnů |
- ( - ) | 4 pracovních dnů |
- ( - ) | 4 pracovních dnů |
- ( - ) | 4 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
0.01 € ( 0.01 € ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 4 pracovních dnů |
- ( - ) | 4 pracovních dnů |
- ( - ) | 4 pracovních dnů |
- ( - ) | 4 pracovních dnů |
- ( - ) | 4 pracovních dnů |
- ( - ) | 4 pracovních dnů |
- ( - ) | 4 pracovních dnů |
- ( - ) | 4 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
- ( - ) | 6 pracovních dnů |
Podrobné údaje
Základní informace
Pozor
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Náčrt a specifikace
Back to the Category Distance elements (hexagonal, square, cylindrical)
Technical Drawing - Hexagonal Rods
Open the technical drawing in the new window
Specification Tables - Hexagonal Rods
| Part Number | L 0.5mm Increment | M (Coarse) / N (Coarse) Selection | G 1mm Increment Pilot Configurable Only | H 1mm Increment Pilot Configurable Only | E | F | P | V | W | (C) | ||||||||||
| Type | B | |||||||||||||||||||
| Pilot Selectable EN 1.0038 Equiv. NLSBJ LSBJ PLSBJ EN 1.4301 Equiv. SLSBJ | Pilot Configurable EN 1.0038 Equiv. NLSBJF LSBJF PLSBJF EN 1.4301 Equiv. SLSBJF | 8 | 15~250 | 3 | 4 | 2~ 4 | 2~ 4 | 4 | 4 | 6 | 6 | 1 | 9.2 | |||||||
| 10 | 15~350 | 4 | 5 | 2~ 5 | 2~ 5 | 5 | 5 | 8 | 8 | 1 | 11.5 | |||||||||
| 12 | 20~400 | 5 | 6 | 2~ 6 | 2~ 6 | 6 | 6 | 10 | 10 | 1 | 13.9 | |||||||||
| 13 | 20~400 | 5 | 6 | 2~ 6 | 2~ 6 | 6 | 6 | 10 | 10 | 1.5 | 15 | |||||||||
| 14 | 25~500 | 6 | 8 | 2~ 8 | 2~ 8 | 8 | 8 | 12 | 12 | 1 | 16.2 | |||||||||
| 17 | 25~500 | 6 | 8 | 2~ 8 | 2~ 8 | 8 | 8 | 12 | 12 | 2.5 | 19.6 | |||||||||
| 19 | 40~500 | 6 | 8 | 10 | 12 | 2~10 | 2~10 | 10 | 10 | 16 | 16 | 1.5 | 21.9 | |||||||
| 24 | 50~600 | 6 | 8 | 10 | 12 | 16 | 2~12 | 2~12 | 12 | 12 | 20 | 20 | 2 | 27.7 | ||||||
| 27 | 50~700 | 6 | 8 | 10 | 12 | 16 | 2~16 | 2~16 | 16 | 16 | 24 | 24 | 1.5 | 31.2 | ||||||
| 27W | 20 | 20 | 3.5 | |||||||||||||||||
| 30 | 60~800 | 6 | 8 | 10 | 12 | 16 | 20 | 2~16 | 2~16 | 16 | 16 | 28 | 28 | 1 | 34.6 | |||||
| 30W | 24 | 24 | 3 | |||||||||||||||||
| 32 | 60~800 | 6 | 8 | 10 | 12 | 16 | 20 | 2~20 | 2~20 | 20 | 20 | 30 | 30 | 1 | 36.9 | |||||
| 32W | 24 | 24 | 4 | |||||||||||||||||
■One End Threaded One End Tapped
| Part Number | L 0.5mm Increment | M (Coarse) / N (Coarse) Selection [ ! ]＊Available only for Pilot Configurable | G 1mm Increment [ ! ]Available only for Pilot Configurable | H 1mm Increment [ ! ]Available only for Pilot Configurable | E | F | P | V | W | (C) | ||||||||||
| Type | B | |||||||||||||||||||
| Pilot Selectable EN 1.0038 Equiv. NLSBK LSBK PLSBK EN 1.4301 Equiv. SLSBK | Pilot Configurable EN 1.0038 Equiv. NLSBKF LSBKF PLSBKF EN 1.4301 Equiv. SLSBKF | 8 | 20~250 | 3 | 4 | 2~ 4 | 2~ 4 | 2 | 4 | 6 | 6 | 1 | 9.2 | |||||||
| 10 | 20~350 | 4 | 5 | 2~ 5 | 2~ 5 | 2 | 5 | 8 | 8 | 1 | 11.5 | |||||||||
| 12 | 25~400 | 5 | 6 | 2~ 6 | 2~ 6 | 3 | 6 | 10 | 10 | 1 | 13.9 | |||||||||
| 13 | 25~400 | 5 | 6 | 2~ 6 | 2~ 6 | 3 | 6 | 10 | 10 | 1.5 | 15 | |||||||||
| 14 | 30~500 | 6 | 8 | 2~ 8 | 2~ 8 | 4 | 8 | 12 | 12 | 1 | 16.2 | |||||||||
| 17 | 30~500 | 6 | 8 | 2~ 8 | 2~ 8 | 4 | 8 | 12 | 12 | 2 | 19.6 | |||||||||
| 19 | 45~500 | 6 | 8 | 10 | 12 | 2~10 | 2~10 | 5 | 10 | 16 | 16 | 1.5 | 21.9 | |||||||
| 24 | 55~600 | 6 | 8 | 10 | 12 | 16 | 2~12 | 2~12 | 6 | 12 | 20 | 20 | 2.5 | 27.7 | ||||||
| 27 | 55~700 | 6 | 8 | 10 | 12 | 16 | 2~16 | 2~16 | 7 | 16 | 24 | 24 | 1.5 | 31.2 | ||||||
| 27W | 20 | 20 | 3.5 | |||||||||||||||||
| 30 | 65~800 | ＊6 | 8 | 10 | 12 | 16 | 20 | 2~16 | 2~16 | 8 | 16 | 28 | 28 | 1 | 34.6 | |||||
| 30W | 24 | 24 | 3 | |||||||||||||||||
| 32 | 65~800 | ＊6 | 8 | 10 | 12 | 16 | 20 | 2~20 | 2~20 | 8 | 20 | 30 | 30 | 1 | 36.9 | |||||
| 32W | 24 | 24 | 4 | |||||||||||||||||
■Both Ends Threaded
| Part Number | L 0.5mm Increment | M (Coarse) / N (Coarse) Selection | G 1mm Increment Pilot Configurable Only | H 1mm Increment Pilot Configurable Only | E | F | (C) | |||||||||||
| Type | B | |||||||||||||||||
| Pilot Selectable EN 1.0038 Equiv. NLSBM LSBM PLSBM EN 1.4301 Equiv. SLSBM | Pilot Configurable EN 1.0038 Equiv. NLSBMF LSBMF PLSBMF EN 1.4301 Equiv. SLSBMF | 8 | 20~250 | 3 | 4 | 5 | 2~ 4 | 2~ 4 | 4 | 4 | 9.2 | |||||||
| 10 | 20~350 | 4 | 5 | 6 | 2~ 5 | 2~ 5 | 5 | 5 | 11.5 | |||||||||
| 12 | 25~400 | 5 | 6 | 8 | 2~ 6 | 2~ 6 | 6 | 6 | 13.9 | |||||||||
| 13 | 25~400 | 5 | 6 | 8 | 2~ 6 | 2~ 6 | 6 | 6 | 15 | |||||||||
| 14 | 30~500 | 6 | 8 | 10 | 2~ 8 | 2~ 8 | 8 | 8 | 16.2 | |||||||||
| 17 | 30~500 | 6 | 8 | 10 | 2~ 8 | 2~ 8 | 8 | 8 | 19.6 | |||||||||
| 19 | 45~500 | 6 | 8 | 10 | 12 | 2~10 | 2~10 | 10 | 10 | 21.9 | ||||||||
| 24 | 55~600 | 6 | 8 | 10 | 12 | 16 | 2~12 | 2~12 | 12 | 12 | 27.7 | |||||||
| 27 | 55~700 | 6 | 8 | 10 | 12 | 16 | 20 | 2~16 | 2~16 | 16 | 16 | 31.2 | ||||||
| 30 | 65~800 | 6 | 8 | 10 | 12 | 16 | 20 | 24 | 2~16 | 2~16 | 16 | 16 | 34.6 | |||||
| 32 | 65~800 | 6 | 8 | 10 | 12 | 16 | 20 | 24 | 2~20 | 2~20 | 20 | 20 | 36.9 | |||||
L 15~300 ±0.1
L300.5~600 ±0.3
L600.5~800 ±0.4
However, when L≤200, and when the order volume at one time is less than 10 pcs., the processing is done simultaneously. The difference in L dimension in one order is within ±0.02.
Except L Dimension Selectable
Alterations - Hexagonal Rods
General Information - Hexagonal Rods
Selection details of spacers/spacers (hexagonal, square, cylindrical)
- Material: aluminum, steel, stainless steel, PMMA, PEEK
- Coatings: uncoated, burnished, chemically nickel-plated, anodized, chromated
- Basic shapes: hexagon, square, round
- End forms: straight, female thread, male thread, female thread with centering pin
- Outer diameter (round): 4 to 50 mm
- Spanner flat (hexagon, square): 4 to 32 mm
- Length: 5 to 800 mm
- Threads: M2 to M24
Description/Basics
Spacers are generally used as spacing connections. Due to their diversity, the wide range of design concepts can be realized with spacer bolts and practically every application can be realized using the appropriate spacer bolt.
The design and assembly of thin plates makes it extremely difficult to work with counterbores or internal threads. Therefore, spacer bolts are often used on plates, sheet metal or printed circuit boards (PCB).
The selectable assembly threads, the individually configurable length of the spacers, and the selectable length tolerance via the [LKC] option offer great design freedom compared to conventional mass-produced products. This advantage is particularly important if, for example, plates of different thicknesses or particularly thin plates are utilized.
For applications with particularly high positioning requirements, it is recommended to combine shim rings with a spacer. These can be configured in thicknesses from 0.01 to 1 mm and integrated as an additional compensating element.
The assembly of hexagonal spacers is particularly easy with the hex, since they can be held against one another with an open-ended spanner. With round spacer bolts, this can be realized with a spanner flat. The spacer bolts are also available with one-sided or two-sided internal thread (long nut). For precise positioning of a spacer bolt with an internal thread or external thread, MISUMI also offers a centering pin in the ISO tolerance h7.
This variety enables virtually barrier-free assembly of the components to be joined with screws, internal threads and external threads or nuts.
Application Examples - Hexagonal Rods
Application example: spacer bolt with external thread
(1) Spacer bolts with external thread on both sides, (2) mounting plate, (3) nut
Application example: spacer bolts with internal thread
(1) Spacer with internal thread on both sides, (2) mounting plate, (3) screw
Application example: spacer with tappet
(1) Distance bolts with centering pin, (2) mounting plate, (3) nut, (4) screw
Application example: threaded spacer pin
(1) spacer bolts with internal thread and external thread, (2) mounting plate, (3) nut, (4) screw
