- Screw Nominal (M)
- 3
- Length L (mm)
- 5
- Pitch(mm)
- 0.5
- Type
- CAD
- 2D
- 3D
- Odhadované dodací dny
- Vše
- K dispozici odeslání ve stejný den

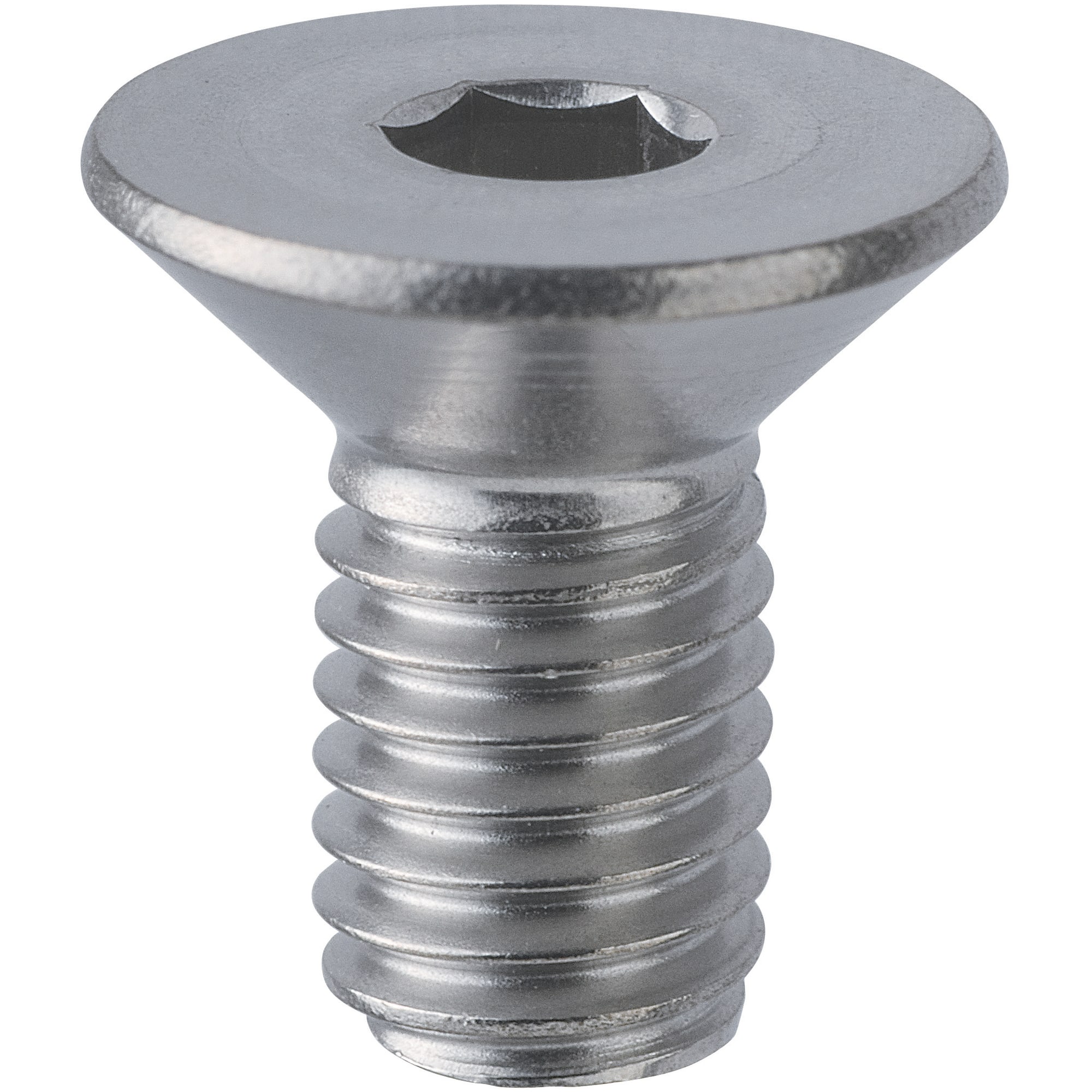

Flat Head Cap Screws (Pack)【1 až 100 kusů】 (SFB3-5)
Přesunutím myši nad obrázek ho zvětšíte

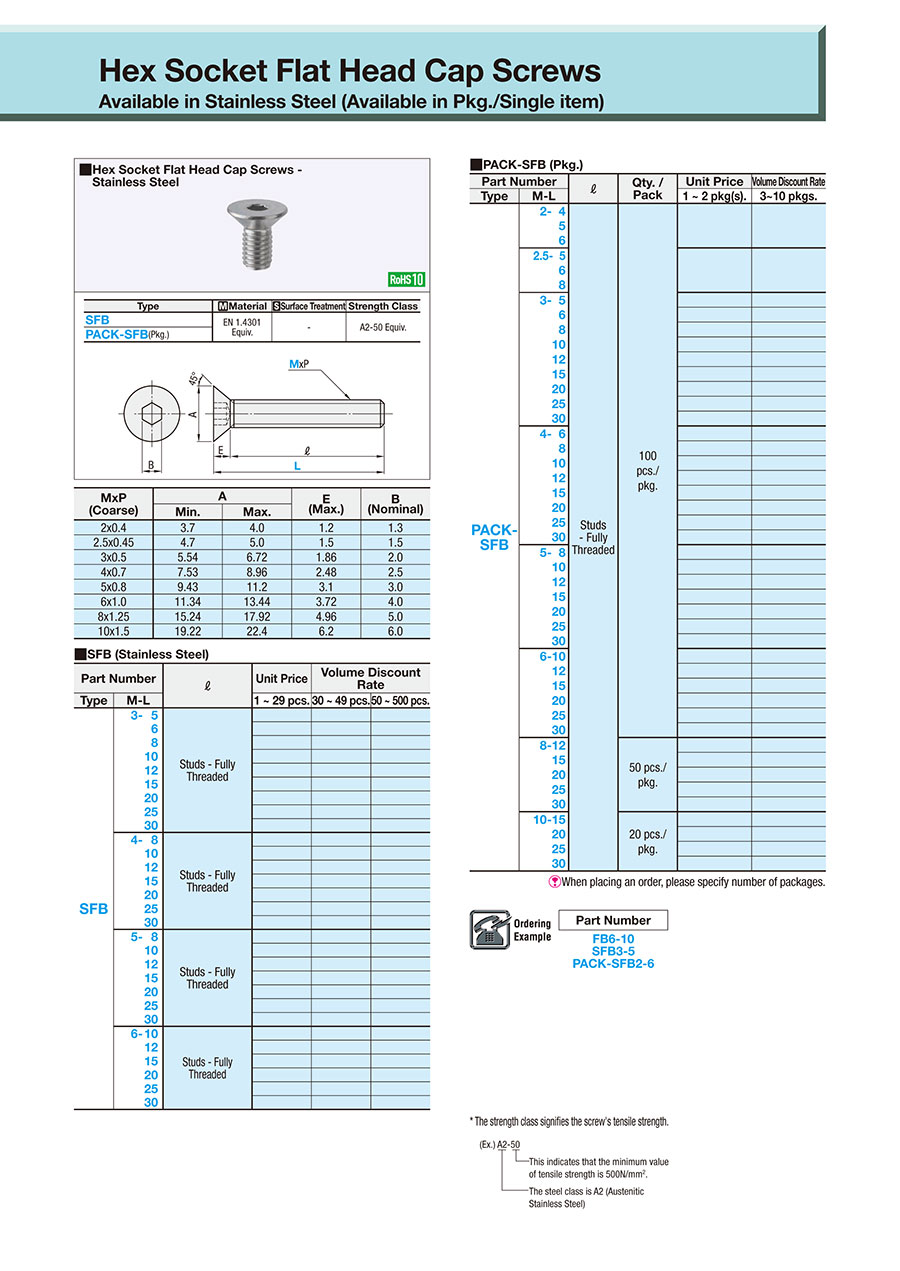

Obrysový výkres a tabulka specifikací
| Type | Material | Surface Treatment | Strength Class |
| SFB | EN 1.4301 Equiv. | - | A2-50 Equiv. |
| PACK-SFB(Pkg.) |
Specifications
| Part Number |
| FB6-10 SFB3-5 PACK-SFB2-6 |
■PACK-SFB (Pkg.)
When placing an order, please specify number of packages.
| Part Number | ℓ | Qty. / Pack | Unit Price | Volume Discount Rate | |
| Type | M-L | 1 ~ 2 pkg(s). | 3~10 pkgs. | ||
| PACK-SFB | 2- 4 | Studs - Fully Threaded | 100 pcs./pkg. | ||
| 5 | |||||
| 6 | |||||
| 2.5- 5 | |||||
| 6 | |||||
| 8 | |||||
| 3- 5 | |||||
| 6 | |||||
| 8 | |||||
| 10 | |||||
| 12 | |||||
| 15 | |||||
| 20 | |||||
| 25 | |||||
| 30 | |||||
| 4- 6 | |||||
| 8 | |||||
| 10 | |||||
| 12 | |||||
| 15 | |||||
| 20 | |||||
| 25 | |||||
| 30 | |||||
| 5- 8 | |||||
| 10 | |||||
| 12 | |||||
| 15 | |||||
| 20 | |||||
| 25 | |||||
| 30 | |||||
| 6-10 | |||||
| 12 | |||||
| 15 | |||||
| 20 | |||||
| 25 | |||||
| 30 | |||||
| 8-12 | 50 pcs./pkg. | ||||
| 15 | |||||
| 20 | |||||
| 25 | |||||
| 30 | |||||
| 10-15 | 20 pcs./pkg. | ||||
| 20 | |||||
| 25 | |||||
| 30 | |||||
| MxP (Coarse) | A | E (Max.) | B (Nominal) | |
| Min. | Max. | |||
| 2x0.4 | 3.7 | 4.0 | 1.2 | 1.3 |
| 2.5x0.45 | 4.7 | 5.0 | 1.5 | 1.5 |
| 3x0.5 | 5.54 | 6.72 | 1.86 | 2.0 |
| 4x0.7 | 7.53 | 8.96 | 2.48 | 2.5 |
| 5x0.8 | 9.43 | 11.2 | 3.1 | 3.0 |
| 6x1.0 | 11.34 | 13.44 | 3.72 | 4.0 |
| 8x1.25 | 15.24 | 17.92 | 4.96 | 5.0 |
| 10x1.5 | 19.22 | 22.4 | 6.2 | 6.0 |
■SFB (Stainless Steel)
| Part Number | ℓ | Unit Price | Volume Discount Rate | |||
| Type | M-L | 1 ~ 29 pcs. | 30 ~ 49 pcs. | 50 ~ 500 pcs. | ||
| SFB | 3- | 5 | Studs - Fully Threaded | |||
| 6 | ||||||
| 8 | ||||||
| 10 | ||||||
| 12 | ||||||
| 15 | ||||||
| 20 | ||||||
| 25 | ||||||
| 30 | ||||||
| 4- | 8 | Studs - Fully Threaded | ||||
| 10 | ||||||
| 12 | ||||||
| 15 | ||||||
| 20 | ||||||
| 25 | ||||||
| 30 | ||||||
| 5- | 8 | Studs - Fully Threaded | ||||
| 10 | ||||||
| 12 | ||||||
| 15 | ||||||
| 20 | ||||||
| 25 | ||||||
| 30 | ||||||
| 6- | 10 | Studs - Fully Threaded | ||||
| 12 | ||||||
| 15 | ||||||
| 20 | ||||||
| 25 | ||||||
| 30 | ||||||
Podrobné údaje
Náčrt a specifikace
More Information
* The strength class signifies the screw's tensile strength.
(Ex.) A2-50
This indicates that the minimum value of tensile strength is 500N/mm2.
The steel class is A2 (Austenitic Stainless Steel)
(Ex.) A2-50
This indicates that the minimum value of tensile strength is 500N/mm2.
The steel class is A2 (Austenitic Stainless Steel)
