        Blocks / PUR, NBR, CR, SI, PFM, / ether, ester / A33, A50, A65, A70, A80, A90, A95 / through holes, counterbores

        Pozor

        • Please check the content on our website as the PDF does not contain the most up-to-date information.

        Číslo dílu:

        Nebyly nalezeny žádné nevyřízené. 40 návrhy.
        Množství:

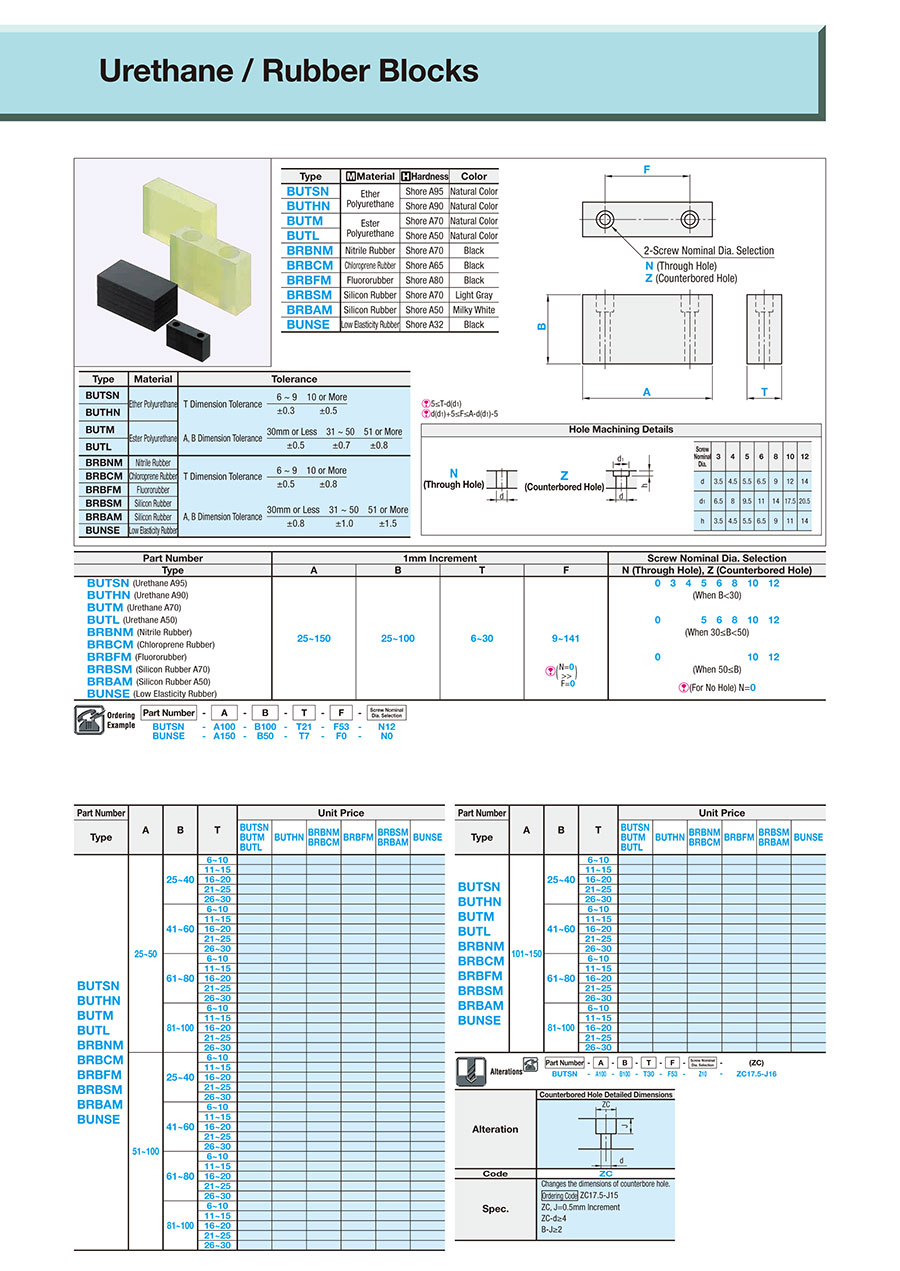

        Obrysový výkres a tabulka specifikací

        Dimensional Drawing

        Urethane / Rubber Blocks Dimensional Drawing
        TypeMaterialTolerance
        BUTSNEther Type
        Polyurethane
        T Dimension Tolerance:
        6 to 910 or More
        ±0.3±0.5
        BUTHN
        BUTMEster Type
        Polyurethane
        A, B Dimension Tolerance:
        30 mm or less31 to 5051 or more
        ±0.5±0.7±0.8
        BUTL
        BRBNMNitrile RubberT Dimension Tolerance:
        6 to 910 or More
        ±0.5±0.8
        BRBCMChloroprene Rubber
        BRBFMFluororubber
        BRBSMSilicon RubberA, B Dimension Tolerance:
        30 mm or less31 to 5051 or more
        ±0.8±1.0±1.5
        BRBAM
        BUNSELow Elasticity Rubber
        [!] 5 ≤ T - d (d1)
        [ ! ] d (d1 ) + 5 ≤ F ≤ A - d (d1 ) - 5
        Hole Machining Details
        Urethane / Rubber Blocks Related Image
        N
        (Through Hole)
        Z
        (Counterbored
        Hole)
        Screw
        Nominal Dia.
        345681012
        d3.54.55.56.591214
        d16.589.5111417.520.5
        h3.54.55.56.591114
        Type[M] Material[H] HardnessColor
        BUTSNEther Type
        Polyurethane
        Shore A95Natural Color
        BUTHNShore A90Natural Color
        BUTMEster Type
        Polyurethane
        Shore A70Natural Color
        BUTLShore A50Natural Color
        BRBNMNitrile RubberShore A70Black
        BRBCMChloroprene RubberShore A65Black
        BRBFMFluororubberShore A80Black
        BRBSMSilicon RubberShore A70Light Gray
        BRBAMSilicon RubberShore A50Milky White
        BUNSELow Elasticity RubberShore A33Black

        Specification Table

        Part NumberABTFScrew Nominal Dia. Selection
        BUTSN
        BUNSE

        A100
        A150

        B100
        B50

        T21
        T7

        F53
        F0

        N12
        N0
        Part Number1 mm IncrementsScrew Nominal Dia. Selection
        TypeABTFN (Through Hole) / Z (Counterbored Hole)
        BUTSN (Urethane A95)25 to 15025 to 1006 to 30


        9 to 141

        " ! " (When N = 0)
         F = 0
        0 3 4 5 6 8 10 12
        BUTHN (Urethane A90)(When B < 30)
        BUTM (Urethane A70)
        BUTL (Urethane A50)0 5 6 8 10 12
        BRBNM (Nitrile Rubber)(When 30 ≤ B < 50)
        BRBCM (Chloroprene Rubber)
        BRBFM (Fluororubber)0 8 10 12
        BRBSM (Silicone Rubber A70)(When 50 ≤ B)
        BRBAM (Silicon Rubber A50)[ ! ] (For No Hole) N = 0
        BUNSE (Low Elasticity Rubber)

        Alterations

        Alterations
        Code
        Counterbored Hole Detailed DimensionsApplicable ConditionsOrdering Example
        ZCUrethane / Rubber Blocks AlterationsChanges the dimensions of counterbore hole.
        ZC, J = 0.5 mm Increments
        [Ordering Code]:
        ZC17.5-J15
        [ ! ] ZC-d ≥ 4
        [ ! ]B-J ≥ 2
        BUTSN-A100-B100-T30-F53-Z10-ZC17.5-J16

        Seznam čísel dílů

        Počet položek
        Číslo dílu

        Material

        Grade, Type

        Thickness T

        (mm)

        Width A

        (mm)

        Length B

        (mm)

        Hardness (Shore, Asker, Penetration)

        Counterbored Hole Nominal Dia. [Z]

        F

        (mm)

        Through Hole Nominal Dia. [N]

        RoHS?Minimální objednací množství
        Rubber
        [Silicon (SI)] Silicon (SI)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A50
        -
        0
        0 ~ 12
        10
        1 kusů
        Rubber
        [Silicon (SI)] Silicon (SI)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A50
        3 ~ 12
        0
        -
        10
        1 kusů
        Rubber
        [Silicon (SI)] Silicon (SI)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A50
        -
        9 ~ 141
        0 ~ 12
        10
        1 kusů
        Rubber
        [Silicon (SI)] Silicon (SI)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A50
        3 ~ 12
        9 ~ 141
        -
        10
        1 kusů
        Rubber
        [Chloroprene (CR)] Chloroprene (CR)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A65
        -
        0
        0 ~ 12
        10
        1 kusů
        Rubber
        [Chloroprene (CR)] Chloroprene (CR)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A65
        3 ~ 12
        0
        -
        10
        1 kusů
        Rubber
        [Chloroprene (CR)] Chloroprene (CR)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A65
        -
        9 ~ 141
        0 ~ 12
        10
        1 kusů
        Rubber
        [Chloroprene (CR)] Chloroprene (CR)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A65
        3 ~ 12
        9 ~ 141
        -
        10
        1 kusů
        Rubber
        [Fluorine (FPM)] Fluorine (FPM)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A80
        -
        0
        0 ~ 12
        10
        1 kusů
        Rubber
        [Fluorine (FPM)] Fluorine (FPM)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A80
        3 ~ 12
        0
        -
        10
        1 kusů
        Rubber
        [Fluorine (FPM)] Fluorine (FPM)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A80
        -
        9 ~ 141
        0 ~ 12
        10
        1 kusů
        Rubber
        [Fluorine (FPM)] Fluorine (FPM)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A80
        3 ~ 12
        9 ~ 141
        -
        10
        1 kusů
        Rubber
        [Nitrile (NBR)] Nitrile (NBR)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A70
        -
        0
        0 ~ 12
        10
        1 kusů
        Rubber
        [Nitrile (NBR)] Nitrile (NBR)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A70
        3 ~ 12
        0
        -
        10
        1 kusů
        Rubber
        [Nitrile (NBR)] Nitrile (NBR)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A70
        -
        9 ~ 141
        0 ~ 12
        10
        1 kusů
        Rubber
        [Nitrile (NBR)] Nitrile (NBR)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A70
        3 ~ 12
        9 ~ 141
        -
        10
        1 kusů
        Rubber
        [Silicon (SI)] Silicon (SI)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A70
        -
        0
        0 ~ 12
        10
        1 kusů
        Rubber
        [Silicon (SI)] Silicon (SI)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A70
        3 ~ 12
        0
        -
        10
        1 kusů
        Rubber
        [Silicon (SI)] Silicon (SI)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A70
        -
        9 ~ 141
        0 ~ 12
        10
        1 kusů
        Rubber
        [Silicon (SI)] Silicon (SI)
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A70
        3 ~ 12
        9 ~ 141
        -
        10
        1 kusů
        Rubber
        [Low Elasticity Rubber] Low Elasticity Rubber
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A33
        -
        0
        0 ~ 12
        10
        1 kusů
        Rubber
        [Low Elasticity Rubber] Low Elasticity Rubber
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A33
        3 ~ 12
        0
        -
        10
        1 kusů
        Rubber
        [Low Elasticity Rubber] Low Elasticity Rubber
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A33
        -
        9 ~ 141
        0 ~ 12
        10
        1 kusů
        Rubber
        [Low Elasticity Rubber] Low Elasticity Rubber
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A33
        3 ~ 12
        9 ~ 141
        -
        10
        1 kusů
        Urethane
        [Standard Urethane] Ether Polyurethane
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A90
        -
        0
        0 ~ 12
        10
        1 kusů
        Urethane
        [Standard Urethane] Ether Polyurethane
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A90
        3 ~ 12
        0
        -
        10
        1 kusů
        Urethane
        [Standard Urethane] Ether Polyurethane
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A90
        -
        9 ~ 141
        0 ~ 12
        10
        1 kusů
        Urethane
        [Standard Urethane] Ether Polyurethane
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A90
        3 ~ 12
        9 ~ 141
        -
        10
        1 kusů
        Urethane
        [Standard Urethane] Ester Polyurethane
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A50
        -
        0
        0 ~ 12
        10
        1 kusů
        Urethane
        [Standard Urethane] Ester Polyurethane
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A50
        3 ~ 12
        0
        -
        10
        1 kusů
        Urethane
        [Standard Urethane] Ester Polyurethane
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A50
        -
        9 ~ 141
        0 ~ 12
        10
        1 kusů
        Urethane
        [Standard Urethane] Ester Polyurethane
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A50
        3 ~ 12
        9 ~ 141
        -
        10
        1 kusů
        Urethane
        [Standard Urethane] Ester Polyurethane
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A70
        -
        0
        0 ~ 12
        10
        1 kusů
        Urethane
        [Standard Urethane] Ester Polyurethane
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A70
        3 ~ 12
        0
        -
        10
        1 kusů
        Urethane
        [Standard Urethane] Ester Polyurethane
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A70
        -
        9 ~ 141
        0 ~ 12
        10
        1 kusů
        Urethane
        [Standard Urethane] Ester Polyurethane
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A70
        3 ~ 12
        9 ~ 141
        -
        10
        1 kusů
        Urethane
        [Standard Urethane] Ether Polyurethane
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A95
        -
        0
        0 ~ 12
        10
        1 kusů
        Urethane
        [Standard Urethane] Ether Polyurethane
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A95
        3 ~ 12
        0
        -
        10
        1 kusů
        Urethane
        [Standard Urethane] Ether Polyurethane
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A95
        -
        9 ~ 141
        0 ~ 12
        10
        1 kusů
        Urethane
        [Standard Urethane] Ether Polyurethane
        6 ~ 30
        25 ~ 150
        25 ~ 100
        Shore A95
        3 ~ 12
        9 ~ 141
        -
        10
        1 kusů
        Jednotková cena (bez DPH)(Jednotková cena včetně DPH)
        Standardní datum odeslání
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů
        -
        ( - )
        7 pracovních dnů

        Podrobné údaje

        Základní informace

        Pozor

        • Please check the content on our website as the PDF does not contain the most up-to-date information.

        Náčrt a specifikace

        General Information - Panels (polyurethane rubber, rubber, foam, felt)



        Selection details of panels (polyurethane rubber, rubber, foam, felt)

        - Material: polyurethane rubber (PU/PUR), heat-resistant polyurethane rubber, low-impact polyurethane rubber, abrasion-resistant polyurethane rubber, antistatic polyurethane, nitrile (NBR), chloroprene rubber (CR), polyethylene (EPDM), silicone (SI), fluorine (FPM), butyl rubber (IIR), natural rubber (NR), hard rubber, special synthetic rubber, polyurethane foam, head-insulating foam, polyethylene foam, low-rebound foam

        - Thickness (mm): 0.5 to 50

        - Width (mm): 3 to 500

        - Length (mm): 10 to 2000



        Description/Basics

        Foam plates and rubber plates are provided for damping or for sound proofing. MISUMI offers these in various Shore hardening for a wide variety of tasks. Due to the variety of materials, different resistances to environmental influences are possible depending on the application. The foam plates reduce sound in machines and can reduce the sound emissions of a system. For more information on foam characteristics, follow this link.
        Rubber plates or foam plates are also suitable in conveyor systems to absorb components to be transported at a dampened level or to protect them from damage as a lateral guide when the components bump into each other. Hard rubber panels or low-impact rubber or foam panels reduce the impact energy of the components. These minimize and lower the vibrations in an application.
        In addition, MISUMI offers highly abrasion-resistant polyurethane (Vulkollan), which has an abrasion resistance that is six times higher than with conventional polyurethane.
        Ceramic polyurethane plates contain ceramic particles. After machining, these can have a smooth surface despite low Shore hardness.
        The polyurethane rubber plates are also available antistatically. The specific resistance of antistatic polyurethane plates prevents static charging. This prevents any damage to electronic components.
        For applications with higher temperatures, MISUMI offers heat-resistant polyurethane rubber, which can withstand a temperature range of up to approx. ~120°C (see the product specifications for exact information).
        MISUMI also offers low-friction and anti-friction rubber plates. Low-friction rubber plates are often used in the gentle component guide for belt conveyors and roller conveyors.
        Felt plates have the property of absorbing or dispensing oil and other liquids via the capillary effect. This property can be used to remove, for example, excess oil on a belt conveyor.

        In addition, MISUMI offers rubber plates and foam plates that are self-adhesive for simplified assembly. Furthermore, you will find double-adhesive tape for attaching rubber plates and foam plates.

        Additional properties on foam panels and rubber plates can be found in the Properties PDF.

        MISUMI also offers these products in a round shape as discs and sleeves made of rubber, natural rubber, foam and felt.



        Application Examples - Panels (polyurethane rubber, rubber, foam, felt)

        Application example
        (1) Low-friction rubber plate (2) belt conveyor

        Application example
        (1) Vibration damping plate



        Industrial Applications

        3D printer industry
        Automotive industry
        Pharmaceutical industry
        Packaging industry
