      Sponge sheets / SI, Hanenaito® / low rebound / C15, C25, C27 / adhesive layer

      Sponge sheets / SI, Hanenaito® / low rebound / C15, C25, C27 / adhesive layer

      Číslo dílu:

      Nebyly nalezeny žádné nevyřízené. 4 návrhy.
      Množství:

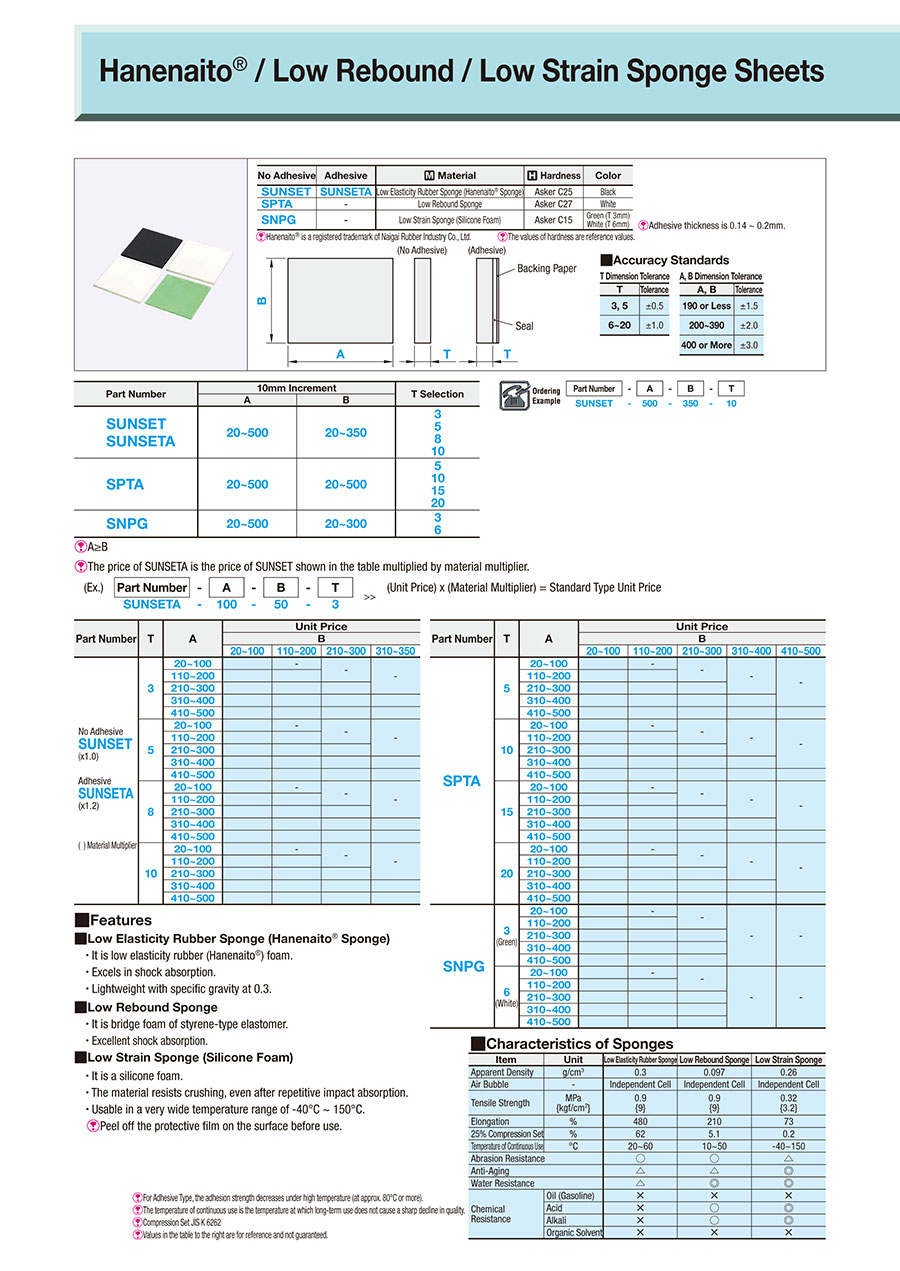

      Obrysový výkres a tabulka specifikací

      Dimensional Drawing

      Hanenite R / Antistatic Low Rebound / Low Strain Sponge Sheets: Related Image
      No AdhesiveAdhesive[M] Material[H] HardnessColor
      SUNSETSUNSETALow Elasticity Rubber Sponge (Hanenite Sponge)Asker C25Black
      SPTA—Low Rebound SpongeAsker C27White
      SNPG—Low Strain Sponge (Silicone Foam)Asker C15Green (T 3 mm)
      White (T 6 mm)
      [ ! ]Adhesive thickness is 0.14 to 0.2 mm.
      [ ! ] Temperature limit for seals is 60°C.
      [ ! ]Hanenaito is a registered trademark of Naigai Rubber Industry Co., Ltd.
      [ ! ] The values of hardness are reference values.

      ■ Accuracy Standards
      T Dimension Tolerance
      TTolerance
      3·5±0.5
      6 to 20±1.0
      A, B Dimension Tolerance
      A·BTolerance
      190 or Less±1.5
      200 to 390±2.0
      400 or More±3.0

      Specification Table

      Part Number—A—B—T
      SUNSET—500—350—10
      Part Number10 mm IncrementsT
      Selection
      AB
      SUNSET
      SUNSETA      		20 to 50020 to 3503
      5
      8
      10
      SPTA20 to 50020 to 5005
      10
      15
      20
      SNPG20 to 50020 to 3003
      6
      [ ! ]A ≥ B
      ■ Features
      ■Low Elasticity Rubber Sponge (Hanenite Sponge)
      ·It is low elasticity rubber (Hanenite) foam.
      ·Excels in shock absorption.
      ·Lightweight with specific gravity at 0.3.
      ■Low Rebound Sponge
      ·It is bridge foam of styrene-type elastomer.
      ·Excellent shock absorption.
      ■Low Strain Sponge (Silicone foam)
      ·It is a silicone foam.
      ·The material resists crushing, even after repetitive impact absorption.
      ·Usable in a very wide temperature range of -40°C to 150°C.
       [ ! ] Peel off the protective film on the surface before use.
      ■Characteristics of Sponges
      ItemUnitLow Elasticity Rubber SpongeLow Rebound SpongeLow Strain Sponge
      Apparent Densityg/cm30.30.0970.26
      Air Bubble—closed cell structureclosed cell structureclosed cell structure
      Tensile StrengthMpa
      (kgf/cm2)      		0.9
      {9}      		0.9
      {9}      		0.32
      {3.2}
      Elongation%48021073
      25% Compression Set%625.10.2
      Temperature of Continuous Use°C20 to 6010 to 50−40 to 150
      Abrasion Resistance○○△
      Anti-Aging△△◎
      Water Resistance△◎◎
      Chemical ResistanceOil (Gasoline)×××
      Acid×○◎
      Alkali×○◎
      Organic Solvent×××
      [ ! ] The temperature of continuous use is the temperature at which long-term use does not cause a sharp decline in quality.
      [ ! ] Compression Set JIS K6262
      [ ! ] Values in the table to the right are for reference and not guaranteed.

      Seznam čísel dílů

      Počet položek
    • 1
      • Číslo dílu
      SNPG-[20-500/10]-[20-300/10]-[3,6]
      SPTA-[20-500/10]-[20-500/10]-[5,10,15,20]
      SUNSET-[20-500/10]-[20-350/10]-[3,5,8,10]
      SUNSETA-[20-500/10]-[20-350/10]-[3,5,8,10]

      Grade, Type

      With or w/o Adhesive

      Thickness T

      (mm)

      Width A

      (mm)

      Length B

      (mm)

      Hardness (Shore, Asker, Penetration)

      Color

      		RoHS?Minimální objednací množství
      [Silicon (SI)] Low Strain Sponge (Silicone Foam)
      No Adhesive
      3 ～ 6
      20 ～ 500
      20 ～ 300
      Asker C15
      -
      10
      1 kusů
      [Low Rebound Sponge] Low Rebound Sponge
      No Adhesive
      5 ～ 20
      20 ～ 500
      20 ～ 500
      Asker C27
      White
      10
      1 kusů
      [Low Rebound Sponge] Low Elasticity Rubber Sponge (Hanenaito Sponge)
      No Adhesive
      3 ～ 10
      20 ～ 500
      20 ～ 350
      Asker C25
      Black
      10
      1 kusů
      [Low Rebound Sponge] Low Elasticity Rubber Sponge (Hanenaito Sponge)
      Adhesive
      3 ～ 10
      20 ～ 500
      20 ～ 350
      Asker C25
      Black
      10
      1 kusů
      Jednotková cena (bez DPH)(Jednotková cena včetně DPH)
      Standardní datum odeslání
      -
      ( - )
      7 pracovních dnů
      -
      ( - )
      10 pracovních dnů
      -
      ( - )
      7 pracovních dnů
      -
      ( - )
      7 pracovních dnů
    • 1

      • Podrobné údaje

      Základní informace

      Technické údaje

      Náčrt a specifikace

      Specifications/Overview

      ■ Features
      ■Low Elasticity Rubber Sponge (Hanenite Sponge)
      ·It is low elasticity rubber (Hanenite) foam.
      ·Excels in shock absorption.
      ·Lightweight with specific gravity at 0.3.
      ■Low Rebound Sponge
      ·It is bridge foam of styrene-type elastomer.
      ·Excellent shock absorption.
      ■Low Strain Sponge (Silicone foam)
      ·It is a silicone foam.
      ·The material resists crushing, even after repetitive impact absorption.
      ·Usable in a very wide temperature range of -40°C to 150°C.
       [ ! ] Peel off the protective film on the surface before use.
      ■Characteristics of Sponges
      ItemUnitLow Elasticity Rubber SpongeLow Rebound SpongeLow Strain Sponge
      Apparent Densityg/cm30.30.0970.26
      Air Bubble—closed cell structureclosed cell structureclosed cell structure
      Tensile StrengthMpa
      (kgf/cm2)      		0.9
      {9}      		0.9
      {9}      		0.32
      {3.2}
      Elongation%48021073
      25% Compression Set%625.10.2
      Temperature of Continuous Use°C20 to 6010 to 50−40 to 150
      Abrasion Resistance○○△
      Anti-Aging△△◎
      Water Resistance△◎◎
      Chemical ResistanceOil (Gasoline)×××
      Acid×○◎
      Alkali×○◎
      Organic Solvent×××
      [ ! ] The temperature of continuous use is the temperature at which long-term use does not cause a sharp decline in quality.
      [ ! ] Compression Set JIS K6262
      [ ! ] Values in the table to the right are for reference and not guaranteed.

      General Information - Panels (polyurethane rubber, rubber, foam, felt)



      Selection details of panels (polyurethane rubber, rubber, foam, felt)

      - Material: polyurethane rubber (PU/PUR), heat-resistant polyurethane rubber, low-impact polyurethane rubber, abrasion-resistant polyurethane rubber, antistatic polyurethane, nitrile (NBR), chloroprene rubber (CR), polyethylene (EPDM), silicone (SI), fluorine (FPM), butyl rubber (IIR), natural rubber (NR), hard rubber, special synthetic rubber, polyurethane foam, head-insulating foam, polyethylene foam, low-rebound foam

      - Thickness (mm): 0.5 to 50

      - Width (mm): 3 to 500

      - Length (mm): 10 to 2000



      Description/Basics

      Foam plates and rubber plates are provided for damping or for sound proofing. MISUMI offers these in various Shore hardening for a wide variety of tasks. Due to the variety of materials, different resistances to environmental influences are possible depending on the application. The foam plates reduce sound in machines and can reduce the sound emissions of a system. For more information on foam characteristics, follow this link.
      Rubber plates or foam plates are also suitable in conveyor systems to absorb components to be transported at a dampened level or to protect them from damage as a lateral guide when the components bump into each other. Hard rubber panels or low-impact rubber or foam panels reduce the impact energy of the components. These minimize and lower the vibrations in an application.
      In addition, MISUMI offers highly abrasion-resistant polyurethane (Vulkollan), which has an abrasion resistance that is six times higher than with conventional polyurethane.
      Ceramic polyurethane plates contain ceramic particles. After machining, these can have a smooth surface despite low Shore hardness.
      The polyurethane rubber plates are also available antistatically. The specific resistance of antistatic polyurethane plates prevents static charging. This prevents any damage to electronic components.
      For applications with higher temperatures, MISUMI offers heat-resistant polyurethane rubber, which can withstand a temperature range of up to approx. ~120°C (see the product specifications for exact information).
      MISUMI also offers low-friction and anti-friction rubber plates. Low-friction rubber plates are often used in the gentle component guide for belt conveyors and roller conveyors.
      Felt plates have the property of absorbing or dispensing oil and other liquids via the capillary effect. This property can be used to remove, for example, excess oil on a belt conveyor.

      In addition, MISUMI offers rubber plates and foam plates that are self-adhesive for simplified assembly. Furthermore, you will find double-adhesive tape for attaching rubber plates and foam plates.

      Additional properties on foam panels and rubber plates can be found in the Properties PDF.

      MISUMI also offers these products in a round shape as discs and sleeves made of rubber, natural rubber, foam and felt.



      Application Examples - Panels (polyurethane rubber, rubber, foam, felt)

      Application example
      (1) Low-friction rubber plate (2) belt conveyor

      Application example
      (1) Vibration damping plate
