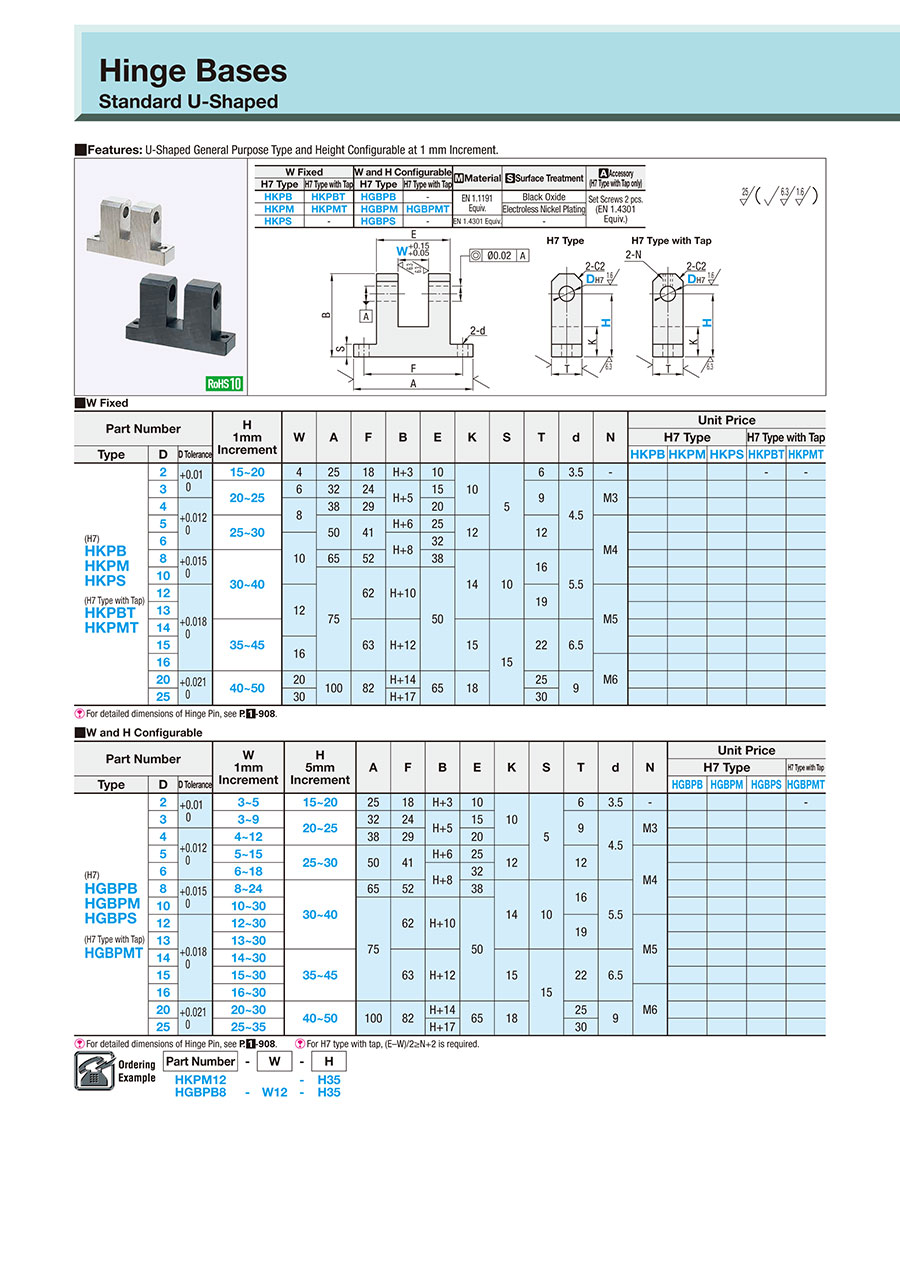

Hinge Bases / U-Shaped(Seznam čísel dílů: stránka 3)

■W Fixed

Part Number			H 1mm Increment	W	A	F	B	E	K	S	T	d	N	Unit Price
														H7 Type			H7 Type with Tap
Type	D	D Tolerance												HKPB	HKPM	HKPS	HKPBT	HKPMT
(H7) HKPB HKPM HKPS (H7 Type with Tap) HKPBT HKPMT	2	+0.01 0	15~20	4	25	18	H+3	10	10	5	6	3.5	-				-	-
	3		20~25	6	32	24	H+5	15			9	4.5	M3
	4	+0.012 0		8	38	29		20
	5		25~30		50	41	H+6	25	12		12		M4
	6			10			H+8	32
	8	+0.015 0	30~40		65	52		38	14	10	16	5.5
	10				75	62	H+10	50
	12	+0.018 0		12							19		M5
	13
	14		35~45			63	H+12		15	15	22	6.5
	15			16
	16												M6
	20	+0.021 0	40~50	20	100	82	H+14	65	18		25	9
	25			30			H+17				30

 For detailed dimensions of Hinge Pin, see P.1-908.

■W and H Configurable

Part Number			W 1mm Increment	H 5mm Increment	A	F	B	E	K	S	T	d	N	Unit Price
														H7 Type			H7 Type with Tap
Type	D	D Tolerance												HGBPB	HGBPM	HGBPS	HGBPMT
(H7) HGBPB HGBPM HGBPS (H7 Type with Tap) HGBPMT	2	+0.01 0	3~5	15~20	25	18	H+3	10	10	5	6	3.5	-				-
	3		3~9	20~25	32	24	H+5	15			9	4.5	M3
	4	+0.012 0	4~12		38	29		20
	5		5~15	25~30	50	41	H+6	25	12		12		M4
	6		6~18				H+8	32
	8	+0.015 0	8~24	30~40	65	52		38	14	10	16	5.5
	10		10~30		75	62	H+10	50
	12	+0.018 0	12~30								19		M5
	13		13~30
	14		14~30	35~45		63	H+12		15	15	22	6.5
	15		15~30
	16		16~30										M6
	20	+0.021 0	20~30	40~50	100	82	H+14	65	18		25	9
	25		25~35				H+17				30

 For detailed dimensions of Hinge Pin, see P.1-908.
 For H7 type with tap, (E–W)/2≥N+2 is required.
