6 Series (Groove Width 8 mm), 1-Row Groove, Reversing Bracket With Protrusion

Číslo dílu:

Nebyly nalezeny žádné nevyřízené. 72 návrhy.
Množství:

Obrysový výkres a tabulka specifikací

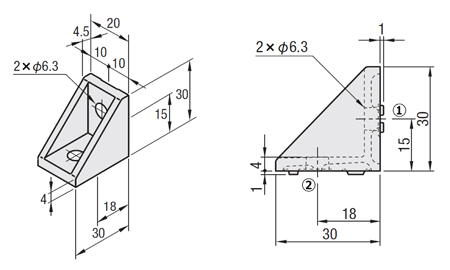

Dimensional Drawing

HBLFSN6
HBLFSNB6
(Black Anodize)
HBLFSNM6 (Electroless Nickel Plating)
CHBLFSN6 (Baked-on Finish, Silver)
HBLFSN6-5(For M5 Screws)

[ ! ]Since holes (1) and (2) are close to each other, insert the screw from (1) first.
For details, please refer to "How to install screws with spring washers (Alteration: SEC)" below.
[ ! ]For the perpendicularity of other brackets, please refer to the perpendicularity tolerance table.

Type[M] Material[S] Surface Treatment
(1) HBLFSN6EN AC-46100 Equiv.
(2) HBLFSN6−5
(3) HBLFSNB6Black Anodize
(4) HBLFSNM6Electroless Nickel Plating
(5) CHBLFSN6Baked-on Finish (Silver)
*Baked-on Finish (Silver) is color coordinated with Clear Coating Extrusions.

Specification Table

Part Number
HBLFSN6
Part NumberMassApplicable Bolt, T Nut (Specify by Alteration)Allowable Load
(g)ScrewsQuantityT NutQuantity(N)
HBLFSN615CBM6−122HNTT6−621176
HBLFSN6−5
(For M5 Screws)
CBM5−12HNTT6−5
HBLFSNB6*
(Black Anodize)
CBM6−12HNTT6−6
HBLFSNM6
(Electroless Nickel Plating)
CHBLFSN6
(Baked-on Finish, Silver)
[ ! ]Bolts and nuts are not included. If desired, please specify the alteration code.
[ ! ]If you wish for cover mounting hole machining, please specify the alteration code "C".
[ ! ]This is a bracket that allows for L-shaped connection/cross-connection of aluminum extrusions.

Alterations

Part NumberMounting Hole Machining
for Cover
Bolt and Nut
Set
HBLFSN6
SET
HBLFSN6C
SST
AlterationsCodeSpec.Applicable Bracket
Mounting Hole
Alteration for Cover
CAdds taps on a bracket for
cover mounting.
(M5 on Both Sides)
(Mounting Screw HCBM)
6 Series (Slot Width 8 mm) - For 1 Slot, Tabbed Brackets: Related Image
HBLFSN6
HBLFSN6-5
HBLFSNB6
HBLFSNM6
CHBLFSN6
HBLFS6
HBLFSB6
HBLFSL6
HBLFSR6
HBLFSNK6
HBLFSNE6
HBLFSH6

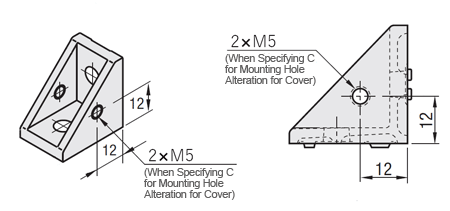

· Cover Mounting Hole Position Diagram
■Example of Cover Mounting
 ● Specify alteration code C.
6 Series (Slot Width 8 mm) - For 1 Slot, Tabbed Brackets: Related Image



AlterationsCodeSpec.Applicable Bracket
Applicable Screws and Nuts Set
Nuts Set
SET
SST

(Stainless Steel)
SEU
(Pre-Assembly Insertion
Spring Nuts)
SSU
(Pre-Assembly Insertion
Spring Nuts
Stainless steel)
SEP
(Post-Assembly Insertion
Spring Nuts)
SSP
(Post-Assembly
Spring Nut
Stainless steel)
SEC
(Captured Washer
Screws /
Nuts)
Applicable screws and nuts for fixing the brackets on extrusions
come in a set.

Example: When HBLFS6 is specified
 ScrewsNut
CodePart NumberQuantityPart NumberQuantity
SETCBM6-122HNTT6-62
SSTSCB6-12HNTTSN6-6
SEUCBM6-12HNTU6-6
SSUSCB6-12SHNTU6-6
SEPCBM6-12HNTP6-6
SSPSCB6-12SHNTP6-6
SECHCBST6-15HNTT6-6

[ ! ] When specifying other than HBLFS6, check for the applicable screws and nuts.


HBLFSN6
HBLFSN6-5
HBLFSNB6
HBLFSNM6
CHBLFSN6
HBLFS6
HBLFSB6
HBLFSL6
HBLFSR6
HBLFSNK6
HBLFSNE6
HBLFSH6
[ ! ] Screws for Black Anodized Brackets and Cathodic Electrodeposition Painted (black) Brackets are made of HCBMTB (Trivalent Chromate Black).
[ ! ] Included Screw is not RoHS compliant when the -SET, -SEU or -SEP code is specified for any bracket other than Black Anodized or Cathodic Electrodeposition Painted (black) ones.
[ ! ] For set combinations, please see "Set of applicable Screws and Nuts Details" below.

■Mounting Hole Alteration for Cover (-C)

M5 tapped holes can be added on both sides.
Alteration part number example: HBLFSN6-C

HBLFSN6,HBLFSNB6,HBLFSNM6,CHBLFSN6
Alteration
Code
Screws
Nut
Part Number
Material
Type
Part Number
Material
Stopper
SET
CBM6-12Steel
Pre-Assembly
HNTT6-6Steel
Not Provided
SST
SCB6-12Stainless Steel
Pre-Assembly
HNTTSN6-6Stainless Steel
Not Provided
SEU
CBM6-12Steel
Pre-Assembly
HNTU6-6Steel
Provided
SSU
SCB6-12Stainless Steel
Pre-Assembly
SHNTU6-6Stainless Steel
Provided
SEP
CBM6-12Steel
Post-Assembly
HNTP6-6Steel
Provided
SSP
SCB6-12Stainless Steel
Post-Assembly
SHNTP6-6Stainless Steel
Provided
SEC
HCBST6-15Steel (With Washers)
Pre-Assembly
HNTT6-6Steel
Not Provided
HBLFSN6-5
Alteration
Code
Screws
Nut
Part Number
Material
Type
Part Number
Material
Stopper
SET
CBM5-12Steel
Pre-Assembly
HNTT6-5Steel
Not Provided
SST
SCB5-12Stainless Steel
Pre-Assembly
HNTTSN6-5Stainless Steel
Not Provided
SEU
CBM5-12Steel
Pre-Assembly
HNTU6-5Steel
Provided
SSU
SCB5-12Stainless Steel
Pre-Assembly
SHNTU6-5Stainless Steel
Provided
SEP
CBM5-12Steel
Post-Assembly
HNTP6-5Steel
Provided
SSP
SCB5-12Stainless Steel
Post-Assembly
SHNTP6-5Stainless Steel
Provided
SEC
HCBST5-12Steel (With Washers)
Pre-Assembly
HNTT6-5Steel
Not Provided

* For HBLFSN6-5 only, applicable screws and nuts are for M5 screws.

App. Example

Features: It is a type with tabs to fit extrusions and stop when tightening.
Since the tabs stop rotating the brackets when tightening, work efficiency is improved.
[ ! ]When using the alteration "Applicable Bolt and Nut Set" with "-SEC" (Bolt with Washer),
there may be cases where the head of the washer bolt and the washer interfere, making mounting difficult.
Refer to "Installation method for bolts with spring washers (Alteration: SEC)" below.



Can be installed in either direction.

6シリーズ(溝幅8mm)-1列溝用- 突起付反転ブラケット 関連画像1_使用例

L-Connection

Cross-Connection


● Alteration: Applicable Bolt and Nut Set - SEC Usage Image

Technical Information

■Perpendicularity


■How to Specify Allowable Load of Bracket


6 Series (Slot Width 8 mm) - For 1 Slot, Reversal Tabbed Brackets, Related Image 1_Technical Information
This represents the allowable load per bracket for the extrusion assembly structured by bridging a beam extrusion between two vertical extrusions and then, attaching a bracket just below the bottom face of each end of the beam extrusion.
Allowable Load here means the load under which the bracket can stays at its position (without fracturing or sliding), after all of its mounting holes are fixed with screws.

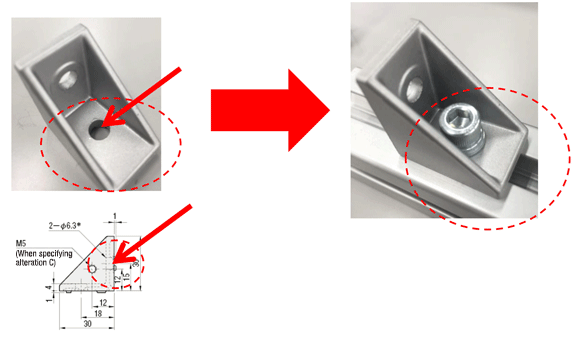

How to install screws with spring washers (Alteration: SEC)

■How to install HBLFSN6-SEC, which is a set product with screws with spring washers for the aluminum extrusion bracket HBLFSN6

Please be careful when tightening because the head of the screws interfere more often compared to screws with spring washers of other series.
How to install it:



STEP 1: Installation order

STEP 2: Tightening hex screws

Tighten the hex screws firmly. Related Image 1_Mounting Method: Related Image

Out of the two holes, install on the hole shown above first.



STEP 3: Adjusting the position of the spring washer of the screw

Press down on the spring washer part of the screw with your hand.

Related Image 1_Mounting Method: Related Image
Related Image 1_Mounting Method: Related Image

STEP 4: Tightening hex screws
Finally, install the hex screw by twisting it.
Related Image 1_Mounting Method: Related Image

As you can see, care must be taken when installing the washer on the 6 series HBLFSN6-SEC.
The following product is recommended if it is difficult to tighten them on one side in advance.


Product Comparison Information

There are two types of aluminum extrusions connections.

Bracket Connection6 Series (Slot Width 8 mm) - For 1 Slot, Reversal Tabbed Brackets, Product Comparison Information-1Inserts nuts into the slots of aluminum extrusions and fix with screws.
Economical and mountable at desired positions since alterations on extrusions are not required.
Joint Connection
Blind
6 Series (Slot Width 8 mm) - For 1 Slot, Reversal Tabbed Brackets, Product Comparison Information-2Adds hole alterations on the extrusion sides and connects with special joints.
Connection without brackets produces clean corners. Recommended where interference needs to be avoided.

Similar Products

■Tabbed Brackets

Mounting surfaces are tabbed to prevent rotations.

Product NameReversal Tabbed
Brackets
One-Side Rib BracketsNut Mounting BracketsWith Single Side Tab
Brackets
Brackets with Slotted Hole on one sideBrackets with Cover
Product Photo

6 Series (Slot Width 8 mm) - For 1 Slot, Reversal Tabbed Brackets, Related Image 1_Similar Products

6 Series (Slot Width 8 mm) - For 1 Slot, Reversal Tabbed Brackets, Related Image 2_Similar Products

6 Series (Slot Width 8 mm) - For 1 Slot, Reversal Tabbed Brackets, Related Image 3_Similar Products

One side has no tab and is connectable to plates.

6 Series (Slot Width 8 mm) - For 1 Slot, Reversal Tabbed Brackets, Related Image 4_Similar Products

6 Series (Slot Width 8 mm) - For 1 Slot, Reversal Tabbed Brackets, Related Image 5_Similar Products

6 Series (Slot Width 8 mm) - For 1 Slot, Reversal Tabbed Brackets, Related Image 6_Similar Products

MaterialEN AC-46100 Equiv.EN AC-46100 Equiv.EN AC-46100 Equiv.EN AC-46100 Equiv.EN AC-46100 Equiv.EN AC-46100 Equiv.
FeaturesTabs on mounting surfaces enable easy positioning. Most conventional type.One-Sided Tabbed (Side Face), easy to manipulate with hex wrenches.Nut position adjustment is not required since the long protrusion fixes nuts.Only one side of bracket has tabs. Suitable when connecting extrusions and plates.Brackets with Slotted Hole on one side. No interference between screw heads when using Screws with Washer.Brackets with dustproof cover. Superior in sanitation since dust does not intrude.
Representative modelsThis ProductHBLFSL6HBLFSR6HBLFSNK6HBLFSH6HBLFSNT6

Standard table

Model
HBLFSN6
ModelWeightCompatible bolts and T-nutsAllowable load
(g)BoltQuantityT-nutQuantity(N)
HBLFSN615CBM6-122HNTT6-621176
HBLFSN6-5
(For M5 bolt)
CBM5-12HNTT6-5
HBLFSNB6*
(Black anodizing)
CBM6-12HNTT6-6
HBLFSNM6
(Electroless nickel plating)
CHBLFSN6
(Baked coating / silver)
