6 Series / Brackets with Tab

Číslo dílu:

Nebyly nalezeny žádné nevyřízené. 24 návrhy.
Množství:

Obrysový výkres a tabulka specifikací

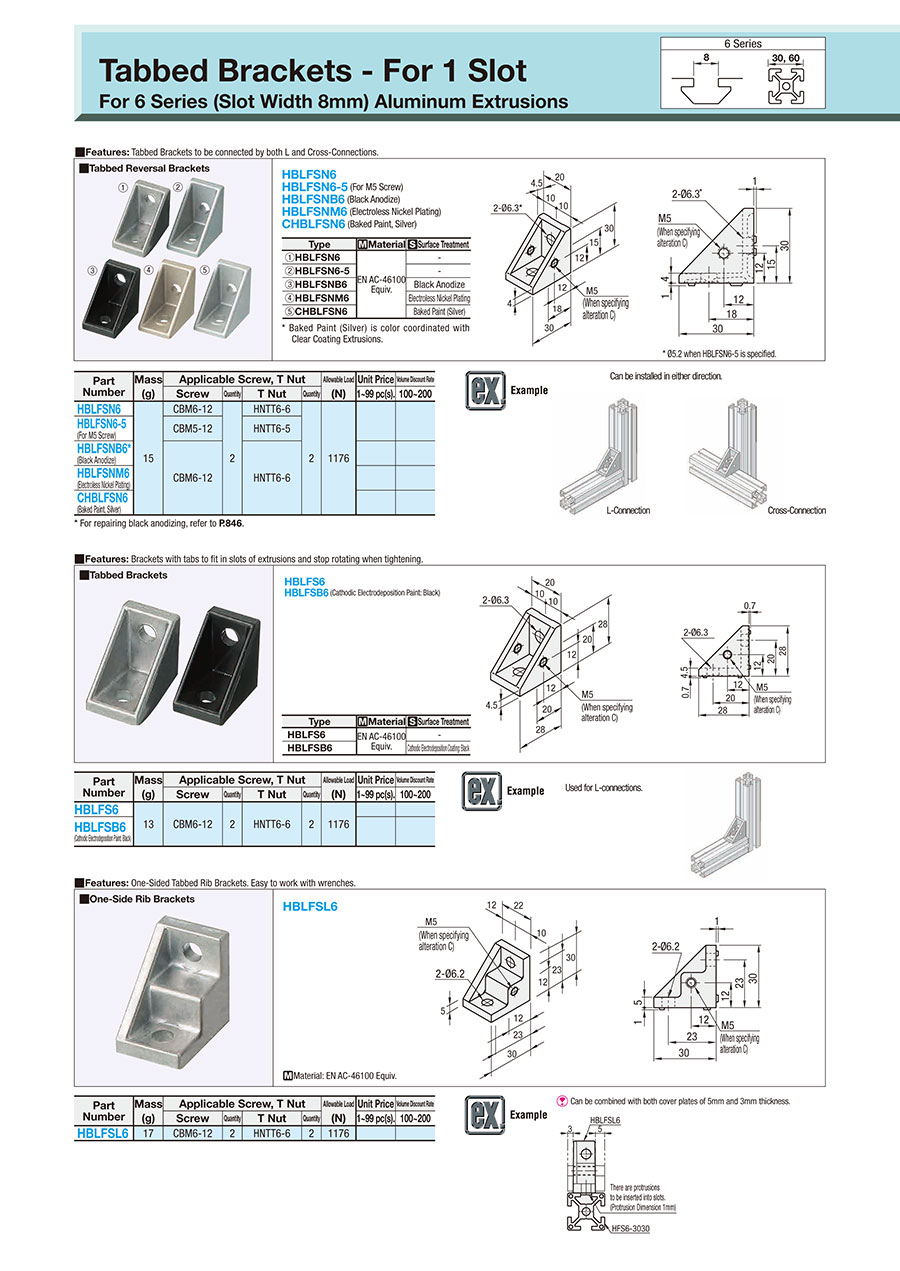

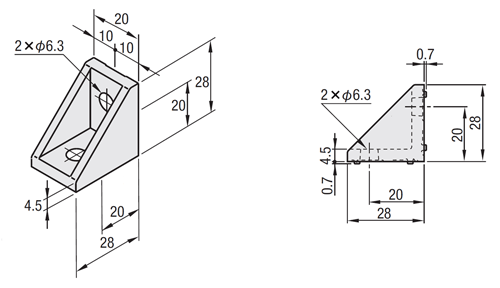

Dimensional Drawing

HBLFS6
HBLFSB6 (Cathodic Electrodeposition Coating: Black)
6 Series (Slot Width 8 mm) - For 1 Slot, Tabbed Brackets: Related Image
[!] Bolts and nuts can also be purchased as a set. See the Alterations below.
Type[M] Material[S] Surface Treatment
HBLFS6EN AC-46100 Equiv.
HBLFSB6Cathodic Electrodeposition Coating: Black

Specification Table

Part Number
HBLFS6
Part NumberMassApplicable Bolt, T Nut (Specify by Alteration)Allowable Load
(g)ScrewsQuantityT NutQuantity(N)
HBLFS613CBM6−122HNTT6−621176
HBLFSB6
(Cathodic Electrodeposition Coating: Black)
[ ! ]Bolts and nuts are not included. If desired, please specify the alteration code.
[ ! ]If you wish for cover mounting hole machining, please specify the alteration code "C".
[ ! ]Brackets for L-shaped connection of aluminum extrusions.

Alterations

Part NumberMounting Hole Machining
for Cover
Bolt and Nut
Set
HBLFS6 SET
HBLFS6CSET
■ Mounting Hole Machining for Cover
AlterationsCodeSpec.Applicable Bracket
Mounting Hole
Alteration for Cover
CAdds taps on a bracket for
cover mounting.
(M5 on Both Sides)
(Mounting Screw HCBM)
6 Series (Slot Width 8 mm) - For 1 Slot, Tabbed Brackets: Related Image
HBLFSN6
HBLFSN6-5
HBLFSNB6
HBLFSNM6
CHBLFSN6
HBLFS6
HBLFSB6
HBLFSL6
HBLFSR6
HBLFSNK6
HBLFSNE6
HBLFSH6

· Cover Mounting Hole Position Diagram
■ Example of Cover Mounting
 ● Specify alteration code C.

6 Series (Slot Width 8 mm) - For 1 Slot, Tabbed Brackets: Related Image

■ Applicable Bolt and Nut Set Alterations
AlterationsCodeSpec.Applicable Bracket
Applicable Screws and Nuts Set
Nuts Set
SET
SST

(Stainless Steel)
SEU
(Pre-Assembly Insertion
Spring Nuts)
SSU
(Pre-Assembly Insertion
Spring Nuts
Stainless steel)
SEP
(Post-Assembly Insertion
Spring Nuts)
SSP
(Post-Assembly
Spring Nut
Stainless steel)
SEC
(Captured Washer
Screws /
Nuts)
Applicable screws and nuts for fixing the brackets on extrusions
come in a set.

Example: When HBLFS6 is specified
 ScrewsNut
CodePart NumberQuantityPart NumberQuantity
SETCBM6-122HNTT6-62
SSTSCB6-12HNTTSN6-6
SEUCBM6-12HNTU6-6
SSUSCB6-12SHNTU6-6
SEPCBM6-12HNTP6-6
SSPSCB6-12SHNTP6-6
SECHCBST6-15HNTT6-6

[ ! ] When specifying other than HBLFS6, check for the applicable screws and nuts.


HBLFSN6
HBLFSN6-5
HBLFSNB6
HBLFSNM6
CHBLFSN6
HBLFS6
HBLFSB6
HBLFSL6
HBLFSR6
HBLFSNK6
HBLFSNE6
HBLFSH6
[ ! ] Screws for Black Anodized Brackets and Cathodic Electrodeposition Painted (black) Brackets are made of HCBMTB (Trivalent Chromate Black).
[ ! ] Included Screw is not RoHS compliant when the -SET, -SEU or -SEP code is specified for any bracket other than Black Anodized or Cathodic Electrodeposition Painted (black) ones.

■Set of applicable Screws and Nuts Details

Alteration CodeScrewsNut
Part NumberMaterialTypePart NumberMaterialStopper
SETCBM6-12SteelPre-AssemblyHNTT6-6SteelNot Provided
SSTSCB6-12Stainless SteelPre-AssemblyHNTTSN6-6Stainless SteelNot Provided
SEUCBM6-12SteelPre-AssemblyHNTU6-6SteelProvided
SSUSCB6-12Stainless SteelPre-AssemblySHNTU6-6Stainless SteelProvided
SEPCBM6-12SteelPost-AssemblyHNTP6-6SteelProvided
SSPSCB6-12Stainless SteelPost-AssemblySHNTP6-6Stainless SteelProvided
SECHCBST6-15Steel (With Washers)Pre-AssemblyHNTT6-6SteelNot Provided

App. Example

Features: It is a type with tabs to fit extrusions and stop when tightening.
Since the tabs stop rotating the brackets when tightening, work efficiency is improved.

Used for L-connections.
6 Series (Slot Width 8 mm) - For 1 Slot, Tabbed Brackets: Related Image

Technical Information

■Perpendicularity


■How to Specify Allowable Load of Bracket


6 Series (Slot Width 8 mm) - For 1 Slot, Tabbed Brackets, Related Image 1_Technical Information
This represents the allowable load per bracket for the extrusion assembly structured by bridging a beam extrusion between two vertical extrusions and then, attaching a bracket just below the bottom face of each end of the beam extrusion.
Allowable Load here means the load under which the bracket can stays at its position (without fracturing or sliding), after all of its mounting holes are fixed with screws.

Similar Products

■Tabbed Brackets

Mounting surfaces are tabbed to prevent rotations.

Product NameReversal Tabbed
Brackets
One-Side Rib BracketsNut Mounting BracketsWith Single Side Tab
Brackets
Brackets with Slotted Hole on one sideBrackets with Cover
Product Photo

6 Series (Slot Width 8 mm) - For 1 Slot, Tabbed Brackets, Related Image 1_Similar Products

6 Series (Slot Width 8 mm) - For 1 Slot, Tabbed Brackets, Related Image 2_Similar Products

6 Series (Slot Width 8 mm) - For 1 Slot, Tabbed Brackets, Related Image 3_Similar Products

One side has no tab and is connectable to plates.

6 Series (Slot Width 8 mm) - For 1 Slot, Tabbed Brackets, Related Image 4_Similar Products

6 Series (Slot Width 8 mm) - For 1 Slot, Tabbed Brackets, Related Image 5_Similar Products

6 Series (Slot Width 8 mm) - For 1 Slot, Tabbed Brackets, Related Image 6_Similar Products

MaterialEN AC-46100 Equiv.EN AC-46100 Equiv.EN AC-46100 Equiv.EN AC-46100 Equiv.EN AC-46100 Equiv.EN AC-46100 Equiv.
FeaturesTabs on mounting surfaces enable easy positioning. Most conventional type.One-Sided Tabbed (Side Face), easy to manipulate with hex wrenches.Nut position adjustment is not required since the long protrusion fixes nuts.Only one side of bracket has tabs. Suitable when connecting extrusions and plates.Brackets with Slotted Hole on one side. No interference between screw heads when using Screws with Washer.Brackets with dustproof cover. Superior in sanitation since dust does not intrude.
Representative modelsHBLFSN6HBLFSL6HBLFSR6HBLFSNK6HBLFSH6HBLFSNT6

Seznam čísel dílů

Počet položek

Surface Treatment

Cover Mounting Hole Addition Work

Accessories

RoHS?Minimální objednací množství
Not Provided
Not Provided
Not Provided
10
1 kusů
Not Provided
C (Tap for Cover Mounting)
Not Provided
10
1 kusů
Not Provided
C (Tap for Cover Mounting)
SEC (Washer Integrated Screw and Nut Set)
-
1 kusů
Not Provided
C (Tap for Cover Mounting)
SEP (Screw, Post-Assembly Insertion Spring Nut Set)
-
1 kusů
Not Provided
C (Tap for Cover Mounting)
SET (Screw, Nut Set)
-
1 kusů
Not Provided
C (Tap for Cover Mounting)
SEU (Screw, Pre-Assembly Insertion Spring Nut Set)
-
1 kusů
Not Provided
C (Tap for Cover Mounting)
SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set)
-
1 kusů
Not Provided
C (Tap for Cover Mounting)
SST (Stainless Steel Screw and Nut Set)
-
1 kusů
Not Provided
C (Tap for Cover Mounting)
SSU (Stainless Steel Screw, Pre-Assembly Insertion Spring Nut Set)
-
1 kusů
Not Provided
Not Provided
SEC (Washer Integrated Screw and Nut Set)
10
1 kusů
Not Provided
Not Provided
SEP (Screw, Post-Assembly Insertion Spring Nut Set)
-
1 kusů
Not Provided
Not Provided
SET (Screw, Nut Set)
-
1 kusů
Not Provided
Not Provided
SEU (Screw, Pre-Assembly Insertion Spring Nut Set)
-
1 kusů
Not Provided
Not Provided
SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set)
-
1 kusů
Not Provided
Not Provided
SST (Stainless Steel Screw and Nut Set)
-
1 kusů
Not Provided
Not Provided
SSU (Stainless Steel Screw, Pre-Assembly Insertion Spring Nut Set)
-
1 kusů
Cathodic Electrodeposition Coating (Black)
Not Provided
Not Provided
10
1 kusů
Cathodic Electrodeposition Coating (Black)
C (Tap for Cover Mounting)
Not Provided
10
1 kusů
Cathodic Electrodeposition Coating (Black)
C (Tap for Cover Mounting)
SEP (Screw, Post-Assembly Insertion Spring Nut Set)
-
1 kusů
Cathodic Electrodeposition Coating (Black)
C (Tap for Cover Mounting)
SET (Screw, Nut Set)
-
1 kusů
Cathodic Electrodeposition Coating (Black)
C (Tap for Cover Mounting)
SEU (Screw, Pre-Assembly Insertion Spring Nut Set)
-
1 kusů
Cathodic Electrodeposition Coating (Black)
C (Tap for Cover Mounting)
Not Provided
-
1 kusů
Cathodic Electrodeposition Coating (Black)
Not Provided
SET (Screw, Nut Set)
-
1 kusů
Cathodic Electrodeposition Coating (Black)
Not Provided
SEU (Screw, Pre-Assembly Insertion Spring Nut Set)
-
1 kusů
Jednotková cena (bez DPH)(Jednotková cena včetně DPH)
Standardní datum odeslání
0.85 €
( 1.01 € )
Skladová položka: 1 pracovní denK dispozici odeslání ve stejný den
1.12 €
( 1.33 € )
Skladová položka: 1 pracovní denK dispozici odeslání ve stejný den
2.93 €
( 3.49 € )
5 pracovních dnů
2.54 €
( 3.02 € )
5 pracovních dnů
2.21 €
( 2.63 € )
5 pracovních dnů
2.54 €
( 3.02 € )
5 pracovních dnů
2.82 €
( 3.36 € )
5 pracovních dnů
2.33 €
( 2.77 € )
5 pracovních dnů
3.40 €
( 4.05 € )
5 pracovních dnů
2.67 €
( 3.18 € )
5 pracovních dnů
2.30 €
( 2.74 € )
5 pracovních dnů
1.97 €
( 2.34 € )
5 pracovních dnů
2.30 €
( 2.74 € )
5 pracovních dnů
2.56 €
( 3.05 € )
5 pracovních dnů
2.06 €
( 2.45 € )
5 pracovních dnů
3.15 €
( 3.75 € )
5 pracovních dnů
1.67 €
( 1.99 € )
5 pracovních dnů
2.32 €
( 2.76 € )
5 pracovních dnů
3.23 €
( 3.84 € )
5 pracovních dnů
2.91 €
( 3.46 € )
5 pracovních dnů
3.23 €
( 3.84 € )
5 pracovních dnů
3.11 €
( 3.70 € )
5 pracovních dnů
2.91 €
( 3.46 € )
5 pracovních dnů
3.04 €
( 3.62 € )
5 pracovních dnů

Podrobné údaje

Základní informace


Bracket with a protrusion that prevents rotation. The protrusion prevents rotation during fastening work, so workability is excellent.

Náčrt a specifikace

App. Example

Used for L-connections.
6 Series (Slot Width 8 mm) - For 1 Slot, Tabbed Brackets: Related Image
