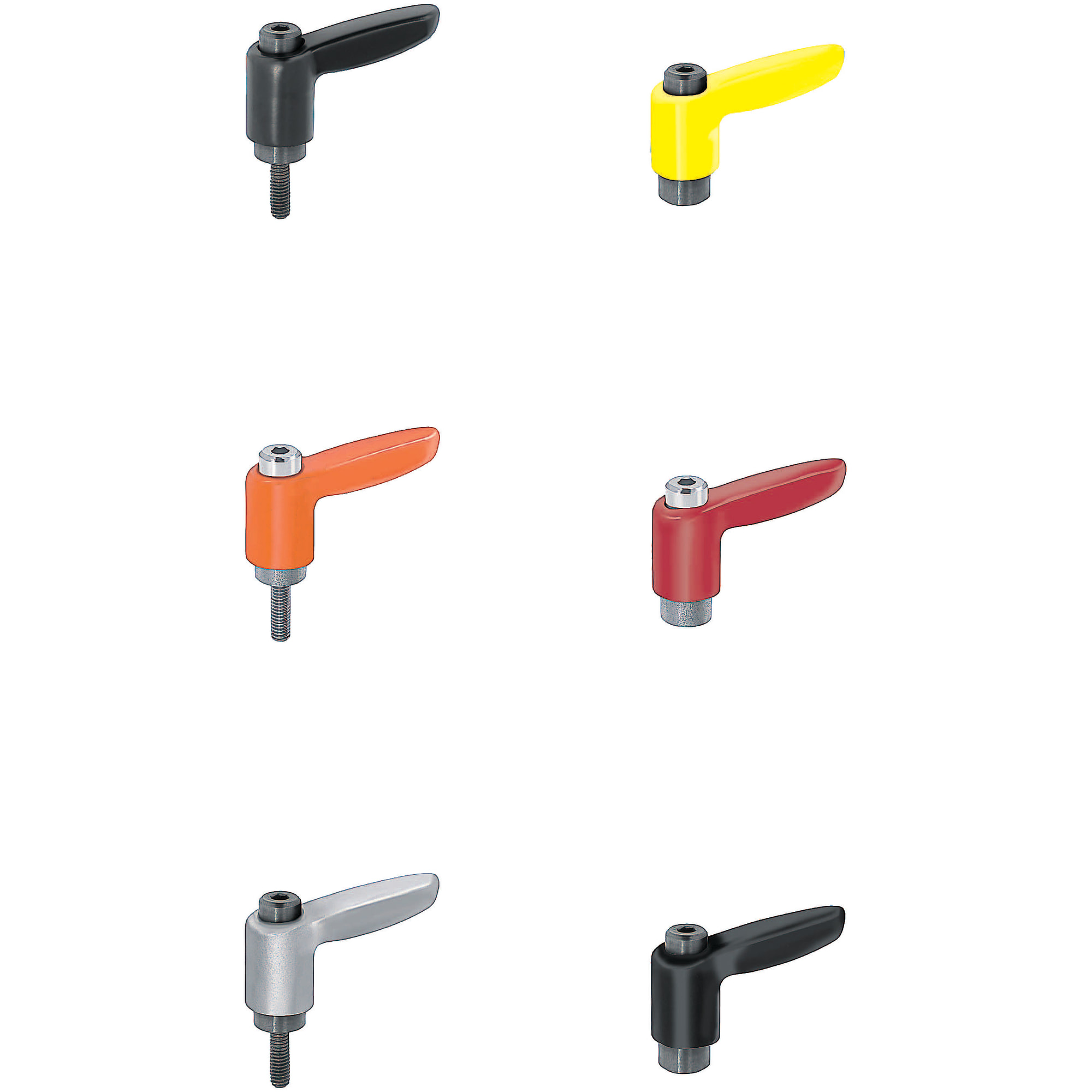

Miniature Clamp Levers / Threaded (CLDMC6-32-B)

Click on this image to zoom in.

Promotional pricing ends 30/11/2024
Volume Discount

MISUMI

Product Details:

Manufacturer part number: CLDMC6-32-B

Brand: MISUMI

Price: 7.81 €

Delivery time: 5 Days

Technical Data:

Mounting Section Type: [Male thread] Threads

Rotating Radius R: 30 mm

Lever Surface Treatment: Baked Paint

Mounting Section Material: [Steel] EN 1.1191 Equiv.

Mounting Section Surface Treatment: Black Oxide

Order quantities extended (D-JIT)
Stock

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

CLDMC6-32-B

Drawing / Specifications
3D Preview 3D preview is available after complete configuration
Part Numbers
More Information
Catalog

Miniature Clamp Levers/Threaded:Related Image

Type		Lever		Screw		Spring
Threaded	Tapped	Material	Surface Treatment	Material	Surface Treatment	Material
CLDMC	CLDFC	Zinc Die Casting	Baked Paint	EN 1.1191 Equiv.	Black Oxide	EN 1.4301 (WPB) Equiv.
CLMSC	CLFSC			EN 1.4305 Equiv.	-
CLCMC	CLCFC		Chrome Plating, Chrome over Satin Nickel

Chrome over satin nickel is a non-gloss finish.

Specifications

Part Number	-	L	-	Lever Color
CLDMC4 CLDMT4	- -	12 16	- -	M M

M	R	H	H₁	(h)	S	D	d	Number of Serrated Teeth	B	Max. Load Fmax. (N)		Max. Tightening Force Pmax. (kN)		Reference Mass (g)
										EN 1.4305 Equiv.	EN 1.1191 Equiv.	EN 1.4305 Equiv.	EN 1.1191 Equiv.	Threaded	Tapped
4	30	29	32.5	25.8	4	13	10	16	3	48	80	1.8	3.0	25	23
5										65	108	2.9	4.8	26	24
6										110	184	4.1	6.8	32	30
8	42	40	43.5	32.3	7	17.5	14	20	4	189	316	7.5	12.5	60	-

Part Number		L Selection						Lever Color		Unit Price
Type	M	L Selection						CLDMC, CLMSC	CLCMC	CLDMC	CLMSC	CLCMC
Threaded CLDMC CLMSC CLCMC	4	*8	12	16	20	25		B (Black) M (Orange) S (Silver Gray) R (Red) Y (Yellow)	C (Chrome Plating) SC (Satin Nickel Chrome Plating)
	5	*8	12	16	20	25	32
	6	*8	12	16	20	25	32
	*8			16	20	25	32					-

* Red and yellow are not available for M8 and L8 size levers. * M8 is not applicable to CLCMC

Part Number		L	Lever Color		Unit Price
Type	M	L	CLDFC, CLFSC	CLCFC	CLDFC	CLFSC	CLCFC
Tapped CLDFC CLFSC CLCFC	4	7	B (Black) M (Orange) S (Silver Grey) R (Red) Y (Yellow)	C (Chrome Plating) SC (Satin Nickel Chrome Plating)
	5
	6

Part Number:

3D preview is not available, because the part number has not yet been determined.

In order to open the 3D preview, the part number must be fixed.

Plug-in is required for 3D Preview

CAD Download

Data to be displayed: 30; 45; 60

Part Number
CLDMC6-32-B

Part Number	Standard Unit Price	Minimum order quantity	Volume Discount	Standard Shipping Days ?	RoHS	Mounting Section Type	Rotating Radius R (mm)	Lever Surface Treatment	Mounting Section Material	Mounting Section Surface Treatment	Mounting Section Dia. M	Mounting Section, Length L (mm)	Max. Tightening Force (N)	Lever Color
	7.81 €	1	Available	5 Days	10	[Male thread] Threads	30	Baked Paint	[Steel] EN 1.1191 Equiv.	Black Oxide	6	32	6800	B (Black)

Example of Use

Products homepage

Basic information

Application	Clamp	Type Clamp	Clamp Mechanism	Operation Direction	Horizontal
Shape	L Shape	Lever Material	Zinc Die Cast

This page is Miniature Clamp Levers / Threaded, part number CLDMC6-32-B.
You can find the detail information about specifications and dimensions on part number CLDMC6-32-B.
