Aluminum Handle, Oval (UADS132)
- Volume Discount
Product Details:
Manufacturer part number: UADS132
Brand: MISUMI
Price: 44.71 €
Delivery time: Same day
Technical Data:
Mounting Pitch L: 132 mm
Material: [EN 1.4301 Equiv.] EN 1.4301 Equiv.
Overall Height: 55 mm
Allowable Load: 800 N
Surface Treatment: Sand blasted
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
UADS132

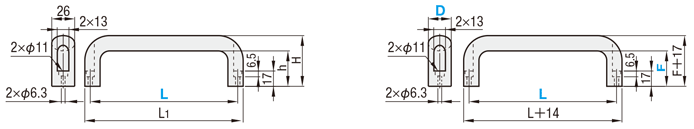

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
| Type | Material | Surface Treatment | |
| L Fixed | L and F Configurable | ||
| UADL | UADLF | Aluminum Alloy | Tumble Polish |
| UADR | UADRF | Electrostatic Paint (Mat Black) | |
| UADLA | - | Buffing | |
| UADEL | - | Clear Anodize | |
| UADS | UADSF | EN 1.4301 Equiv. | Sandblasting |
Specifications
| Part Number | - | L | - | F |
| UADR UADLF26 | - | 116 100 | - | 40 |
| Part Number | L1 | H | h | Allowable Load (N) | Unit Price | |||||
| Type | L | UADL | UADR | UADLA | UADEL | UADS | ||||
| (L Fixed) UADL UADR UADLA UADEL UADS | 100 | 114 | 47 | 30 | 1200 | - | - | |||
| 116 | 130 | 53 | 36 | 1200 | ||||||
| 132 | 146 | 55 | 38 | 800 | ||||||
| 150 | 164 | 67 | 50 | 600 | - | - | ||||
| 164 | 178 | 57 | 40 | 600 | ||||||
| 196 | 210 | 390 | ||||||||
| Part Number | 1mm Increment | Allowable Load for Reference (N) | Unit Price | ||||
| Type | D | L | F | UADLF | UADRF | UADSF | |
| (L and F Configurable) UADLF UADRF UADSF | 26 | 100~200 | 30~50 | 390~1200 | |||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| UADS132 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Mounting Pitch L (mm) | Material | Overall Height (mm) | Allowable Load (N) | Surface Treatment | F (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
44.71 € | 1 | Available |
Same day
Stock | 10 | 132 | [EN 1.4301 Equiv.] EN 1.4301 Equiv. | 55 | 800 | Sand blasted | - |
Loading...
Basic information
| Main Body Type | Surfaced Type | Surfaced Type Category | U Shape | U-shaped Type | Aluminum Pull Handles |
|---|---|---|---|---|---|
| Additional Function | Not Provided | Mounting Method | Outside Mount | Handle Thickness D(mm) | 26 |
This page is Aluminum Handle, Oval, part number UADS132.
You can find the detail information about specifications and dimensions on part number UADS132.
Configure
Stock
-
- Show only stock items
Basic Attributes
-
F(mm)
-
Type
- UADEL
- UADL
- UADLA
- UADLF
- UADR
- UADRF
- UADS
- UADSF
-
Mounting Pitch L(mm)
-
Material
- EN 1.4301 Equiv.
- Aluminum + Resin
- EN 1.4301 Equiv.
-
Overall Height(mm)
-
Surface Treatment
- Clear Anodize
- Tumble Polish
- Buffing
- Electrostatic Paint
- Sand blasted
- Clear Anodize
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 12 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Variation of this product
| Part Number |
|---|
| UADEL196 |
| UADL100 |
| UADL116 |
| UADS150 |
| UADS164 |
| UADS196 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Standard Shipping Days ? | RoHS | Mounting Pitch L (mm) | Material | Overall Height (mm) | Allowable Load (N) | Surface Treatment | F (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
27.72 € | 1 | Available |
Same day
Stock | 10 | 196 | [Aluminum + Resin] Aluminum Alloy | 57 | 390 | [Clear Anodize] Clear Anodize | - | |
14.74 € | 1 | Available |
Same day
Stock | 10 | 100 | [Aluminum + Resin] Aluminum Alloy | 47 | 1200 | Tumble Polish | - | |
16.21 € | 1 | Available |
Same day
Stock | 10 | 116 | [Aluminum + Resin] Aluminum Alloy | 53 | 1200 | Tumble Polish | - | |
45.59 € | 1 | Available |
Same day
Stock | 10 | 150 | [EN 1.4301 Equiv.] EN 1.4301 Equiv. | 67 | 600 | Sand blasted | - | |
47.10 € | 1 | Available | 5 Days | 10 | 164 | [EN 1.4301 Equiv.] EN 1.4301 Equiv. | 57 | 600 | Sand blasted | - | |
51.77 € | 1 | Available |
Same day
Stock | 10 | 196 | [EN 1.4301 Equiv.] EN 1.4301 Equiv. | 57 | 390 | Sand blasted | - |
