Inlet Side Tip Shape
- Diamond
Material
Steel
EN 1.7242 Equiv.
Mounting Side Dia. D(Ø)
- 6
Heat Treatment
- Carburized
Concentricity
- Standard Grade Ø0.03
Insertion Guide Section Outer Dia. P(Ø)
[8–12/0.1Ø jednotek]
Mounting Section Length L(mm)
- 5
Positioning Part Length B(mm)
[5–30/1mm jednotek]
Type
- TELNND
CAD
- 2D
- 3D
Odhadované dodací dny
- Vše
- V rámci 9 pracovních dnů

Další možnosti

Flat Position
- KC
Screw Dia. Change [MC](mm)
- 3
- 4
- 5
Screw Length Change [FC](mm)
[6–18/1mm jednotek]
Tip Angle Change [RC](°)
- 60
- 90
- 120

Jig Pins / Standard(h7) / Threaded (TELNND6-P10-B5-L5)

KatalogStr. 1-1691

Číslo dílu:

TELNND6-P10-B5-L5

Obrysový výkres a tabulka specifikací
Seznam čísel dílů
Podrobné údaje
Katalog

Obrysový výkres a tabulka specifikací

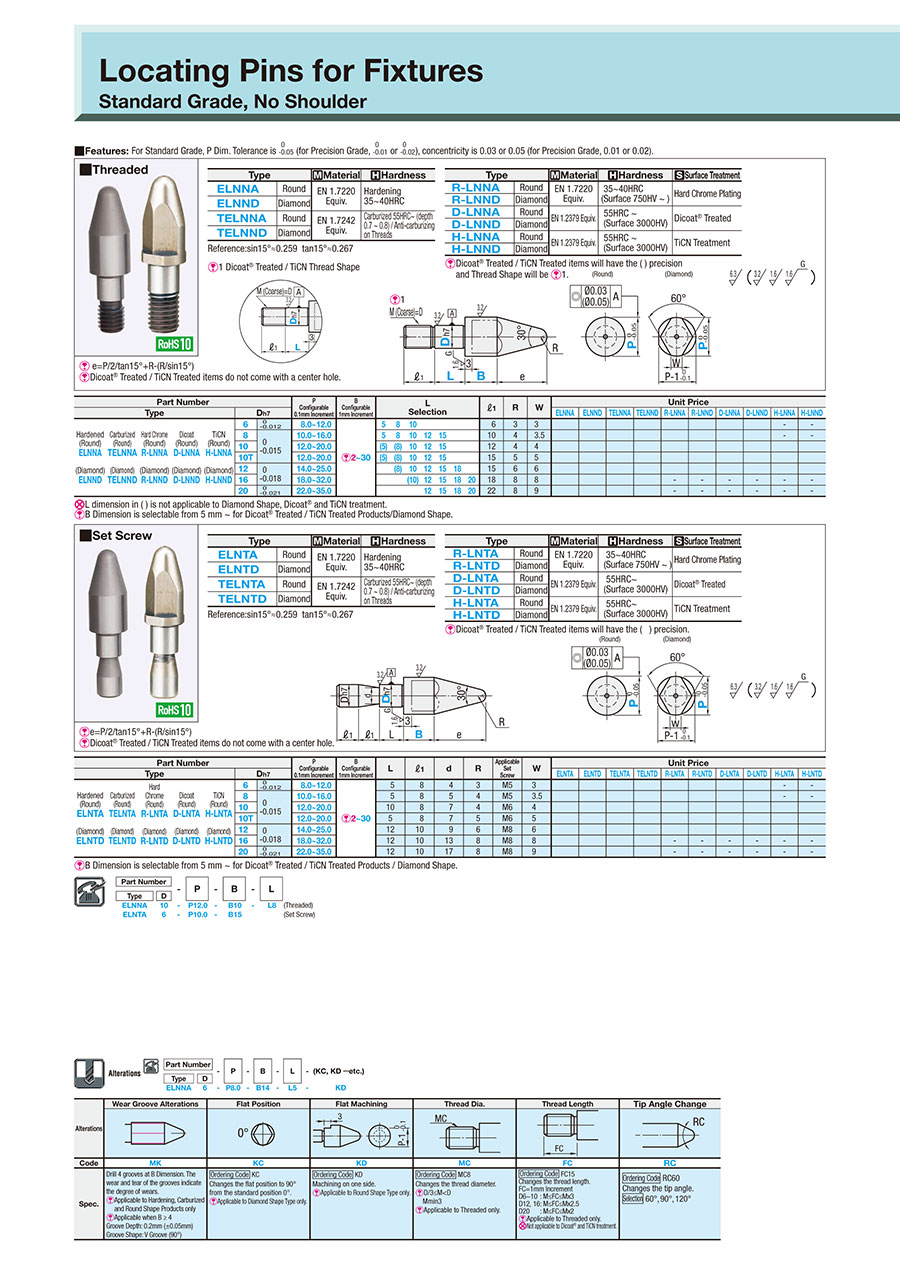

Jig Pins/Standard(h7)/Threaded:Related Image

Type		Material	Hardness
ELNNA	Round	EN 1.7220 Equiv.	Hardening 35~40HRC
ELNND	Diamond
TELNNA	Round	EN 1.7242 Equiv.	Carburized 55HRC~ (depth 0.7 ~ 0.8) / Anti-carburizing on Threads
TELNND	Diamond

Type		Material	Hardness	Surface Treatment
R-LNNA	Round	EN 1.7220 Equiv.	35~40HRC (Surface 750HV ~ )	Hard Chrome Plating
R-LNND	Diamond
D-LNNA	Round	EN 1.2379 Equiv.	55HRC ~ (Surface 3000HV)	Dicoat^® Treated
D-LNND	Diamond
H-LNNA	Round	EN 1.2379 Equiv.	55HRC ~ (Surface 3000HV)	TiCN Treatment
H-LNND	Diamond

Specifications

Part Number		-	P	-	B	-	L

Type	D
ELNNA	10	-	P12.0	-	B10	-	L8	(Threaded)
ELNTA	6	-	P10.0	-	B15			(Set Screw)

Part Number							P Configurable 0.1mm Increment	B Configurable 1mm Increment	L Selection							ℓ₁	R	W	Unit Price
Type					D_h7		P Configurable 0.1mm Increment	B Configurable 1mm Increment	L Selection							ℓ₁	R	W	ELNNA	ELNND	TELNNA	TELNND	R-LNNA	R-LNND	D-LNNA	D-LNND	H-LNNA	H-LNND
Hardened (Round) ELNNA (Diamond) ELNND	Carburized (Round) TELNNA (Diamond) TELNND	Hard Chrome (Round) R-LNNA (Diamond) R-LNND	Dicoat (Round) D-LNNA (Diamond) D-LNND	TiCN (Round) H-LNNA (Diamond) H-LNND	6	0 -0.012	8.0~12.0	2~30	5	8	10					6	3	3									-	-
					8	0 -0.015	10.0~16.0		5	8	10	12	15			10	4	3.5									-	-
					10		12.0~20.0		(5)	(8)	10	12	15			12	4	4
					10T		12.0~20.0		(5)	(8)	10	12	15			15	5	5
					12	0 -0.018	14.0~25.0			(8)	10	12	15	18		15	6	6
					16	0 -0.018	18.0~32.0				(10)	12	15	18	20	18	8	8					-	-	-	-	-	-
					20	0 -0.021	22.0~35.0					12	15	18	20	22	8	9					-	-	-	-	-	-

L dimension in ( ) is not applicable to Diamond Shape, Dicoat^® and TiCN treatment.
B Dimension is selectable from 5 mm ~ for Dicoat^® Treated / TiCN Treated Products/Diamond Shape.
