Threaded Stopper Blocks / Two Hole Type (AJWB1-MS6-MSA8-H20)
Click on this image to zoom in.
Click on this image to zoom in.
Product Details:
Manufacturer part number: AJWB1-MS6-MSA8-H20
Brand: MISUMI
Price: Please contact the support for quotation
Delivery time: 9 Days
Technical Data:
Material: EN 1.0038 Equiv.
Surface Treatment: Black Oxide
Coarse [MA]: - mm
Coarse [M]: - mm
Fine [MSA]: 8 mm
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
AJWB1-MS6-MSA8-H20
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
| MxPitch | |
| Coarse | Fine |
| 3x0.5 | 3x0.35 |
| 4x0.7 | 4x0.5 |
| 5x0.8 | 5x0.5 |
| 6x1.0 | 6x0.75 |
| 8x1.25 | 8x0.75 |
| MxPitch | |
| Coarse | Fine |
| 10x1.5 | 10x1.0 |
| 12x1.75 | 12x1.0 |
| - | 14x1.5 |
| 16x2.0 | 16x1.5 |
| 20x2.5 | 20x1.5 |
| Type | Material | Surface Treatment |
| AJWB | EN 1.0038 Equiv. | Black Oxide |
| AJWM | Electroless Nickel Plating | |
| AJWS | EN 1.4301 Equiv. | - |

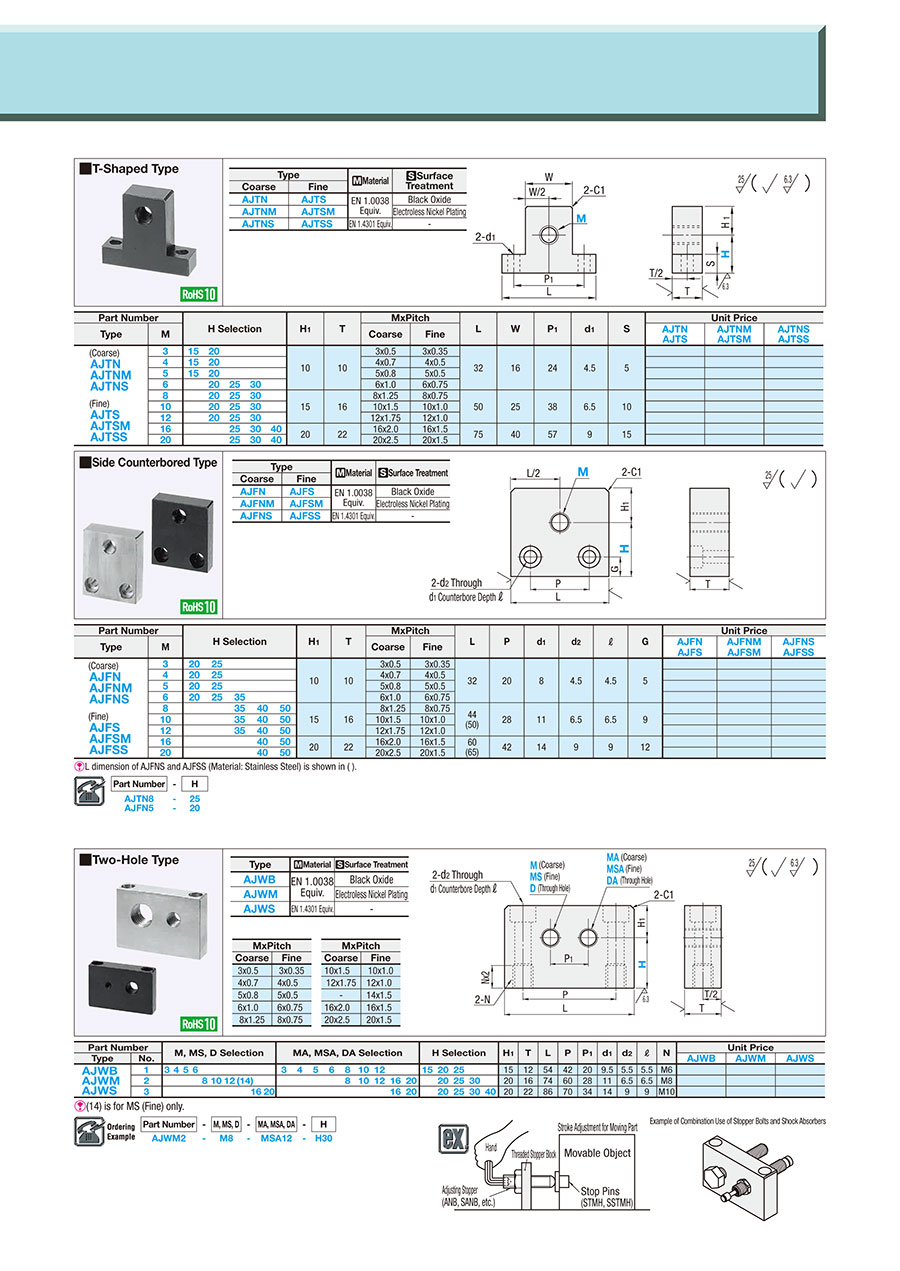

Specifications
| Part Number | - | M, MS, D | - | MA, MSA, DA | - | H |
| AJWM2 | - | M8 | - | MSA12 | - | H30 |
| Part Number | M, MS, D Selection | MA, MSA, DA Selection | H Selection | H1 | T | L | P | P1 | d1 | d2 | ℓ | N | Unit Price | ||||||||||||||||||||||||
| Type | No. | AJWB | AJWM | AJWS | |||||||||||||||||||||||||||||||||
| AJWB AJWM AJWS | 1 | 3 | 4 | 5 | 6 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | 25 | 15 | 12 | 54 | 42 | 20 | 9.5 | 5.5 | 5.5 | M6 | |||||||||||||
| 2 | 8 | 10 | 12 | (14) | 8 | 10 | 12 | 16 | 20 | 20 | 25 | 30 | 20 | 16 | 74 | 60 | 28 | 11 | 6.5 | 6.5 | M8 | ||||||||||||||||
| 3 | 16 | 20 | 16 | 20 | 20 | 25 | 30 | 40 | 20 | 22 | 86 | 70 | 34 | 14 | 9 | 9 | M10 | ||||||||||||||||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| AJWB1-MS6-MSA8-H20 |
| Part Number | Minimum order quantity | Volume Discount | RoHS | Material | Surface Treatment | Coarse [MA] (mm) | Coarse [M] (mm) | Fine [MSA] (mm) | Fine [MS] (mm) | H (mm) | Through Hole [DA] (mm) | Through Hole [D] (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 9 Days | 10 | EN 1.0038 Equiv. | Black Oxide | - | - | 8 | 6 | 20 | - | - |
