Potvrzeno
- Material
- Surface Treatment
- Width A(mm)
- 16
- B(mm)[8–12/1mm jednotek]
- L(mm)[50–200/10mm jednotek]
- T(mm)
- 5
- Type
- CAD
- 2D
- 3D
- Odhadované dodací dny
- Vše
- V rámci 6 pracovních dnů
Guides / Plates (WGTJ16-B8-L150-T5)

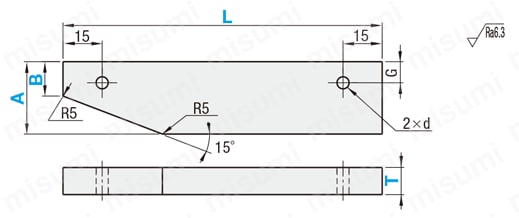

Obrysový výkres a tabulka specifikací
[!] Unless otherwise specified, the dimension tolerance conforms to JIS B 0405 Class m. However, angle dimension tolerances are excluded.
| Type | Material | Surface treatment |
| WGTB | EN 1.1191 Equiv. | Black Oxide |
| WGTM | Electroless Nickel Plating | |
| WGTJ | Polyacetal | — |
Specification Table
| Part Number | — | B | — | L | — | T |
| WGTB16 | — | B8 | — | L50 | — | T5 |
| Part Number | B 1 mm increments | L 10 mm increments | T Selection | G | d | |
| Type | A | |||||
| WGTB WGTM WGTJ | 16 | 8 to 12 | 50 to 200 | 5 9 12 | 6 | 4.5 |
| 19 | ||||||
| 22 | 11 to 15 | 60 to 200 | 8 | 5.5 | ||
| 25 | ||||||
| 32 | 14 to 25 | 80 to 200 | 10 | 6.5 | ||
Alterations
| Alteration code | Alteration details | Applicable conditions | Ordering example | |
| CC | Both Sides Cut Type | Cuts symmetrically. | [ ! ] L ≥ minL × 2 | WGTB16-B8-L100-T5-CC |
| SHC | Partial Hardening | (45 to 50HRC) Depth: 0.5 to 1.5 mm | [ ! ] Applicable to WGTB and WGTM | WGTB16-B8-L100-T5-SHC |
Podrobné údaje
Číslo dílu bylo potvrzeno
