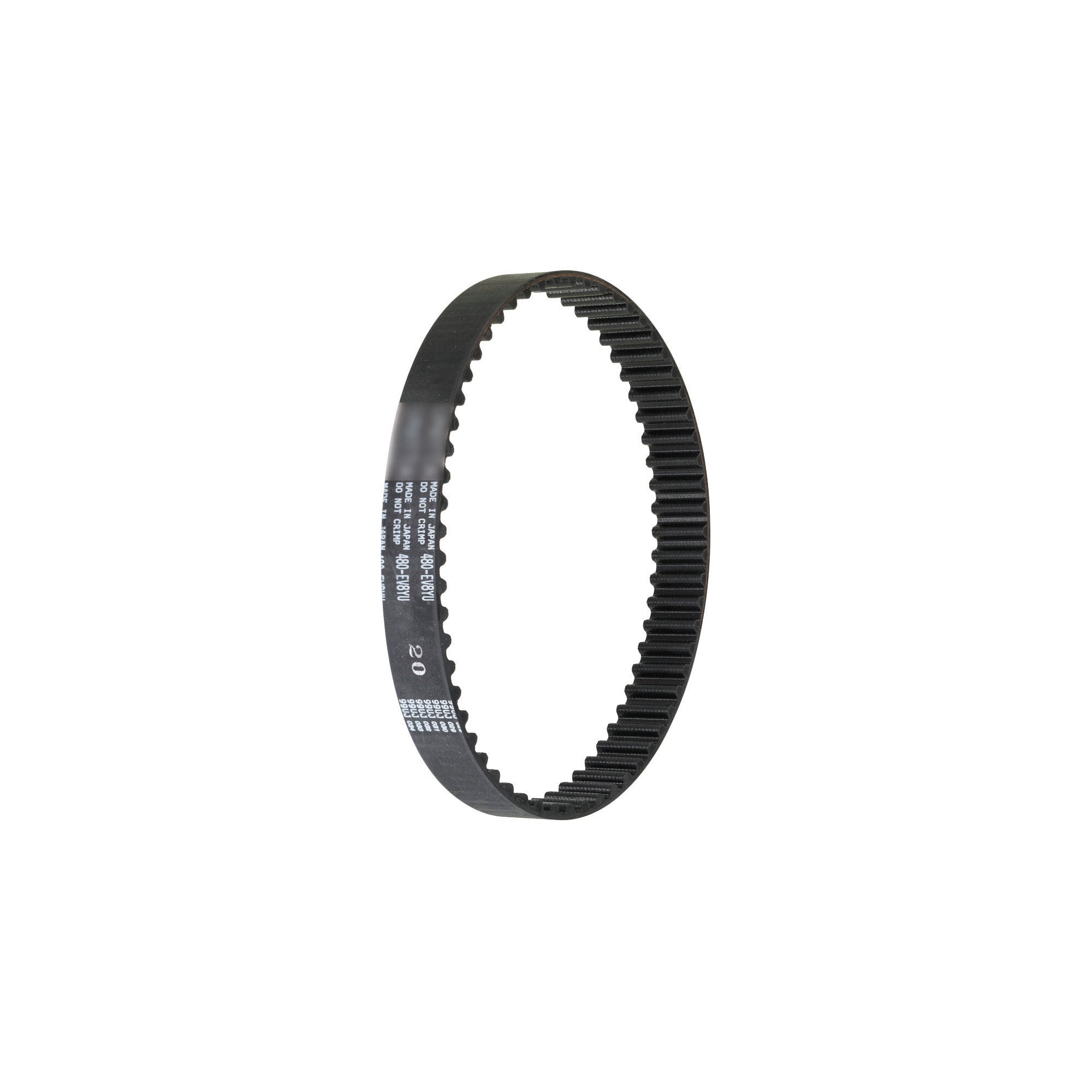

Timing belts / EV5GT, EV8YU / Highly elastic rubber / Glass fibre(Seznam čísel dílů: stránka 7)
Přesunutím myši nad obrázek ho zvětšíte
Číslo dílu:
návrhy.Obrysový výkres a tabulka specifikací
Back to the Category Timing Belt

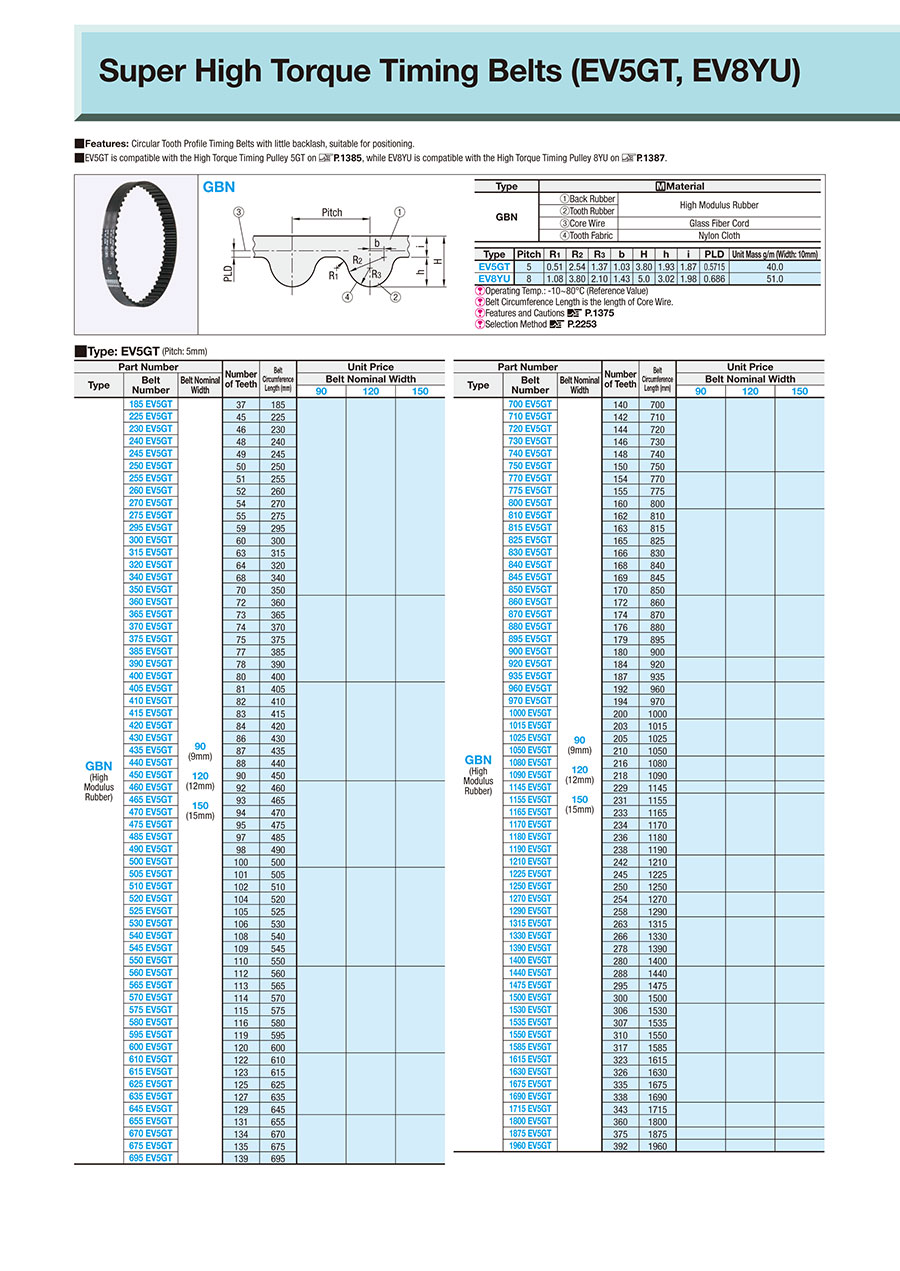

Technical Drawing - Timing Belts
Open the technical drawing in the new window
Available dimensions and tolerances can be found under the tab More information.
Basic Properties (e.g., material, hardness, coating, tolerance) - Timing Belts
| Type | Material | |
| GBN | Back Rubber | High Modulus Rubber |
| Tooth Rubber | ||
| Core Wire | Glass Fiber Cord | |
| Tooth Fabric | Nylon Cloth | |
Further specifications can be found under the tab More information.
Composition of a Product Code - Timing Belts
| Part Number | ||||
| Type | Belt Number | Belt Nominal Width | ||
| GBN | 300 EV5GT | - 120 | ||
Seznam čísel dílů
| Číslo dílu |
|---|
Jednotková cena (bez DPH)(Jednotková cena včetně DPH) | Standardní datum odeslání |
|---|
64.52 € ( 76.78 € ) | 7 pracovních dnů |
84.39 € ( 100.42 € ) | 7 pracovních dnů |
105.27 € ( 125.27 € ) | 7 pracovních dnů |
65.42 € ( 77.85 € ) | 7 pracovních dnů |
84.39 € ( 100.42 € ) | 7 pracovních dnů |
105.27 € ( 125.27 € ) | 7 pracovních dnů |
65.42 € ( 77.85 € ) | 7 pracovních dnů |
85.28 € ( 101.48 € ) | 7 pracovních dnů |
106.28 € ( 126.47 € ) | 7 pracovních dnů |
65.42 € ( 77.85 € ) | 7 pracovních dnů |
85.28 € ( 101.48 € ) | 7 pracovních dnů |
106.28 € ( 126.47 € ) | 7 pracovních dnů |
31.26 € ( 37.20 € ) | 7 pracovních dnů |
40.49 € ( 48.18 € ) | 7 pracovních dnů |
49.73 € ( 59.18 € ) | 7 pracovních dnů |
66.30 € ( 78.90 € ) | 7 pracovních dnů |
86.30 € ( 102.70 € ) | 7 pracovních dnů |
107.17 € ( 127.53 € ) | 7 pracovních dnů |
66.68 € ( 79.35 € ) | 7 pracovních dnů |
86.92 € ( 103.43 € ) | 7 pracovních dnů |
108.18 € ( 128.73 € ) | 7 pracovních dnů |
70.61 € ( 84.03 € ) | 7 pracovních dnů |
92.11 € ( 109.61 € ) | 7 pracovních dnů |
114.63 € ( 136.41 € ) | 7 pracovních dnů |
71.23 € ( 84.76 € ) | 7 pracovních dnů |
92.62 € ( 110.22 € ) | 7 pracovních dnů |
115.65 € ( 137.62 € ) | 7 pracovních dnů |
72.37 € ( 86.12 € ) | 7 pracovních dnů |
94.14 € ( 112.03 € ) | 7 pracovních dnů |
117.42 € ( 139.73 € ) | 7 pracovních dnů |
72.37 € ( 86.12 € ) | 7 pracovních dnů |
94.14 € ( 112.03 € ) | 7 pracovních dnů |
117.42 € ( 139.73 € ) | 7 pracovních dnů |
72.37 € ( 86.12 € ) | 7 pracovních dnů |
94.14 € ( 112.03 € ) | 7 pracovních dnů |
117.42 € ( 139.73 € ) | 7 pracovních dnů |
72.37 € ( 86.12 € ) | 7 pracovních dnů |
94.14 € ( 112.03 € ) | 7 pracovních dnů |
117.42 € ( 139.73 € ) | 7 pracovních dnů |
72.49 € ( 86.26 € ) | 7 pracovních dnů |
94.39 € ( 112.32 € ) | 7 pracovních dnů |
117.67 € ( 140.03 € ) | 7 pracovních dnů |
10.63 € ( 12.65 € ) | 7 pracovních dnů |
13.79 € ( 16.41 € ) | 7 pracovních dnů |
16.95 € ( 20.17 € ) | 7 pracovních dnů |
72.88 € ( 86.73 € ) | 7 pracovních dnů |
95.15 € ( 113.23 € ) | 7 pracovních dnů |
118.55 € ( 141.07 € ) | 7 pracovních dnů |
73.26 € ( 87.18 € ) | 7 pracovních dnů |
95.40 € ( 113.53 € ) | 7 pracovních dnů |
118.92 € ( 141.51 € ) | 7 pracovních dnů |
74.65 € ( 88.83 € ) | 7 pracovních dnů |
97.43 € ( 115.94 € ) | 7 pracovních dnů |
121.22 € ( 144.25 € ) | 7 pracovních dnů |
74.91 € ( 89.14 € ) | 7 pracovních dnů |
97.56 € ( 116.10 € ) | 7 pracovních dnů |
121.72 € ( 144.85 € ) | 7 pracovních dnů |
10.63 € ( 12.65 € ) | 7 pracovních dnů |
13.79 € ( 16.41 € ) | 7 pracovních dnů |
16.95 € ( 20.17 € ) | 7 pracovních dnů |
Podrobné údaje
Základní informace
Náčrt a specifikace
Back to the Category Timing Belt
Technical Drawing - Timing Belts
Open the technical drawing in the new window
Specification Tables - Timing Belts
| Type | Pitch | R1 | R2 | R3 | b | H | h | i | PLD | Unit Mass g/m (Width: 10mm) |
| EV5GT | 5 | 0.51 | 2.54 | 1.37 | 1.03 | 3.80 | 1.93 | 1.87 | 0.5715 | 40.0 |
| EV8YU | 8 | 1.08 | 3.80 | 2.10 | 1.43 | 5.0 | 3.02 | 1.98 | 0.686 | 51.0 |
Belt Circumference Length is the length of Core Wire.
Features and Cautions >> P.1375
Selection Method >> P.2253
■Type: EV5GT (Pitch: 5mm)
| Part Number | Number of Teeth | Belt Circumference Length (mm) | Unit Price | ||||
| Type | Belt Number | Belt Nominal Width | Belt Nominal Width | ||||
| 90 | 120 | 150 | |||||
| GBN (High Modulus Rubber) | 185 EV5GT | 90 (9mm) 120 (12mm) 150 (15mm) | 37 | 185 | |||
| 225 EV5GT | 45 | 225 | |||||
| 230 EV5GT | 46 | 230 | |||||
| 240 EV5GT | 48 | 240 | |||||
| 245 EV5GT | 49 | 245 | |||||
| 250 EV5GT | 50 | 250 | |||||
| 255 EV5GT | 51 | 255 | |||||
| 260 EV5GT | 52 | 260 | |||||
| 270 EV5GT | 54 | 270 | |||||
| 275 EV5GT | 55 | 275 | |||||
| 295 EV5GT | 59 | 295 | |||||
| 300 EV5GT | 60 | 300 | |||||
| 315 EV5GT | 63 | 315 | |||||
| 320 EV5GT | 64 | 320 | |||||
| 340 EV5GT | 68 | 340 | |||||
| 350 EV5GT | 70 | 350 | |||||
| 360 EV5GT | 72 | 360 | |||||
| 365 EV5GT | 73 | 365 | |||||
| 370 EV5GT | 74 | 370 | |||||
| 375 EV5GT | 75 | 375 | |||||
| 385 EV5GT | 77 | 385 | |||||
| 390 EV5GT | 78 | 390 | |||||
| 400 EV5GT | 80 | 400 | |||||
| 405 EV5GT | 81 | 405 | |||||
| 410 EV5GT | 82 | 410 | |||||
| 415 EV5GT | 83 | 415 | |||||
| 420 EV5GT | 84 | 420 | |||||
| 430 EV5GT | 86 | 430 | |||||
| 435 EV5GT | 87 | 435 | |||||
| 440 EV5GT | 88 | 440 | |||||
| 450 EV5GT | 90 | 450 | |||||
| 460 EV5GT | 92 | 460 | |||||
| 465 EV5GT | 93 | 465 | |||||
| 470 EV5GT | 94 | 470 | |||||
| 475 EV5GT | 95 | 475 | |||||
| 485 EV5GT | 97 | 485 | |||||
| 490 EV5GT | 98 | 490 | |||||
| 500 EV5GT | 100 | 500 | |||||
| 505 EV5GT | 101 | 505 | |||||
| 510 EV5GT | 102 | 510 | |||||
| 520 EV5GT | 104 | 520 | |||||
| 525 EV5GT | 105 | 525 | |||||
| 530 EV5GT | 106 | 530 | |||||
| 540 EV5GT | 108 | 540 | |||||
| 545 EV5GT | 109 | 545 | |||||
| 550 EV5GT | 110 | 550 | |||||
| 560 EV5GT | 112 | 560 | |||||
| 565 EV5GT | 113 | 565 | |||||
| 570 EV5GT | 114 | 570 | |||||
| 575 EV5GT | 115 | 575 | |||||
| 580 EV5GT | 116 | 580 | |||||
| 595 EV5GT | 119 | 595 | |||||
| 600 EV5GT | 120 | 600 | |||||
| 610 EV5GT | 122 | 610 | |||||
| 615 EV5GT | 123 | 615 | |||||
| 625 EV5GT | 125 | 625 | |||||
| 635 EV5GT | 127 | 635 | |||||
| 645 EV5GT | 129 | 645 | |||||
| 655 EV5GT | 131 | 655 | |||||
| 670 EV5GT | 134 | 670 | |||||
| 675 EV5GT | 135 | 675 | |||||
| 695 EV5GT | 139 | 695 | |||||
| Part Number | Number of Teeth | Belt Circumference Length (mm) | Unit Price | ||||
| Type | Belt Number | Belt Nominal Width | Belt Nominal Width | ||||
| 90 | 120 | 150 | |||||
| GBN (High Modulus Rubber) | 700 EV5GT | 90 (9mm) 120 (12mm) 150 (15mm) | 140 | 700 | |||
| 710 EV5GT | 142 | 710 | |||||
| 720 EV5GT | 144 | 720 | |||||
| 730 EV5GT | 146 | 730 | |||||
| 740 EV5GT | 148 | 740 | |||||
| 750 EV5GT | 150 | 750 | |||||
| 770 EV5GT | 154 | 770 | |||||
| 775 EV5GT | 155 | 775 | |||||
| 800 EV5GT | 160 | 800 | |||||
| 810 EV5GT | 162 | 810 | |||||
| 815 EV5GT | 163 | 815 | |||||
| 825 EV5GT | 165 | 825 | |||||
| 830 EV5GT | 166 | 830 | |||||
| 840 EV5GT | 168 | 840 | |||||
| 845 EV5GT | 169 | 845 | |||||
| 850 EV5GT | 170 | 850 | |||||
| 860 EV5GT | 172 | 860 | |||||
| 870 EV5GT | 174 | 870 | |||||
| 880 EV5GT | 176 | 880 | |||||
| 895 EV5GT | 179 | 895 | |||||
| 900 EV5GT | 180 | 900 | |||||
| 920 EV5GT | 184 | 920 | |||||
| 935 EV5GT | 187 | 935 | |||||
| 960 EV5GT | 192 | 960 | |||||
| 970 EV5GT | 194 | 970 | |||||
| 1000 EV5GT | 200 | 1000 | |||||
| 1015 EV5GT | 203 | 1015 | |||||
| 1025 EV5GT | 205 | 1025 | |||||
| 1050 EV5GT | 210 | 1050 | |||||
| 1080 EV5GT | 216 | 1080 | |||||
| 1090 EV5GT | 218 | 1090 | |||||
| 1145 EV5GT | 229 | 1145 | |||||
| 1155 EV5GT | 231 | 1155 | |||||
| 1165 EV5GT | 233 | 1165 | |||||
| 1170 EV5GT | 234 | 1170 | |||||
| 1180 EV5GT | 236 | 1180 | |||||
| 1190 EV5GT | 238 | 1190 | |||||
| 1210 EV5GT | 242 | 1210 | |||||
| 1225 EV5GT | 245 | 1225 | |||||
| 1250 EV5GT | 250 | 1250 | |||||
| 1270 EV5GT | 254 | 1270 | |||||
| 1290 EV5GT | 258 | 1290 | |||||
| 1315 EV5GT | 263 | 1315 | |||||
| 1330 EV5GT | 266 | 1330 | |||||
| 1390 EV5GT | 278 | 1390 | |||||
| 1400 EV5GT | 280 | 1400 | |||||
| 1440 EV5GT | 288 | 1440 | |||||
| 1475 EV5GT | 295 | 1475 | |||||
| 1500 EV5GT | 300 | 1500 | |||||
| 1530 EV5GT | 306 | 1530 | |||||
| 1535 EV5GT | 307 | 1535 | |||||
| 1550 EV5GT | 310 | 1550 | |||||
| 1585 EV5GT | 317 | 1585 | |||||
| 1615 EV5GT | 323 | 1615 | |||||
| 1630 EV5GT | 326 | 1630 | |||||
| 1675 EV5GT | 335 | 1675 | |||||
| 1690 EV5GT | 338 | 1690 | |||||
| 1715 EV5GT | 343 | 1715 | |||||
| 1800 EV5GT | 360 | 1800 | |||||
| 1875 EV5GT | 375 | 1875 | |||||
| 1960 EV5GT | 392 | 1960 | |||||
■Type: EV8YU (Pitch: 8mm)
| Part Number | Number of Teeth | Belt Circumference Length (mm) | Unit Price | ||||
| Type | Belt Number | Belt Nominal Width | Belt Nominal Width | ||||
| 150 | 200 | 250 | |||||
| GBN (High Modulus Rubber) | 408 EV8YU | 150 (15mm) 200 (20mm) 250 (25mm) | 51 | 408 | |||
| 416 EV8YU | 52 | 416 | |||||
| 432 EV8YU | 54 | 432 | |||||
| 440 EV8YU | 55 | 440 | |||||
| 464 EV8YU | 58 | 464 | |||||
| 472 EV8YU | 59 | 472 | |||||
| 480 EV8YU | 60 | 480 | |||||
| 488 EV8YU | 61 | 488 | |||||
| 504 EV8YU | 63 | 504 | |||||
| 512 EV8YU | 64 | 512 | |||||
| 520 EV8YU | 65 | 520 | |||||
| 536 EV8YU | 67 | 536 | |||||
| 544 EV8YU | 68 | 544 | |||||
| 552 EV8YU | 69 | 552 | |||||
| 560 EV8YU | 70 | 560 | |||||
| 576 EV8YU | 72 | 576 | |||||
| 600 EV8YU | 75 | 600 | |||||
| 608 EV8YU | 76 | 608 | |||||
| 616 EV8YU | 77 | 616 | |||||
| 624 EV8YU | 78 | 624 | |||||
| 632 EV8YU | 79 | 632 | |||||
| 640 EV8YU | 80 | 640 | |||||
| 656 EV8YU | 82 | 656 | |||||
| 664 EV8YU | 83 | 664 | |||||
| 680 EV8YU | 85 | 680 | |||||
| 704 EV8YU | 88 | 704 | |||||
| 720 EV8YU | 90 | 720 | |||||
| 728 EV8YU | 91 | 728 | |||||
| 744 EV8YU | 93 | 744 | |||||
| 752 EV8YU | 94 | 752 | |||||
| 760 EV8YU | 95 | 760 | |||||
| 768 EV8YU | 96 | 768 | |||||
| 776 EV8YU | 97 | 776 | |||||
| 784 EV8YU | 98 | 784 | |||||
| 792 EV8YU | 99 | 792 | |||||
| 800 EV8YU | 100 | 800 | |||||
| 808 EV8YU | 101 | 808 | |||||
| 816 EV8YU | 102 | 816 | |||||
| 824 EV8YU | 103 | 824 | |||||
| 832 EV8YU | 104 | 832 | |||||
| 840 EV8YU | 105 | 840 | |||||
| 848 EV8YU | 106 | 848 | |||||
| 856 EV8YU | 107 | 856 | |||||
| 864 EV8YU | 108 | 864 | |||||
| 872 EV8YU | 109 | 872 | |||||
| 880 EV8YU | 110 | 880 | |||||
| 888 EV8YU | 111 | 888 | |||||
| 896 EV8YU | 112 | 896 | |||||
| 904 EV8YU | 113 | 904 | |||||
| 912 EV8YU | 114 | 912 | |||||
| 920 EV8YU | 115 | 920 | |||||
| 928 EV8YU | 116 | 928 | |||||
| 936 EV8YU | 117 | 936 | |||||
| 944 EV8YU | 118 | 944 | |||||
| 952 EV8YU | 119 | 952 | |||||
| 960 EV8YU | 120 | 960 | |||||
| 968 EV8YU | 121 | 968 | |||||
| 976 EV8YU | 122 | 976 | |||||
| 984 EV8YU | 123 | 984 | |||||
| 992 EV8YU | 124 | 992 | |||||
| 1000 EV8YU | 125 | 1000 | |||||
| 1008 EV8YU | 126 | 1008 | |||||
| 1016 EV8YU | 127 | 1016 | |||||
| 1032 EV8YU | 129 | 1032 | |||||
| 1040 EV8YU | 130 | 1040 | |||||
| 1064 EV8YU | 133 | 1064 | |||||
| 1072 EV8YU | 134 | 1072 | |||||
| 1080 EV8YU | 135 | 1080 | |||||
| 1088 EV8YU | 136 | 1088 | |||||
| 1096 EV8YU | 137 | 1096 | |||||
| 1112 EV8YU | 139 | 1112 | |||||
| 1120 EV8YU | 140 | 1120 | |||||
| 1128 EV8YU | 141 | 1128 | |||||
| 1136 EV8YU | 142 | 1136 | |||||
| 1144 EV8YU | 143 | 1144 | |||||
| 1152 EV8YU | 144 | 1152 | |||||
| 1160 EV8YU | 145 | 1160 | |||||
| 1168 EV8YU | 146 | 1168 | |||||
| 1176 EV8YU | 147 | 1176 | |||||
| 1184 EV8YU | 148 | 1184 | |||||
| 1192 EV8YU | 149 | 1192 | |||||
| 1200 EV8YU | 150 | 1200 | |||||
| 1208 EV8YU | 151 | 1208 | |||||
| 1216 EV8YU | 152 | 1216 | |||||
| Part Number | Number of Teeth | Belt Circumference Length (mm) | Unit Price | ||||
| Type | Belt Number | Belt Nominal Width | Belt Nominal Width | ||||
| 150 | 200 | 250 | |||||
| GBN (High Modulus Rubber) | 1224 EV8YU | 150 (15mm) 200 (20mm) 250 (25mm) | 153 | 1224 | |||
| 1232 EV8YU | 154 | 1232 | |||||
| 1240 EV8YU | 155 | 1240 | |||||
| 1248 EV8YU | 156 | 1248 | |||||
| 1256 EV8YU | 157 | 1256 | |||||
| 1264 EV8YU | 158 | 1264 | |||||
| 1272 EV8YU | 159 | 1272 | |||||
| 1280 EV8YU | 160 | 1280 | |||||
| 1288 EV8YU | 161 | 1288 | |||||
| 1296 EV8YU | 162 | 1296 | |||||
| 1304 EV8YU | 163 | 1304 | |||||
| 1312 EV8YU | 164 | 1312 | |||||
| 1320 EV8YU | 165 | 1320 | |||||
| 1328 EV8YU | 166 | 1328 | |||||
| 1336 EV8YU | 167 | 1336 | |||||
| 1344 EV8YU | 168 | 1344 | |||||
| 1352 EV8YU | 169 | 1352 | |||||
| 1360 EV8YU | 170 | 1360 | |||||
| 1376 EV8YU | 172 | 1376 | |||||
| 1384 EV8YU | 173 | 1384 | |||||
| 1392 EV8YU | 174 | 1392 | |||||
| 1400 EV8YU | 175 | 1400 | |||||
| 1408 EV8YU | 176 | 1408 | |||||
| 1416 EV8YU | 177 | 1416 | |||||
| 1424 EV8YU | 178 | 1424 | |||||
| 1432 EV8YU | 179 | 1432 | |||||
| 1440 EV8YU | 180 | 1440 | |||||
| 1448 EV8YU | 181 | 1448 | |||||
| 1456 EV8YU | 182 | 1456 | |||||
| 1464 EV8YU | 183 | 1464 | |||||
| 1480 EV8YU | 185 | 1480 | |||||
| 1496 EV8YU | 187 | 1496 | |||||
| 1520 EV8YU | 190 | 1520 | |||||
| 1544 EV8YU | 193 | 1544 | |||||
| 1568 EV8YU | 196 | 1568 | |||||
| 1576 EV8YU | 197 | 1576 | |||||
| 1600 EV8YU | 200 | 1600 | |||||
| 1608 EV8YU | 201 | 1608 | |||||
| 1616 EV8YU | 202 | 1616 | |||||
| 1640 EV8YU | 205 | 1640 | |||||
| 1656 EV8YU | 207 | 1656 | |||||
| 1680 EV8YU | 210 | 1680 | |||||
| 1688 EV8YU | 211 | 1688 | |||||
| 1696 EV8YU | 212 | 1696 | |||||
| 1720 EV8YU | 215 | 1720 | |||||
| 1728 EV8YU | 216 | 1728 | |||||
| 1736 EV8YU | 217 | 1736 | |||||
| 1752 EV8YU | 219 | 1752 | |||||
| 1760 EV8YU | 220 | 1760 | |||||
| 1768 EV8YU | 221 | 1768 | |||||
| 1776 EV8YU | 222 | 1776 | |||||
| 1784 EV8YU | 223 | 1784 | |||||
| 1808 EV8YU | 226 | 1808 | |||||
| 1816 EV8YU | 227 | 1816 | |||||
| 1824 EV8YU | 228 | 1824 | |||||
| 1856 EV8YU | 232 | 1856 | |||||
| 1864 EV8YU | 233 | 1864 | |||||
| 1872 EV8YU | 234 | 1872 | |||||
| 1888 EV8YU | 236 | 1888 | |||||
| 1896 EV8YU | 237 | 1896 | |||||
| 1912 EV8YU | 239 | 1912 | |||||
| 1928 EV8YU | 241 | 1928 | |||||
| 1944 EV8YU | 243 | 1944 | |||||
| 1952 EV8YU | 244 | 1952 | |||||
| 1976 EV8YU | 247 | 1976 | |||||
| 2000 EV8YU | 250 | 2000 | |||||
| 2056 EV8YU | 257 | 2056 | |||||
| 2072 EV8YU | 259 | 2072 | |||||
| 2120 EV8YU | 265 | 2120 | |||||
| 2136 EV8YU | 267 | 2136 | |||||
| 2160 EV8YU | 270 | 2160 | |||||
| 2240 EV8YU | 280 | 2240 | |||||
| 2248 EV8YU | 281 | 2248 | |||||
| 2264 EV8YU | 283 | 2264 | |||||
| 2280 EV8YU | 285 | 2280 | |||||
| 2296 EV8YU | 287 | 2296 | |||||
| 2304 EV8YU | 288 | 2304 | |||||
| 2328 EV8YU | 291 | 2328 | |||||
| 2400 EV8YU | 300 | 2400 | |||||
| 2456 EV8YU | 307 | 2456 | |||||
| 2600 EV8YU | 325 | 2600 | |||||
| 2800 EV8YU | 350 | 2800 | |||||
| 3200 EV8YU | 400 | 3200 | |||||
| 3440 EV8YU | 430 | 3440 | |||||
General Information - Timing Belts
Timing Belt Selection Details
- Material: chloroprene rubber (neoprene), polyurethane (PU)
- Tension cord: glass fibre, aramid fibre, steel
- Width (mm): 1 to 101.6
- Width (in.): 0.19 to 4
- Profile (metric): T5, T10, AT5, AT10, S2M, S3M, S5M, S8M, S14M, MTS8M, EV5GT, EV8YU, 2GT, 3GT, MA3, MA5, MA8, P2M, P3M, P5M, P8M, UP5M, UP8M
- Profile (in.): MXL, XL, L, H
Description/Basics
Timing belts for mechanical engineering are intended for force and power transmission. Depending on the interlocking of the profile, they can alternatively be used for the material flow (transportation) or for positioning.
Timing belts are more maintenance-friendly, efficient and durable compared to roller chains.
Maintenance-friendly: timing belts do not require lubrication, are easy to replace and are very durable, as they do not sag. These properties significantly reduce maintenance costs.
Efficient: drive belts are largely made of natural rubber or polyurethane. As a result, timing belts withstand high speeds. A further advantage of these materials is the weight reduction compared to conventional metal drives. Timing belts are also known for low-noise running and contribute to the general smooth running of an application.
Durability: due to the inserted tension cord made of glass fibre or aramid fibre (Kevlar), timing belts can withstand high tensile stresses and do not tend to sag. An additional layer of nylon fabric on the interlocked side reduces wear due to abrasion and increases the service life.
Timing belts can be used in many ways. The belt profile that suits your application depends on the task of the timing belt. MISUMI offers a suitable belt profile for almost every type of application.
Drive: timing belts are used even at high torque. Drive belts with a rounded trapezoidal profile (e.g., S8M) are often used to drive mechanical components. These are particularly well suited for slip-free transmission of high forces, which can occur in drives of various applications or machines.
Positioning: a semi-circular profile (e.g., GT) is often used for positioning via timing belts. Round profile timing belts are often used in 3D printers and precise scanners. The round shape also offers the advantage that there is little play (reverse play) when the direction changes.
Material flow: timing belts can also be used to transport loads in conveyor systems. A straight trapezoidal profile is often used for this purpose (e.g., AT ). This profile provides a large profile area for load intake and transmission. The MISUMI range also includes conveyor timing belts with nylon fabric on the bearing surface.
An overview of the profile forms by application type can be found in the PDF Overview.
The amount of transmission power depends on many factors. The exact maximum load must be considered and calculated individually according to the application. The calculation for timing belts can be found in the selection of Timing Belts as PDF.
In order not to fall below the minimum number of teeth, the minimum size of the timing pulleys should be considered individually.
In general, a timing belt should be provided with the appropriate pretension to maximize the service life of the timing belt. If the pretension is too low, a jump (slip) can cause wear of the timing belt.
Application Examples - Timing Belts
Application example: workpiece carrier
(1) Stopper bolt with rubber, (2) belt conveyor, (3) workpiece carrier
Application example: of toothed belt drives
(1) Toothed belt, (2) driven Timing pulleys with crimp disc, (3) idler pulley with crimp disc, (4) driving Timing pulleys with crimp disc
Application example: Timing belt
(1) Linear guide, (2) mounting plate, (3) Timing belt, (4) Screw-on terminal
Application example: Timing belt
(1) Bolt-on terminal, (2) Timing belt, (3) Linear shaft, (4) Linear bushings
Industrial Applications
3D printer industry
Automotive industry
Pharmaceutical industry
Packaging industry
