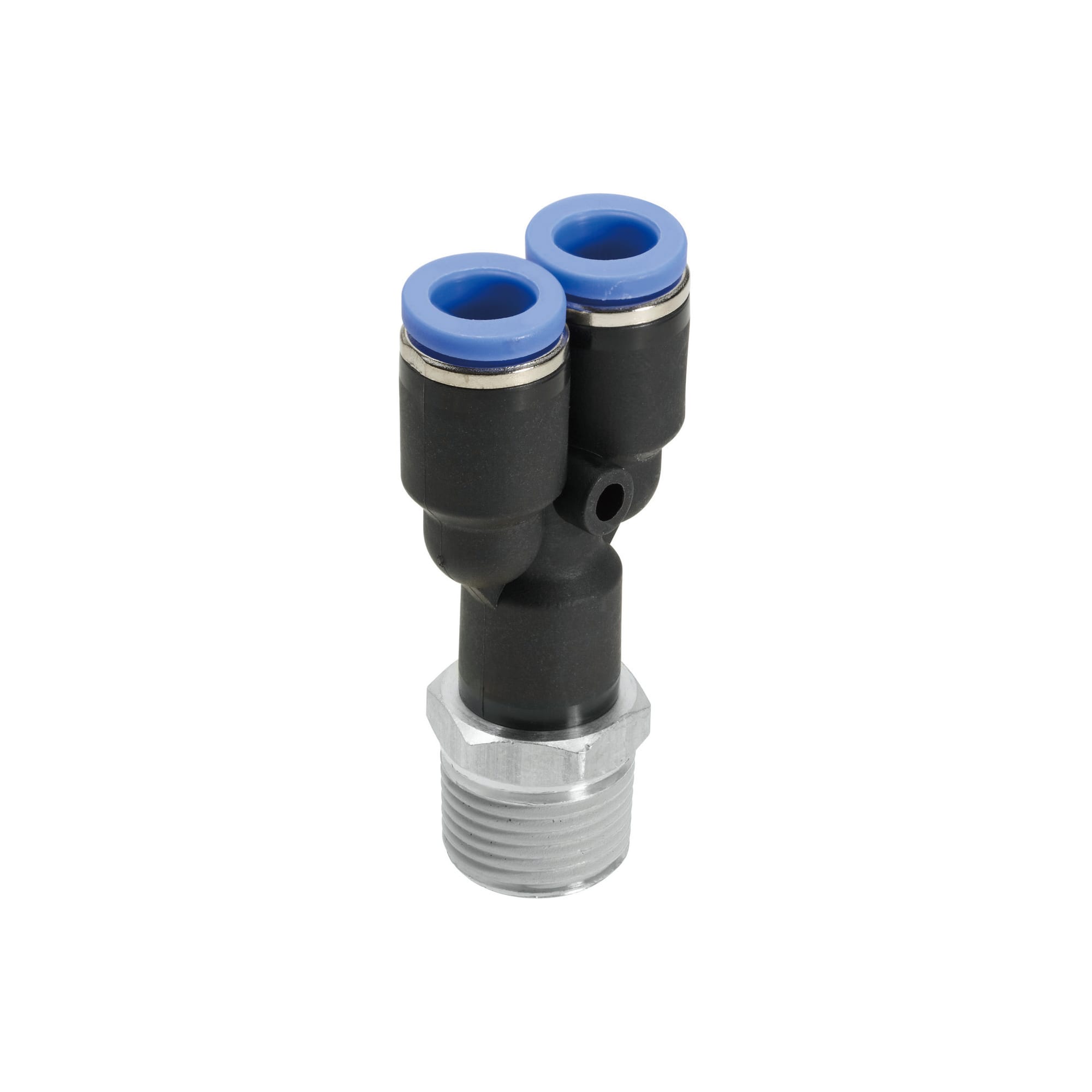

Quick-Connect Fitting, Y Type, Screw Mount Branch (MSYL4-M5)

Click on this image to zoom in.

Promotional pricing
Volume Discount

MISUMI

Product Details:

Manufacturer part number: MSYL4-M5

Brand: MISUMI

Price: 3.53 €

Delivery time: 5 Days

Technical Data:

Tube O.D. D (D1): 4 Ø

Connection Thread Nominal: M5

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

MSYL4-M5

Drawing / Specifications
3D Preview 3D preview is available after complete configuration
Part Numbers
More Information
Catalog

MSYL

Threads: EN CW614N Equiv.
: Electroless Nickel Plating

One-Touch Couplings - Y Type, Screw Mount, Branch: Related Image

[M]Material: PBT (Polybutylene Terephthalate)

Specification Table

Part Number	—	Nominal
MSYL6	—	1

Part Number		Nominal	A	B	E	Wrench Flats H	P	Thread Size M	Effective Sectional Area (mm²)	Mass (g)
Type	D	Nominal	A	B	E	Wrench Flats H	P	Thread Size M	Effective Sectional Area (mm²)	Mass (g)
MSYL	4	M5	18.3	37.4	3.2	9	9.3	M5 × 0.8	3.2	8.9
		1		40.6		10		R1/8	5.3	11.6
		2		43.6		14		R1/4	5.3	20.5
	6	M5	22.6	40.5		11	11.4	M5 × 0.8	3.2	12.9
		1		43.7		11		R1/8	12.6	15.2
		2		46.7		14		R1/4		23.1
		3		47.7		17		R3/8		35.2
	8	1	27.3	52.6		13	14.2	R1/8	20.7	23.3
		2		55.1		14		R1/4		27.9
		3		56.1		17		R3/8		36.2
	10	2	33.3	56	4.2	17	17	R1/4	42.1	35.2
	10	3	33.3	58		17	17	R3/8	46.9	40.8
	12	2	39.7	65.9		19	20	R1/4	42.3	53.7
		3		67.9		19		R3/8	42.3	59.5
		4		70.9		21		R1/2	58.7	74.9

Part Number:

3D preview is not available, because the part number has not yet been determined.

In order to open the 3D preview, the part number must be fixed.

Plug-in is required for 3D Preview

CAD Download

Data to be displayed: 30; 45; 60

Part Number
MSYL4-M5

Part Number	Standard Unit Price	Minimum order quantity	Volume Discount	Standard Shipping Days ?	Tube O.D. D (D1) (Ø)	Connection Thread Nominal
	3.53 €	1	Available	5 Days	4	M5

Specifications / Overview

Specifications

	MJBULS		MJBULS excluded
Applicable Fluid	Air	Water	Air
Operating Temperature Range*	−15 to 60°C	5 to 40°C	0 to 60°C
Max. Operating Pressure	1 Mpa		0.9 MPa
Operating Vacuum Level	-100 kPa	—	-100 kPa

*No freezing

Products homepage

Basic information

Type	Single-Action Coupling	Fitting Type	Screw Mount Branch	Applicable Fluid	Air
Main Body Material	PBT Polybutylene Terephthalate (Polybutylene Terephthalate)	Application	Standard, Mini	Thread Material	EN CW614N Equiv. (Brass)
Seal Material	Nitrile Rubber	Operating Temperature Range(°C)	0::60

This page is Quick-Connect Fitting, Y Type, Screw Mount Branch, part number MSYL4-M5.
You can find the detail information about specifications and dimensions on part number MSYL4-M5.

Configure

1Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.

The part number is completed.

Basic Attributes

Type
- MSYL
Clear
Tube O.D. D (D1)(Ø)
- 4
- 6
- 8
- 10
- 12
Clear
Connection Thread Nominal
1(R1/8)

2(R1/4)

3(R3/8)

4(R1/2)

M5
Clear
Filter by CAD data type
- 2D
- 3D
Clear

Filter by standard shipping days

All

Same day

5 Days or Less
Reset

Optional Attributes

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .

Variation of this product

Part Number
MSYL12-3
MSYL12-4
MSYL4-1
MSYL6-1
MSYL6-2
MSYL6-3

Standard Unit Price	Minimum order quantity	Volume Discount	Standard Shipping Days ?	Tube O.D. D (D1) (Ø)	Connection Thread Nominal
5.92 €	1	Available	5 Days	12	3(R3/8)
6.30 €	1	Available	5 Days	12	4(R1/2)
3.15 €	1	Available	5 Days	4	1(R1/8)
3.53 €	1	Available	5 Days	6	1(R1/8)
3.66 €	1	Available	Same day Stock	6	2(R1/4)
4.16 €	1	Available	5 Days	6	3(R3/8)
