Manually Operated Units / Handwheel Direction Configurable (KUEF20-A-U-320)

Manually Operated Units / Handwheel Direction Configurable KUEF20-A-U-320

Číslo dílu:

KUEF20-A-U-320
Vymazat
Množství:
Loading...

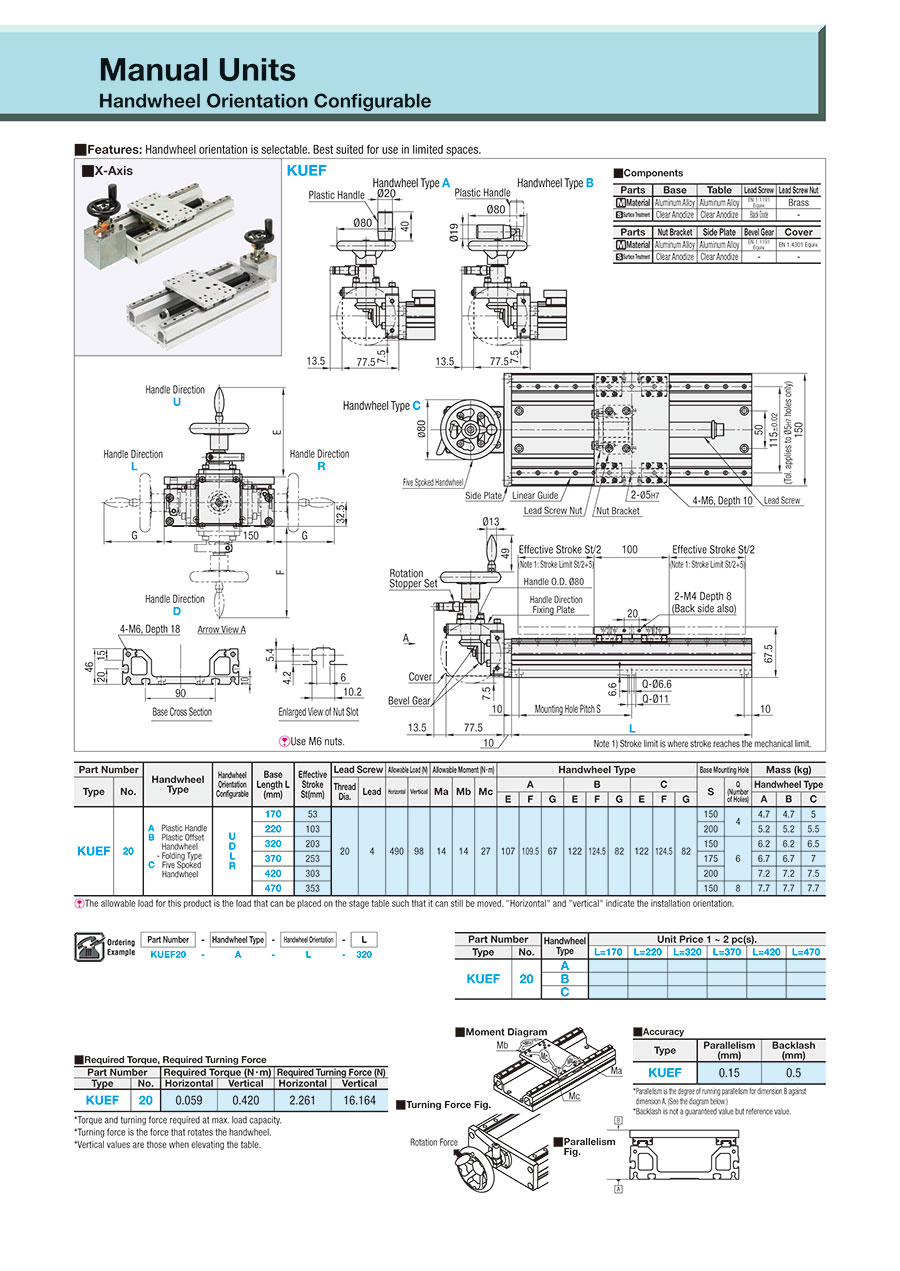

Obrysový výkres a tabulka specifikací

KUEF
Handwheel Type C 6-Surface Milled Mounting Plates/Brackets - External Dimension Configurable: Related Image
Handwheel Type A Handwheel Type B

*1) Stroke limit is where stroke reaches the mechanical limit.
[ ! ] Use M6 nuts.
■ Components
PartsBaseTableTrapezoidal ThreadLead Screw Nut
MaterialAluminum AlloyAluminum AlloyEN 1.1191 Equiv.Brass
Surface TreatmentClear AnodizeClear AnodizeBlack Oxide—

PartsNut BracketSide PlateBevel GearCover
MaterialAluminum AlloyAluminum AlloyEN 1.1191 Equiv.EN 1.4301 Equiv.
Surface TreatmentClear AnodizeClear Anodize——

Specification Table

Part Number—Handwheel Type—Handwheel Orientation—L
KUEF20—A—L—320
Part NumberHandwheel TypeKnob
Configuration of Orientation		Base
Length L (mm)		Effective
Stroke
St (mm)		Trapezoidal ThreadAllowable Load (N)Allowable Moment (N⋅m)Handwheel TypeBase Mounting HoleMass (kg)
TypeNo.Thread Dia.LeadHorizontalVerticalMaMbMcABCSQ
(Number of Holes)		Handwheel Type
EFGEFGEFGABC
KUEF20A Plastic Handwheel
B Plastic Handwheel
Folding Type
C Five Spoked Handwheel		U
D
L
R		1705320449098141427107109.567122124.582122124.58215044.74.75
2201032005.25.25.5
32020315066.26.26.5
3702531756.76.77
4203032007.27.27.5
47035315087.77.77.7
The allowable load for this product is the load that can be placed on the stage table such that it can still be moved. "Horizontal" and "vertical" indicate the installation orientation.

Seznam čísel dílů

Počet položek
  • 1
    • Číslo dílu
    KUEF20-A-U-320

    Handwheel Type

    Configurable Handle Direction

    Frame Length [L]

    (mm)

    		Minimální objednací množství
    A (Plastic Offset Handwheel)
    U
    320
    1 kusů
    Jednotková cena (bez DPH)(Jednotková cena včetně DPH)
    Standardní datum odeslání
    -
    ( - )
    20 pracovních dnů
  • 1

    • Podrobné údaje

    Náčrt a specifikace

    Specifications/Overview

    ■Accuracy  ■Parallelism Fig.  ■Moment Diagram
    TypeParallelism
    (mm)    		Backlash
    (mm)
    KUEF0.150.5

    [!] Parallelism is the degree of running parallelism for dimension B against dimension A. (See the diagram above.)
    [ ! ] Backlash is not a guaranteed value but reference value.
    ■Required Torque, Required Turning Force  ■Turning Force Fig.
    Part NumberRequired Torque (N⋅m)Required Turning Force (N)
    TypeNo.HorizontalVerticalHorizontalVertical
    KUEF200.0590.4202.26116.164

    [ ! ] Torque and turning force required at max. load capacity.
    [!] Turning force is the force that rotates the handwheel. (See the diagram above.)
    [ ! ] Vertical values are those when elevating the table.
