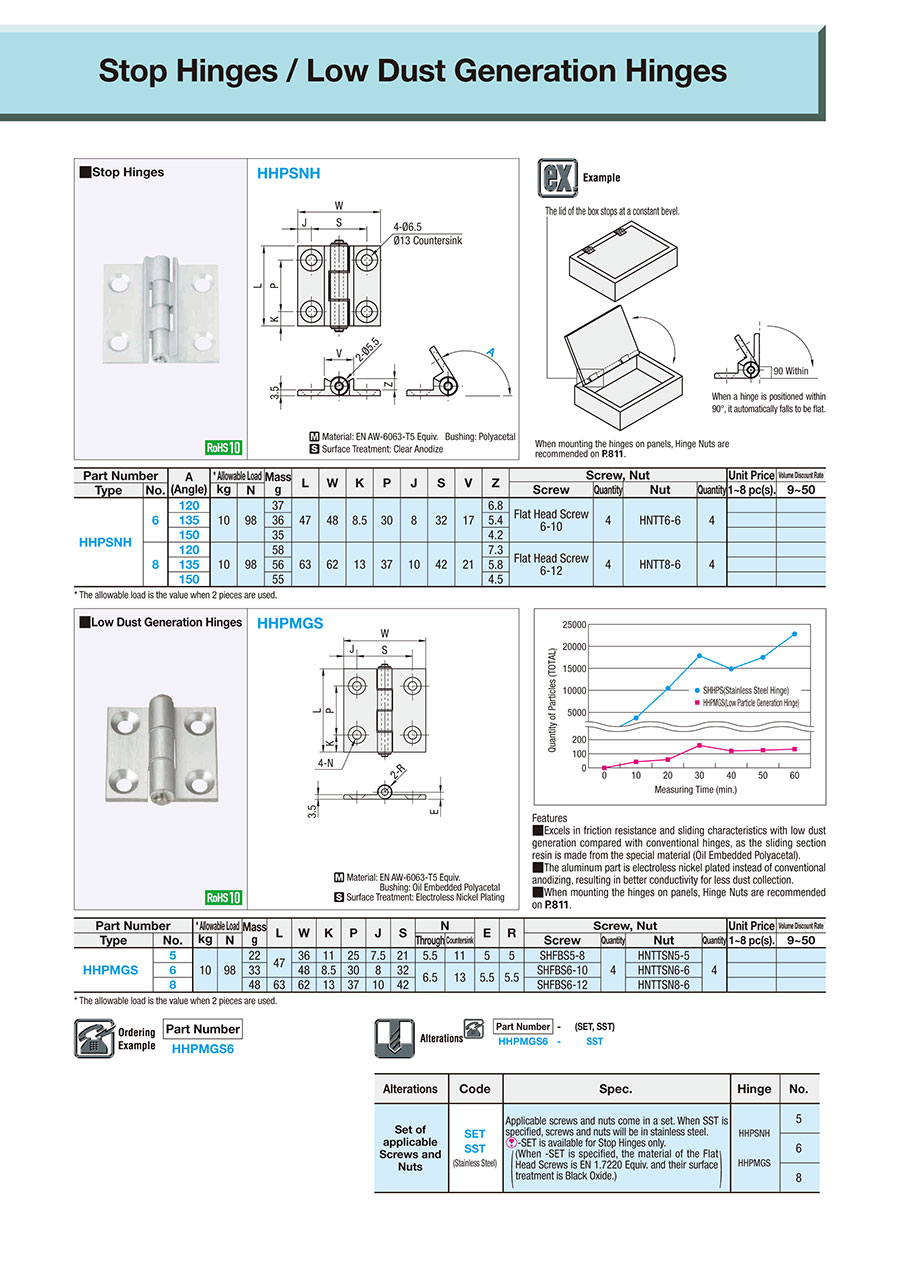

Stop Hinges (HHPSNH6-135)

   Material: EN AW-6063-T5 Equiv. Bushing: Polyacetal
   Surface Treatment: Clear Anodize

Part Number		A (Angle)	* Allowable Load		Mass g	L	W	K	P	J	S	V	Z	Screw, Nut				Unit Price	Volume Discount Rate
														Screw	Quantity	Nut	Quantity	1~8 pc(s).	9~50
Type	No.		kg	N
HHPSNH	6	120	10	98	37	47	48	8.5	30	8	32	17	6.8	Flat Head Screw 6-10	4	HNTT6-6	4
		135			36								5.4
		150			35								4.2
	8	120	10	98	58	63	62	13	37	10	42	21	7.3	Flat Head Screw 6-12	4	HNTT8-6	4
		135			56								5.8
		150			55								4.5

* The allowable load is the value when 2 pieces are used.
