Air Gripper / Parallel Type (ACHK6-N)

KatalogStr. 2-1501

Číslo dílu:

ACHK6-N

Obrysový výkres a tabulka specifikací
Seznam čísel dílů
Podrobné údaje
Katalog

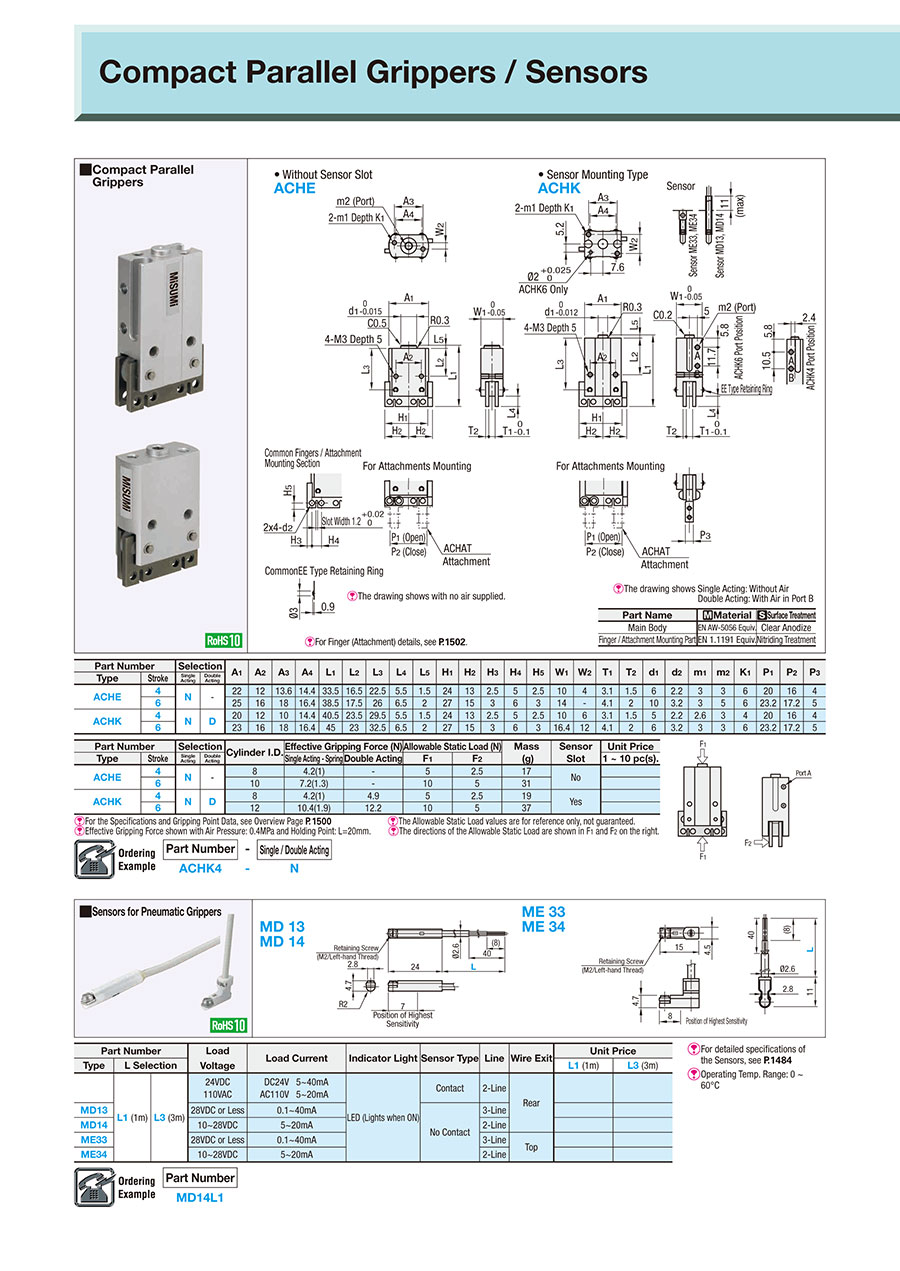

Obrysový výkres a tabulka specifikací

·Without Sensor Slot
ACHE

·Sensor Mounting Type
ACHK

Sensor

For Attachments Mounting

Common:
Finger / Attachment Mounting Part
　

Common:
E Type Retaining Ring

[ ! ] The drawing shows with no air supplied.

[!] The drawing shows
Single Acting: With no air supplied.
Double Acting: Air enters the Port B

Part Name	Material	Surface Treatment
Main Body	EN AW−5056 Equiv.	Clear Anodize
Finger / Attachment Mounting Part	EN 1.1191 Equiv.	Nitriding Treatment

Specification Table

Part Number	—	Single / Double Acting
ACHK4	—	N

Part Number		Selection		A₁	A₂	A₃	A₄	L₁	L₂	L₃	L₄	L₅	H₁	H₂	H₃	H₄	H₅	W₁	W₂	T₁	T₂	d₁	d₂	m₁	m₂	K₁	P₁	P₂	P₃
Type	Stroke	Single Acting	Double Acting	A₁	A₂	A₃	A₄	L₁	L₂	L₃	L₄	L₅	H₁	H₂	H₃	H₄	H₅	W₁	W₂	T₁	T₂	d₁	d₂	m₁	m₂	K₁	P₁	P₂	P₃
ACHE	4	N	—	22	12	13.6	14.4	33.5	16.5	22.5	5.5	1.5	24	13	2.5	5	2.5	10	4	3.1	1.5	6	2.2	3	3	6	20	16	4
ACHE	6	N	—	25	16	18	16.4	38.5	17.5	26	6.5	2	27	15	3	6	3	14	—	4.1	2	10	3.2	3	5	6	23.2	17.2	5
ACHK	4	N	D	20	12	10	14.4	40.5	23.5	29.5	5.5	1.5	24	13	2.5	5	2.5	10	6	3.1	1.5	5	2.2	2.6	3	4	20	16	4
ACHK	6	N	D	23	16	18	16.4	45	23	32.5	6.5	2	27	15	3	6	3	16.4	12	4.1	2	6	3.2	3	3	6	23.2	17.2	5

Part Number		Selection		Cylinder I.D.	Effective Gripping Force (N)		Allowable Static Load (N)		Mass (g)	Sensor Slot
Type	Stroke	Single Acting	Double Acting	Cylinder I.D.	Single Acting - Spring	Double Acting	F₁	F₂	Mass (g)	Sensor Slot
ACHE	4	N	—	8	4.2 (1)	—	5	2.5	17	None
ACHE	6	N	—	10	7.2 (1.3)	—	10	5	31	None
ACHK	4	N	D	8	4.2 (1)	4.9	5	2.5	19	Provided
ACHK	6	N	D	12	10.4 (1.9)	12.2	10	5	37	Provided

The Allowable Static Load values are for reference only, not guaranteed.
Effective Gripping Force shown with Air Pressure: 0.4 MPa and Holding Point: L = 20 mm. The directions of the Allowable Static Load are shown in F₁ and F₂ on the right.
