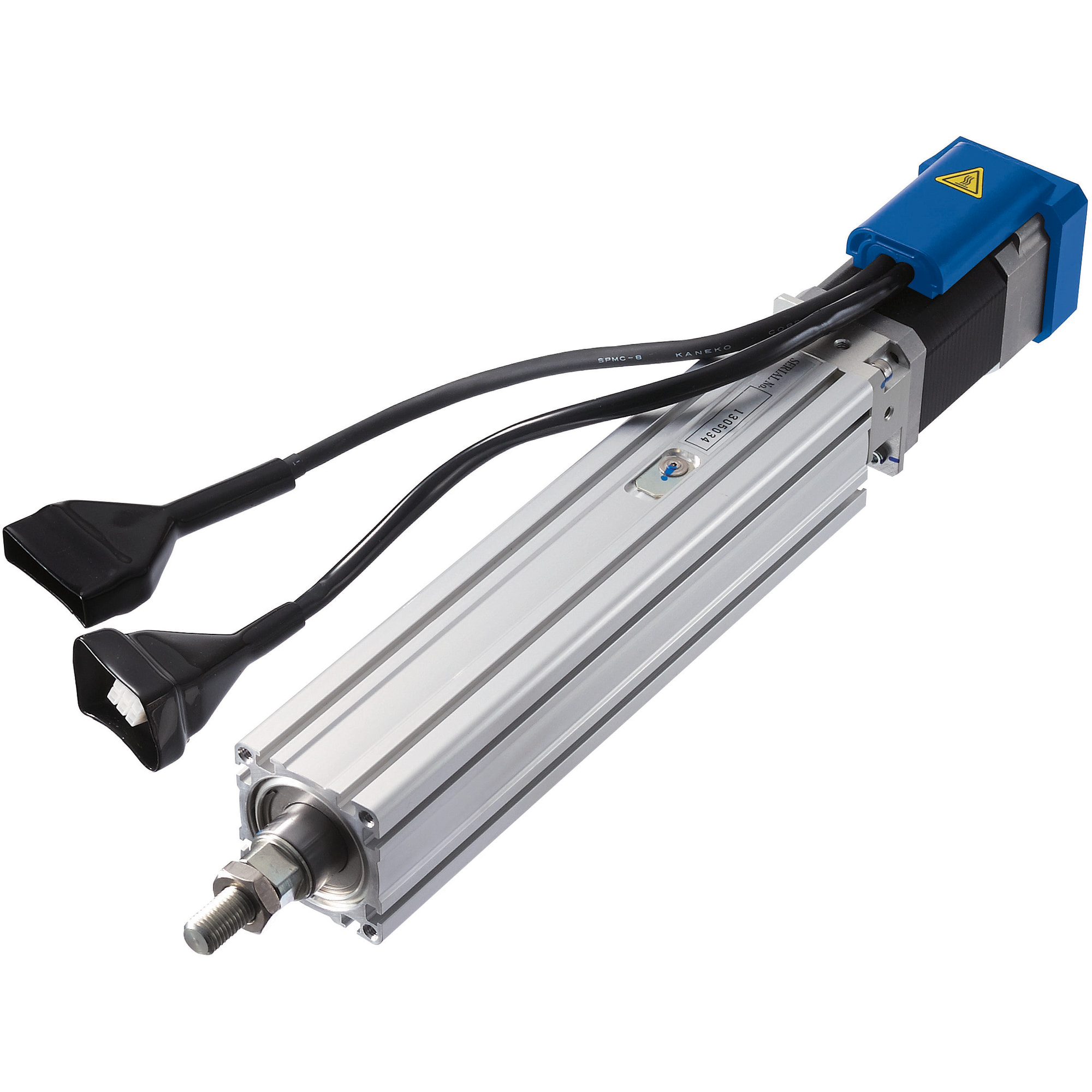

Single Axis Robots RSD2 / Rod Type (RSD212-C1-D-3-300-HP)

Click on this image to zoom in.

MISUMI

Product Details:

Manufacturer part number: RSD212-C1-D-3-300-HP

Brand: MISUMI

Price: Please contact the support for quotation

Delivery time: Please contact the support for quotation

Technical Data:

Stroke: 300 mm

Max. Transportable Mass (Horizontal): 25 kg

Max. Transportable Mass Range (Vertical): 2.1 to 5.0 kg

Max. Transportable Mass (Vertical): 5 kg

Lead: 12 mm

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

RSD212-C1-D-3-300-HP

Drawing / Specifications
3D Preview 3D preview is available after complete configuration
Part Numbers
More Information
Catalog
Technical Information

Single Axis Robots RSD2/Rod Type:Related Image

■ Components: Actuator, Controller, Cable
■ Accessory

Accessory	Controller I/O Specifications
	NPN, PNP	CC-Link	DeviceNet
	Instruction Manual (CD-ROM), Power Connector, Dummy Connector, 6 Mounting Nuts
	-	CC-Link Connector	DeviceNet Connector

■ Robot Material / Surface Treatment

Components	Body	Rod	Cover
Material	Aluminum	Steel	ABS
Surface Treatment	Acrylic Paint	-	-

Specifications

Part Number	-	Motor Mounting Direction	-	Controller	-	I/O Module	-	Cable Length	-	Stroke
RSD206B	-	L	-	C1	-	N	-	3	-	200	(Motor Mounting Direction: L)
RSD206B			-	C1	-	N	-	3	-	200	(Motor Mounting Direction: Straight)
RSD206B	-	L	-	P1			-	3	-	200	(Motor Mounting Direction: L, Controller: P1)

■ General Specifications

Ball Screw	Motor	Position Detector	Operating Ambient Temperature, Humidity
Ø8 (C10 Rolled)	Stepping	Resolver (Incremental)	0~40°C, 35~85%RH (No Condensation)

■ Standard Specifications FAQ >> P.503

Type

Lead (mm)

Positioning Repeatability (mm)

Max Load Capacity (kg)

Max. Push Force
(N)

Rated Running Life
1

Lost Motion (mm)

Rod Non-Rotational Accuracy (degrees)

Stroke (mm)

Max. Velocity 2 (mm/sec)

Input Power Supply

Maximum Positioning Point

Horizontal

Vertical

RSD2

±0.02

600

5,000km or More

0.1 or Less

±1.0

50~300
(50 Pitch)

~80

DC24V
±10%

255 points

300

~250

150

~500

1. The Service life in the vertical use may vary depending on the load capacity. Please refer to the "Service Life Table." 2. The maximum velocities may vary depending on the load capacity. Please refer to the "Velocity - Maximum Load Capacity Table."

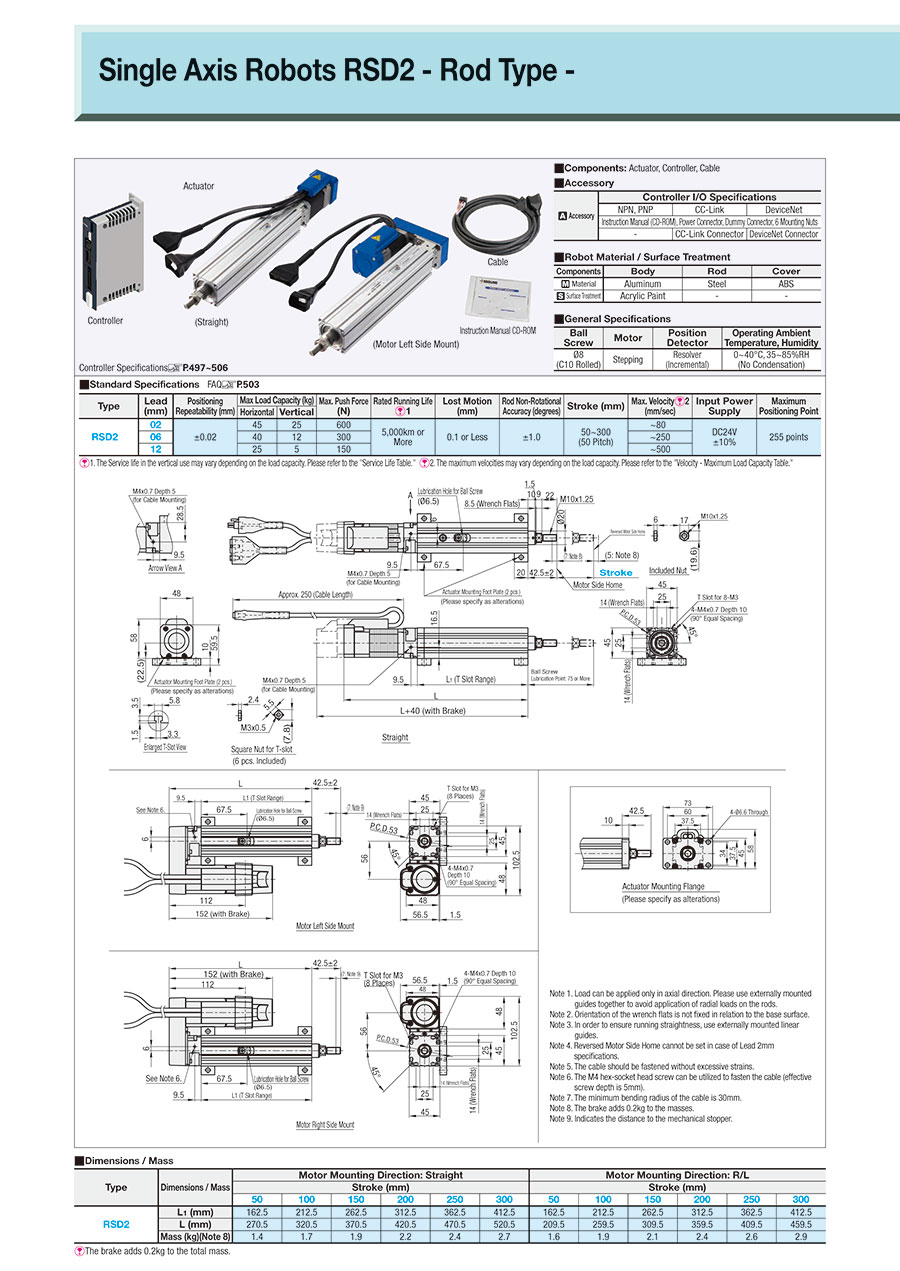

■ Dimensions / Mass

Type	Dimensions / Mass	Motor Mounting Direction: Straight						Motor Mounting Direction: R/L
		Stroke (mm)						Stroke (mm)
		50	100	150	200	250	300	50	100	150	200	250	300
RSD2	L₁ (mm)	162.5	212.5	262.5	312.5	362.5	412.5	162.5	212.5	262.5	312.5	362.5	412.5
	L (mm)	270.5	320.5	370.5	420.5	470.5	520.5	209.5	259.5	309.5	359.5	409.5	459.5
	Mass (kg)(Note 8)	1.4	1.7	1.9	2.2	2.4	2.7	1.6	1.9	2.1	2.4	2.6	2.9

The brake adds 0.2kg to the total mass.

Part Number			Selection
Type	Lead (mm)	With or w/o Brake ( 1)	Motor Mounting Direction	Controller ( 2)	I/O Module	Cable Length (m)	Stroke (mm)
RSD2	02	None: Leave blank Included: B	Straight: Leave blank Right Side Mount: R Left Side Mount: L	Point Control: C1 Pulse Control: P1 (DC24V ±10%)	NPN: N PNP: P CC-Link: C DeviceNet: D	1 3 5 10 (Flexible Cable)	50~300 (50mm Increment)
	06
	12

( 1) Choose the "Brake" option for use in vertical applications. ( 2) When the pulse train type controller is selected, the I/O type selection is not required.

Alterations

Part Number:

3D preview is not available, because the part number has not yet been determined.

In order to open the 3D preview, the part number must be fixed.

Plug-in is required for 3D Preview

CAD Download

Data to be displayed: 30; 45; 60

Part Number
RSD212-C1-D-3-300-HP

Part Number	Minimum order quantity	Volume Discount	Standard Shipping Days ?	Stroke (mm)	Max. Transportable Mass (Horizontal) (kg)	Max. Transportable Mass Range (Vertical) (kg)	Max. Transportable Mass (Vertical) (kg)	Lead (mm)	I/O Module	Brake	Max. Thrust Force Range (N)	Max. Push Force (N)	Environmental Spec.	Maximum Velocity (mm/sec)	Controller Type	Motor Mounting Direction	#5	#6	Cable Length (m)
	1		-	300	25	2.1 to 5.0	5	12	DeviceNet	Not Provided	101 to 200	150	-	500	Point Control (C1)	Straight	-	-	3

More Information

Products homepage

Basic information

Main Body, Peripheral Components	Main Body	Type	Rods	Max. Transportable Mass Range (Horizontal)(kg)	20.1 to 50.0
Drive Method	Rolled Ball Screw	Guide	Not Provided	Input Power Supply	24 V DC
Position Detector	Resolver, Incremental Type	Positioning Repeatability(µm)	±20	Operating Ambient Temperature(°C)	0::40

Configure

1Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.

The part number is completed.
