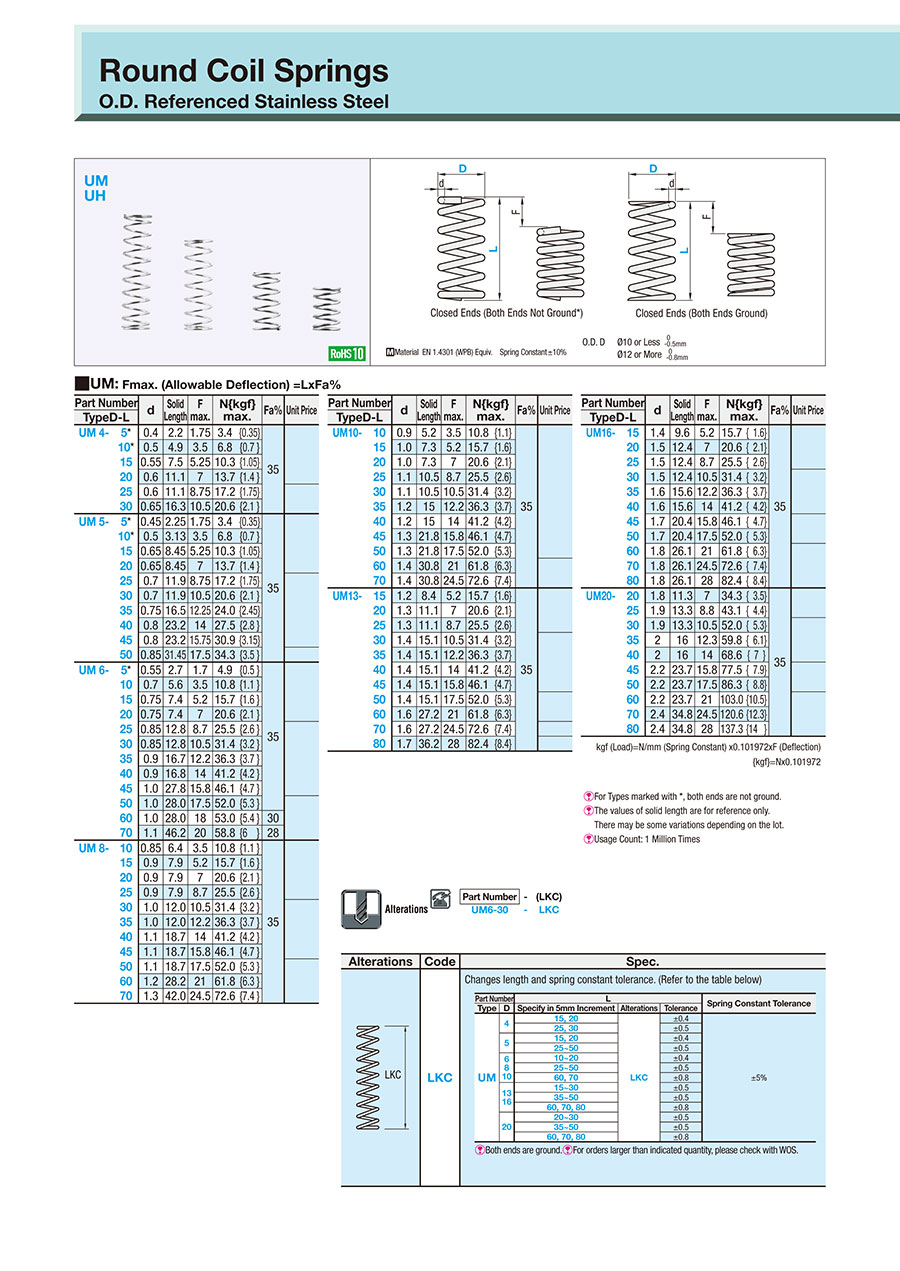

Round Wire Coil Springs / Deflection 27%-30% / O.D. Referenced

Material EN 1.4301 (WPB) Equiv. Spring Constant ±10%

■UM: Fmax. (Allowable Deflection) =LxFa%

Part Number		d	Solid Length	F max.	N{kgf}max.		Fa%	Unit Price
TypeD-L
UM 4-	5*	0.4	2.2	1.75	3.4	{0.35}	35
	10*	0.5	4.9	3.5	6.8	{0.7 }
	15	0.55	7.5	5.25	10.3	{1.05}
	20	0.6	11.1	7	13.7	{1.4 }
	25	0.6	11.1	8.75	17.2	{1.75}
	30	0.65	16.3	10.5	20.6	{2.1 }
UM 5-	5*	0.45	2.25	1.75	3.4	{0.35}	35
	10*	0.5	3.13	3.5	6.8	{0.7 }
	15	0.65	8.45	5.25	10.3	{1.05}
	20	0.65	8.45	7	13.7	{1.4 }
	25	0.7	11.9	8.75	17.2	{1.75}
	30	0.7	11.9	10.5	20.6	{2.1 }
	35	0.75	16.5	12.25	24.0	{2.45}
	40	0.8	23.2	14	27.5	{2.8 }
	45	0.8	23.2	15.75	30.9	{3.15}
	50	0.85	31.45	17.5	34.3	{3.5 }
UM 6-	5*	0.55	2.7	1.7	4.9	{0.5 }	35
	10	0.7	5.6	3.5	10.8	{1.1 }
	15	0.75	7.4	5.2	15.7	{1.6 }
	20	0.75	7.4	7	20.6	{2.1 }
	25	0.85	12.8	8.7	25.5	{2.6 }
	30	0.85	12.8	10.5	31.4	{3.2 }
	35	0.9	16.7	12.2	36.3	{3.7 }
	40	0.9	16.8	14	41.2	{4.2 }
	45	1.0	27.8	15.75	46.1	{4.7 }
	50	1.0	28.0	17.5	52.0	{5.3 }
	60	1.0	28.0	18	53.0	{5.4 }	30
	70	1.1	46.2	19.6	58.8	{6 }	28
UM 8-	10	0.85	6.4	3.5	10.8	{1.1 }	35
	15	0.9	7.9	5.2	15.7	{1.6 }
	20	0.9	7.9	7	20.6	{2.1 }
	25	0.9	7.9	8.7	25.5	{2.6 }
	30	1.0	12.0	10.5	31.4	{3.2 }
	35	1.0	12.0	12.2	36.3	{3.7 }
	40	1.1	18.7	14	41.2	{4.2 }
	45	1.1	18.7	15.75	46.1	{4.7 }
	50	1.1	18.7	17.5	52.0	{5.3 }
	60	1.2	28.2	21	61.8	{6.3 }
	70	1.3	42.0	24.5	72.6	{7.4 }
UM10-	10	0.9	5.2	3.5	10.8	{1.1}	35
	15	1.0	7.3	5.2	15.7	{1.6}
	20	1.0	7.3	7	20.6	{2.1}
	25	1.1	10.5	8.7	25.5	{2.6}
	30	1.1	10.5	10.5	31.4	{3.2}
	35	1.2	15	12.2	36.3	{3.7}
	40	1.2	15	14	41.2	{4.2}
	45	1.3	21.8	15.75	46.1	{4.7}
	50	1.3	21.8	17.5	52.0	{5.3}
	60	1.4	30.8	21	61.8	{6.3}
	70	1.4	30.8	24.5	72.6	{7.4}
UM13-	15	1.2	8.4	5.2	15.7	{1.6}	35
	20	1.3	11.1	7	20.6	{2.1}
	25	1.3	11.1	8.7	25.5	{2.6}
	30	1.4	15.1	10.5	31.4	{3.2}
	35	1.4	15.1	12.2	36.3	{3.7}
	40	1.4	15.1	14	41.2	{4.2}
	45	1.4	15.1	15.75	46.1	{4.7}
	50	1.4	15.1	17.5	52.0	{5.3}
	60	1.6	27.2	21	61.8	{6.3}
	70	1.6	27.2	24.5	72.6	{7.4}
	80	1.7	36.2	28	82.4	{8.4}
UM16-	15	1.4	9.6	5.2	15.7	{ 1.6}	35
	20	1.5	12.4	7	20.6	{ 2.1}
	25	1.5	12.4	8.7	25.5	{ 2.6}
	30	1.5	12.4	10.5	31.4	{ 3.2}
	35	1.6	15.6	12.2	36.3	{ 3.7}
	40	1.6	15.6	14	41.2	{ 4.2}
	45	1.7	20.4	15.75	46.1	{ 4.7}
	50	1.7	20.4	17.5	52.0	{ 5.3}
	60	1.8	26.1	21	61.8	{ 6.3}
	70	1.8	26.1	24.5	72.6	{ 7.4}
	80	1.8	26.1	28	82.4	{ 8.4}
UM20-	20	1.8	11.3	7	34.3	{ 3.5}	35
	25	1.9	13.3	8.75	43.1	{ 4.4}
	30	1.9	13.3	10.5	52.0	{ 5.3}
	35	2	16	12.25	59.8	{ 6.1}
	40	2	16	14	68.6	{ 7 }
	45	2.2	23.7	15.75	77.5	{ 7.9}
	50	2.2	23.7	17.5	86.3	{ 8.8}
	60	2.2	23.7	21	103.0	{10.5}
	70	2.4	34.8	24.5	120.6	{12.3}
	80	2.4	34.8	28	137.3	{14 }

kgf (Load)=N/mm (Spring Constant) x0.101972xF (Deflection)
{kgf}=Nx0.101972

For Types marked with *, both ends are not ground.
The values of solid length are for reference only.
There may be some variations depending on the lot.
Usage Count: 1 Million Times

■UH: Fmax. (Allowable Deflection)=LxFa%

Part Number		d	Solid Length	F max.	N{kgf}max.		Fa%	Unit Price
Type D-L
UH 4-	5*	0.45	2.7	1.5	4.4	{ 0.45}	30
	10*	0.5	3.8	3	8.8	{ 0.9 }
	15	0.6	8.1	4.5	13.2	{ 1.35}
	20	0.65	11.7	6	17.6	{ 1.8 }
	25	0.7	16.8	7.5	22.1	{ 2.25}
	30	0.7	16.8	9	26.5	{ 2.7 }
UH 5-	5*	0.55	3.3	1.5	4.4	{ 0.45}	30
	10	0.6	4.65	3	8.8	{ 0.9 }
	15	0.6	4.65	4.5	13.2	{ 1.35}
	20	0.75	11.81	6	17.6	{ 1.8 }
	25	0.75	11.81	7.5	22.1	{ 2.25}
	30	0.8	16	9	26.5	{ 2.7 }
	35	0.85	21.68	10.5	30.9	{ 3.15}
	40	0.85	21.68	12	35.3	{ 3.6 }
	45	0.9	28.8	13.5	39.7	{ 4.05}
UH 6-	5*	0.65	3.2	1.5	8.8	{ 0.9 }	30
	10	0.7	3.9	3	17.7	{ 1.8 }
	15	0.85	7.7	4.5	26.5	{ 2.7 }
	20	0.9	9.7	6	35.3	{ 3.6 }
	25	1.0	15.5	7.5	44.1	{ 4.5 }
	30	1.0	15.5	9	53.0	{ 5.4 }
	35	1.1	24.8	9.8	57.9	{ 5.9 }	28
	40	1.1	24.8	10	58.8	{ 6 }	25
	45	1.1	24.8	11.25	66.7	{ 6.8 }
	50	1.2	39.0	10	58.8	{ 6 }	20
	60	1.2	39.0	13.8	82.4	{ 8.4 }	23
	70	1.2	39.0	14.7	88.3	{ 9 }	21
UH 8-	10	0.9	5.3	3	17.7	{ 1.8 }	30
	15	0.9	5.3	4.5	26.5	{ 2.7 }
	20	1.1	11	6	35.3	{ 3.6 }
	25	1.1	11	7.5	44.1	{ 4.5 }
	30	1.2	15.9	9	53.0	{ 5.4 }
	35	1.2	15.9	10.5	61.8	{ 6.3 }
	40	1.3	23.1	12	70.6	{ 7.2 }
	45	1.3	23.1	13.5	79.4	{ 8.1 }
	50	1.4	33.3	15	88.3	{ 9 }
	60	1.4	33.3	18	105.9	{10.8 }
	70	1.5	48.0	18.9	111.8	{11.4 }	27
UH 10-	10	1.1	6.9	3	17.7	{ 1.8}	30
	15	1.1	6.9	4.5	26.5	{ 2.7}
	20	1.2	9.3	6	35.3	{ 3.6}
	25	1.2	9.3	7.5	44.1	{ 4.5}
	30	1.3	12.7	9	53.0	{ 5.4}
	35	1.4	17.5	10.5	61.8	{ 6.3}
	40	1.4	17.5	12	70.6	{ 7.2}
	45	1.5	23.8	13.5	79.4	{ 8.1}
	50	1.5	23.8	15	88.3	{ 9 }
	60	1.6	32.4	18	105.9	{10.8}
	70	1.7	44.2	21	123.6	{12.6}
UH 13-	15	1.5	9.2	4.5	44.1	{ 4.5}	30
	20	1.5	9.2	6	58.8	{ 6 }
	25	1.5	9.2	7.5	73.5	{ 7.5}
	30	1.8	18	9	88.3	{ 9 }
	35	1.8	18	10.5	103.0	{10.5}
	40	1.8	18	12	117.7	{12 }
	45	1.8	18	13.5	132.4	{13.5}
	50	2.0	28.5	15	147.0	{15 }
	60	2.1	36	18	176.5	{18 }
	70	2.2	45.1	21	205.9	{21 }
	80	2.2	45.1	20	196.1	{20 }	25
UH 16-	15	1.7	9.6	4.5	44.1	{ 4.5}	30
	20	1.9	14	6	58.8	{ 6 }
	25	1.9	14	7.5	73.5	{ 7.5}
	30	1.9	14	9	88.3	{ 9 }
	35	1.9	14	10.5	103.0	{10.5}
	40	2.2	25.1	12	117.7	{12 }
	45	2.2	25.1	13.5	132.4	{13.5}
	50	2.2	25.1	15	147.1	{15 }
	60	2.3	30.5	18	176.5	{18 }
	70	2.5	44.7	21	205.9	{21 }
	80	2.5	44.7	24	235.4	{24 }
UH 20-	25	2.3	13.8	7.5	110.8	{11.3}	30
	30	2.3	13.8	9	132.4	{13.5}
	35	2.5	18.8	10.5	154.9	{15.8}
	40	2.5	18.8	12	176.5	{18 }
	45	2.8	29.4	13.5	199.1	{20.3}
	50	2.8	29.4	15	220.6	{22.5}
	60	3	40.5	18	264.8	{27 }
	70	3	40.5	21	308.9	{31.5}
	80	3.2	54.4	24	353.0	{ 36 }

kgf (Load)=N/mm (Spring Constant) x0.101972xF (Deflection)
{kgf}=Nx0.101972

For Types marked with *, both ends are not ground.
The values of solid length are for reference only.
There may be some variations depending on the lot.
Usage Count: 1 Million Times

■Spring Constant
D12 is applicable to UY, UR, UF, UL and UBB Types only. D14 is applicable to UBB Type only.

Type

UV

UY

UR

UF

UL

UTT

UM

UH

UBB

D

2

0.05{0.005}

0.2{0.02}

0.3{0.03}

0.5{0.05}

3

N/mm 0.05 {kgf/mm} {0.005}

N/mm 0.098 {kgf/mm} {0.01}

N/mm 0.29 {kgf/mm} {0.03}

N/mm 0.49 {kgf/mm} {0.05}

N/mm 0.98 {kgf/mm} {0.1}

N/mm 1.5 {kgf/mm} {0.15}

4

2.0{0.2}

2.9{0.3}

4.9{0.5}

5

6

N/mm 2.0 {kgf/mm} {0.2}

N/mm 2.9 {kgf/mm} {0.3}

N/mm 5.9 {kgf/mm} {0.6}

N/mm 9.8 {kgf/mm} {1.0}

8

10

N/mm 0.2 {kgf/mm} {0.02}

12

13

N/mm 9.8 {kgf/mm} {1.0}

N/mm 19.6 {kgf/mm} {2.0}

14

16

20

0.3{0.03}

0.5{0.05}

0.98{0.1}

2.9{0.3}

3.9{0.4}

4.9{0.5}

14.7{1.5}

29.4{3.0}

Fmax.

F=Lx70%

F=LxFa%

F=LxFa%

F=Lx45%

F=Lx40%

F=LxFa%

F=LxFa%

F=LxFa%

F=L×Fa%
