Aluminium Extrusion 8-45 Series, Square, Parallel Chamfering, 45 × 45, 50 × 50, 60 × 60, 90 × 90
Pozor
- Cutting is free for this product. Please specify the length you prefer.
Číslo dílu:

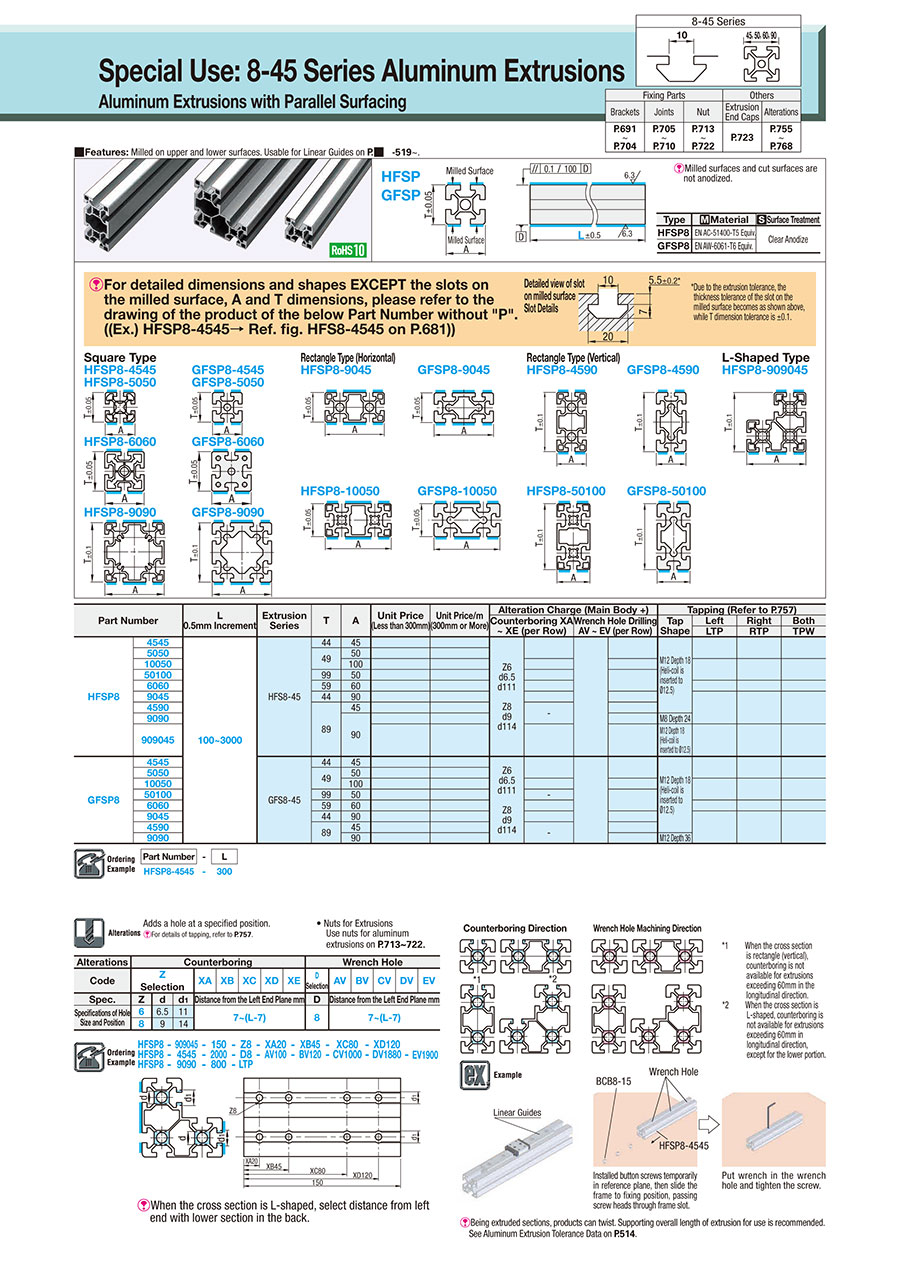

návrhy.Obrysový výkres a tabulka specifikací
Dimensional Drawing
HFSP
GFSP
Square Type
HFSP8−4545
GFSP8−4545
HFSP8−5050
GFSP8−5050
HFSP8−6060
GFSP8−6060
HFSP8−9090
GFSP8−9090
[ ! ] Milled surfaces and cut surfaces are not anodized.
[ ! ] When tapped hole alterations are specified, the red circles on the outline drawing of the aluminum extrusion will be machined.
[ ! ] When tapped hole alterations are specified, the red circles on the outline drawing of the aluminum extrusion will be machined.
■8-45 Series
is an aluminum extrusion with a 10 mm slot width. Applicable to M8 bolts.
is an aluminum extrusion with a 10 mm slot width. Applicable to M8 bolts.
Specification Table
| Part Number | — | L |
| HFSP8−6060 | — | 600 |
| Part Number | L 0.5 mm Increments | Extrusion Series | T | A | |
| HFSP8 | 4545 | 100 to 3000 | HFS8−45 | 44 | 45 |
| 5050 | 49 | 50 | |||
| 10050 | 100 | ||||
| 50100 | 99 | 50 | |||
| 6060 | 59 | 60 | |||
| 9045 | 44 | 90 | |||
| 4590 | 89 | 45 | |||
| 9090 | 90 | ||||
| 909045 | |||||
| GFSP8 | 4545 | GFS8−45 | 44 | 45 | |
| 5050 | 49 | 50 | |||
| 10050 | 100 | ||||
| 50100 | 99 | 50 | |||
| 6060 | 59 | 60 | |||
| 9045 | 44 | 90 | |||
| 4590 | 89 | 45 | |||
| 9090 | 90 | ||||
Alterations
[ ! ] MISUMI configurable length aluminum extrusion product can be utilized for structure building with highly enhanced design flexibility when the following various alteration options are applied.Some alterations are not applicable depending on types and sizes.
| Type | Alterations | Alteration Codes | App. Example | Contents |
|---|---|---|---|---|
| > Counterboring | Counterbores in Specified Position | Z6/XA100 |  | Adds a counterbored hole in a desired position from the left end. Can be used for connecting extrusions or installing tables, etc. |
| > Drill Wrench Hole | Wrench Hole in Specified Position | AH/BH/AV/BV |  | Adds a wrench hole in a desired position from the left end. Use for Blind Jointing in beam sections, etc. |
| > Cutting Method Change | High Precision Cut | SC |  | Applies High Precision Cut with an overall length tolerance of L±0.2 (Standard = L±0.5). * Only applicable to L ≤ 1,500 |
Adds a hole at a specified position.
| Alterations | Counterboring | Wrench Hole | High Precision Cut | ||||||||||||
| Code | Z Selection | XA | XB | XC | XD | XE | D Selection | AV | BV | CV | DV | EV | SC | ||
| Spec. | Z | d | d1 | Distance from the Left End Plane mm | D | Distance from the Left End Plane mm | 1,500 mm or less | ||||||||
| Hole Size Specifications of Hole Position | 6 | 6.5 | 11 | 7 or more(L−7) | 8 | 7 or more(L−7) | L Dim. ±0.2 | ||||||||
| 8 | 9 | 14 | |||||||||||||
Counterboring Direction
Wrench Hole Machining Direction
* 1 When the cross section is rectangle (vertical), counterboring is not available for extrusions exceeding 60 mm in the length direction.
* 2 When the cross section is L-shaped, counterboring is not available for extrusions exceeding 60 mm in longitudinal direction, except for the lower portion.
[ ! ] When the cross section is L-shaped, select distance from left end by positioning the lower section on the right side.
Seznam čísel dílů
Počet položek
| Číslo dílu |
|---|
Jednotková cena (bez DPH)(Jednotková cena včetně DPH) | Standardní datum odeslání |
|---|
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
Podrobné údaje
Základní informace
Pozor
- Cutting is free for this product. Please specify the length you prefer.
Náčrt a specifikace
App. Example
[!] Being extruded sections, products can twist. Supporting overall length of extrusion for use is recommended.
Installed button screws temporarily
in reference plane,then slide the frame
to fixing position,passing screw heads
through frame slot.
in reference plane,then slide the frame
to fixing position,passing screw heads
through frame slot.
Put wrench in the wrench hole
and tighten the screw.
and tighten the screw.
