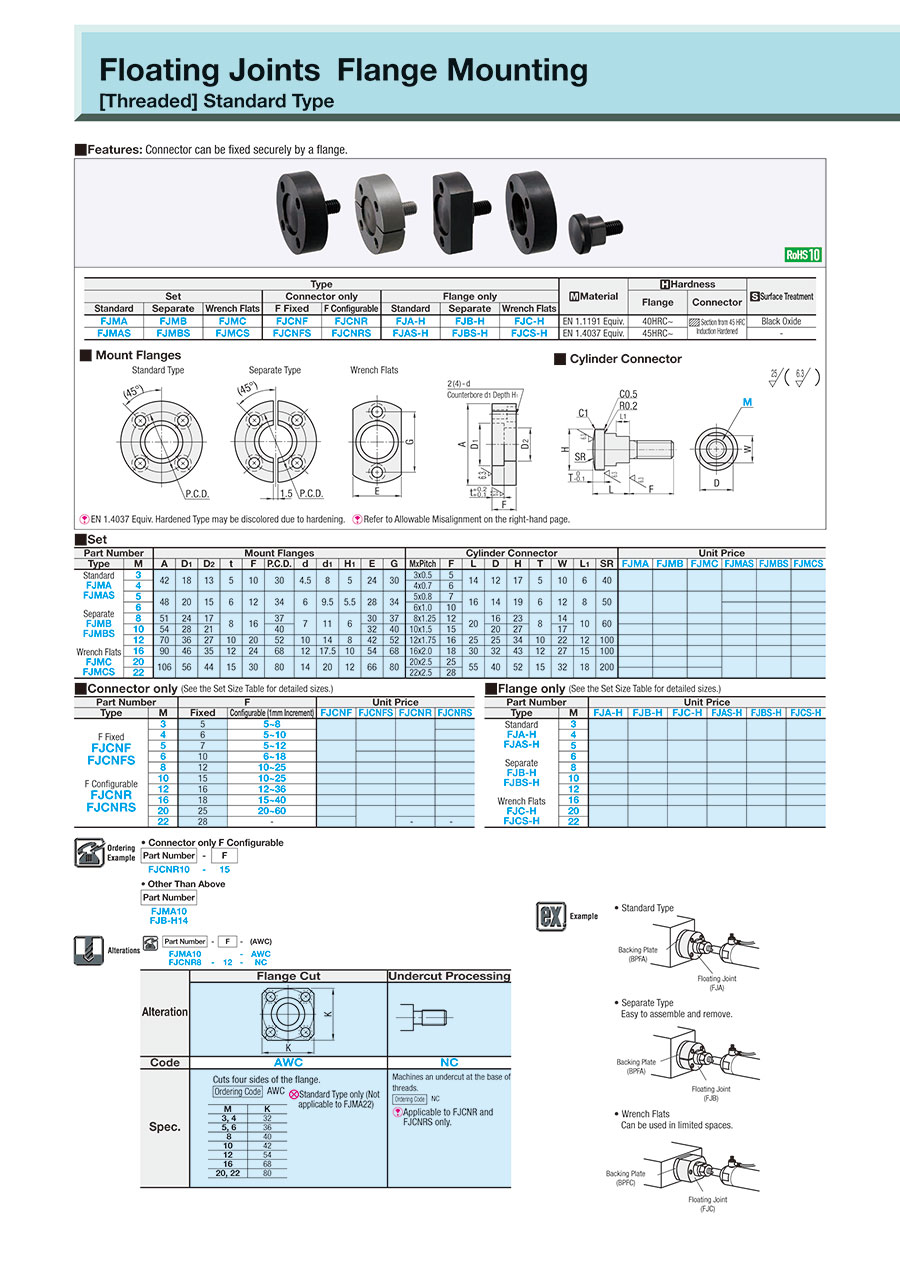

Floating Joints / Flange Mounting / Cylinder Connector / Threaded



Type

Material

Hardness

Surface Treatment

Set

Connector only

Flange only

Flange

Connector

Standard

Separate

Wrench Flats

F Fixed

F Configurable

L Fixed

Standard

Separate

Wrench Flats

FJMA

FJMB

FJMC

FJCNF

FJCNR

-

FJA-H

FJB-H

FJC-H

EN 1.1191 Equiv.

40HRC~

Section from 45 HRC Induction Hardened

Black Oxide

FJMAS

FJMBS

FJMCS

FJCNFS

FJCNRS

-

FJAS-H

FJBS-H

FJCS-H

EN 1.4037 Equiv.

45HRC~

-

FJUMA

FJUMB

FJUMC

-

-

FJUNF

FJUA-H

FJUB-H

FJUC-H

EN 1.1191 Equiv.

40HRC~

Section from 45 HRC Induction Hardened

Black Oxide

FJUMAS

-

FJUMCS

-

-

FJUNFS

FJUAS-H

FJUBS-H

FJUCS-H

EN 1.4037 Equiv.

45HRC~

-

• Connector only F Configurable

Part Number	-	F
FJCNR10	-	15

• Other Than Above

Part Number

FJMA10 FJB-H14

■Set Mount Flange

Part Number		Mount Flanges
		Standard											Space Saving
Type	M	A	D1	D2	t	F	P.C.D.	d	d1	H1	E	G	A	D1	D2	t	F	P.C.D.	d	d1	H1	E
Standard Standard FJMA FJMAS Standard Space Saving FJUMA FJUMAS Separate Standard FJMB FJMBS Separate Space Saving FJUMB FJUMBS Wrench Flats Standard FJMC FJMCS Wrench Flats Space Saving FJUMC FJUMCS	3	42	18	13	5	10	30	4.5	8	5	24	30	-	-	-	-	-	-	-	-	-	-
	4	42	18	13	5	10	30	4.5	8	5	24	30	-	-	-	-	-	-	-	-	-	-
	5	48	20	15	6	12	34	6	9.5	5.5	28	34	34	17	13	5	11	24	4.5	8	5	22
	6	48	20	15	6	12	34	6	9.5	5.5	28	34	34	17	13	5	11	24	4.5	8	5	22
	8	51	24	17	8	16	37	7	11	6	30	37	40	23	17	5	11	30	4.5	8	5	25
	10	54	28	21	8	16	40	7	11	6	32	40	40	23	17	5	11	30	4.5	8	5	25
	12	70	36	27	10	20	52	10	14	8	42	52	52	32	24	5.5	12	40	6	9.5	5.5	34
	16	90	46	35	12	24	68	12	17.5	10	54	68	62	39	31	8	16	48	7	11	6	41
	20	106	56	44	15	30	80	14	20	12	66	80	74	46	36	10	20	58	10	14	8	48
	22	106	56	44	15	30	80	14	20	12	66	80	74	46	36	10	10	58	10	14	8	48

■Set Cylinder Connector

Part Number		Cylinder Connector
		Standard									Space Saving
Type	M	MxPitch	F	L	D	H	T	W	L1	SR	MxPitch	F	L	D	H	T	W	L1	SR
Standard Standard FJMA FJMAS Standard Space Saving FJUMA FJUMAS Separate Standard FJMB FJMBS Separate Space Saving FJUMB FJUMBS Wrench Flats Standard FJMC FJMCS Wrench Flats Space Saving FJUMC FJUMCS	3	3x0.5	5	14	12	17	5	10	6	40	-	-	-	-	-	-	-	-	-
	4	4x0.7	6	14	12	17	5	10	6	40	-	-	-	-	-	-	-	-	-
	5	5x0.8	7	16	14	19	6	12	8	50	5x0.8	10	14	12	16	5	10	3	50
	6	6x1.0	10	16	14	19	6	12	8	50	6x1.0	13	14	12	16	5	10	3	50
	8	8x1.25	12	20	16	23	8	14	10	60	8x1.25	15	15	16	22	5	13	4	60
	10	10x1.5	15	20	20	27	8	17	10	60	10x1.5	18	15	16	22	5	13	4	60
	12	12x1.75	16	25	25	34	10	22	12	100	12x1.75	22	16	22	30	5.5	19	4	100
	16	16x2.0	18	30	32	43	12	27	15	100	16x2.0	30	20	28	36	8	21	4	100
	20	20x2.5	25	55	40	52	15	32	18	200	20x2.5	32	25	32	42	10	26	5	200
	22	22x2.5	28	55	40	52	15	32	18	200	22x2.5	35	25	32	42	10	26	5	200

■Flange only (See the Set Size Table for detailed sizes.)

Part Number		F		Compliance with Standard
Type	M	Fixed	Configurable (1mm Increment)	FJCNF	FJCNFS	FJCNR	FJCNRS
F Fixed FJCNF FJCNFS F Configurable FJCNR FJCNRS	3	5	5~8	●	●	●	●
	4	6	5~10	●	●	●	●
	5	7	5~12	●	●	●	●
	6	10	6~18	●	●	●	●
	8	12	10~25	●	●	●	●
	10	15	10~25	●	●	●	●
	12	16	12~36	●	●	●	●
	16	18	15~40	●	●	●	●
	20	25	20~60	●	●	●	●
	22	28	-	●	●	-	-

■Flange only (See the Set Size Table for detailed sizes.)

Part Number		Compliance with Standard
Type	M	FJA-H	FJB-H	FJC-H	FJAS-H	FJBS-H	FJCS-H
Standard FJA-H FJAS-H Separate FJB-H FJBS-H Wrench Flats FJC-H FJCS-H	3	●	●	●	●	●	●
	4	●	●	●	●	●	●
	5	●	●	●	●	●	●
	6	●	●	●	●	●	●
	8	●	●	●	●	●	●
	10	●	●	●	●	●	●
	12	●	●	●	●	●	●
	16	●	●	●	●	●	●
	20	●	●	●	●	●	●
	22	●	●	●	●	●	●

■Connector only (See the Set Size Table for detailed sizes.)

Part Number		Compliance with Standard
Type	M	FJUNF	FJUNFS
FJUNF FJUNFS	5	●	●
	6	●	●
	8	●	●
	10	●	●
	12	●	●
	16	●	●
	20	●	●
	22	●	●

■Flange only (See the Set Size Table for detailed sizes.)

Part Number		Compliance with Standard
Type	M	FJUA-H	FJUAS-H	FJUB-H	FJUBS-H	FJUC-H	FJUCS-H
Standard FJUA-H FJUAS-H Separate FJUB-H FJUBS-H Wrench Flats FJUC-H FJUCS-H	5	●	●	●	●	●	●
	6	●	●	●	●	●	●
	8	●	●	●	●	●	●
	10	●	●	●	●	●	●
	12	●	●	●	●	●	●
	16	●	●	●	●	●	●
	20	●	●	●	●	●	●
	22	●	●	●	●	●	●
