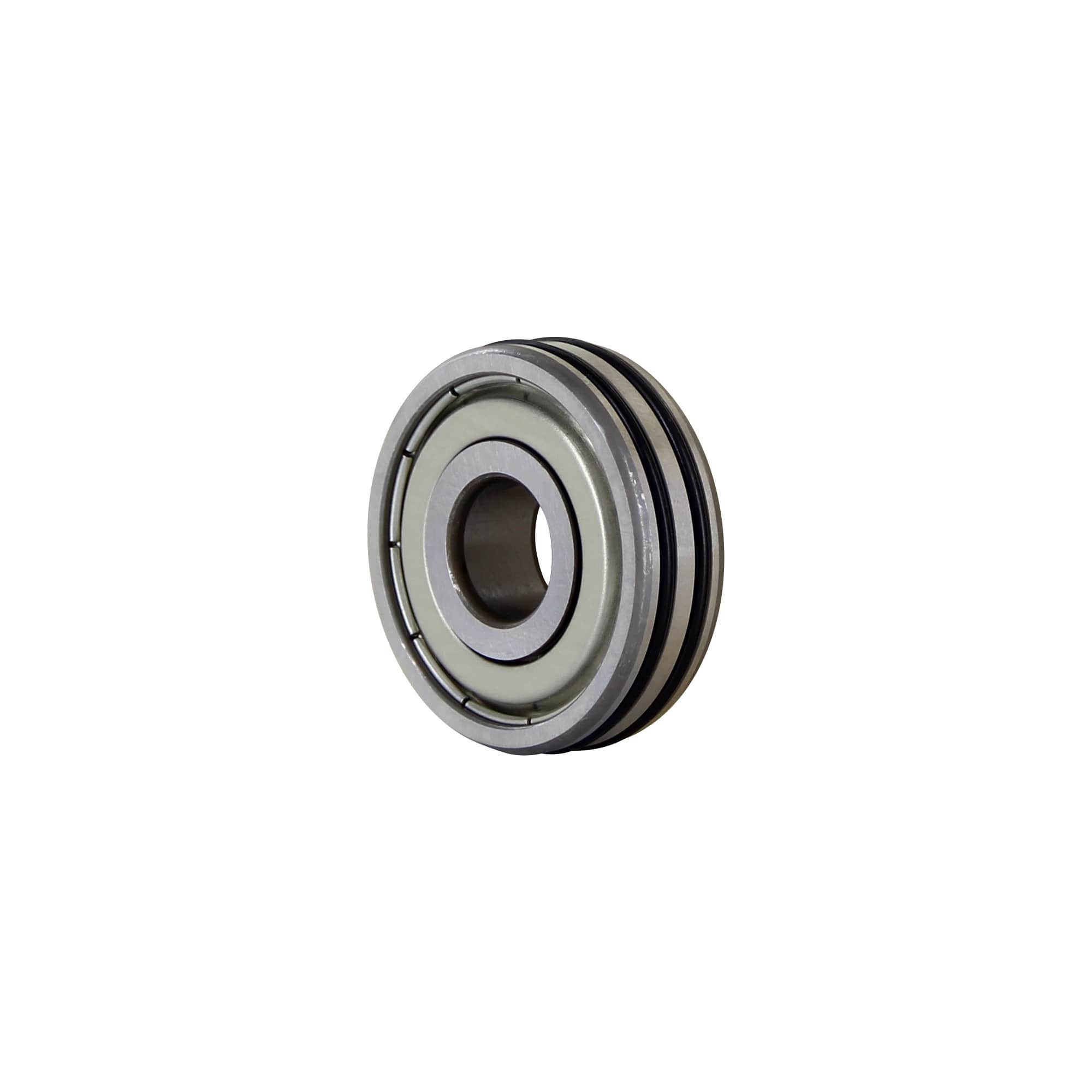

Creep-Resistant Ball Bearings
Přesunutím myši nad obrázek ho zvětšíte
Číslo dílu:
návrhy.Obrysový výkres a tabulka specifikací
 CFB6□□□ZZ (Installation Diagram) | Accuracy: JIS B 1514 Class 0 Recommended Fit: H7 or G6 [ ! ] G6 is recommended for ease of insertion and light pressure applications. Operating Temperature: -30 to +120°C [ ! ] When inserting an O-ring, it is recommended that the hole be chamfered between 15 and 30°. [ ! ] The inner diameter surface experiences little wear, meaning that the housing can be reused. [ ! ] When applying oil or grease to the bearing outer ring, use a mineral oil or synthetic hydrocarbon oil. |
| Components | Material |
| (1) Bearing | [ M ]EN 1.3505 Equiv. |
| (2) O-Ring | [M]Nitrile Rubber (NBR) |
Specification Table
| Part Number |
| CFB6000ZZ |
Refer to the tolerance and allowable value for radial bearings (Class 0) in the technical data.
[!] kgf = N × 0.101972
| Part Number | d | D | B | r (min) | Basic Load Rating | Allowable Rotational Speed rpm (Reference) | Relative Dimensions | Mass (g) (Reference) | ||||
| Cr (kN) | Cor (kN) | Ds | dh (max) | R (max) | ||||||||
| (min) | (max) | |||||||||||
| CFB6000ZZ | 10 | 26 | 8 | 0.3 | 4.6 | 2 | 30000 | 12 | 13 | 24 | 0.3 | 18 |
| CFB6200ZZ | 30 | 9 | 0.6 | 5.1 | 2.4 | 24000 | 14 | 16 | 26 | 0.6 | 32 | |
| CFB6300ZZ | 35 | 11 | 8.1 | 3.5 | 22000 | 16.5 | 31 | 52 | ||||
| CFB6001ZZ | 12 | 28 | 8 | 0.3 | 5.1 | 2.4 | 28000 | 15.5 | 26 | 0.3 | 22 | |
| CFB6201ZZ | 32 | 10 | 0.6 | 6.8 | 3.1 | 22000 | 16 | 17 | 28 | 0.6 | 37 | |
| CFB6301ZZ | 37 | 12 | 1 | 9.7 | 4.2 | 20000 | 17 | 18 | 32 | 1 | 60 | |
| CFB6002ZZ | 15 | 32 | 9 | 0.3 | 5.6 | 2.8 | 24000 | 19 | 30 | 0.3 | 31 | |
| CFB6202ZZ | 35 | 11 | 0.6 | 7.7 | 3.8 | 20000 | 19 | 20.5 | 31 | 0.6 | 45 | |
| CFB6302ZZ | 42 | 13 | 1 | 11.4 | 5.5 | 17000 | 20 | 22.5 | 37 | 1 | 83 | |
| CFB6003ZZ | 17 | 35 | 10 | 0.3 | 6 | 3.3 | 22000 | 19 | 21.5 | 33 | 0.3 | 41 |
| CFB6203ZZ | 40 | 12 | 0.6 | 9.6 | 4.8 | 17000 | 21 | 23.5 | 36 | 0.6 | 67 | |
| CFB6303ZZ | 47 | 14 | 1 | 13.6 | 6.7 | 15000 | 22 | 25.5 | 42 | 1 | 113 | |
| CFB6004ZZ | 20 | 42 | 12 | 0.6 | 9.4 | 5 | 18000 | 24 | 38 | 0.6 | 68 | |
| CFB6204ZZ | 47 | 14 | 1 | 12.8 | 6.6 | 15000 | 25 | 26.5 | 42 | 1 | 107 | |
| CFB6304ZZ | 52 | 15 | 1.1 | 15.9 | 7.9 | 14000 | 26.5 | 28 | 45.5 | 145 | ||
| CFB6005ZZ | 25 | 47 | 12 | 0.6 | 10.1 | 5.9 | 15000 | 29 | 30 | 43 | 0.6 | 79 |
| CFB6205ZZ | 52 | 15 | 1 | 14 | 7.9 | 13000 | 30 | 32 | 47 | 1 | 129 | |
| CFB6305ZZ | 62 | 17 | 1.1 | 20.6 | 11.2 | 11000 | 31.5 | 36 | 55.5 | 235 | ||
Product features
| The creep phenomenon and the mechanism for creep prevention | ||
| Creep is a phenomenon in which the outer ring moves around the inside of the housing in the opposite direction to the rotation of the inner ring. This occurs in clearance fit under a rotational load. | Attaching an O-ring to the outer ring reduces the clearance between the outer ring and the housing. The friction between the O-ring and housing prevents creep. | |
 |  | |
| Wear occurs over the entire contact surface of the housing and the outer ring. | The O-ring prevents outer ring movement (rotation) and prevents wear | |
Seznam čísel dílů
Počet položek
| Číslo dílu |
|---|
Jednotková cena (bez DPH)(Jednotková cena včetně DPH) | Standardní datum odeslání |
|---|
5.63 € ( 6.70 € ) | 5 pracovních dnů |
5.74 € ( 6.83 € ) | 5 pracovních dnů |
6.48 € ( 7.71 € ) | 5 pracovních dnů |
6.70 € ( 7.97 € ) | 5 pracovních dnů |
7.70 € ( 9.16 € ) | 5 pracovních dnů |
8.99 € ( 10.70 € ) | 5 pracovních dnů |
5.02 € ( 5.97 € ) | 5 pracovních dnů |
5.56 € ( 6.62 € ) | 5 pracovních dnů |
6.09 € ( 7.25 € ) | 5 pracovních dnů |
7.27 € ( 8.65 € ) | 5 pracovních dnů |
8.88 € ( 10.57 € ) | 5 pracovních dnů |
10.59 € ( 12.60 € ) | 5 pracovních dnů |
7.07 € ( 8.41 € ) | 5 pracovních dnů |
7.60 € ( 9.04 € ) | 5 pracovních dnů |
8.08 € ( 9.62 € ) | 5 pracovních dnů |
9.97 € ( 11.86 € ) | 5 pracovních dnů |
11.63 € ( 13.84 € ) | 5 pracovních dnů |
15.26 € ( 18.16 € ) | 5 pracovních dnů |
Podrobné údaje
Základní informace
An O-ring is installed in the groove of the outer ring, preventing creep by controlling the increase in clearance between the outer ring and housing.
