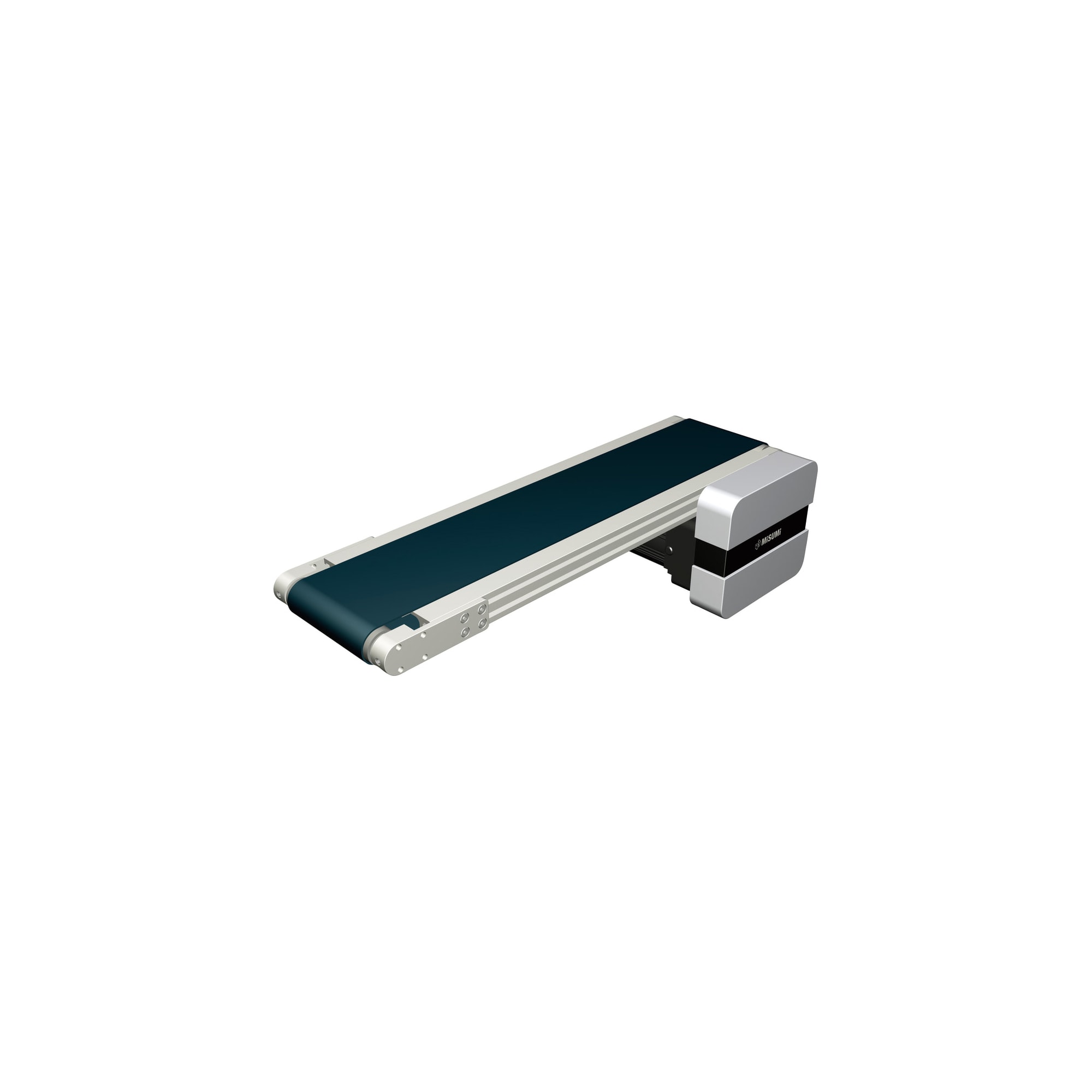

End Drive / Guided Belt / 2-Groove Frame / Pulley Dia. 30mm / SVKBE

* A Dimension Details

Output (W)	Motor		Reduction Ratio	A
	Specification	Manufacturer
6W	Induction Motor	Panasonic	5~25	101.0
			30~180	108.0
		Oriental	5~25	105.0
			30~180	115.0
	Variable Speed Motor	Oriental	5~25	115.0
			30~180	125.0
25W	Induction Motor	Panasonic	5~180	115.0
		Oriental	5~18	117.0
			25~180	127.5
	Variable Speed Motor
		Oriental	5~18	127.0
			25~180	137.5



	Frame	Motor Cover	Pulley Holder
Material	Aluminum	Aluminum	Aluminum
Surface Treatment	Clear Anodize	Painted	Painted

■Machine Weight (With a Motor Output of 6 W)
*Reference values (may vary depending on motor manufacturer) (kg)

Belt Width B(mm)	Distance Between Pulleys L(mm)
	500	1000	1500	2000	2500	3000
50	3.7	4.8	5.8	6.9	7.9	9
100	4.4	5.8	7.3	8.7	10.4	11.8
150	5	6.8	8.7	10.5	12.8	14.6
200	5.7	7.9	10.1	12.3	15.1	17.3
250	6.3	8.9	11.6	14.3	17.3	20
300	6.8	10.5	11.9	16	19	22.1
400	8.2	12.4	15	19.7	23.9	27.7

*When the motor output is 25 W, add 1.1 kg.

Part Number

B Selection

L 5mm Increment

Motor

Belt Specification

Motor Manufacturer Selection The prices vary by manufacturer.

Output (W)

Voltage (V)

Specification

Gearhead Reduction Ratio

SVKBE

50 100 150 200 250 300 400

300~3000

6 25

TA230 (Single-phase)

IM (Induction Motor) SCM (Variable Speed Motor)

5 18 60 150

7.5 25 75 180

9 30 90

12.5 36 100

15 50 120

H (General Specifications, Green) W (General Specifications, White) G (For Sliding, Green) S (For Sliding, White) D (For Electronic Parts Transfer) O (Oil Resistant, Navy Blue) N (Non-adhesive, White) J (No Belt) *For belts other than the above, select from Belt Specification below.

A (Panasonic Motor) B (Oriental Motor) When motor specification is SCM (Variable Speed Motor),A (Panasonic Motor) is not applicable.

5~9 not applicable for 6W Motor

6 25

NV (No Motor)

NM (No Motor)

NH (No Gearhead)

R (No Motor, Gearhead)

Connect the motor so that the belt rotates in the direction of conveyance. For connection diagram, and details of motor and inverter, see Here onward.
When "No motor, gearhead" is selected, the motor mounting hole pitch will vary depending on the motor's power rating. Please see Technical Information in our Conveyor Selection web site for the dimension details.
When "No motor, gearhead" is selected, this unit will be delivered unassembled. The customer is to assemble the unit according to the included assembly instructions. See our Conveyor Selection site for assembly procedures and packaging details.
Note that warpage might occur in belts with meandering prevention crosspiece depending on the number of plies (thickness).
It is not recommended to use the conveyor while it is tilted, regardless of the belt specifications.


Belt Specification	Standard Belt (Body Price Only)	Optional Belt 1	Optional Belt 2	No Belt
General Purpose	H (Green), W (White)	-	-	J (No Belt)
For Sliding	G (Green), S (White)	-	-
For Inclined Transfer	-	-	-
Grip Type	-	-	GG (Green), GW (White)
Oil Resistant	O (Green)	OW (White)	-
Non-adhesive	N (White)	NB (Sky Blue), NBG (Lime Green) HH (Green), HW (White)	-
For Food Transfer	-	KW (White), KSB (Sky Blue), PHB (Sky Blue)	-
For Electronic Parts Transfer	D (Black)	-	-

For flat belt details, see Here onward.
In case of selectiong Optional Belts, please select motor manufacturer A or B (Motor C is applicable for Standard Belt only.)
Select a belt with a thickness of 1.0 mm or less for a motor output of 6 W.
