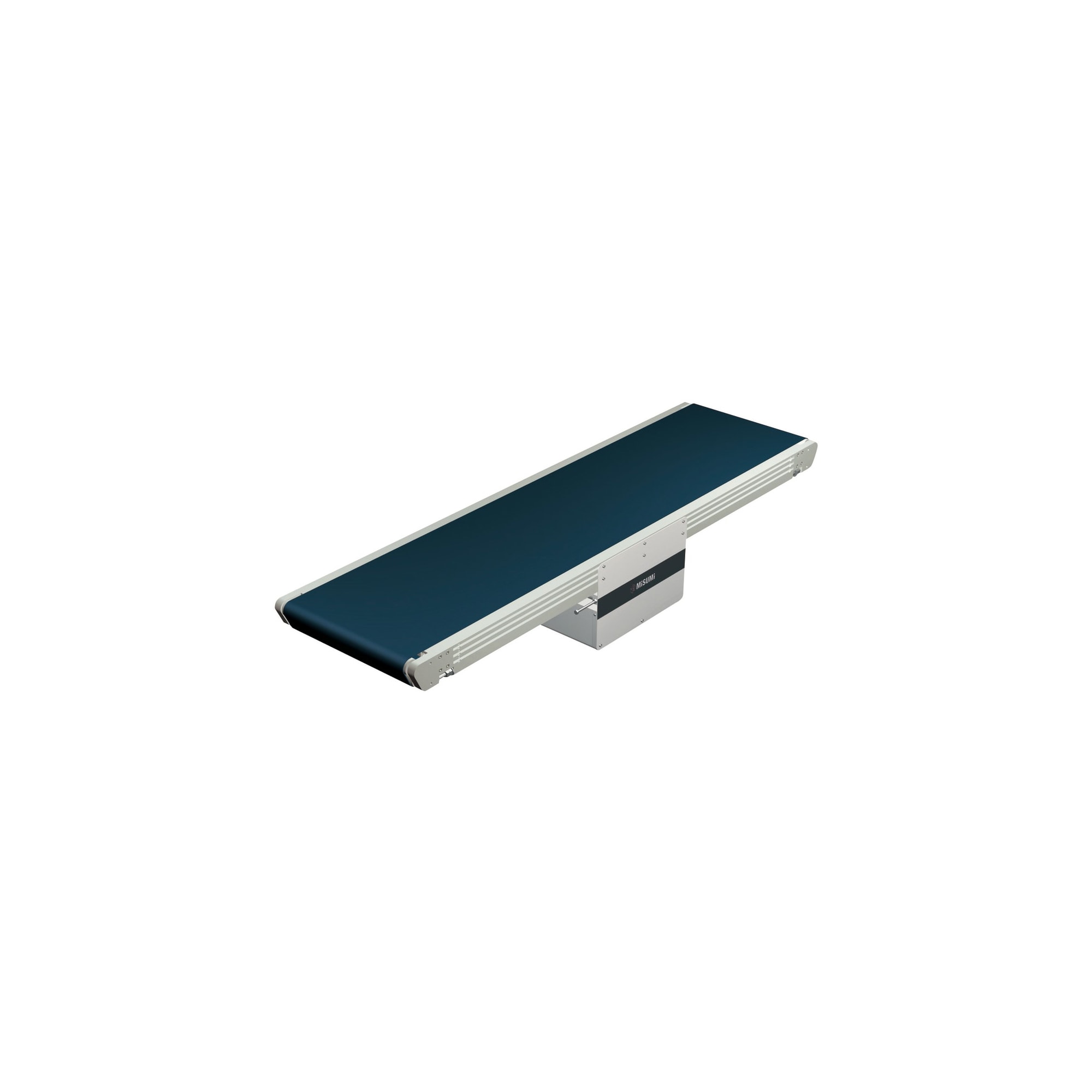

Center Drive / Heavy Duty / Guided Belt / 3-Groove Frame / Pulley Dia. 30mm / CVSYE

* A Dimension Details

Output (W)	Motor		Reduction Ratio	A1	A2
	Specification	Manufacturer
60W	Induction Motor	Panasonic	5~180	180.0	6
		Oriental	5~180	185.0
	Variable Speed Motor
		Oriental	5~180	215.0
90W	Induction Motor	Panasonic	5~180	195.0	6
		Oriental	5~180	200.0
	Variable Speed Motor
		Oriental	5~180	230.0

Part Number

B Selection

L 5mm Increment

Motor

Belt Specification

Motor Manufacturer Selection The prices vary by manufacturer.

Output (W)

Voltage (V)

Specification

Gearhead Reduction Ratio

CVSYE

100 200 300 400 500

480~6000

60 90

TA230 (Single-phase)

IM (Induction Motor) SCM (Variable Speed Motor)

5 18 60 150

7.5 25 75 180

9 30 90

12.5 36 100

15 50 120

H (General Purpose, Green) W (General Purpose, White) G (For Sliding, Green) S (For Sliding, White) D (For Electronic Parts Transfer) O (Oil Resistant) N (Non-adhesive) J (No Belt) *For belts other than the above, select from Belt Specification below.

A (Panasonic Motor) B (Oriental Motor) When motor specification is SCM (Variable Speed Motor),A (Panasonic Motor) is not applicable.

NV (No Motor)

NM (No Motor)

NH (No Gearhead)

R (No Motor, Gearhead)

Connect the motor so that the belt rotates in the direction of conveyance. For connection diagram, and details of motor and inverter, see Here onward. When L≥2005, customers are to assemble.
Workpiece weighing over 10kg/unit might deform belt base plate.
When the unit length (L dim.) is 2000mm or less, this will be delivered complete. For a unit over 2000mm, the frame is delivered in sections and the customer is to assemble according to the included assembly instructions. The assembly procedure manual can also be downloaded from our Conveyor Selection web site.
When "No motor, gearhead" is selected, the motor mounting hole pitch will vary depending on the motor's power rating. Please see Technical Information in our Conveyor Selection web site for the dimension details.
When "No motor, gearhead" is selected, this unit will be delivered unassembled. The customer is to assemble the unit according to the included assembly instructions. See our Conveyor Selection site for assembly procedures and packaging details.
Note that warpage might occur in meandering prevention crosspiece belts depending on the number of plies (thickness).


Belt Specification	Standard Belt (Body Price Only)	Optional Belt 1	Optional Belt 2	No Belt
General Purpose	H (Green), W (White)	-	-	J (No Belt)
For Sliding	G (Green), S (White)	-	-
Grip Type	-	-	GG (Green), GW (White)
Oil Resistant	O (Green)	OW (White)	-
Non-adhesive	N (White)	NB (Sky Blue), NBG (Lime Green) HH (Green), HW (White)	-
For Food Transfer	-	KW (White), KSB (Sky Blue), PHB (Sky Blue)	-
For Electronic Parts Transfer	D (Black)	-	-

For flat belt details, see Here onward.In case of selectiong Optional Belts, please select motor manufacturer A or B (Motor C is applicable for Standard Belt only.)
