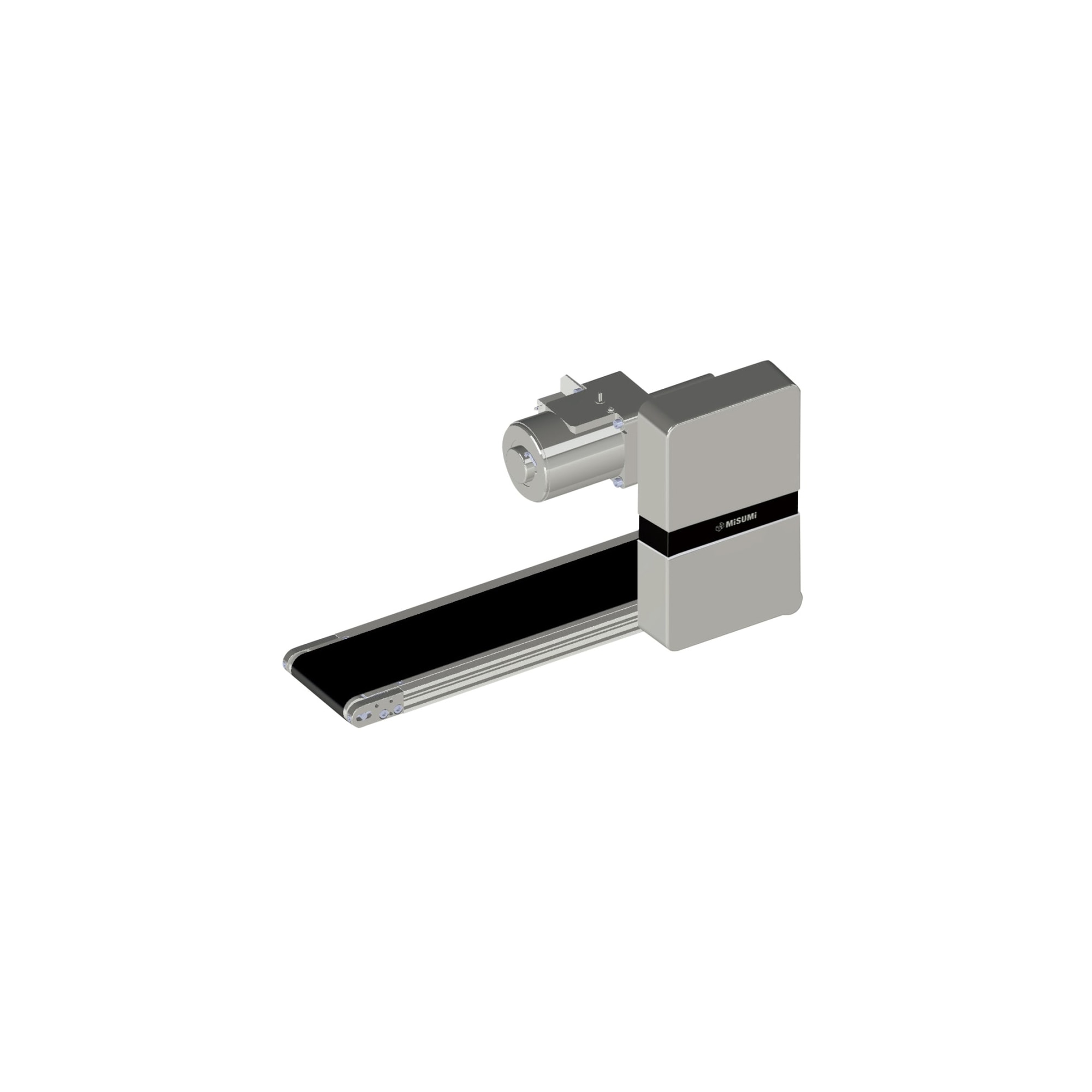

Head Drive / 2-Groove Frame / Pulley Dia. 30mm / CVMAE

Head Drive / 2-Groove Frame / Pulley Dia. 30mm / CVMAE

Přesunutím myši nad obrázek ho zvětšíte

Pozor

  • Latest part number of conveyor is adding "E" to end of the original part number.

Číslo dílu:

Nebyly nalezeny žádné nevyřízené. 12 návrhy.
Množství:

Obrysový výkres a tabulka specifikací

Head Drive/2-Groove Frame/Pulley Dia. 30mm:Related Image

 FrameMotor
Cover		Pulley
Holder
MaterialAluminumAluminumAluminum
Surface TreatmentClear AnodizePaintPaint

Specifications

Part Number B L Motor Belt Specification Motor Manufacturer
Selection
 --- --
TYPE Motor
Mounting Position		   Output-Voltage-Specification-Gearhead
Reduction Ratio
CVMA TM1E-100-1000-25-TA230-IM-25-H-B
Body Price+Motor
Spec. Price		+Gearhead
Spec. Price		+Belt
Spec. Price		=Unit Price
Part NumberB
10mm Increment		L
5mm Increment		MotorBelt SpecificationMotor Manufacturer Selection
The prices vary by manufacturer.
TypeMotor Mounting PositionOutput (W)Voltage (V)SpecificationGearhead Reduction Ratio
CVMATM1E SM1E BM1E
TM2E SM2E
TM3E SM3E BM3E
SM4E BM4E
TM5E SM5E

*For details, see Motor Mounting Position Selection Table.		50~300200~200025
40		TA230
(Single-phase)		IM
(Induction Motor)
SCM
(Variable Speed Motor)		5 7.5 9 12.5 15
18 25 30 36 50
60 75 90 100 120
150 180		H (General Specifications, Green)
W (General Specifications, White)
G (For Sliding, Green)
S (For Sliding, White)
D (For Electronic Parts Transfer)
F (For Food Transfer, White)
N (Non-adhesive, White)
J (No Belt)

*For other belt specifications, see Belt Selection Tablet below.		B (Oriental Motor)
NV (No Motor)NM (No Motor)NH (No Gearhead)R (No Motor)
Connect the motor so that the belt rotates in the direction of conveyance. For connection diagram, and details of motor and inverter, see p1_1267 onward.
When "No motor, gearhead" is selected, the motor mounting hole pitch will vary depending on the motor's power rating. Please see Technical Information in our Conveyor Selection web site for the dimension details.
When "No motor, gearhead" is selected, this unit will be delivered unassembled. The customer is to assemble the unit according to the included assembly instructions. See our Conveyor Selection site for assembly procedures and packaging details.
A worm gear is used for orthogonal shaft gear head. Note, therefore, that the motor cannot be rotated from the belt side for maintenance work, etc.
Head Drive/2-Groove Frame/Pulley Dia. 30mm:Related Image
■Belt Selection Table
Belt SpecificationStandard Belt (Body Price Only)Optional Belt 1Optional Belt 2No Belt
General PurposeH (Green), W (White), HG (Green)-HBN (Sky Blue)J
(No Belt)
For SlidingG (Green), S (White)--
For Inclined TransferLG (Green), LW (White)--
Grip Type-GG (Green), GW (White)GSN (Green)
Oil ResistantOH (Green), OG (Green)OW (White)ON (White)
Non-adhesiveN (White), NS (White)NB (Sky Blue), NBG (Lime Green), HH (Green), HW (White)NWN (White), NSN (Sky Blue), NGN (Lime Green), HBG (Green), HBW (White), BW (White)
For Food TransferF (White)KW (White), KSB (Sky Blue), PHB (Sky Blue)PHN (Sky Blue), PWN (Sky Blue), KWN (White)
For Electronic Parts TransferD (Black), DS (Black)-DG (Black)
For flat belt details, see p1_1279 onward.

Alterations

Head Drive/2-Groove Frame/Pulley Dia. 30mm:Related Image
Head Drive/2-Groove Frame/Pulley Dia. 30mm:Related Image

Seznam čísel dílů

Počet položek
  • 1
    • Číslo dílu
    CVMABM1E-[50-300/10]-[200-2000/5]-[25,40]-TA230-[IM,SCM]-[5,7.5,9,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-[BW,D,DG,DS,F,G,GG,GSN,GW,H,HBG,HBN,HBW,HG,HH,HW,HY,J,KSB,KW,KWN,LG,LW,N,NB,NBG,NGN,NS,NSN,NWN,OG,OH,ON,OW,PHB,PHN,PWN,S,W]-B
    CVMABM3E-[50-300/10]-[200-2000/5]-[25,40]-TA230-[IM,SCM]-[5,7.5,9,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-[BW,D,DG,DS,F,G,GG,GSN,GW,H,HBG,HBN,HBW,HG,HH,HW,HY,J,KSB,KW,KWN,LG,LW,N,NB,NBG,NGN,NS,NSN,NWN,OG,OH,ON,OW,PHB,PHN,PWN,S,W]-B
    CVMABM4E-[50-300/10]-[200-2000/5]-[25,40]-TA230-[IM,SCM]-[5,7.5,9,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-[BW,D,DG,DS,F,G,GG,GSN,GW,H,HBG,HBN,HBW,HG,HH,HW,HY,J,KSB,KW,KWN,LG,LW,N,NB,NBG,NGN,NS,NSN,NWN,OG,OH,ON,OW,PHB,PHN,PWN,S,W]-B
    CVMASM1E-[50-300/10]-[200-2000/5]-[25,40]-TA230-[IM,SCM]-[5,7.5,9,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-[BW,D,DG,DS,F,G,GG,GSN,GW,H,HBG,HBN,HBW,HG,HH,HW,HY,J,KSB,KW,KWN,LG,LW,N,NB,NBG,NGN,NS,NSN,NWN,OG,OH,ON,OW,PHB,PHN,PWN,S,W]-B
    CVMASM2E-[50-300/10]-[200-2000/5]-[25,40]-TA230-[IM,SCM]-[5,7.5,9,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-[BW,D,DG,DS,F,G,GG,GSN,GW,H,HBG,HBN,HBW,HG,HH,HW,HY,J,KSB,KW,KWN,LG,LW,N,NB,NBG,NGN,NS,NSN,NWN,OG,OH,ON,OW,PHB,PHN,PWN,S,W]-B
    CVMASM3E-[50-300/10]-[200-2000/5]-[25,40]-TA230-[IM,SCM]-[5,7.5,9,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-[BW,D,DG,DS,F,G,GG,GSN,GW,H,HBG,HBN,HBW,HG,HH,HW,HY,J,KSB,KW,KWN,LG,LW,N,NB,NBG,NGN,NS,NSN,NWN,OG,OH,ON,OW,PHB,PHN,PWN,S,W]-B
    CVMASM4E-[50-300/10]-[200-2000/5]-[25,40]-TA230-[IM,SCM]-[5,7.5,9,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-[D,DS,F,G,GG,GW,H,HG,HH,HW,J,KSB,KW,LG,LW,N,NB,NBG,NS,OH,OW,PHB,S,W]-B
    CVMASM5E-[50-300/10]-[200-2000/5]-[25,40]-TA230-[IM,SCM]-[5,7.5,9,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-[BW,D,DG,DS,F,G,GG,GSN,GW,H,HBG,HBN,HBW,HG,HH,HW,HY,J,KSB,KW,KWN,LG,LW,N,NB,NBG,NGN,NS,NSN,NWN,OG,OH,ON,OW,PHB,PHN,PWN,S,W]-B
    CVMATM1E-[50-300/10]-[200-2000/5]-[25,40]-TA230-[IM,SCM]-[5,7.5,9,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-[BW,D,DG,DS,F,G,GG,GSN,GW,H,HBG,HBN,HBW,HG,HH,HW,HY,J,KSB,KW,KWN,LG,LW,N,NB,NBG,NGN,NS,NSN,NWN,OG,OH,ON,OW,PHB,PHN,PWN,S,W]-B
    CVMATM2E-[50-300/10]-[200-2000/5]-[25,40]-TA230-[IM,SCM]-[5,7.5,9,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-[BW,D,DG,DS,F,G,GG,GSN,GW,H,HBG,HBN,HBW,HG,HH,HW,HY,J,KSB,KW,KWN,LG,LW,N,NB,NBG,NGN,NS,NSN,NWN,OG,OH,ON,OW,PHB,PHN,PWN,S,W]-B
    CVMATM3E-[50-300/10]-[200-2000/5]-[25,40]-TA230-[IM,SCM]-[5,7.5,9,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-[BW,D,DG,DS,F,G,GG,GSN,GW,H,HBG,HBN,HBW,HG,HH,HW,HY,J,KSB,KW,KWN,LG,LW,N,NB,NBG,NGN,NS,NSN,NWN,OG,OH,ON,OW,PHB,PHN,PWN,S,W]-B
    CVMATM5E-[50-300/10]-[200-2000/5]-[25,40]-TA230-[IM,SCM]-[5,7.5,9,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-[BW,D,DG,DS,F,G,GG,GSN,GW,H,HBG,HBN,HBW,HG,HH,HW,HY,J,KSB,KW,KWN,LG,LW,N,NB,NBG,NGN,NS,NSN,NWN,OG,OH,ON,OW,PHB,PHN,PWN,S,W]-B

    Driving Type

    [B] Belt Width

    (mm)

    [L] Conveyor Length

    (mm)

    Max. Conveyance Speed

    (m/min)

    Motor Mount Position

    Motor Output

    (W)

    [TA] Motor Voltage (Single Phase) * International

    (V)

    Motor Type

    Gearhead Reduction Ratio

    Belt Specification (Standard Belts)

    Belt Specification (Optional Belts 1)

    Belt Specification (Optional Belts 2)

    Belt Specifications

    Motor Manufacturer Selection

    		Minimální objednací množství
    Head Drive
    50 - 300
    200 - 2000
    67.7
    Side Mount [SM5]
    25 - 40
    230
    [IM] Induction Motor / [SCM] Variable Speed Motor
    5 - 180
    [DS] For Electronic Parts Transfer - Black / [D] For Electronic Parts Transfer - Black / [F] For Food Transfer - White / [G] For Sliding - Green / [HG] General Purpose - Green / [H] For General Use - Green / [LG] For Inclined Transfer - Green / [LW] For Inclined Transfer - White / [NS] Non-adhesive - White / [N] Non-adhesive - White / [OG] Oil Resistant - Green / [OH] Oil Resistant - Green / [S] For Sliding - White / [W] General Purpose - White
    [GG] Grip Type - Green / [GW] Grip Type - White / [HH] Non-adhesive - Green / [HW] Non-adhesive - White / [KSB] For Food Transfer - Sky Blue / [KW] For Food Transfer - White / [NBG] Non-adhesive - Lime Green / [NB] Non-adhesive - Sky Blue / [OW] Oil Resistant - White / [PHB] For Food Transfer - Sky Blue
    BW / DG / GSN / HBG / HBN / HBW / KWN / NGN / NSN / NWN / ON / PHN / PWN
    [J] No Belt
    [B] Oriental Motor
    1 kusů
    Head Drive
    50 - 300
    200 - 2000
    67.7
    Top Mount [TM2]
    25 - 40
    230
    [IM] Induction Motor / [SCM] Variable Speed Motor
    5 - 180
    [DS] For Electronic Parts Transfer - Black / [D] For Electronic Parts Transfer - Black / [F] For Food Transfer - White / [G] For Sliding - Green / [HG] General Purpose - Green / [H] For General Use - Green / [LG] For Inclined Transfer - Green / [LW] For Inclined Transfer - White / [NS] Non-adhesive - White / [N] Non-adhesive - White / [OG] Oil Resistant - Green / [OH] Oil Resistant - Green / [S] For Sliding - White / [W] General Purpose - White
    [GG] Grip Type - Green / [GW] Grip Type - White / [HH] Non-adhesive - Green / [HW] Non-adhesive - White / [KSB] For Food Transfer - Sky Blue / [KW] For Food Transfer - White / [NBG] Non-adhesive - Lime Green / [NB] Non-adhesive - Sky Blue / [OW] Oil Resistant - White / [PHB] For Food Transfer - Sky Blue
    BW / DG / GSN / HBG / HBN / HBW / KWN / NGN / NSN / NWN / ON / PHN / PWN
    [J] No Belt
    [B] Oriental Motor
    1 kusů
    Head Drive
    50 - 300
    200 - 2000
    67.7
    Side Mount [SM1]
    25 - 40
    230
    [IM] Induction Motor / [SCM] Variable Speed Motor
    5 - 180
    [DS] For Electronic Parts Transfer - Black / [D] For Electronic Parts Transfer - Black / [F] For Food Transfer - White / [G] For Sliding - Green / [HG] General Purpose - Green / [H] For General Use - Green / [LG] For Inclined Transfer - Green / [LW] For Inclined Transfer - White / [NS] Non-adhesive - White / [N] Non-adhesive - White / [OG] Oil Resistant - Green / [OH] Oil Resistant - Green / [S] For Sliding - White / [W] General Purpose - White
    [GG] Grip Type - Green / [GW] Grip Type - White / [HH] Non-adhesive - Green / [HW] Non-adhesive - White / [KSB] For Food Transfer - Sky Blue / [KW] For Food Transfer - White / [NBG] Non-adhesive - Lime Green / [NB] Non-adhesive - Sky Blue / [OW] Oil Resistant - White / [PHB] For Food Transfer - Sky Blue
    BW / DG / GSN / HBG / HBN / HBW / KWN / NGN / NSN / NWN / ON / PHN / PWN
    [J] No Belt
    [B] Oriental Motor
    1 kusů
    Side Mount
    50 - 300
    200 - 2000
    33.8
    Bottom Mount [BM4]
    25 - 40
    230
    [IM] Induction Motor / [SCM] Variable Speed Motor
    5 - 180
    [DS] For Electronic Parts Transfer - Black / [D] For Electronic Parts Transfer - Black / [F] For Food Transfer - White / [G] For Sliding - Green / [HG] General Purpose - Green / [H] For General Use - Green / [LG] For Inclined Transfer - Green / [LW] For Inclined Transfer - White / [NS] Non-adhesive - White / [N] Non-adhesive - White / [OG] Oil Resistant - Green / [OH] Oil Resistant - Green / [S] For Sliding - White / [W] General Purpose - White
    [GG] Grip Type - Green / [GW] Grip Type - White / [HH] Non-adhesive - Green / [HW] Non-adhesive - White / [KSB] For Food Transfer - Sky Blue / [KW] For Food Transfer - White / [NBG] Non-adhesive - Lime Green / [NB] Non-adhesive - Sky Blue / [OW] Oil Resistant - White / [PHB] For Food Transfer - Sky Blue
    BW / DG / GSN / HBG / HBN / HBW / KWN / NGN / NSN / NWN / ON / PHN / PWN
    [J] No Belt
    [B] Oriental Motor
    1 kusů
    Side Mount
    50 - 300
    200 - 2000
    33.8
    Bottom Mount [BM3]
    25 - 40
    230
    [IM] Induction Motor / [SCM] Variable Speed Motor
    5 - 180
    [DS] For Electronic Parts Transfer - Black / [D] For Electronic Parts Transfer - Black / [F] For Food Transfer - White / [G] For Sliding - Green / [HG] General Purpose - Green / [H] For General Use - Green / [LG] For Inclined Transfer - Green / [LW] For Inclined Transfer - White / [NS] Non-adhesive - White / [N] Non-adhesive - White / [OG] Oil Resistant - Green / [OH] Oil Resistant - Green / [S] For Sliding - White / [W] General Purpose - White
    [GG] Grip Type - Green / [GW] Grip Type - White / [HH] Non-adhesive - Green / [HW] Non-adhesive - White / [KSB] For Food Transfer - Sky Blue / [KW] For Food Transfer - White / [NBG] Non-adhesive - Lime Green / [NB] Non-adhesive - Sky Blue / [OW] Oil Resistant - White / [PHB] For Food Transfer - Sky Blue
    BW / DG / GSN / HBG / HBN / HBW / KWN / NGN / NSN / NWN / ON / PHN / PWN
    [J] No Belt
    [B] Oriental Motor
    1 kusů
    Side Mount
    50 - 300
    200 - 2000
    33.8
    Top Mount [TM1]
    25 - 40
    230
    [IM] Induction Motor / [SCM] Variable Speed Motor
    5 - 180
    [DS] For Electronic Parts Transfer - Black / [D] For Electronic Parts Transfer - Black / [F] For Food Transfer - White / [G] For Sliding - Green / [HG] General Purpose - Green / [H] For General Use - Green / [LG] For Inclined Transfer - Green / [LW] For Inclined Transfer - White / [NS] Non-adhesive - White / [N] Non-adhesive - White / [OG] Oil Resistant - Green / [OH] Oil Resistant - Green / [S] For Sliding - White / [W] General Purpose - White
    [GG] Grip Type - Green / [GW] Grip Type - White / [HH] Non-adhesive - Green / [HW] Non-adhesive - White / [KSB] For Food Transfer - Sky Blue / [KW] For Food Transfer - White / [NBG] Non-adhesive - Lime Green / [NB] Non-adhesive - Sky Blue / [OW] Oil Resistant - White / [PHB] For Food Transfer - Sky Blue
    BW / DG / GSN / HBG / HBN / HBW / KWN / NGN / NSN / NWN / ON / PHN / PWN
    [J] No Belt
    [B] Oriental Motor
    1 kusů
    Side Mount
    50 - 300
    200 - 2000
    33.8
    Side Mount [SM4]
    25 - 40
    230
    [IM] Induction Motor / [SCM] Variable Speed Motor
    5 - 180
    [DS] For Electronic Parts Transfer - Black / [D] For Electronic Parts Transfer - Black / [F] For Food Transfer - White / [G] For Sliding - Green / [HG] General Purpose - Green / [H] For General Use - Green / [LG] For Inclined Transfer - Green / [LW] For Inclined Transfer - White / [NS] Non-adhesive - White / [N] Non-adhesive - White / [OH] Oil Resistant - Green / [S] For Sliding - White / [W] General Purpose - White
    [GG] Grip Type - Green / [GW] Grip Type - White / [HH] Non-adhesive - Green / [HW] Non-adhesive - White / [KSB] For Food Transfer - Sky Blue / [KW] For Food Transfer - White / [NBG] Non-adhesive - Lime Green / [NB] Non-adhesive - Sky Blue / [OW] Oil Resistant - White / [PHB] For Food Transfer - Sky Blue
    -
    [J] No Belt
    [B] Oriental Motor
    1 kusů
    Side Mount
    50 - 300
    200 - 2000
    33.8
    Top Mount [TM5]
    25 - 40
    230
    [IM] Induction Motor / [SCM] Variable Speed Motor
    5 - 180
    [DS] For Electronic Parts Transfer - Black / [D] For Electronic Parts Transfer - Black / [F] For Food Transfer - White / [G] For Sliding - Green / [HG] General Purpose - Green / [H] For General Use - Green / [LG] For Inclined Transfer - Green / [LW] For Inclined Transfer - White / [NS] Non-adhesive - White / [N] Non-adhesive - White / [OG] Oil Resistant - Green / [OH] Oil Resistant - Green / [S] For Sliding - White / [W] General Purpose - White
    [GG] Grip Type - Green / [GW] Grip Type - White / [HH] Non-adhesive - Green / [HW] Non-adhesive - White / [KSB] For Food Transfer - Sky Blue / [KW] For Food Transfer - White / [NBG] Non-adhesive - Lime Green / [NB] Non-adhesive - Sky Blue / [OW] Oil Resistant - White / [PHB] For Food Transfer - Sky Blue
    BW / DG / GSN / HBG / HBN / HBW / KWN / NGN / NSN / NWN / ON / PHN / PWN
    [J] No Belt
    [B] Oriental Motor
    1 kusů
    Top Mount
    50 - 300
    200 - 2000
    67.7
    Side Mount [SM2]
    25 - 40
    230
    [IM] Induction Motor / [SCM] Variable Speed Motor
    5 - 180
    [DS] For Electronic Parts Transfer - Black / [D] For Electronic Parts Transfer - Black / [F] For Food Transfer - White / [G] For Sliding - Green / [HG] General Purpose - Green / [H] For General Use - Green / [LG] For Inclined Transfer - Green / [LW] For Inclined Transfer - White / [NS] Non-adhesive - White / [N] Non-adhesive - White / [OG] Oil Resistant - Green / [OH] Oil Resistant - Green / [S] For Sliding - White / [W] General Purpose - White
    [GG] Grip Type - Green / [GW] Grip Type - White / [HH] Non-adhesive - Green / [HW] Non-adhesive - White / [KSB] For Food Transfer - Sky Blue / [KW] For Food Transfer - White / [NBG] Non-adhesive - Lime Green / [NB] Non-adhesive - Sky Blue / [OW] Oil Resistant - White / [PHB] For Food Transfer - Sky Blue
    BW / DG / GSN / HBG / HBN / HBW / KWN / NGN / NSN / NWN / ON / PHN / PWN
    [J] No Belt
    [B] Oriental Motor
    1 kusů
    Top Mount
    50 - 300
    200 - 2000
    67.7
    Bottom Mount [BM1]
    25 - 40
    230
    [IM] Induction Motor / [SCM] Variable Speed Motor
    5 - 180
    [DS] For Electronic Parts Transfer - Black / [D] For Electronic Parts Transfer - Black / [F] For Food Transfer - White / [G] For Sliding - Green / [HG] General Purpose - Green / [H] For General Use - Green / [LG] For Inclined Transfer - Green / [LW] For Inclined Transfer - White / [NS] Non-adhesive - White / [N] Non-adhesive - White / [OG] Oil Resistant - Green / [OH] Oil Resistant - Green / [S] For Sliding - White / [W] General Purpose - White
    [GG] Grip Type - Green / [GW] Grip Type - White / [HH] Non-adhesive - Green / [HW] Non-adhesive - White / [KSB] For Food Transfer - Sky Blue / [KW] For Food Transfer - White / [NBG] Non-adhesive - Lime Green / [NB] Non-adhesive - Sky Blue / [OW] Oil Resistant - White / [PHB] For Food Transfer - Sky Blue
    BW / DG / GSN / HBG / HBN / HBW / KWN / NGN / NSN / NWN / ON / PHN / PWN
    [J] No Belt
    [B] Oriental Motor
    1 kusů
    Top Mount
    50 - 300
    200 - 2000
    67.7
    Side Mount [SM3]
    25 - 40
    230
    [IM] Induction Motor / [SCM] Variable Speed Motor
    5 - 180
    [DS] For Electronic Parts Transfer - Black / [D] For Electronic Parts Transfer - Black / [F] For Food Transfer - White / [G] For Sliding - Green / [HG] General Purpose - Green / [H] For General Use - Green / [LG] For Inclined Transfer - Green / [LW] For Inclined Transfer - White / [NS] Non-adhesive - White / [N] Non-adhesive - White / [OG] Oil Resistant - Green / [OH] Oil Resistant - Green / [S] For Sliding - White / [W] General Purpose - White
    [GG] Grip Type - Green / [GW] Grip Type - White / [HH] Non-adhesive - Green / [HW] Non-adhesive - White / [KSB] For Food Transfer - Sky Blue / [KW] For Food Transfer - White / [NBG] Non-adhesive - Lime Green / [NB] Non-adhesive - Sky Blue / [OW] Oil Resistant - White / [PHB] For Food Transfer - Sky Blue
    BW / DG / GSN / HBG / HBN / HBW / KWN / NGN / NSN / NWN / ON / PHN / PWN
    [J] No Belt
    [B] Oriental Motor
    1 kusů
    Top Mount
    50 - 300
    200 - 2000
    67.7
    Top Mount [TM3]
    25 - 40
    230
    [IM] Induction Motor / [SCM] Variable Speed Motor
    5 - 180
    [DS] For Electronic Parts Transfer - Black / [D] For Electronic Parts Transfer - Black / [F] For Food Transfer - White / [G] For Sliding - Green / [HG] General Purpose - Green / [H] For General Use - Green / [LG] For Inclined Transfer - Green / [LW] For Inclined Transfer - White / [NS] Non-adhesive - White / [N] Non-adhesive - White / [OG] Oil Resistant - Green / [OH] Oil Resistant - Green / [S] For Sliding - White / [W] General Purpose - White
    [GG] Grip Type - Green / [GW] Grip Type - White / [HH] Non-adhesive - Green / [HW] Non-adhesive - White / [KSB] For Food Transfer - Sky Blue / [KW] For Food Transfer - White / [NBG] Non-adhesive - Lime Green / [NB] Non-adhesive - Sky Blue / [OW] Oil Resistant - White / [PHB] For Food Transfer - Sky Blue
    BW / DG / GSN / HBG / HBN / HBW / KWN / NGN / NSN / NWN / ON / PHN / PWN
    [J] No Belt
    [B] Oriental Motor
    1 kusů
    Jednotková cena (bez DPH)(Jednotková cena včetně DPH)
    Standardní datum odeslání
    -
    (
    -
    )
    12 pracovních dnů
    -
    (
    -
    )
    12 pracovních dnů
    -
    (
    -
    )
    12 pracovních dnů
    -
    (
    -
    )
    12 pracovních dnů
    -
    (
    -
    )
    12 pracovních dnů
    -
    (
    -
    )
    12 pracovních dnů
    -
    (
    -
    )
    12 pracovních dnů
    -
    (
    -
    )
    12 pracovních dnů
    -
    (
    -
    )
    12 pracovních dnů
    -
    (
    -
    )
    12 pracovních dnů
    -
    (
    -
    )
    12 pracovních dnů
    -
    (
    -
    )
    12 pracovních dnů
  • 1

    • Podrobné údaje

    Základní informace

    Manuals

    Pozor

    • Latest part number of conveyor is adding "E" to end of the original part number.

    Termín doručení a cena

    Price List

    Part NumberBBody Price 1 ~ 2 pc(s).
    L200~
    300    		L305~
    400    		L405~
    500    		L505~
    600    		L605~
    700    		L705~
    800    		L805~
    900    		L905~
    1000    		L1005~
    1100    		L1105~
    1200    		L1205~
    1300    		L1305~
    1400    		L1405~
    1500    		L1505~
    1600    		L1605~
    1700    		L1705~
    1800    		L1805~
    1900    		L1905~
    2000
    CVMATM□E CVMABM□E50~100
    110~150-
    160~200---
    210~250-----
    260~300------
    CVMASM□E50~100
    110~150-
    160~200---
    210~250-----
    260~300------
    For orders larger than indicated quantity, please check with WOS.
