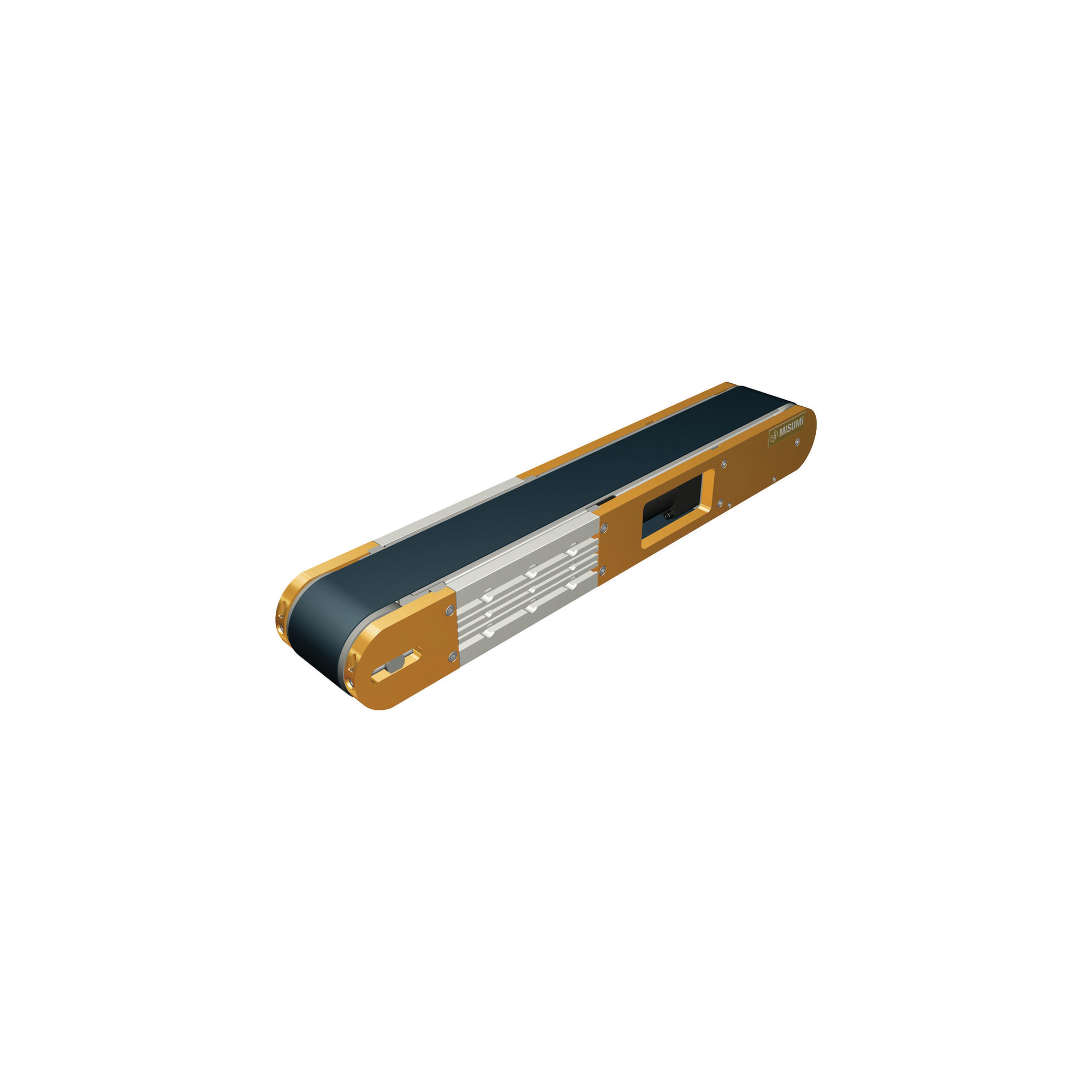

Motor Integrated / 3-Groove Frame / Pulley Dia. 70mm / CVSMAE



	Frame	Pulley Holder
Material	Aluminum	EN AW-5052 Equiv.
Surface Treatment	Clear Anodize	Gold Anodize

Part Number

B Selection

L 5mm Increment

Motor

Belt Specification

Motor Manufacturer Selection The prices vary by manufacturer.

Output (W)

Voltage (V)

Specification

Gearhead Reduction Ratio

CVSMAE

60 100 150

415~2000

6

TA230 (Single-phase)

IM (Induction Motor) SCM (Variable Speed Motor)

15 50 120

18 60 150

25 75 180

30 90

36 100

H (General Purpose, Green) W (General Purpose, White) G (For Sliding, Green) S (For Sliding, White) D (For Electronic Parts Transfer) F (For Food Transfer) N (Non-adhesive) J (No Belt) *For belts other than the above, select from Belt Specification below.

A (Panasonic Motor) B (Oriental Motor) When motor specification is SCM (Variable Speed Motor),A (Panasonic Motor) is not applicable.

NV (No Motor)

NM (No Motor)

NH (No Gearhead)

R (No Motor, Gearhead)

Connect the motor so that the belt rotates in the direction of conveyance. For connection diagram and motor details, see Here onward.
When "No motor, gearhead" is selected, the motor mounting hole pitch will vary depending on the motor's power rating. Please see Technical Information in our Conveyor Selection web site for the dimension details.
When "No motor, gearhead" is selected, this unit will be delivered unassembled. The customer is to assemble the unit according to the included assembly instructions. See our Conveyor Selection site for assembly procedures and packaging details.


Belt Specification	Standard Belt (Body Price Only)	Optional Belt 1	Optional Belt 2	No Belt
General Purpose	H (Green), W (White), HG (Green)	-	HY (Yellow Green), HBN (Sky Blue), HGN (Green)	J (No Belt)
For Sliding	G (Green), S (White)	-	-
Grip Type	-	GG (Green), GW (White)	GSN (Green)
Oil Resistant	OH (Green), OG (Green)	OW (White)	ON (White)
Non-adhesive	N (White), NS (White)	NB (Sky Blue), NBG (Lime Green) HH (Green), HW (White)	-
For Food Transfer	F (White)	KW (White), KSB (Sky Blue)	-
For Electronic Parts Transfer	D (Black), DS (Black)	-	-

For flat belt details, see Here onward.
