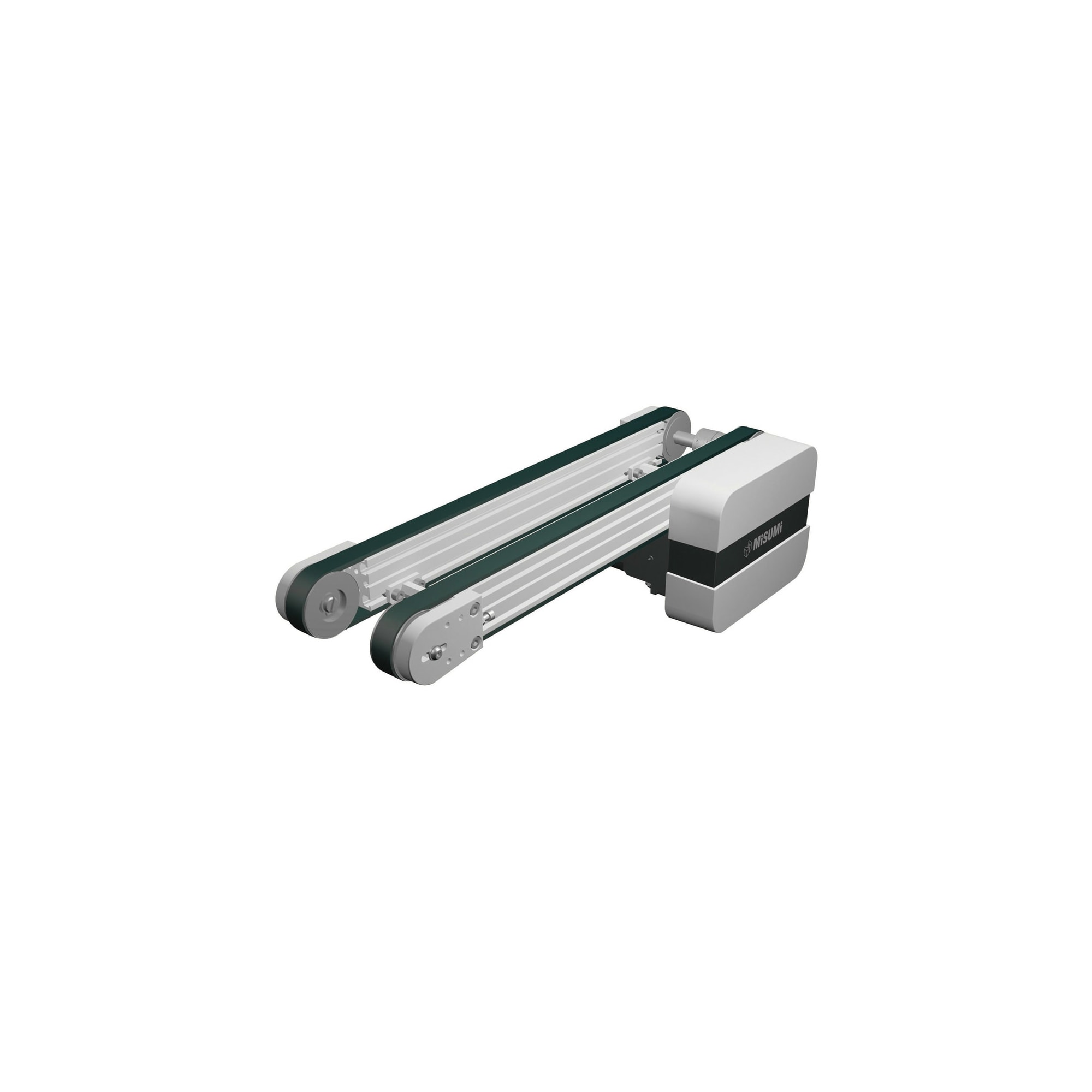

Timing Belt / End Drive / Dual Track / 3-Groove Frame / CVGTBE

* A Dimension Details

Output (W)	Motor		Reduction Ratio	A
	Specification	Manufacturer
25W	Induction Motor	Panasonic	5~180	115.0
		Oriental	5~18	117.0
			25~180	127.5
	Variable Speed Motor	Oriental	5~18	127.0
			25~180	137.5
40W	Induction Motor	Panasonic	5~180	142.0
		Oriental	5~18	147.0
			25~180	165.0
	Variable Speed Motor	Oriental	5~18	157.0
			25~180	175.0



	Frame	Motor Cover	Pulley Holder
Material	Aluminum	Aluminum	Aluminum
Surface Treatment	Clear Anodize	Paint	Paint

Part Number

B 1mm Increment

L 5mm Increment

Motor

Belt Specification

Motor Manufacturer Selection The prices vary by manufacturer.

Output (W)

Voltage (V)

Specification

Gearhead Reduction Ratio

CVGTBE

80~300

265~3000

25 40

TA230 (Single-phase)

IM (Induction Motor) SCM (Variable Speed Motor)

5 18 60 150

7.5 25 75 180

9 30 90

12.5 36 100

15 50 120

S (For Sliding, Green) J (No Belt)

A (Panasonic Motor) B (Oriental Motor) When motor specification is SCM (Variable Speed Motor),A (Panasonic Motor) is not applicable.

NV (No Motor)

NM (No Motor)

NH (No Gearhead)

R (No Motor, Gearhead)

Connect the motor so that the belt rotates in the direction of conveyance. For connection diagram, and details of motor and inverter, see Here onward.
For belt details, see Here onward.
When "No motor, gearhead" is selected, the motor mounting hole pitch will vary depending on the motor's power rating. Please see Technical Information in our Conveyor Selection web site for the dimension details.
When "No motor, gearhead" is selected, this unit will be delivered unassembled. The customer is to assemble the unit according to the included assembly instructions. See our Conveyor Selection site for assembly procedures and packaging details.
