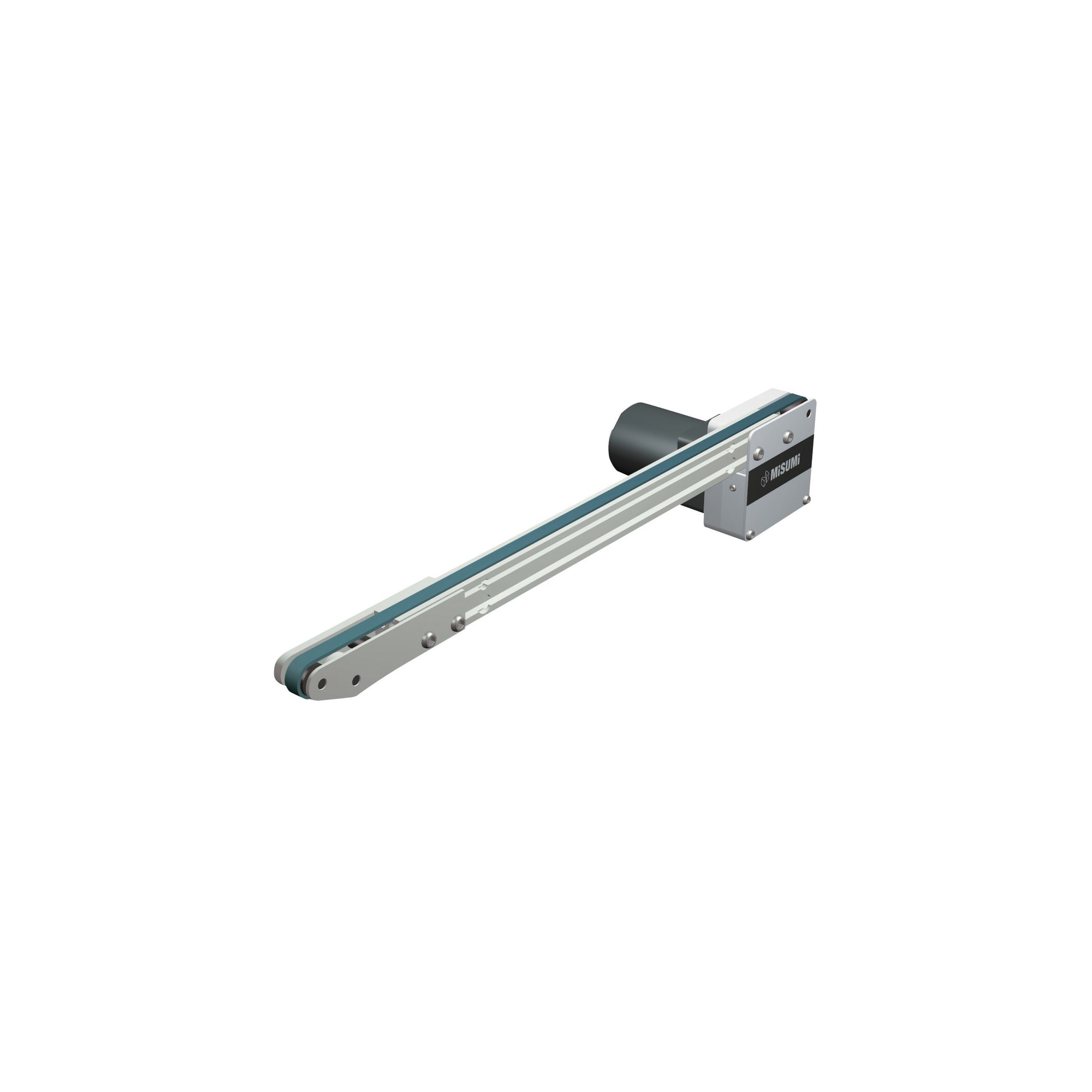

Timing Belt / Head Drive / Single Track / 2 / 3-Groove Frame / CVSTCE

* A Dimension Details

Output (W)	Motor		Reduction Ratio	A
	Specification	Manufacturer
6W	Induction Motor	Panasonic	12.5~25	101.0
			30~180	108.0
		Oriental	12.5~25	105.0
			30~180	115.0
	Variable Speed Motor	Oriental	12.5~25	115.0
			30~180	125.0

Part Number

B Selection

L 5mm Increment

Motor

Belt Specification

Motor Manufacturer Selection The prices vary by manufacturer.

Output (W)

Voltage (V)

Specification

Gearhead Reduction Ratio

CVSTCE

10 20

245~2000

6

TA230 (Single-phase)

IM (Induction Motor) SCM (Variable Speed Motor)

12.5 36 100

15 50 120

18 60 150

25 75 180

30 90

H (General Purpose, Translucent) S (For Sliding, Green) J (No Belt)

A (Panasonic Motor) B (Oriental Motor) When motor specification is SCM (Variable Speed Motor),A (Panasonic Motor) is not applicable.

NV (No Motor)

NM (No Motor)

NH (No Gearhead)

R (No Motor, Gearhead)

Connect the motor so that the belt rotates in the direction of conveyance. For connection diagram, and details of motor and inverter, see Here onward.
For belt details, see Here onward.
When "No motor, gearhead" is selected, the motor mounting hole pitch will vary depending on the motor's power rating. Please see Technical Information in our Conveyor Selection web site for the dimension details.
When "No motor, gearhead" is selected, this unit will be delivered unassembled. The customer is to assemble the unit according to the included assembly instructions. See our Conveyor Selection site for assembly procedures and packaging details.
