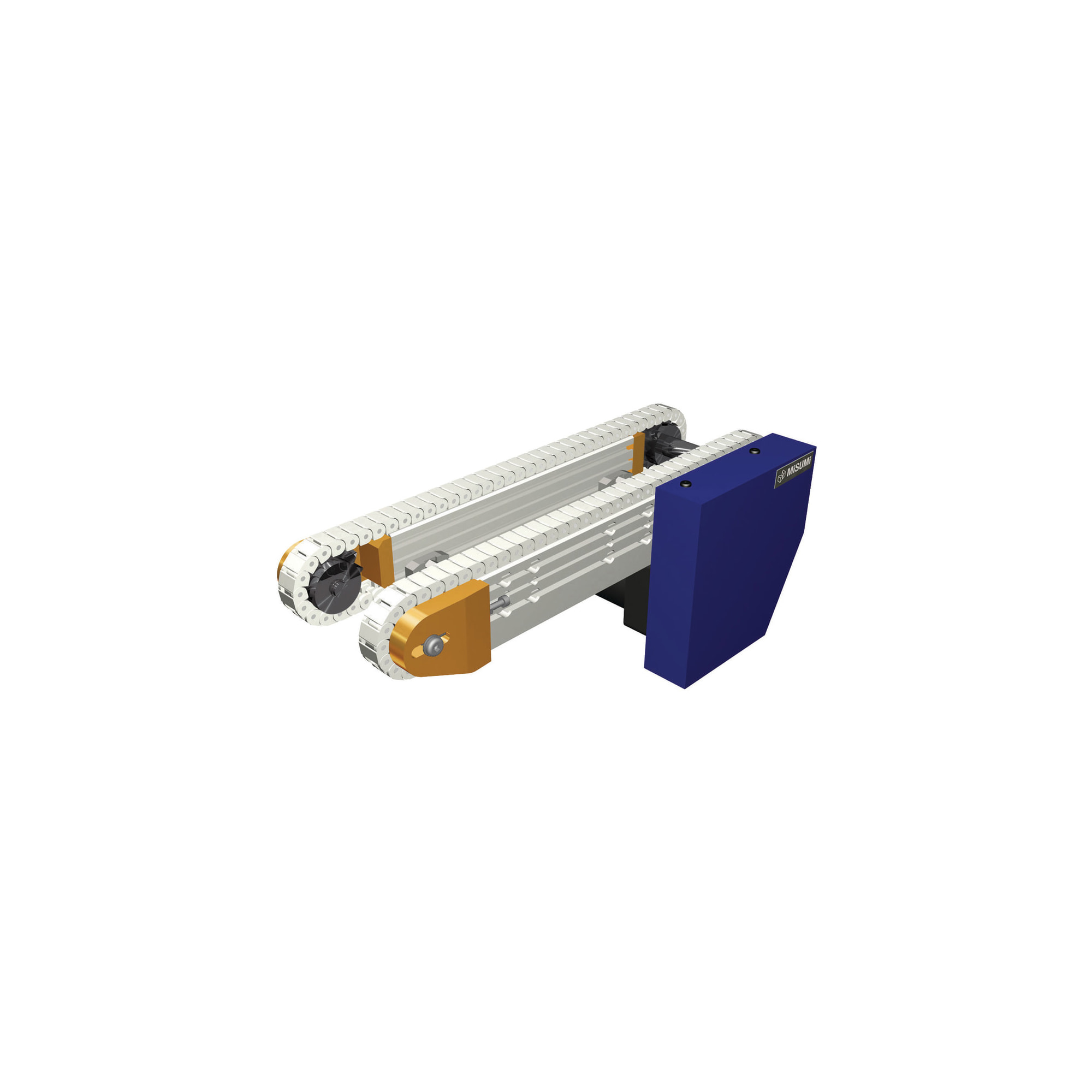

Plastic Chain / Dual Track / End Drive / 3-Groove Frame / Sprocket Dia. 57mm / CVSPAE

* A Dimension Details

Output (W)	Motor		Reduction Ratio	A
	Specification	Manufacturer
25W	Induction Motor	Panasonic	5~180	115.0
		Oriental	5~18	117.0
			25~180	127.5
	Variable Speed Motor	Oriental	5~18	127.0
			25~180	137.5
40W	Induction Motor	Panasonic	5~180	142.0
		Oriental	5~18	147.0
			25~180	165.0
	Variable Speed Motor	Oriental	5~18	157.0
			25~180	175.0

Part Number

B 10mm Increment

L 5mm Increment

Motor

Belt Specification

Motor Manufacturer Selection The prices vary by manufacturer.

Output (W)

Voltage (V)

Specification

Gearhead Reduction Ratio

CVSPAE

80~300

300~3000

25 40

TA230 (Single-phase)

IM (Induction Motor) SCM (Variable Speed Motor)

5 18 60 150

7.5 25 75 180

9 30 90

12.5 36 100

15 50 120

H (General Purpose) D (Conductive, Black) J (No Belt)

A (Panasonic Motor) B (Oriental Motor) When motor specification is SCM (Variable Speed Motor),A (Panasonic Motor) is not applicable.

NV (No Motor)

NM (No Motor)

NH (No Gearhead)

R (No Motor, Gearhead)

Connect the motor so that the chain rotates in the direction of conveyance. For connection diagram, and details of motor and motor driver, see Here onward.
For belt details, see Here onward.
When "No motor, gearhead" is selected, the motor mounting hole pitch will vary depending on the motor's power rating. Please see Technical Information in our Conveyor Selection web site for the dimension details.
When "No motor, gearhead" is selected, this unit will be delivered unassembled. The customer is to assemble the unit according to the included assembly instructions. See our Conveyor Selection site for assembly procedures and packaging details.
Since plastic chain is subject to abrasion and produces dust during use, it is not suitable for the use in the clean room. This, however, does not affect functionality of conveyance.
