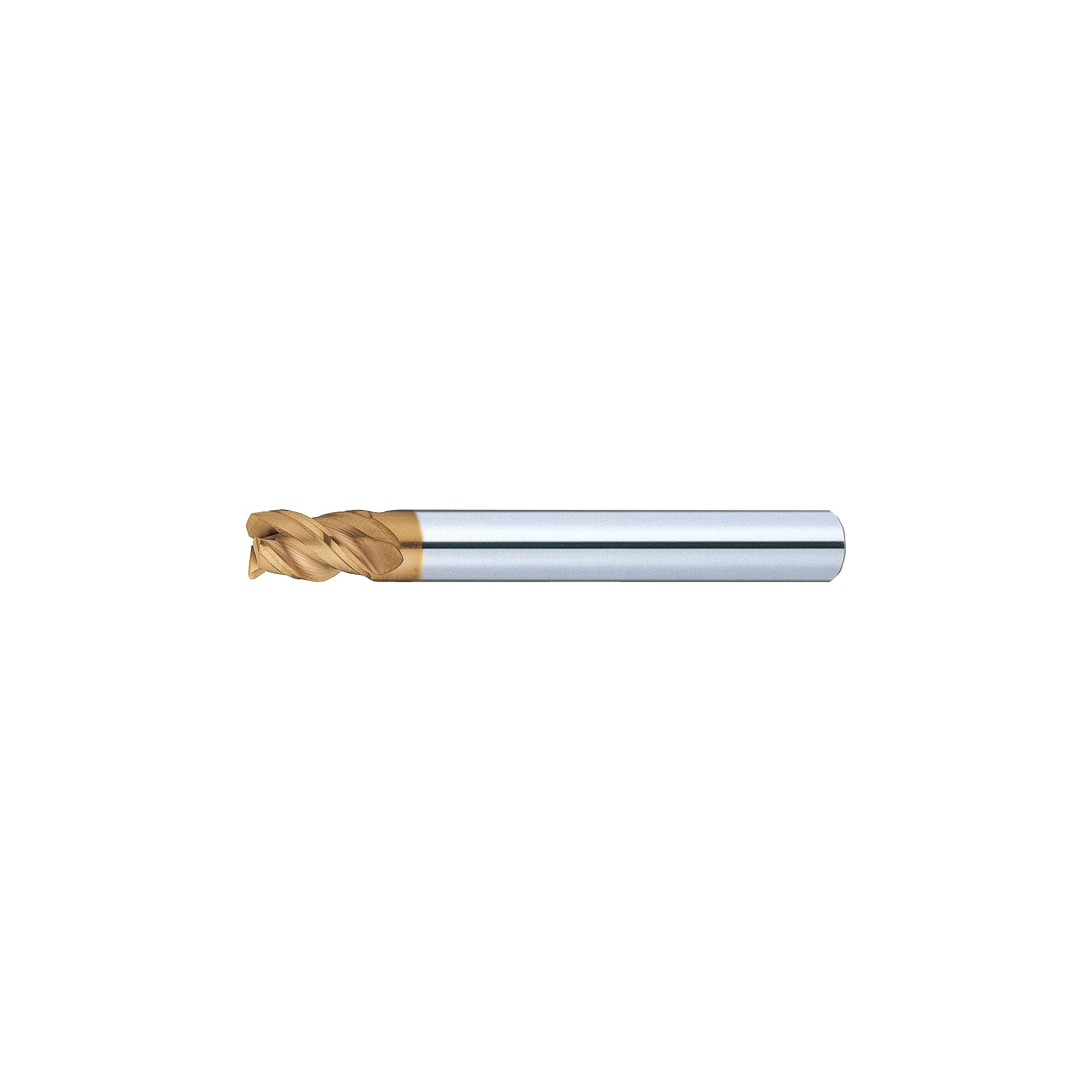

    TSC series carbide radius end mill, 3-flute, 45° spiral / stub model

    TSC series carbide radius end mill, 3-flute, 45° spiral / stub model

    Přesunutím myši nad obrázek ho zvětšíte

    Číslo dílu:

    Nebyly nalezeny žádné nevyřízené. 15 návrhy.
    Množství:

    Obrysový výkres

    TSC series carbide radius end mill, 3-flute, 45° spiral / stub model:Related Image

    Seznam čísel dílů

    Počet položek

    Outer Diameter (D)

    (φ)

    R Size

    (mm)

    Flute Length (ℓ)

    (mm)

    Overall Length (L)

    (mm)

    Shank Diameter (d)

    (mm)

    Length Under Neck (ℓ1)

    (mm)

    Additional Classification

    Figure

    Minimální objednací množství
    6
    0.5
    9
    60
    6
    14 - 42
    Standard Neck Relief
    2
    1 kusů
    8
    1
    12
    75
    8
    17 - 51
    Standard Neck Relief
    2
    1 kusů
    10
    1
    15
    80
    10
    20 - 50
    Standard Neck Relief
    2
    1 kusů
    12
    1
    18
    100
    12
    23 - 68
    Standard Neck Relief
    2
    1 kusů
    6
    0.5
    5 - 9
    60
    6
    14 - 42
    Cutting Edge R Processing
    2
    1 kusů
    8
    1
    5 - 12
    75
    8
    17 - 51
    Cutting Edge R Processing
    2
    1 kusů
    10
    1
    5 - 15
    80
    10
    20 - 50
    Cutting Edge R Processing
    2
    1 kusů
    12
    1
    5 - 18
    100
    12
    23 - 68
    Cutting Edge R Processing
    2
    1 kusů
    3
    0.5
    4.5
    60
    6
    -
    Stocked Product
    1
    1 kusů
    4
    0.5
    6
    60
    6
    -
    Stocked Product
    1
    1 kusů
    5
    0.5
    7.5
    60
    6
    -
    Stocked Product
    1
    1 kusů
    6
    0.5
    9
    60
    6
    -
    Stocked Product
    2
    1 kusů
    8
    1
    12
    75
    8
    -
    Stocked Product
    2
    1 kusů
    10
    1
    15
    80
    10
    -
    Stocked Product
    2
    1 kusů
    12
    1
    18
    100
    12
    -
    Stocked Product
    2
    1 kusů
    Jednotková cena (bez DPH)(Jednotková cena včetně DPH)
    Standardní datum odeslání
    -
    (
    -
    )
    8 pracovních dnů
    -
    (
    -
    )
    8 pracovních dnů
    -
    (
    -
    )
    8 pracovních dnů
    -
    (
    -
    )
    8 pracovních dnů
    -
    (
    -
    )
    9 pracovních dnů
    -
    (
    -
    )
    9 pracovních dnů
    -
    (
    -
    )
    9 pracovních dnů
    -
    (
    -
    )
    9 pracovních dnů
    50.16 €
    (
    59.69 €
    )
    5 pracovních dnů
    48.32 €
    (
    57.50 €
    )
    5 pracovních dnů
    49.47 €
    (
    58.87 €
    )
    5 pracovních dnů
    68.92 €
    (
    82.01 €
    )
    5 pracovních dnů
    85.61 €
    (
    101.88 €
    )
    5 pracovních dnů
    83.49 €
    (
    99.35 €
    )
    5 pracovních dnů
    86.46 €
    (
    102.89 €
    )
    5 pracovních dnů

    Podrobné údaje

    Základní informace

    [Features]
    -Unique chip shape allows flute cutting with a depth of cut equal to that of 2 cutting edges
    -Comparable to square end mills with 30° helix angle, both rotation and feed are more than twice as fast
    -Can be reground. Please refer to the "Regrinding Service" page for details on how to use the cutter, what services they offer, pricing, etc.

    Specifikace a cena

    Specifications

    TSC series carbide radius end mill, 3-flute, 45° spiral / stub model:Related Image

    Model Number
    TSC-CR-HEM3B (Stocked Product) / T-TSC-HEM3B (Manufactured Product)

    Outer Diameter
    D
    Radius R Select (Stocked Product)
    CR 0.1 mm
    Increment Designation( Manufactured
    Product )
    Flute Length
    Overall Length
    L
    Shank Diameter
    d
    Figure ● Stocked Product
    □ Manufactured Prtoduct
    3 0.5     4.5 60 6 1
    4 0.5     6 60 6 1
      0.1 ~ 0.4
    5 0.5     7.5 60 6 1
      0.1 ~ 0.4
    6 0.5     9 60 6 2
      0.1 ~ 1.0
    7   0.1 ~ 1.0   10.5 60 8 1
    8     1 12 75 8 2
      0.1 ~ 1.5
    10     1 15 80 10 2
      0.1 ~ 2.0
    12     1 18 100 12 2
      0.1 ~ 2.5

    [ ! ]The flute length (ℓ) and total length (L) are approximately D x 0.5 shorter (up to approximately 5 mm) for manufactured products.

    For Cutting Conditions, Refer to >>Click here.
    For Coating Service, Refer to >>Click here.
    For Carbide End Mill Coating Types and Features, Refer to >>Click here

    Funkce a příklady používání

    More Information


    The unique tip pocket shape allows cutting of grooves to be achieved with 2 flutes in parallel at the cutting depth.
    Compared to 30° twisted square end mills, both rotation and feed capacity are more than double for higher speed machining.
