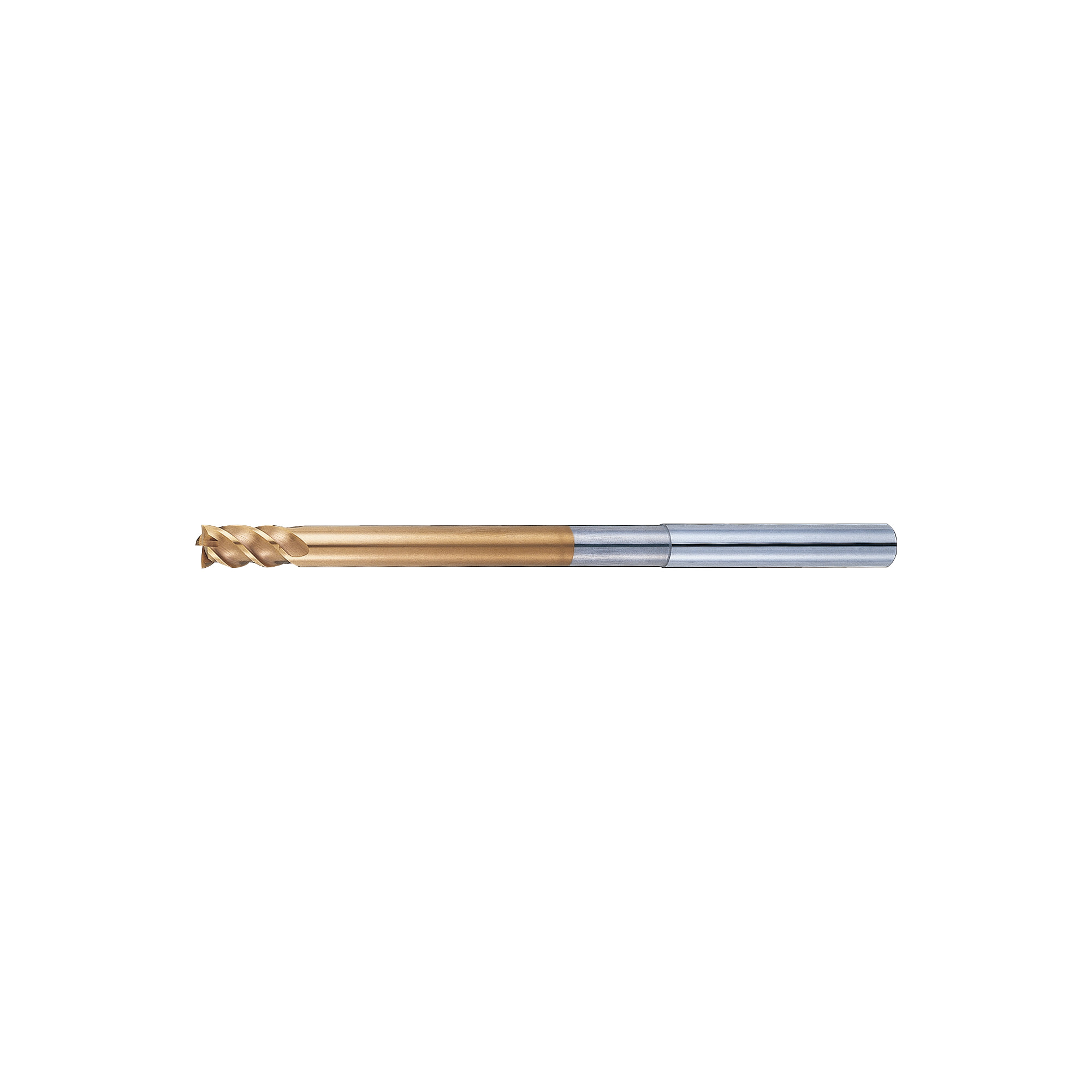

TSC series carbide radius end mill, 4-flute, 45° spiral / long shank, short model

TSC series carbide radius end mill, 4-flute, 45° spiral / long shank, short model

Přesunutím myši nad obrázek ho zvětšíte

Číslo dílu:

Nebyly nalezeny žádné nevyřízené. 21 návrhy.
Množství:

Obrysový výkres

TSC series carbide radius end mill, 4-flute, 45° spiral / long shank, short model:Related Image

Seznam čísel dílů

Počet položek

Outer Diameter (D)

(φ)

R Size

(mm)

Flute Length (ℓ)

(mm)

Overall Length (L)

(mm)

Shank Diameter (d)

(mm)

Length Under Neck (ℓ1)

(mm)

Figure

Under Neck Diameter d1

(mm)

Minimální objednací množství
3
0.2
4.5
80
6
10
1
2.9
1 kusů
3
0.5
4.5
80
6
10
1
2.9
1 kusů
4
0.2
6
80
6
15
1
3.8
1 kusů
4
0.5
6
80
6
15
1
3.8
1 kusů
6
0.3
9
120
6
18
2
5.8
1 kusů
6
0.5
9
120
6
18
2
5.8
1 kusů
7
0.5
9
120
6
-
3
-
1 kusů
7
1
9
120
6
-
3
-
1 kusů
9
0.5
13
135
8
-
3
-
1 kusů
9
1
13
135
8
-
3
-
1 kusů
9
1.5
13
135
8
-
3
-
1 kusů
11
0.5
18
160
10
-
3
-
1 kusů
11
1
18
160
10
-
3
-
1 kusů
11
1.5
18
160
10
-
3
-
1 kusů
13
1
20
160
12
-
3
-
1 kusů
13
1.5
20
160
12
-
3
-
1 kusů
13
2
20
160
12
-
3
-
1 kusů
17
1
25
180
16
-
3
-
1 kusů
17
2
25
180
16
-
3
-
1 kusů
22
1
30
200
20
-
3
-
1 kusů
22
2
30
200
20
-
3
-
1 kusů
Jednotková cena (bez DPH)(Jednotková cena včetně DPH)
Standardní datum odeslání
87.80 €
(
104.48 €
)
5 pracovních dnů
85.22 €
(
101.41 €
)
5 pracovních dnů
87.67 €
(
104.33 €
)
5 pracovních dnů
87.67 €
(
104.33 €
)
5 pracovních dnů
76.72 €
(
91.30 €
)
5 pracovních dnů
95.73 €
(
113.92 €
)
5 pracovních dnů
81.75 €
(
97.28 €
)
5 pracovních dnů
81.75 €
(
97.28 €
)
5 pracovních dnů
100.40 €
(
119.48 €
)
5 pracovních dnů
100.40 €
(
119.48 €
)
5 pracovních dnů
100.40 €
(
119.48 €
)
5 pracovních dnů
115.71 €
(
137.69 €
)
5 pracovních dnů
123.66 €
(
147.16 €
)
5 pracovních dnů
123.66 €
(
147.16 €
)
5 pracovních dnů
140.71 €
(
167.44 €
)
5 pracovních dnů
140.71 €
(
167.44 €
)
5 pracovních dnů
140.71 €
(
167.44 €
)
5 pracovních dnů
356.99 €
(
424.82 €
)
5 pracovních dnů
356.75 €
(
424.53 €
)
5 pracovních dnů
398.10 €
(
473.74 €
)
5 pracovních dnů
398.10 €
(
473.74 €
)
5 pracovních dnů

Podrobné údaje

Základní informace

[Features]
-Unique chip groove shape allows cutting grooves with a depth of cut equal to that of 2 flutes
-The high cutting capacity makes it possible to work at a feed rate more than twice that of a standard cutter
-Long shank is ideal for milling deep cavities
-For ø7 and above, the shank diameter is thinner than the cutting diameter to avoid interference
-Can be reground. Please refer to the "Regrinding Service" page for information on procedures, scope of services, prices, etc.

Specifikace a cena

Specifications

TSC series carbide radius end mill, 4-flute, 45° spiral / long shank, short model:Related Image

Model Number
TSC-CR-LS-HEM4S

Outer Diameter
D
Radius
R
Flute Length
Under Neck Diameter
d1
Length Under Neck
ℓ1
Overall Length
L
Shank Diameter
d
Figure
3 0.2   0.5       4.5 2.9 10 80 6 1
4 0.2   0.5       6 3.8 15 80 6 1
6   0.3 0.5       9 5.8 18 120 6 2
7     0.5 1     9 - - 120 6 3
9     0.5 1 1.5   13 - - 135 8 3
11     0.5 1 1.5   18 - - 160 10 3
13       1 1.5 2 20 - - 160 12 3
17       1   2 25 - - 180 16 3
22       1   2 30 - - 200 20 3


For Cutting Conditions, Refer to >>Click here.

Funkce a příklady používání

More Information


The unique tip pocket shape allows for the cutting of grooves to be achieved with 2 flutes in parallel at the cutting depth.
As the cutting chip discharge rate is high, the feed speed is also increased to 2 times greater than that of standard end mills.
The long shank model is ideal for machining deep grooves.
Shanks of Ø 7 or more are thinner than the blade diameter, preventing interference.
