Specification Table

Model Number

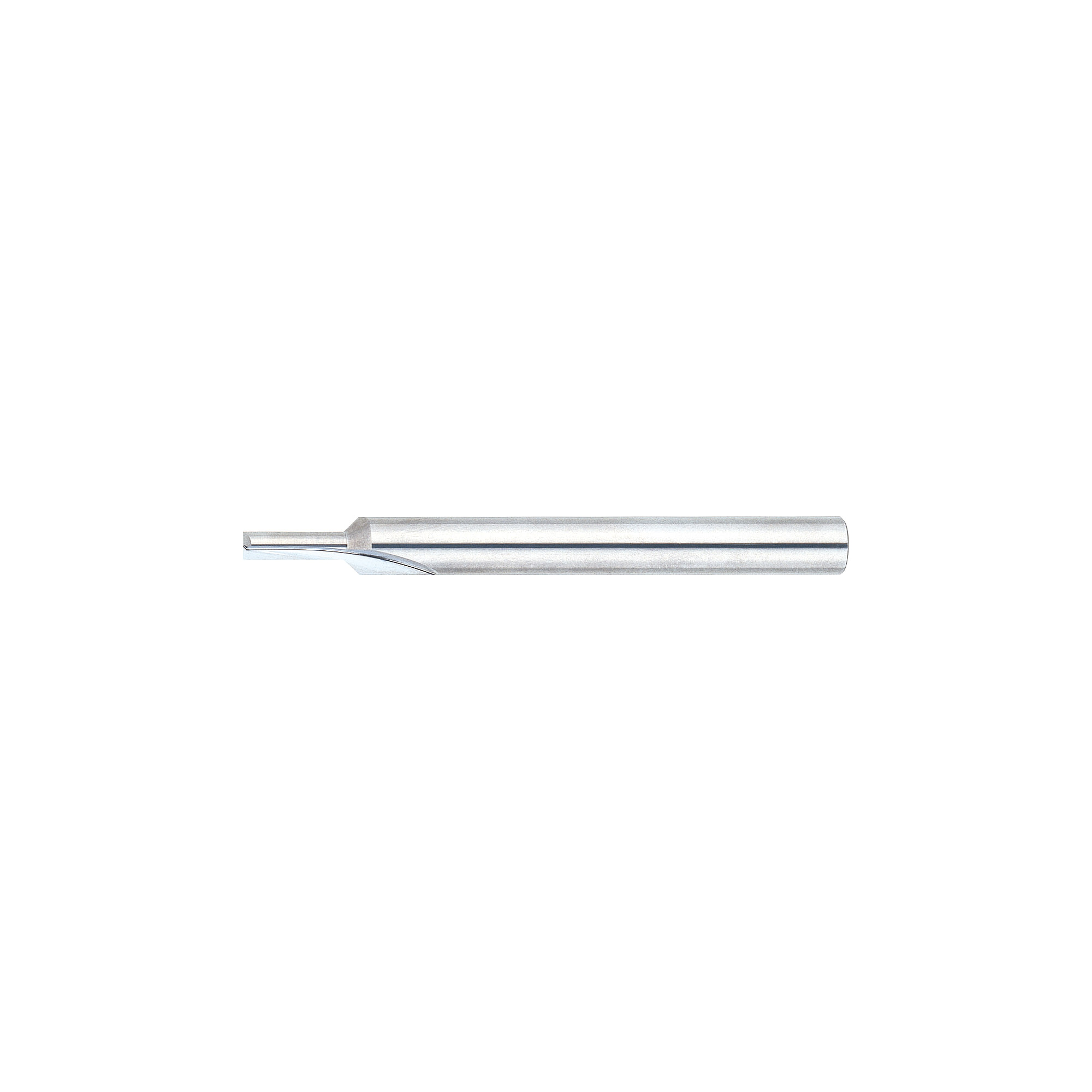

SSCMEM/LS−SSCMEM (Long Shank)

Shank Diameter d	Blade Diameter D 0.01 mm Unit Specification	Blade Length ℓ 0.5 mm Unit Specification	Chamfer Blade Width CM 0.01 mm Unit Specification	Blade Shape (Selection)	Blade ℓ1	Overall Length L
Shank Diameter d	Blade Diameter D 0.01 mm Unit Specification	Blade Length ℓ 0.5 mm Unit Specification	Chamfer Blade Width CM 0.01 mm Unit Specification	Blade Shape (Selection)	Blade ℓ1	SSCMEM	LS−SSCMEM
4	3.00	2.0 to 15.0	0.50 ≤ CM ≤ (d−D)/2	T (Indented Center) F (Flat)	ℓ1 = ℓ+CM	50	80
6	3.01 to 5.00	3.0 to 22.0				60	90
8	4.01 to 7.00	4.0 to 26.0				60	90
10	6.01 to 9.00	5.0 to 33.0				80	120
12	8.01 to 11.00	6.0 to 34.0				80	120
16	10.01 to 15.00	8.0 to 45.0				100	−
