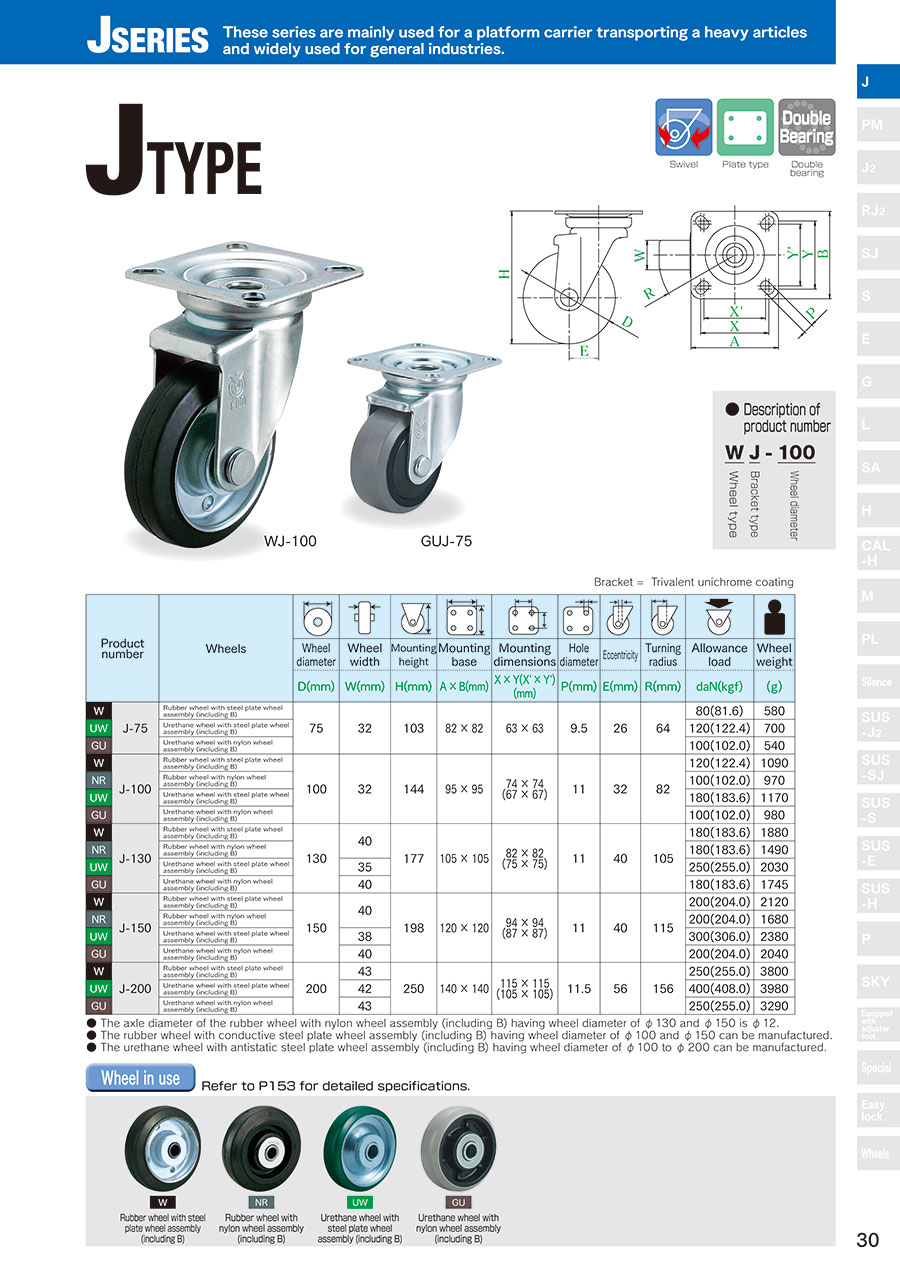

J Model Swivel Wheel Plate Type
- Promotional pricing ends 30/11/2024
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| GUJ-75 |
| GUJ-130 |
| GUJ-150 |
| GUJ-200 |
| MCBJ-150 |
| UWEJ-100 |
| UWJ-75 |
| UWJ-100 |
| UWJ-130 |
| UWJ-150 |
| UWJ-200 |
| WJ-75 |
| WJ-100 |
| WJ-100-G |
| WJ-130 |
| WJ-150 |
| WJ-200 |
| WOJ-130 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Properties | Load Range (daN) | Allowable Load (daN) | Wheel Material | Wheel Characteristics | Mounting Hole Type | Mounting Hole Pitch, Long Length Direction L1 (mm) | Mounting Hole Pitch, Short Length Direction W1 (mm) | Plate Length (mm) | Plate Width (mm) | Wheel Dia. D (mm) | Wheel Width (mm) | Swivel Radius (mm) | Load Category | Combination of Slotted Hole Pitch | Wheel Bearings | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
21.21 € | 1 | Available | 5 Days | 103 | - | 80.01~140.00 | 100 | [Others] Nylon Foil Urethane Foam | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Round Hole | 63 | 63 | 82 | 82 | 75 | 32 | 64 | Medium Load | - | Available | |
46.27 € | 1 | 12 Days | 177 | - | 140.01~220.00 | 180 | [Others] Nylon Foil Urethane Foam | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Long Hole | 75(82) | 75(82) | 105 | 105 | 130 | 40 | 105 | Medium Load | 75-75, 76-76, 77-77, 78-78, 79-79, 80-80, 81-81, 82-82 | Available | ||
55.87 € | 1 | 12 Days | 198 | - | 140.01~220.00 | 200 | [Others] Nylon Foil Urethane Foam | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Long Hole | 87(94) | 87(94) | 120 | 120 | 150 | 40 | 115 | Heavy Load | 87-87, 88-88, 89-89, 90-90, 91-91, 92-92, 93-93, 94-94 | Available | ||
79.51 € | 1 | 5 Days | 250 | - | 220.01~320.00 | 250 | [Others] Nylon Foil Urethane Foam | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Long Hole | 105(115) | 105(115) | 140 | 140 | 200 | 43 | 156 | Heavy Load | 105 -105, 106 -106, 107 -107, 108 -108, 109 -109, 110 -110, 111 -111, 112 -112, 113 -113, 114 -114, 115 -115 | Available | ||
90.58 € | 1 | 5 Days | - | - | 140.01~220.00 | 200 | [Engineering Plastics] MC Nylon (Conductive) | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance | Long Hole | 87 (94) | 87 (94) | - | - | - | - | 116 | Heavy Load | - | Yes | ||
49.14 € | 1 | 14 Days | - | [Antistatic] Antistatic | 140.01~220.00 | 180 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Antistatic | Long Hole | 67 (74) | 67 (74) | - | - | - | - | 82 | Heavy Load | - | None | ||
28.07 € | 1 | Available | 5 Days | 103 | - | 80.01~140.00 | 120 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Round Hole | 63 | 63 | 82 | 82 | 75 | 32 | 64 | Medium Load | - | Available | |
29.18 € 20.43 € | 1 | Available |
Same day
Stock | 144 | - | 140.01~220.00 | 180 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Long Hole | 67(74) | 67(74) | 95 | 95 | 100 | 32 | 82 | Medium Load | 67-67, 68-68, 69-69, 70-70, 71-71, 72-72, 73-73, 74-74 | Available | |
58.70 € | 1 | 5 Days | 177 | - | 220.01~320.00 | 250 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Long Hole | 75(82) | 75(82) | 105 | 105 | 130 | 35 | 105 | Heavy Load | 75-75, 76-76, 77-77, 78-78, 79-79, 80-80, 81-81, 82-82 | Available | ||
54.53 € 38.17 € | 1 | Available |
Same day
Stock | 198 | - | 220.01~320.00 | 300 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Long Hole | 87(94) | 87(94) | 120 | 120 | 150 | 38 | 115 | Heavy Load | 87-87, 88-88, 89-89, 90-90, 91-91, 92-92, 93-93, 94-94 | Available | |
102.33 € | 1 | 5 Days | 250 | - | 320.01~485.00 | 400 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Long Hole | 105(115) | 105(115) | 140 | 140 | 200 | 42 | 156 | Extra heavy load | 105 -105, 106 -106, 107 -107, 108 -108, 109 -109, 110 -110, 111 -111, 112 -112, 113 -113, 114 -114, 115 -115 | Available | ||
16.73 € | 1 | 5 Days | 103 | - | 35.01~80.00 | 80 | Rubber | NA | Round Hole | 63 | 63 | 82 | 82 | 75 | 32 | 64 | Light/Medium Load | - | Available | ||
25.19 € | 1 | Available | 5 Days | 144 | - | 80.01~140.00 | 120 | Rubber | NA | Long Hole | 67(74) | 67(74) | 95 | 95 | 100 | 32 | 82 | Medium Load | 67-67, 68-68, 69-69, 70-70, 71-71, 72-72, 73-73, 74-74 | Available | |
28.56 € | 1 | 9 Days | - | - | 80.01~140.00 | 120 | Rubber | NA | Long Hole | 67 (74) | 67 (74) | - | - | - | - | 82 | Heavy Load | - | None | ||
40.55 € | 1 | 5 Days | 177 | - | 140.01~220.00 | 180 | Rubber | NA | Long Hole | 75(82) | 75(82) | 105 | 105 | 130 | 40 | 105 | Medium Load | 75-75, 76-76, 77-77, 78-78, 79-79, 80-80, 81-81, 82-82 | Available | ||
45.66 € | 1 | 5 Days | 198 | - | 140.01~220.00 | 200 | Rubber | NA | Long Hole | 87(94) | 87(94) | 120 | 120 | 150 | 40 | 115 | Heavy Load | 87-87, 88-88, 89-89, 90-90, 91-91, 92-92, 93-93, 94-94 | Available | ||
72.80 € | 1 | Available | 5 Days | 250 | - | 220.01~320.00 | 250 | Rubber | NA | Long Hole | 105(115) | 105(115) | 140 | 140 | 200 | 43 | 156 | Heavy Load | 105 -105, 106 -106, 107 -107, 108 -108, 109 -109, 110 -110, 111 -111, 112 -112, 113 -113, 114 -114, 115 -115 | Available | |
53.44 € | 1 | 14 Days | - | - | 140.01~220.00 | 180 | Rubber | Oil Resistance | Long Hole | 75 (82) | 75 (82) | 105 | 105 | - | - | 105 | Heavy Load | - | None |
Loading...
Basic information
| Caster Type | Plate Type Universal | Stopper | NA | Fitting Material | Steel |
|---|---|---|---|---|---|
| Application | Streamlining of Logistics, Hand Truck / Factory facilities / Vertical lift |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Mounting Height H(mm)
-
Properties
- Antistatic
- Antistatic
-
Load Range(daN)
- 35.01~80.00
- 80.01~140.00
- 140.01~220.00
- 220.01~320.00
- 320.01~485.00
-
Allowable Load(daN)
-
Wheel Material
- Rubber
- Urethane
- Engineering Plastics
- Others
-
Wheel Characteristics
- Abrasion Resistance
- Gasoline Resistance (Light Oil included)
- Oil Resistance
- Chemical Resistance
- Antistatic
- NA
-
Mounting Hole Type
- Round Hole
- Long Hole
-
Mounting Hole Pitch, Long Length Direction L1(mm)
-
Mounting Hole Pitch, Short Length Direction W1(mm)
-
Plate Length(mm)
-
Plate Width(mm)
-
Wheel Dia. D(mm)
-
Wheel Width(mm)
-
Swivel Radius(mm)
-
Combination of Slotted Hole Pitch
- 67-67, 68-68, 69-69, 70-70, 71-71, 72-72, 73-73, 74-74
- 75-75, 76-76, 77-77, 78-78, 79-79, 80-80, 81-81, 82-82
- 87-87, 88-88, 89-89, 90-90, 91-91, 92-92, 93-93, 94-94
- 105 -105, 106 -106, 107 -107, 108 -108, 109 -109, 110 -110, 111 -111, 112 -112, 113 -113, 114 -114, 115 -115
-
Wheel Bearings
- Available
- None
- Yes
-
Type
- GUJ
- MCBJ
- UWEJ
- UWJ
- WJ
- WJ-G
- WOJ
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 9 Days or Less
- 12 Days or Less
- 14 Days or Less
Optional Attributes
- There is a 10% discount on the price per unit at 20 or more items.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
