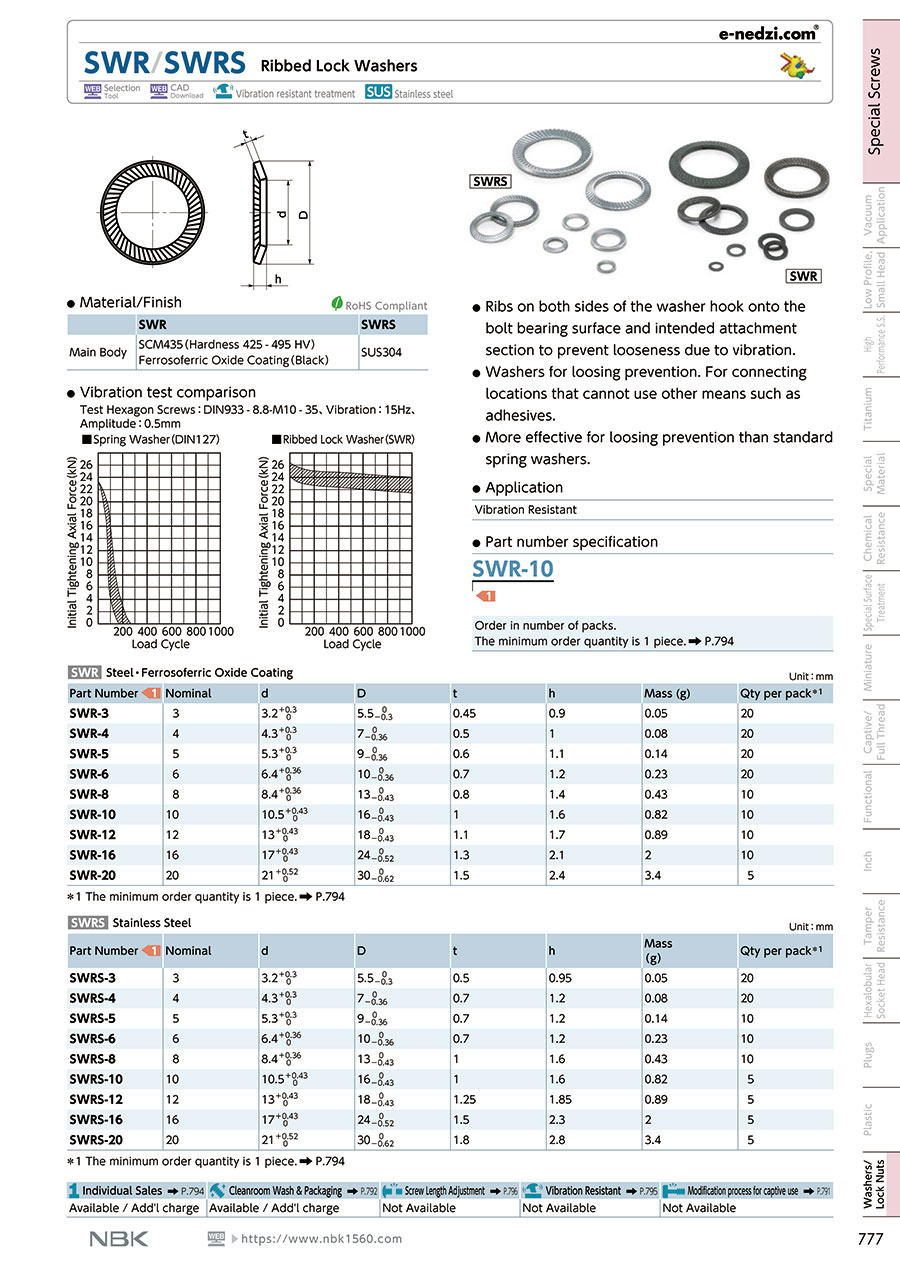

Ribbed-Lock Washer - SWR【1-20 Pieces Per Package】

Ribbed-Lock Washer - SWR
  • Promotional pricing ends 30/11/2024
  • Volume Discount

NABEYA BI-TECH

NABEYA BI-TECH

[Features]
· The ribs on both faces of the washer bite into the surface on which the bolt sits and the fastened part, preventing loosening caused by vibrations.
· For preventing the loosening of fastened parts that adhesives proved insufficient for achieving.
· When combined with an 8.8 strength classification bolt, even more effective loosening prevention is possible.
· Also works with strength classification 12.9 bolts.
· Has a greater loosening prevention effect than normal spring washers.

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
SWR-3
SWR-3-VA
SWR-4
SWR-4-VA
SWR-5
SWR-5-VA
SWR-6
SWR-6-VA
SWR-8
SWR-8-VA
SWR-10
SWR-10-VA
SWR-12
SWR-12-VA
SWR-16
SWR-16-VA
SWR-20
SWR-20-VA
SWRS-3
SWRS-3-VA
SWRS-4
SWRS-4-VA
SWRS-5
SWRS-5-VA
SWRS-6
SWRS-6-VA
SWRS-8
SWRS-8-VA
SWRS-10
SWRS-10-VA
SWRS-12
SWRS-12-VA
SWRS-16
SWRS-16-VA
SWRS-20
SWRS-20-VA
Part Number
Standard Unit Price
Number of pc(s). included in pkg.Minimum order quantityVolume Discount
Standard
Shipping Days
?
Type (Application) Type Material Surface Treatment I.D. d
(mm) 		Screw Nominal (M) Thickness T
(mm) 		Sales Unit Material: Steel Material: Stainless Steel Surface Treatment (Detailed) Type, Spring Washers O.D. D
(mm)

8.25 €

20 Pieces Per Package

 1 pack 8 Days Spring WasherSpring WasherSteelBlack oxide coating3.230.5Box/PackageEN 1.7220 Equiv.-Black oxide coatingSerrated Conical Disc Spring Washers5.5

2.72 €

1 Available 8 Days Spring WasherSpring WasherSteelBlack oxide coating3.230.5Low Quantity (can be purchased from one)EN 1.7220 Equiv.-Black oxide coatingSerrated Conical Disc Spring Washers5.5

8.62 €

20 Pieces Per Package

 1 pack 6 Days Spring WasherSpring WasherSteelBlack oxide coating4.340.5Box/PackageEN 1.7220 Equiv.-Black oxide coatingSerrated Conical Disc Spring Washers7

2.74 €

1 Available 6 Days Spring WasherSpring WasherSteelBlack oxide coating4.340.5Low Quantity (can be purchased from one)EN 1.7220 Equiv.-Black oxide coatingSerrated Conical Disc Spring Washers7

8.98 €

20 Pieces Per Package

 1 pack 6 Days Spring WasherSpring WasherSteelBlack oxide coating5.350.6Box/PackageEN 1.7220 Equiv.-Black oxide coatingSerrated Conical Disc Spring Washers9

0.31 €

1 Same day

Stock

Spring WasherSpring WasherSteelBlack oxide coating5.350.6Low Quantity (can be purchased from one)EN 1.7220 Equiv.-Black oxide coatingSerrated Conical Disc Spring Washers9

10.72 €

20 Pieces Per Package

 1 pack 6 Days Spring WasherSpring WasherSteelBlack oxide coating6.460.7Box/PackageEN 1.7220 Equiv.-Black oxide coatingSerrated Conical Disc Spring Washers10

2.82 €

1 Available 8 Days Spring WasherSpring WasherSteelBlack oxide coating6.460.7Low Quantity (can be purchased from one)EN 1.7220 Equiv.-Black oxide coatingSerrated Conical Disc Spring Washers10

7.61 €

10 Pieces Per Package

 1 pack 6 Days Spring WasherSpring WasherSteelBlack oxide coating8.480.8Box/PackageEN 1.7220 Equiv.-Black oxide coatingSerrated Conical Disc Spring Washers13

1.12 €

0.78 €

1 Available Same day

Stock

Spring WasherSpring WasherSteelBlack oxide coating8.480.8Low Quantity (can be purchased from one)EN 1.7220 Equiv.-Black oxide coatingSerrated Conical Disc Spring Washers13

8.51 €

10 Pieces Per Package

 1 pack 6 Days Spring WasherSpring WasherSteelBlack oxide coating10.5101Box/PackageEN 1.7220 Equiv.-Black oxide coatingSerrated Conical Disc Spring Washers16

3.01 €

1 Available 9 Days Spring WasherSpring WasherSteelBlack oxide coating10.5101Low Quantity (can be purchased from one)EN 1.7220 Equiv.-Black oxide coatingSerrated Conical Disc Spring Washers16

9.88 €

10 Pieces Per Package

 1 pack 8 Days Spring WasherSpring WasherSteelBlack oxide coating13121.1Box/PackageEN 1.7220 Equiv.-Black oxide coatingSerrated Conical Disc Spring Washers18

1.47 €

1.03 €

1 Available Same day

Stock

Spring WasherSpring WasherSteelBlack oxide coating13121.1Low Quantity (can be purchased from one)EN 1.7220 Equiv.-Black oxide coatingSerrated Conical Disc Spring Washers18

16.87 €

10 Pieces Per Package

 1 pack 6 Days Spring WasherSpring WasherSteelBlack oxide coating17161.3Box/PackageEN 1.7220 Equiv.-Black oxide coatingSerrated Conical Disc Spring Washers24

1.73 €

1.21 €

1 Available Same day

Stock

Spring WasherSpring WasherSteelBlack oxide coating17161.3Low Quantity (can be purchased from one)EN 1.7220 Equiv.-Black oxide coatingSerrated Conical Disc Spring Washers24

18.24 €

5 Pieces Per Package

 1 pack 8 Days Spring WasherSpring WasherSteelBlack oxide coating21201.5Box/PackageEN 1.7220 Equiv.-Black oxide coatingSerrated Conical Disc Spring Washers30

4.73 €

1 Available 8 Days Spring WasherSpring WasherSteelBlack oxide coating21201.5Low Quantity (can be purchased from one)EN 1.7220 Equiv.-Black oxide coatingSerrated Conical Disc Spring Washers30

18.33 €

20 Pieces Per Package

 1 pack 8 Days -Rosette WasherStainless SteelNA3.230.5Box/Package-Stainless Steel (EN 1.4301 Equiv.)--5.5

3.04 €

1 Available 8 Days -Rosette WasherStainless SteelNA3.230.5Low Quantity (can be purchased from one)-Stainless Steel (EN 1.4301 Equiv.)--5.5

26.50 €

20 Pieces Per Package

 1 pack 8 Days -Rosette WasherStainless SteelNA4.340.7Box/Package-Stainless Steel (EN 1.4301 Equiv.)--7

3.39 €

1 Available 8 Days -Rosette WasherStainless SteelNA4.340.7Low Quantity (can be purchased from one)-Stainless Steel (EN 1.4301 Equiv.)--7

14.46 €

10 Pieces Per Package

 1 pack 8 Days -Rosette WasherStainless SteelNA5.350.7Box/Package-Stainless Steel (EN 1.4301 Equiv.)--9

3.37 €

1 Available 8 Days -Rosette WasherStainless SteelNA5.350.7Low Quantity (can be purchased from one)-Stainless Steel (EN 1.4301 Equiv.)--9

26.70 €

10 Pieces Per Package

 1 pack 8 Days -Rosette WasherStainless SteelNA6.460.7Box/Package-Stainless Steel (EN 1.4301 Equiv.)--10

3.98 €

1 Available 8 Days -Rosette WasherStainless SteelNA6.460.7Low Quantity (can be purchased from one)-Stainless Steel (EN 1.4301 Equiv.)--10

28.60 €

10 Pieces Per Package

 1 pack 6 Days -Rosette WasherStainless SteelNA8.481Box/Package-Stainless Steel (EN 1.4301 Equiv.)--13

4.25 €

1 Available 8 Days -Rosette WasherStainless SteelNA8.481Low Quantity (can be purchased from one)-Stainless Steel (EN 1.4301 Equiv.)--13

26.53 €

5 Pieces Per Package

 1 pack 6 Days -Rosette WasherStainless SteelNA10.5101Box/Package-Stainless Steel (EN 1.4301 Equiv.)--16

5.94 €

1 Available 8 Days -Rosette WasherStainless SteelNA10.5101Low Quantity (can be purchased from one)-Stainless Steel (EN 1.4301 Equiv.)--16

32.23 €

5 Pieces Per Package

 1 pack 8 Days -Rosette WasherStainless SteelNA13121.25Box/Package-Stainless Steel (EN 1.4301 Equiv.)--18

6.43 €

1 Available 8 Days -Rosette WasherStainless SteelNA13121.25Low Quantity (can be purchased from one)-Stainless Steel (EN 1.4301 Equiv.)--18

75.46 €

5 Pieces Per Package

 1 pack 8 Days -Rosette WasherStainless SteelNA17161.5Box/Package-Stainless Steel (EN 1.4301 Equiv.)--24

15.08 €

1 Available 8 Days -Rosette WasherStainless SteelNA17161.5Low Quantity (can be purchased from one)-Stainless Steel (EN 1.4301 Equiv.)--24

143.51 €

5 Pieces Per Package

 1 pack 8 Days -Rosette WasherStainless SteelNA21201.8Box/Package-Stainless Steel (EN 1.4301 Equiv.)--30

28.68 €

1 Available 8 Days -Rosette WasherStainless SteelNA21201.8Low Quantity (can be purchased from one)-Stainless Steel (EN 1.4301 Equiv.)--30
