Snap Pin
- Promotional pricing
- Volume Discount
[Features]

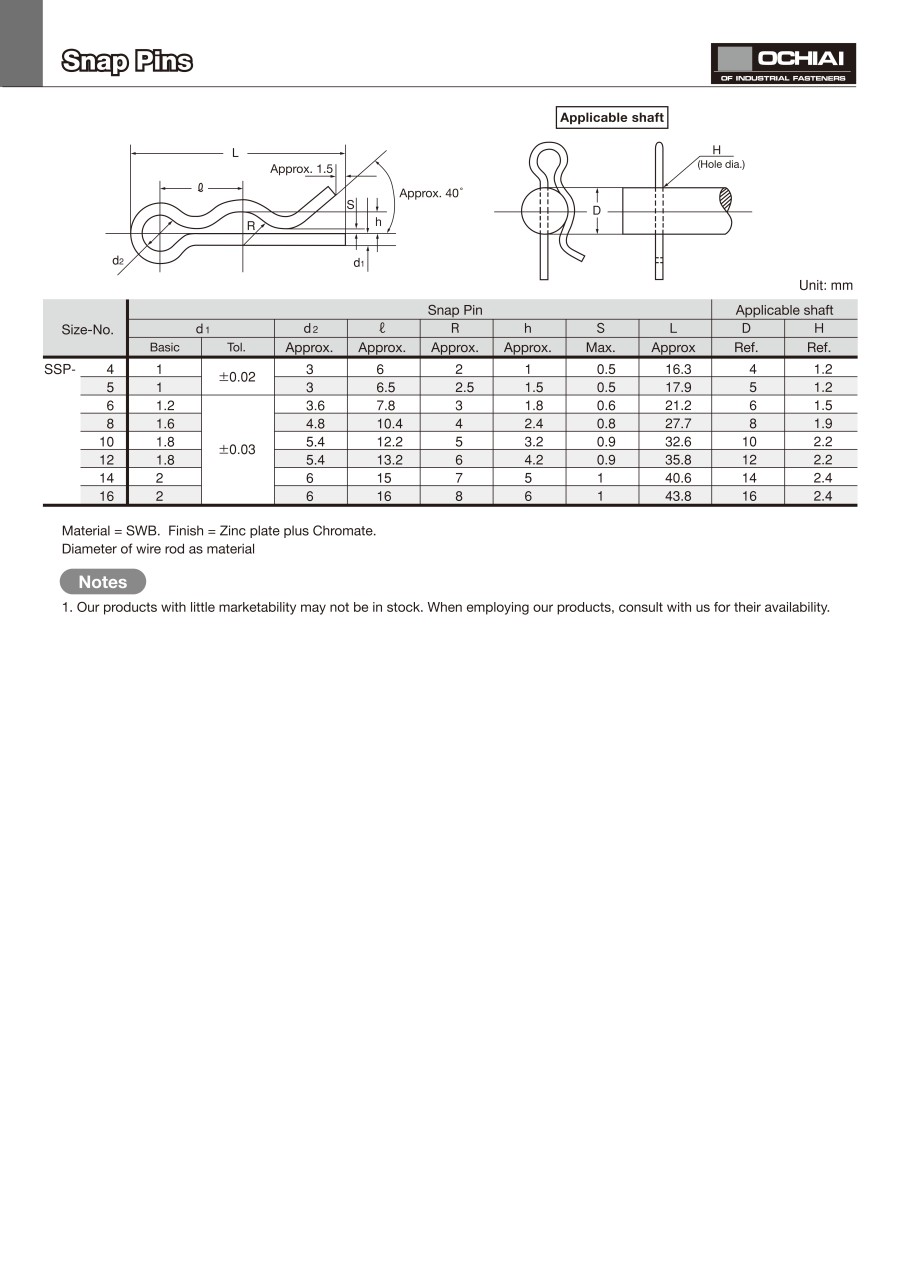

· This snap pin is formed from bent wire.
· The straight section of the snap pin is inserted into a radial hole in the shaft. The semi-circular section of the snap pin exerts a spring action which stops it from sliding in the direction of thrust.
· Used to prevent secured objects from sliding off a shaft.
· Can be used as an alternative to a split pin.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| SSP-4-3W |
| SSP-5-3W |
| SSP-6-3W |
| SSP-8-3W |
| SSP-10-3W |
| SSP-12-3W |
| SSP-14-3W |
| SSP-16-3W |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Applicable Shaft Dia. (mm) | Outer Diameter D (φ) | Length L (mm) | |
|---|---|---|---|---|---|---|---|---|
1.62 € | 1 | Available | 6 Days | 10 | 4 | 1 | 16.3 | |
1.67 € | 1 | Available | 6 Days | 10 | 5 | 1 | 17.9 | |
0.10 € 0.03 € | 1 | Available |
Same day
Stock | 10 | 6 | 1.2 | 21.2 | |
1.66 € | 1 | Available | 6 Days | 10 | 8 | 1.6 | 27.7 | |
1.66 € | 1 | Available | 6 Days | 10 | 10 | 1.8 | 32.6 | |
0.14 € 0.04 € | 1 | Available |
Same day
Stock | 10 | 12 | 1.8 | 35.8 | |
1.75 € | 1 | Available | 6 Days | 10 | 14 | 2 | 40.6 | |
1.72 € | 1 | Available | 6 Days | 10 | 16 | 2 | 43.8 |
Loading...
Basic information
| Type | Snap Pin | Material | Steel | Sales Unit | Low Quantity (can be purchased from one) |
|---|---|---|---|---|---|
| Surface Treatment | Zinc Plating Trivalent Chromate |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Applicable Shaft Dia.(mm)
-
Outer Diameter D(φ)
- 1
- 1.2
- 1.6
- 1.8
- 2
-
Length L(mm)
- 16.3
- 17.9
- 21.2
- 27.7
- 32.6
- 35.8
- 40.6
- 43.8
-
Type
- SSP
Filter by standard shipping days
-
- All
- Same day
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
