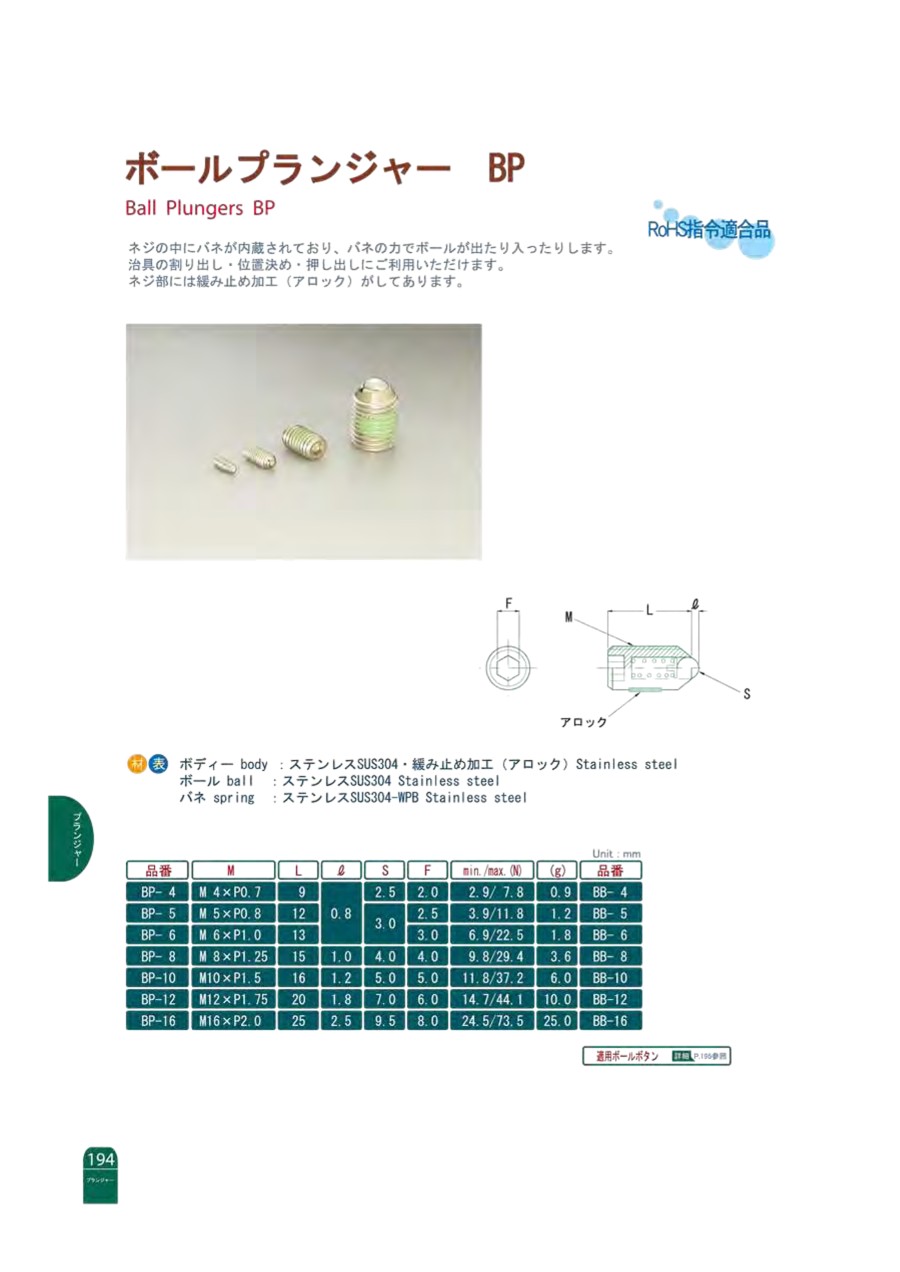

Ball Plungers BP

Promotional pricing ends 31/12/2024
Volume Discount

The screw contains a spring; the force of the spring can make the ball go in and out. Can be used to calculate, select the position of, and push out jigs. Anti-looseness treatment (ALOK) is applied to the screw.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Products homepage

Data to be displayed: 30; 45; 60

Part Number
BP-4
BP-5
BP-6
BP-8
BP-10
BP-12
BP-16

Standard Unit Price	Minimum order quantity	Volume Discount	Standard Shipping Days ?	RoHS	Outside Dia./Thread M (mm)	Stroke l (mm)	Min Load (N)	Max Load (N)	Applicable Ball Buttons
9.43 €	1	Available	Same day Stock	10	4	0.8	2.9	7.8	BB-4
11.76 €	1		5 Days	10	5	0.8	3.9	11.8	BB-5
9.45 € 6.62 €	1	Available	Same day Stock	10	6	0.8	6.9	22.5	BB-6
12.08 €	1	Available	6 Days	10	8	1	9.8	29.4	BB-8
13.62 €	1		6 Days	10	10	1.2	11.8	37.2	BB-10
15.17 €	1	Available	7 Days	10	12	1.8	14.7	44.1	BB-12
18.94 € 13.26 €	1	Available	Same day Stock	10	16	2.5	24.5	73.5	BB-16

Basic information

Mounting Method	Screw (hexagon)	Tip Material	Stainless Steel (EN 1.4301 Equiv.)	Body Material	Stainless Steel (EN 1.4301 Equiv.)
Loosening Prevention	ALOK	Main Body Surface Treatment	NA	Tip Surface Treatment	NA
Tip Heat Treatment	NA	Min Load (Range)(N)	0.01 to 50
