Automation Components
Castors, Leveling Mounts, Posts
Castors, Accessories
Equipment Castors
Flat Mounted Plate Type Castors 420YS / 413YS Wheel Diameter 100-150mm

Podmínky filtrování

Mounting Height H or H1 and H2(mm)
- 132
- 168
- 190
Load Range(daN)
Stopper
- NA
- With Rotation Stopper
Allowable Load 1 piece(daN)
- 130
- 160
- 170
- 200
- 230
Wheel Material
Rubber
Nylon
MC Nylon
Nylon
Urethane
Wheel Characteristics
Mounting Hole Pitch Longitudinal direction (X)(mm)
- 68(71)
- 75(80)
Mounting Hole Pitch Transverse Direction (Y)(mm)
- 68(71)
- 75(80)
Mounting Seat A (Plate Length)(mm)
- 90
- 102
Mounting Seat B (Plate Width)(mm)
- 90
- 102
Wheel Dia. D(mm)
- 100
- 125
- 150
Car width(mm)
- 29
- 30
- 32
- 33
- 35
- 38
- 40
- 43
Swivel Radius(mm)
- 86
- 91
- 102
- 104
- 118
Eccentricity E or E1, E2(mm)
- 35
- 38
- 41
Variety of Vehicles
- FR
- MCB
- NRB
- RBB
- UB
- UBB
Type
- 413YS
- 420YS
Odhadované dodací dny
- Vše
- V rámci 6 pracovních dnů
- V rámci 11 pracovních dnů

TAKIGEN(HAMMER CASTER)

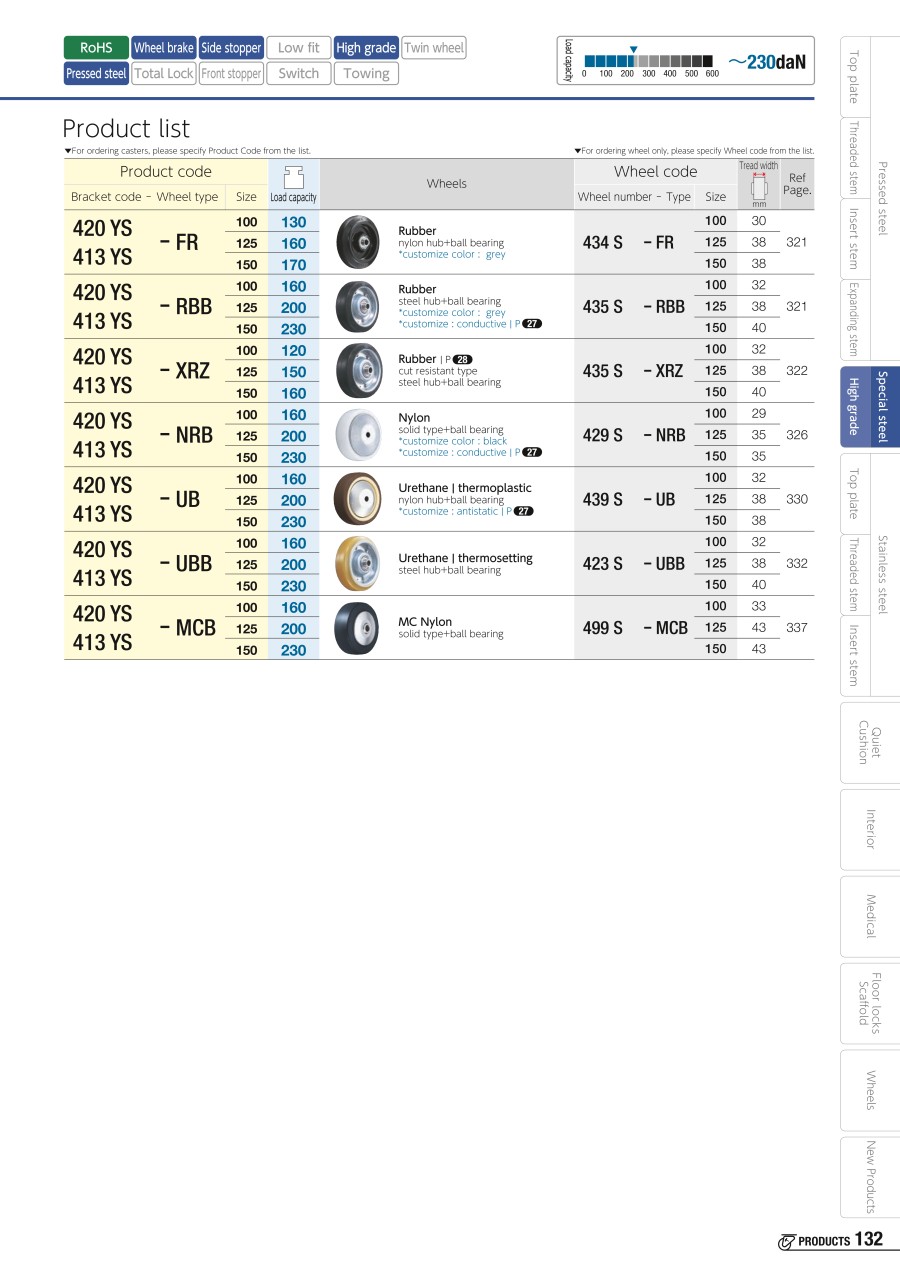

Flat Mounted Plate Type Castors 420YS / 413YS Wheel Diameter 100-150mm

Katalog

Číslo dílu:

Nebyly nalezeny žádné nevyřízené. 36 návrhy.

Seznam čísel dílů
Podrobné údaje
Katalog

Seznam čísel dílů

Počet položek

Číslo dílu

Mounting Height H or H1 and H2

(mm)

Load Range

(daN)

Stopper

Allowable Load 1 piece

(daN)

Wheel Material

Wheel Characteristics

Mounting Hole Pitch Longitudinal direction (X)

(mm)

Mounting Hole Pitch Transverse Direction (Y)

(mm)

Mounting Seat A (Plate Length)

(mm)

Mounting Seat B (Plate Width)

(mm)

Wheel Dia. D

(mm)

Car width

(mm)

Swivel Radius

(mm)

Eccentricity E or E1, E2

(mm)

Variety of Vehicles

Wheel configuration

Minimální objednací množství

132	80.01~140.00	With Rotation Stopper	130	Rubber	-	68(71)	68(71)	90	90	100	30	91	35	FR	Nylon-Wheel Rubber Winding Wheel with Radial Ball Bearings	1 kusů
168	140.01~220.00	With Rotation Stopper	160	Rubber	-	75(80)	75(80)	102	102	125	38	104	38	FR	Nylon-Wheel Rubber Winding Wheel with Radial Ball Bearings	1 kusů
190	140.01~220.00	With Rotation Stopper	170	Rubber	-	75(80)	75(80)	102	102	150	38	118	41	FR	Nylon-Wheel Rubber Winding Wheel with Radial Ball Bearings	1 kusů
132	140.01~220.00	With Rotation Stopper	160	[Nylon] MC Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	68(71)	68(71)	90	90	100	33	91	35	MCB	MC Nylon Integral Wheel With Radial Ball Bearing	1 kusů
168	140.01~220.00	With Rotation Stopper	200	[Nylon] MC Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	75(80)	75(80)	102	102	125	43	104	38	MCB	MC Nylon Integral Wheel With Radial Ball Bearing	1 kusů
190	220.01~320.00	With Rotation Stopper	230	[Nylon] MC Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	75(80)	75(80)	102	102	150	43	118	41	MCB	MC Nylon Integral Wheel With Radial Ball Bearing	1 kusů
132	140.01~220.00	With Rotation Stopper	160	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	68(71)	68(71)	90	90	100	29	91	35	NRB	Nylon Integral Wheel with Radial Ball Bearings	1 kusů
168	140.01~220.00	With Rotation Stopper	200	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	75(80)	75(80)	102	102	125	35	104	38	NRB	Nylon Integral Wheel with Radial Ball Bearings	1 kusů
190	220.01~320.00	With Rotation Stopper	230	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	75(80)	75(80)	102	102	150	35	118	41	NRB	Nylon Integral Wheel with Radial Ball Bearings	1 kusů
132	140.01~220.00	With Rotation Stopper	160	Rubber	-	68(71)	68(71)	90	90	100	32	91	35	RBB	Iron Plate Wheel Rubber Winding Wheel with Radial Ball Bearings	1 kusů
168	140.01~220.00	With Rotation Stopper	200	Rubber	-	75(80)	75(80)	102	102	125	38	104	38	RBB	Iron Plate Wheel Rubber Winding Wheel with Radial Ball Bearings	1 kusů
190	220.01~320.00	With Rotation Stopper	230	Rubber	-	75(80)	75(80)	102	102	150	40	118	41	RBB	Iron Plate Wheel Rubber Winding Wheel with Radial Ball Bearings	1 kusů
132	140.01~220.00	With Rotation Stopper	160	Urethane	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)	68(71)	68(71)	90	90	100	32	91	35	UB	Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel with Radial Ball Bearings	1 kusů
168	140.01~220.00	With Rotation Stopper	200	Urethane	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)	75(80)	75(80)	102	102	125	38	104	38	UB	Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel with Radial Ball Bearings	1 kusů
190	220.01~320.00	With Rotation Stopper	230	Urethane	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)	75(80)	75(80)	102	102	150	38	118	41	UB	Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel with Radial Ball Bearings	1 kusů
132	140.01~220.00	With Rotation Stopper	160	Urethane	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)	68(71)	68(71)	90	90	100	32	91	35	UBB	Iron Plate Wheel Thermosetting Urethane Winding Wheel with Radial Ball Bearings	1 kusů
168	140.01~220.00	With Rotation Stopper	200	Urethane	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)	75(80)	75(80)	102	102	125	38	104	38	UBB	Iron Plate Wheel Thermosetting Urethane Winding Wheel with Radial Ball Bearings	1 kusů
190	220.01~320.00	With Rotation Stopper	230	Urethane	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)	75(80)	75(80)	102	102	150	40	118	41	UBB	Iron Plate Wheel Thermosetting Urethane Winding Wheel with Radial Ball Bearings	1 kusů
132	80.01~140.00	NA	130	Rubber	-	68(71)	68(71)	90	90	100	30	86	35	FR	Nylon-Wheel Rubber Winding Wheel with Radial Ball Bearings	1 kusů
168	140.01~220.00	NA	160	Rubber	-	75(80)	75(80)	102	102	125	38	102	38	FR	Nylon-Wheel Rubber Winding Wheel with Radial Ball Bearings	1 kusů
190	140.01~220.00	NA	170	Rubber	-	75(80)	75(80)	102	102	150	38	118	41	FR	Nylon-Wheel Rubber Winding Wheel with Radial Ball Bearings	1 kusů
132	140.01~220.00	NA	160	[Nylon] MC Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	68(71)	68(71)	90	90	100	33	86	35	MCB	MC Nylon Integral Wheel With Radial Ball Bearing	1 kusů
168	140.01~220.00	NA	200	[Nylon] MC Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	75(80)	75(80)	102	102	125	43	102	38	MCB	MC Nylon Integral Wheel With Radial Ball Bearing	1 kusů
190	220.01~320.00	NA	230	[Nylon] MC Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	75(80)	75(80)	102	102	150	43	118	41	MCB	MC Nylon Integral Wheel With Radial Ball Bearing	1 kusů
132	140.01~220.00	NA	160	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	68(71)	68(71)	90	90	100	29	86	35	NRB	Nylon Integral Wheel with Radial Ball Bearings	1 kusů
168	140.01~220.00	NA	200	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	75(80)	75(80)	102	102	125	35	102	38	NRB	Nylon Integral Wheel with Radial Ball Bearings	1 kusů
190	220.01~320.00	NA	230	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	75(80)	75(80)	102	102	150	35	118	41	NRB	Nylon Integral Wheel with Radial Ball Bearings	1 kusů
132	140.01~220.00	NA	160	Rubber	-	68(71)	68(71)	90	90	100	32	86	35	RBB	Iron Plate Wheel Rubber Winding Wheel with Radial Ball Bearings	1 kusů
168	140.01~220.00	NA	200	Rubber	-	75(80)	75(80)	102	102	125	38	102	38	RBB	Iron Plate Wheel Rubber Winding Wheel with Radial Ball Bearings	1 kusů
190	220.01~320.00	NA	230	Rubber	-	75(80)	75(80)	102	102	150	40	118	41	RBB	Iron Plate Wheel Rubber Winding Wheel with Radial Ball Bearings	1 kusů
132	140.01~220.00	NA	160	Urethane	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)	68(71)	68(71)	90	90	100	32	86	35	UB	Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel with Radial Ball Bearings	1 kusů
168	140.01~220.00	NA	200	Urethane	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)	75(80)	75(80)	102	102	125	38	102	38	UB	Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel with Radial Ball Bearings	1 kusů
190	220.01~320.00	NA	230	Urethane	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)	75(80)	75(80)	102	102	150	38	118	41	UB	Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel with Radial Ball Bearings	1 kusů
132	140.01~220.00	NA	160	Urethane	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)	68(71)	68(71)	90	90	100	32	86	35	UBB	Iron Plate Wheel Thermosetting Urethane Winding Wheel with Radial Ball Bearings	1 kusů
168	140.01~220.00	NA	200	Urethane	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)	75(80)	75(80)	102	102	125	38	102	38	UBB	Iron Plate Wheel Thermosetting Urethane Winding Wheel with Radial Ball Bearings	1 kusů
190	220.01~320.00	NA	230	Urethane	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)	75(80)	75(80)	102	102	150	40	118	41	UBB	Iron Plate Wheel Thermosetting Urethane Winding Wheel with Radial Ball Bearings	1 kusů

Jednotková cena (bez DPH)(Jednotková cena včetně DPH)	Standardní datum odeslání

40.07 € ( 47.68 € )	6 pracovních dnů
53.10 € ( 63.19 € )	6 pracovních dnů
55.60 € ( 66.16 € )	6 pracovních dnů
75.74 € ( 90.13 € )	11 pracovních dnů
102.66 € ( 122.17 € )	11 pracovních dnů
120.37 € ( 143.24 € )	11 pracovních dnů
43.39 € ( 51.63 € )	6 pracovních dnů
55.28 € ( 65.78 € )	11 pracovních dnů
60.58 € ( 72.09 € )	6 pracovních dnů
45.35 € ( 53.97 € )	6 pracovních dnů
63.45 € ( 75.51 € )	11 pracovních dnů
73.45 € ( 87.41 € )	6 pracovních dnů
43.29 € ( 51.52 € )	6 pracovních dnů
65.80 € ( 78.30 € )	6 pracovních dnů
77.64 € ( 92.39 € )	11 pracovních dnů
54.54 € ( 64.90 € )	11 pracovních dnů
74.91 € ( 89.14 € )	11 pracovních dnů
89.45 € ( 106.45 € )	6 pracovních dnů
33.88 € ( 40.32 € )	6 pracovních dnů
47.63 € ( 56.68 € )	11 pracovních dnů
52.97 € ( 63.03 € )	6 pracovních dnů
64.41 € ( 76.65 € )	11 pracovních dnů
96.79 € ( 115.18 € )	11 pracovních dnů
113.51 € ( 135.08 € )	11 pracovních dnů
31.31 € ( 37.26 € )	6 pracovních dnů
49.11 € ( 58.44 € )	6 pracovních dnů
57.27 € ( 68.15 € )	11 pracovních dnů
38.87 € ( 46.26 € )	6 pracovních dnů
55.98 € ( 66.62 € )	11 pracovních dnů
66.18 € ( 78.75 € )	11 pracovních dnů
40.06 € ( 47.67 € )	6 pracovních dnů
59.63 € ( 70.96 € )	6 pracovních dnů
71.37 € ( 84.93 € )	6 pracovních dnů
48.93 € ( 58.23 € )	11 pracovních dnů
68.29 € ( 81.27 € )	11 pracovních dnů
80.87 € ( 96.24 € )	11 pracovních dnů

Podrobné údaje

Základní informace

Základní informace

[Features]
· Applying heat treatment to special steel has resulted in a longer life, a lighter weight and enhanced strength.
· Furthermore, the product features light swiveling performance that overturns common sense regarding industrial casters, and also features lighter handling.
· A high grade caster made from carefully selected materials with a fine finish.
