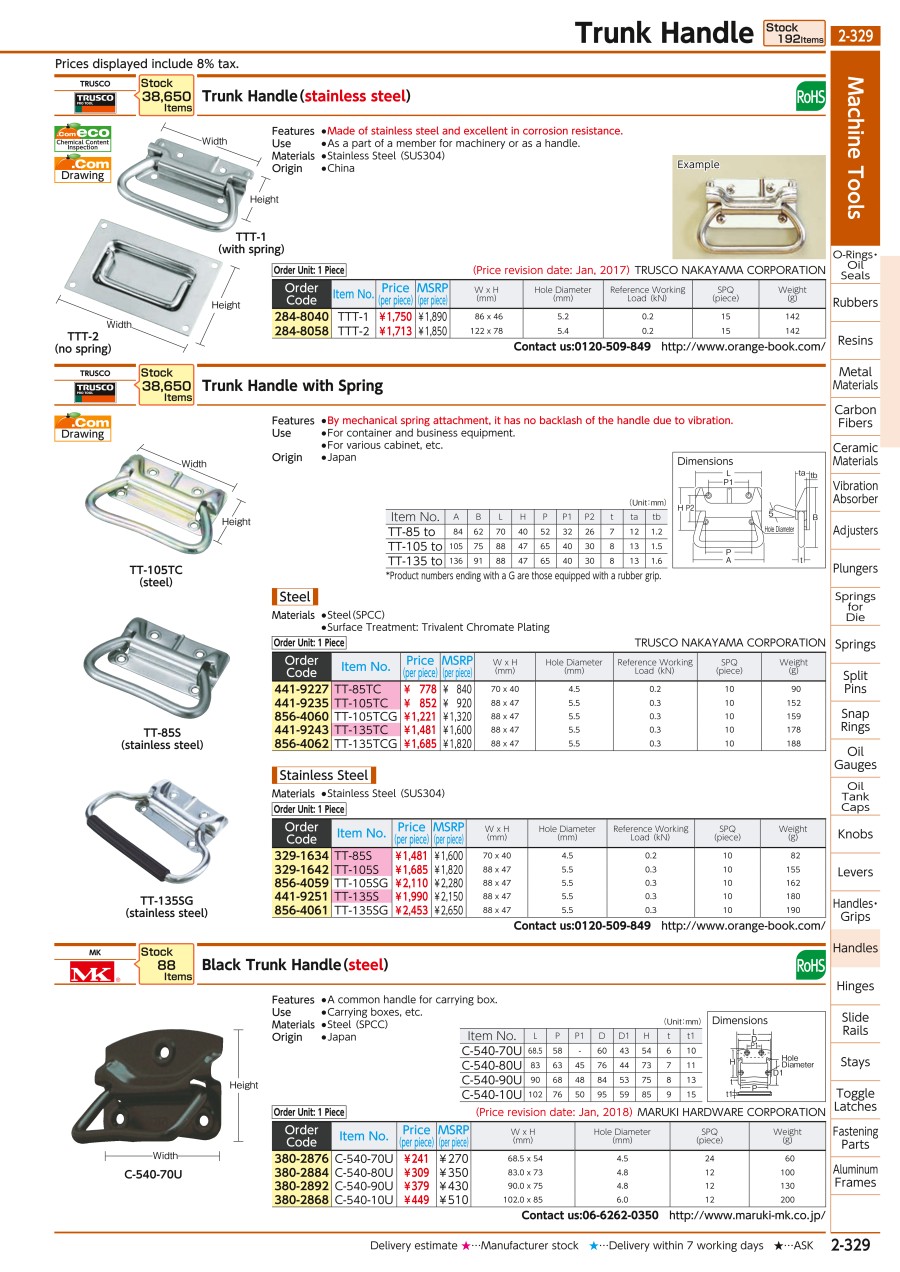

Trunk Handle with Spring
- Volume Discount
· With a spring attached, there is no rattling of the handle due to vibration.
Uses
· For various containers, business equipment.
· For various cabinets, etc.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| TT85S |
| TT105S |
| TT-85TC |
| TT-105TC |
| TT-135S |
| TT-135TC |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main Body Material | Applied Load (N) | Main Body, Surface Treatment | Hole Diameter (mm) | Width x Height (mm) | JAN Code | Order Code | Mass (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
20.79 € | 1 | Available | 6 Days | [EN 1.4301 Equiv.] Stainless Steel (EN 1.4301 Equiv.) | 200 | NA | 4.5 | 70×40 | 4989999287097 | 329-1634 | 82 | |
23.81 € | 1 | 6 Days | [EN 1.4301 Equiv.] Stainless Steel (EN 1.4301 Equiv.) | 300 | NA | 5.5 | 88×47 | 4989999287103 | 329-1642 | 155 | ||
10.01 € | 1 | Available | 6 Days | [Steel] Steel (EN 1.0330 Equiv.) | 200 | [Chromate] Trivalent Chromate Plating | 4.5 | 70×40 | 4989999256567 | 441-9227 | 90 | |
11.95 € | 1 | 6 Days | [Steel] Steel (EN 1.0330 Equiv.) | 300 | [Chromate] Trivalent Chromate Plating | 5.5 | 88×47 | 4989999256574 | 441-9235 | 152 | ||
22.84 € | 1 | 6 Days | [EN 1.4301 Equiv.] Stainless Steel (EN 1.4301 Equiv.) | 300 | NA | 5.5 | 88×47 | 4989999256598 | 441-9251 | 180 | ||
17.54 € | 1 | 6 Days | [Steel] Steel (EN 1.0330 Equiv.) | 300 | [Chromate] Trivalent Chromate Plating | 5.5 | 88×47 | 4989999256581 | 441-9243 | 178 |
Loading...
Basic information
| Main Body Type | Trunk Shape | Additional Function | NA | Mounting Method | Round Hole |
|---|---|---|---|---|---|
| Handle Cross Sectional Shape | Round shape | Specifications | With Spring | Number Contained In A Packet(piece) | 1 |
Configure
Basic Attributes
-
Main Body Material
- EN 1.4301 Equiv.
- Steel
- EN 1.4301 Equiv.
-
Main Body, Surface Treatment
- NA
- Chromate
-
Hole Diameter(mm)
-
Width x Height(mm)
- 70×40
- 88×47
-
JAN Code
-
Order Code
-
Type
- TT
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
