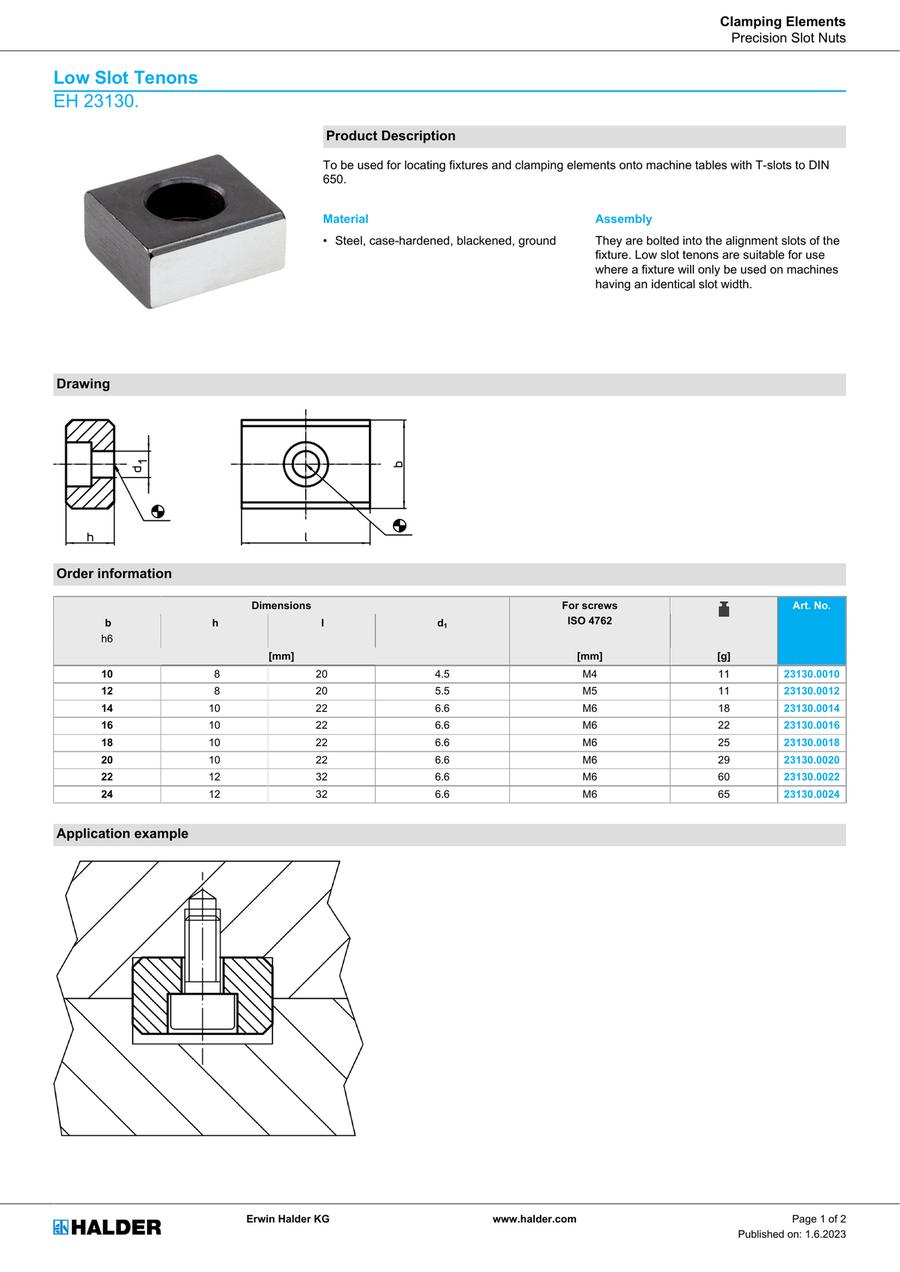

<h3 class="m-h3--wysiwyg">Low Slot Tenons, EH 23130.</h3><h3 class="m-h3">Product Description</h3><div class="pad_b15"><table border="0" cellspacing="0" style="border-width: 0px;"><tbody><tr><td align="left" class="bodyCell" style="border-width: 0px 0px 0px 0px;"><img alt="" src="//uk.misumi-ec.com/linked/vitem/mech/RHL1/221005518778/img/221005518778_1.gif" style="height: 170px; width: 231px;" /></td><td align="left" class="bodyCell" style="border-width: 0px 0px 0px 0px;" valign="top">To be used for locating fixtures and clamping elements onto machine tables with T-slots to DIN 650.</td></tr></tbody></table></div><h4 class="m-h4--wysiwyg">Material</h4><div class="pad_b15">&bull; Steel, case-hardened, blackened, ground</div><h4 class="m-h4--wysiwyg">Notes</h4><div class="pad_b15">They are bolted into the alignment slots of the fixture. Low slot tenons are suitable for use where a fixture will only be used on machines having an identical slot width.</div><h3 class="m-h3">Drawing</h3><div class="pad_b15"><img alt="" src="//uk.misumi-ec.com/linked/vitem/mech/RHL1/221005518778/img/221005518778_2.gif" style="width: 450px; height: 175px;" /></div><h3 class="m-h3">Order Information</h3><div class="pad_b15"><table border="2" cellspacing="0" rules="all" width="100%"><tbody><tr><td align="center" class="headerCell" colspan="4" style="border-width: 1px 1px 0px 1px;"><strong>Dimensions</strong></td><td align="center" class="headerCell" style="border-width: 1px 1px 0px 1px;"><strong>For screws</strong></td><td align="center" class="headerCell" style="border-width: 1px 1px 0px 1px;"><strong>Weight</strong></td><td align="center" class="coloredCell" style="border-width: 1px 1px 0px 1px;"><strong>Art. No.</strong></td></tr><tr><td align="center" class="headerCell" style="border-width: 0px 1px 0px 1px;"><strong>b</strong></td><td align="center" class="headerCell" style="border-width: 0px 1px 0px 1px;"><strong>h</strong></td><td align="center" class="headerCell" style="border-width: 0px 1px 0px 1px;"><strong>l</strong></td><td align="center" class="headerCell" style="border-width: 0px 1px 0px 1px;"><strong>d<sub>1</sub></strong></td><td align="center" class="headerCell" style="border-width: 0px 1px 0px 1px;"><strong>ISO 4762</strong></td><td class="headerCell" style="border-width: 0px 1px 0px 1px;">&nbsp;</td><td class="coloredCell" style="border-width: 0px 1px 0px 1px;">&nbsp;</td></tr><tr><td align="center" class="headerCell" style="border-width: 0px 1px 0px 1px;">h6</td><td class="headerCell" style="border-width: 0px 1px 0px 1px;">&nbsp;</td><td class="headerCell" style="border-width: 0px 1px 0px 1px;">&nbsp;</td><td class="headerCell" style="border-width: 0px 1px 0px 1px;">&nbsp;</td><td class="headerCell" style="border-width: 0px 1px 0px 1px;">&nbsp;</td><td class="headerCell" style="border-width: 0px 1px 0px 1px;">&nbsp;</td><td class="coloredCell" style="border-width: 0px 1px 0px 1px;">&nbsp;</td></tr><tr><td align="center" class="headerCell" colspan="4" style="border-width: 0px 1px 1px 1px;"><strong>[mm]</strong></td><td align="center" class="headerCell" style="border-width: 0px 1px 1px 1px;"><strong>[mm]</strong></td><td align="center" class="headerCell" style="border-width: 0px 1px 1px 1px;"><strong>[g]</strong></td><td class="coloredCell" style="border-width: 0px 1px 1px 1px;">&nbsp;</td></tr><tr><td align="center" class="bodyCell">10</td><td align="center" class="bodyCell">8</td><td align="center" class="bodyCell">20</td><td align="center" class="bodyCell">4.5</td><td align="center" class="bodyCell">M4</td><td align="center" class="bodyCell">11</td><td align="center" class="bodyCell"><font class="fontType">23130.0010</font></td></tr><tr><td align="center" class="bodyCell">12</td><td align="center" class="bodyCell">8</td><td align="center" class="bodyCell">20</td><td align="center" class="bodyCell">5.5</td><td align="center" class="bodyCell">M5</td><td align="center" class="bodyCell">11</td><td align="center" class="bodyCell"><font class="fontType">23130.0012</font></td></tr><tr><td align="center" class="bodyCell">14</td><td align="center" class="bodyCell">10</td><td align="center" class="bodyCell">22</td><td align="center" class="bodyCell">6.6</td><td align="center" class="bodyCell">M6</td><td align="center" class="bodyCell">18</td><td align="center" class="bodyCell"><font class="fontType">23130.0014</font></td></tr><tr><td align="center" class="bodyCell">16</td><td align="center" class="bodyCell">10</td><td align="center" class="bodyCell">22</td><td align="center" class="bodyCell">6.6</td><td align="center" class="bodyCell">M6</td><td align="center" class="bodyCell">22</td><td align="center" class="bodyCell"><font class="fontType">23130.0016</font></td></tr><tr><td align="center" class="bodyCell">18</td><td align="center" class="bodyCell">10</td><td align="center" class="bodyCell">22</td><td align="center" class="bodyCell">6.6</td><td align="center" class="bodyCell">M6</td><td align="center" class="bodyCell">25</td><td align="center" class="bodyCell"><font class="fontType">23130.0018</font></td></tr><tr><td align="center" class="bodyCell">20</td><td align="center" class="bodyCell">10</td><td align="center" class="bodyCell">22</td><td align="center" class="bodyCell">6.6</td><td align="center" class="bodyCell">M6</td><td align="center" class="bodyCell">29</td><td align="center" class="bodyCell"><font class="fontType">23130.0020</font></td></tr><tr><td align="center" class="bodyCell">22</td><td align="center" class="bodyCell">12</td><td align="center" class="bodyCell">32</td><td align="center" class="bodyCell">6.6</td><td align="center" class="bodyCell">M6</td><td align="center" class="bodyCell">60</td><td align="center" class="bodyCell"><font class="fontType">23130.0022</font></td></tr><tr><td align="center" class="bodyCell">24</td><td align="center" class="bodyCell">12</td><td align="center" class="bodyCell">32</td><td align="center" class="bodyCell">6.6</td><td align="center" class="bodyCell">M6</td><td align="center" class="bodyCell">65</td><td align="center" class="bodyCell"><font class="fontType">23130.0024</font></td></tr></tbody></table></div><h3 class="m-h3">Application Example</h3><div class="pad_b15"><img alt="" src="//uk.misumi-ec.com/linked/vitem/mech/RHL1/221005518778/img/221005518778_3.gif" style="width: 400px; height: 362px;" /></div>
