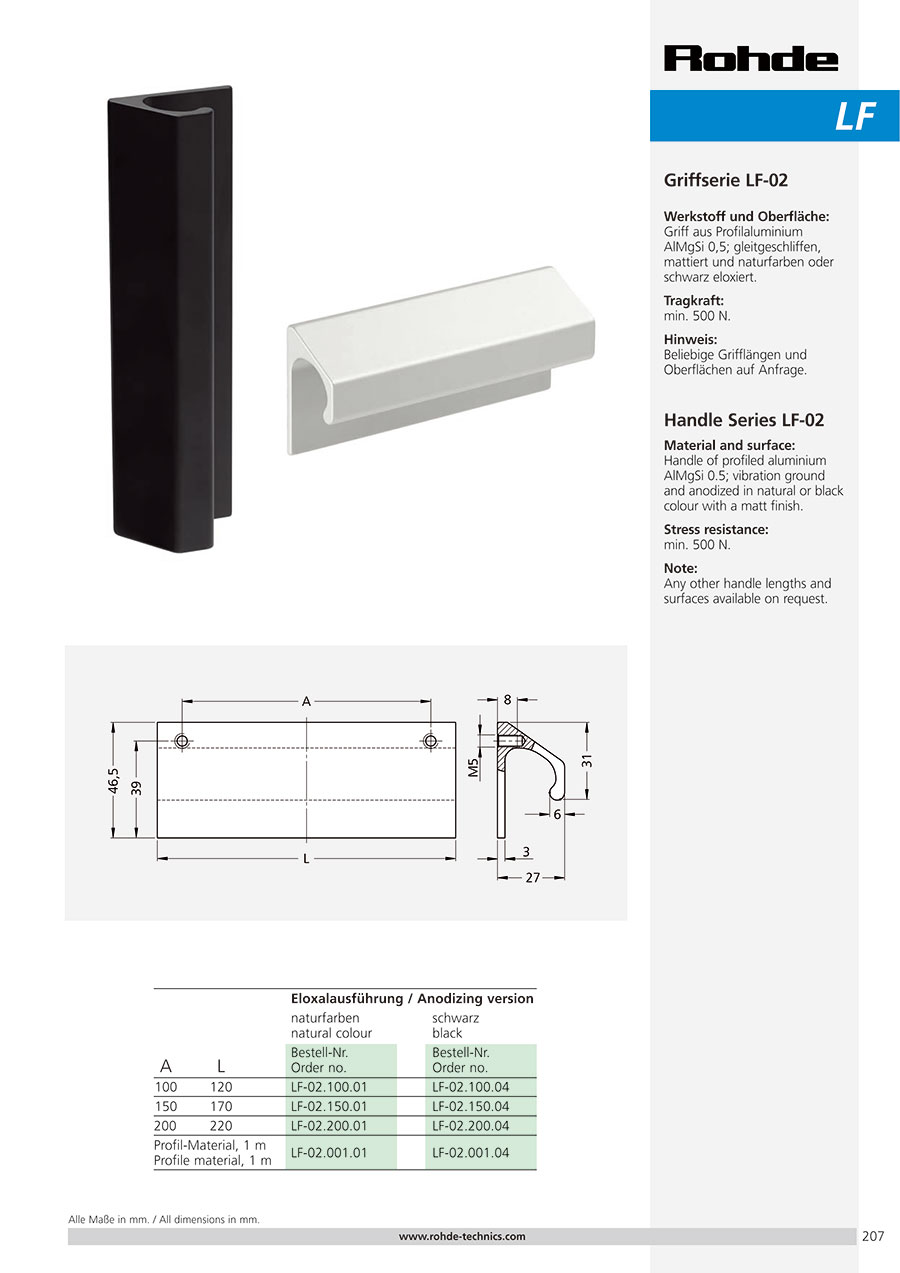

Ledge Handle (LF-02)
- Volume Discount
Profile aluminium, vibration ground and anodized in natural or black colour with a matt finish
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| LF-02.100.01 |
| LF-02.100.04 |
| LF-02.150.01 |
| LF-02.150.04 |
| LF-02.200.01 |
| LF-02.200.04 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Pitch P (mm) | Screw-on distance A (mm) | Length L (mm) | Handle color | |
|---|---|---|---|---|---|---|---|---|---|
12.40 € | 1 | Available | 2 Days | 10 | 100 | 100 | 120 | Silver | |
13.16 € | 1 | Available | 2 Days | 10 | 100 | 100 | 120 | Black | |
14.10 € | 1 | Available | 2 Days | 10 | 150 | 150 | 170 | Silver | |
14.84 € | 1 | Available | 2 Days | 10 | 150 | 150 | 170 | Black | |
15.78 € | 1 | Available | 2 Days | 10 | 200 | 200 | 220 | Silver | |
16.54 € | 1 | Available | 2 Days | 10 | 200 | 200 | 220 | Black |
Loading...
Basic information
| Main Body Type | Special Shape | Main Body Material | Aluminum | Applied Load(N) | 500 |
|---|---|---|---|---|---|
| Main Body, Surface Treatment | Powder Coating | Mounting Method | Tapped | Fastening M | M5 |
| Material | AlMgSi 0.5 | Surface treatment | Anodized |
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
