Body ported type external appearance
Body ported type (tubing type) external appearance
Base Mounted Type (Without Sub-Plate) external appearance
Base Mounted Type (With Sub-Plate) external appearance

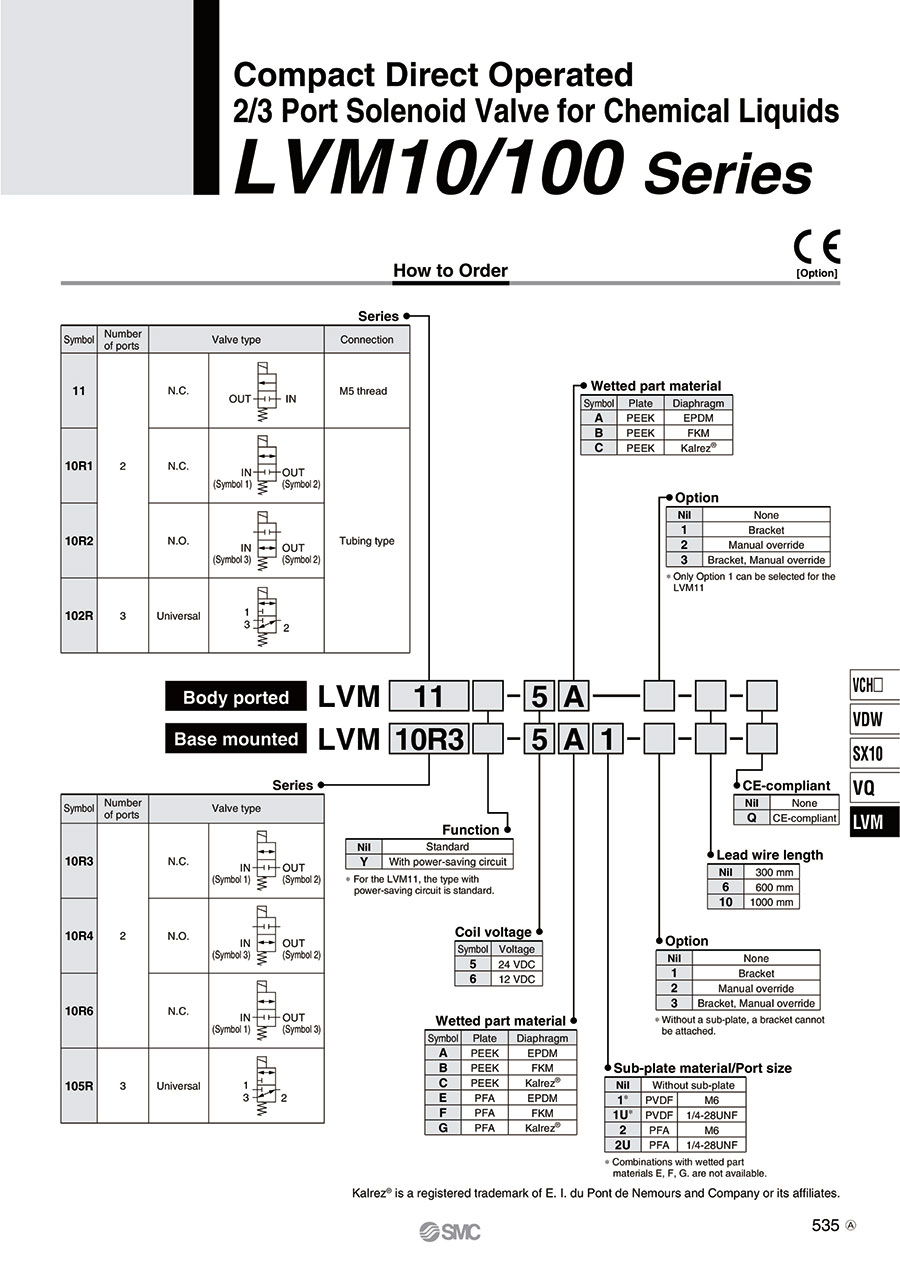

Model | Body Ported Type | Body Ported Type (Tubing Type) | Base Mounted Type | |||||||
---|---|---|---|---|---|---|---|---|---|---|
LVM11 | LVM10R1 | LVM10R2 | LVM102R | LVM10R3 | LVM10R4 | LVM10R6 | LVM105R | |||
Valve Construction | Diaphragm type direct operated poppet | Diaphragm type direct operated poppet (rocker type) | ||||||||
Valve Type | N.C. | N.C. | N.O. | Universal | N.C. | N.O. | N.C. | Universal | ||
Number of Ports | 2 | 2 | 3 | 2 | 3 | |||||
Fluids*1 | Air, water, deionized water (pure water), diluent, cleaning fluid | |||||||||
Operating Pressure Range | 0 to 0.25 MPa | -75 kPa to 0.25 MPa | ||||||||
Orifice Diameter | 1.5 mm | 1.4 mm | ||||||||
Response Time*8 | 10 ms or less (with pneumatic pressure) | |||||||||
Leakage | Zero leakage, either internal or external (at water pressure) | |||||||||
Proof Pressure*2 | 0.38 MPa | |||||||||
Ambient Temperature*9 | 0 to 50°C | |||||||||
Fluid Temperature*9 | 0°C to 50°C (no condensation) | |||||||||
Volume of Valve Chamber*3 | 11 μL | 20 μL | ||||||||
Mounting Orientation*4 | Free | |||||||||
Enclosure | IP40 equivalent | |||||||||
Weight | 30 g | 34 g (without sub-plate), 42 g (with sub-plate) | ||||||||
Rated Voltage | 12, 24 V DC | |||||||||
Allowable Voltage Fluctuation*5 | ±10% of rated voltage | |||||||||
Coil Insulation Type | Class B | |||||||||
Power Consumption Current (at 24‑V rated voltage) | Standard Type | - | 1.5 W (0.06 A) | |||||||
With Power-Saving Circuit | Inrush | 2.5 W (0.1 A) | ||||||||
Holding | 1 W | |||||||||
Coil Switching Noise*6 | 50 dB |
*1: Select an appropriate material for the wetted parts according to the type of fluid to be used. Be sure to check the chemical resistance beforehand.
*2: Indicates pressures which do not cause breakage or cracks after a 1 minute airtight test.
*3: Indicates the volume of the clearance inside the volume chamber after the volume of the diaphragm has been subtracted.
*4: As the body (orifice shape) is designed to eliminate residual liquid, mounting in a vertical orientation with the coil facing upward is recommended. If liquid pooling is not an issue, it may be installed in any orientation.
*5: If response speed is considered critical, take adequate regulations to prevent voltage fluctuations on the negative side.
*6: This value is depending on the measurement conditions and the sound level may change depending on the measurement conditions.
*7: See the SMC catalog if the valve is to be energized continuously for extended periods of time.
*8: According to JIS B8419:2010
{Value at an ambient and fluid temperature of 25°C, at rated voltage, at the maximum operating pressure (air) and when the N.C. (IN) port is pressurized}
The response time may vary depending on the supply pressure, fluid quality, piping conditions, ambient temperature, etc.
*9: Note that when the diaphragm material is Kalrez, the valve changeover time becomes significantly longer at ambient and fluid temperatures of 15°C or less in comparison to at room temperature (roughly 25°C).
Valve Construction | Water | Air | ||
---|---|---|---|---|
Kv | Cv | C | b | |
Direct-operated poppet type | 0.034 | 0.04 | 0.13 | 0.22 |
Rocker type | 0.025 | 0.03 | 0.1 | 0.2 |
*Kv, Cv values conform to JIS B 2005:1995. C and b values conform to JIB B8390:2000.
LVM10R1 diagram
LVM10R2 diagram
LVM102R diagram
Component Parts: LVM10R1, 10R2, 102R
Number | Part Name | Material |
---|---|---|
1 | Plate | PEEK |
2 | Diaphragm assembly | EPDM, FKM, Kalrez |
3 | Body | PBT |
4 | Slide bushing assembly | PPS, Stainless steel |
5 | Armature assembly | Stainless steel/PBT |
6 | Coil assembly | - |
7 | Sleeve | SUY |
8 | Spacer | PBT |
9 | Return spring | Stainless steel |
10 | Board assembly | - |
11 | Casing | PBT |
12 | Plug | NBR |
13 | O-Ring | NBR |
(Units: mm)
LVM11-□□-□ (N.C.) dimensional drawing
LVM10R1-□□-□ (N.C.) / LVM10R2-□□-□ (N.O.) / LVM102R-□□-□ (universal) dimensional drawing
*Dotted line indicates with bracket.
LVM10R3-□□-□ (N.C.) / LVM10R4-□□-□ (N.O.) / LVM10R6-□□-□ (N.C.) / LVM105R-□□-□ (universal) dimensions / image recommended interface dimensions
Číslo dílu |
---|
Jednotková cena (bez DPH)(Jednotková cena včetně DPH) | Standardní datum odeslání |
---|
79.45 € ( 94.55 € ) | 26 pracovních dnů |
79.45 € ( 94.55 € ) | 11 pracovních dnů |
72.42 € ( 86.18 € ) | 11 pracovních dnů |
108.65 € ( 129.29 € ) | 24 pracovních dnů |
60.39 € ( 71.86 € ) | 11 pracovních dnů |
56.32 € ( 67.02 € ) | 11 pracovních dnů |
61.40 € ( 73.07 € ) | 28 pracovních dnů |
143.53 € ( 170.80 € ) | 19 pracovních dnů |
141.53 € ( 168.42 € ) | 26 pracovních dnů |
86.50 € ( 102.94 € ) | 11 pracovních dnů |
84.50 € ( 100.56 € ) | 28 pracovních dnů |
72.47 € ( 86.24 € ) | 26 pracovních dnů |
68.40 € ( 81.40 € ) | 24 pracovních dnů |
89.60 € ( 106.62 € ) | 28 pracovních dnů |
75.52 € ( 89.87 € ) | 21 pracovních dnů |
73.50 € ( 87.47 € ) | 28 pracovních dnů |
117.45 € ( 139.77 € ) | 11 pracovních dnů |
146.63 € ( 174.49 € ) | 28 pracovních dnů |
101.35 € ( 120.61 € ) | 21 pracovních dnů |
138.76 € ( 165.12 € ) | 23 pracovních dnů |
135.90 € ( 161.72 € ) | 28 pracovních dnů |
160.66 € ( 191.19 € ) | 23 pracovních dnů |
160.60 € ( 191.11 € ) | 23 pracovních dnů |
56.32 € ( 67.02 € ) | 21 pracovních dnů |
79.52 € ( 94.63 € ) | 28 pracovních dnů |
75.52 € ( 89.87 € ) | 21 pracovních dnů |
124.79 € ( 148.50 € ) | 11 pracovních dnů |
73.50 € ( 87.47 € ) | 26 pracovních dnů |
101.35 € ( 120.61 € ) | 26 pracovních dnů |
79.45 € ( 94.55 € ) | 26 pracovních dnů |
85.52 € ( 101.77 € ) | 28 pracovních dnů |
72.42 € ( 86.18 € ) | 23 pracovních dnů |
72.40 € ( 86.16 € ) | 21 pracovních dnů |
108.65 € ( 129.29 € ) | 28 pracovních dnů |
60.39 € ( 71.86 € ) | 28 pracovních dnů |
58.32 € ( 69.40 € ) | 28 pracovních dnů |
56.32 € ( 67.02 € ) | 45 pracovních dnů |
77.52 € ( 92.25 € ) | 28 pracovních dnů |
79.52 € ( 94.63 € ) | 19 pracovních dnů |
77.52 € ( 92.25 € ) | 11 pracovních dnů |
65.48 € ( 77.92 € ) | 26 pracovních dnů |
61.40 € ( 73.07 € ) | 4 pracovních dnů |
112.40 € ( 133.76 € ) | 19 pracovních dnů |
91.27 € ( 108.61 € ) | 19 pracovních dnů |
89.27 € ( 106.23 € ) | 21 pracovních dnů |
92.19 € ( 109.71 € ) | 26 pracovních dnů |
56.32 € ( 67.02 € ) | 28 pracovních dnů |
63.44 € ( 75.49 € ) | 19 pracovních dnů |
61.40 € ( 73.07 € ) | 19 pracovních dnů |
89.27 € ( 106.23 € ) | 11 pracovních dnů |
91.53 € ( 108.92 € ) | 28 pracovních dnů |
68.39 € ( 81.38 € ) | 28 pracovních dnů |
89.60 € ( 106.62 € ) | 23 pracovních dnů |
76.29 € ( 90.79 € ) | 11 pracovních dnů |
131.40 € ( 156.37 € ) | 24 pracovních dnů |
101.35 € ( 120.61 € ) | 11 pracovních dnů |
75.52 € ( 89.87 € ) | 28 pracovních dnů |
62.19 € ( 74.01 € ) | 19 pracovních dnů |
59.35 € ( 70.63 € ) | 4 pracovních dnů |
59.16 € ( 70.40 € ) | 28 pracovních dnů |
· A series of valves with a maximum change in volume of just 0.01 μL when opened or closed.
[Features]
· A compact direct operated 2/3 port solenoid valve for chemical liquids.
· Body ported types and base mounted types.
· Optional power-saving circuit.
· Space saving.
[Applications]
· Ideal for various types of analytic and testing devices.
