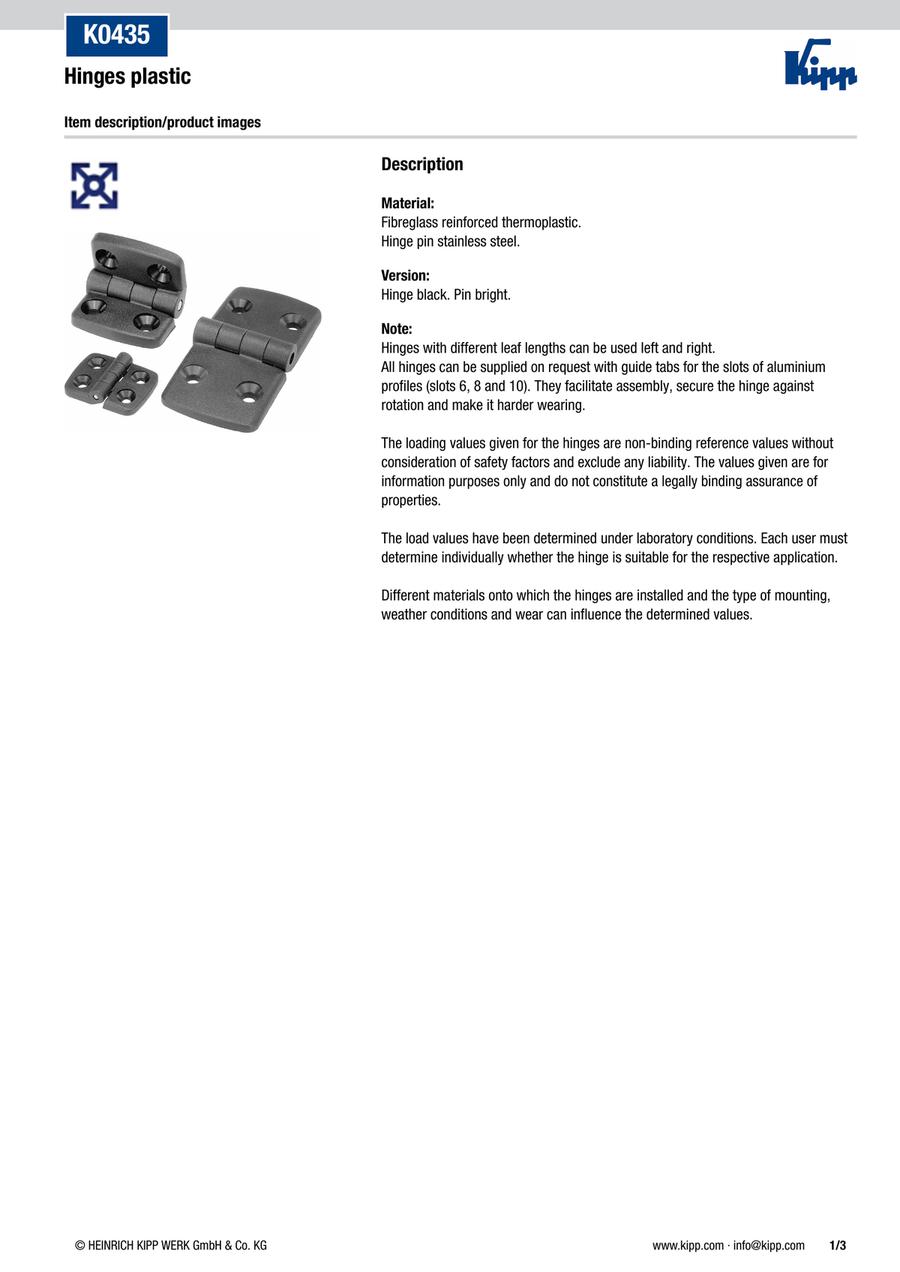

Hinges Plastic (K0435)

· Connect two fixed components flexibly to each other

· Application sectors: machine construction, furniture construction, doors, hatches, hoods

· Can be screwed onto all panel elements

· Can be used left or right with different wing lengths

· Axis, stainless steel

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Products homepage

Data to be displayed: 30; 45; 60

Part Number
K0435.201212
K0435.251515
K0435.251518
K0435.251520
K0435.251523
K0435.251525
K0435.251528
K0435.251533
K0435.301818
K0435.301820
K0435.301823
K0435.301825
K0435.301828
K0435.301833
K0435.352020
K0435.352023
K0435.352025
K0435.352028
K0435.352033
K0435.402323
K0435.402325
K0435.402328
K0435.402333
K0435.452525
K0435.452528
K0435.452533
K0435.502828
K0435.502833
K0435.603333

Standard Unit Price	Minimum order quantity	Standard Shipping Days ?	B=Width (mm)	A=Length (mm)	B2 (mm)	D1 (mm)	D2 (mm)	D3 (mm)	H (mm)	A1=Hole spacing left (mm)	A2=Hole spacing right (mm)	A3=Wing length left (mm)	A4=Wing length right (mm)	F1 (N)	F2 (N)	Weight (kg)
2.14 €	1	4 Days	30	39	14	4.2	3	8	5.5	11.5	11.5	19.5	19.5	400	200	0.0077
4.31 €	1	4 Days	48	52	28	6.6	6	14	9	15	15	26	26	625	425	0.0317
4.44 €	1	4 Days	48	55.5	28	6.6	6	14	9	15	17.5	26	29.5	700	500	0.0332
4.44 €	1	4 Days	48	61.5	28	6.6	6	14	9	15	20	26	35.5	700	400	0.0355
4.57 €	1	4 Days	48	64.5	28	6.6	6	14	9	15	22.5	26	38.5	800	350	0.0359
4.67 €	1	4 Days	48	69.5	28	6.6	6	14	9	15	25	26	43.5	800	325	0.0392
4.77 €	1	4 Days	48	74.5	28	6.6	6	14	9	15	27.5	26	48.5	800	320	0.0394
4.84 €	1	4 Days	48	83.5	28	6.6	6	14	9	15	32.5	26	57.5	800	240	0.0414
4.44 €	1	4 Days	48	59	28	6.6	6	14	9	17.5	17.5	29.5	29.5	700	400	0.0312
4.44 €	1	4 Days	48	65	28	6.6	6	14	9	17.5	20	29.5	35.5	700	400	0.0371
4.57 €	1	4 Days	48	68	28	6.6	6	14	9	17.5	22.5	29.5	38.5	750	450	0.0374
4.57 €	1	4 Days	48	73	28	6.6	6	14	9	17.5	25	29.5	43.5	750	450	0.0410
4.57 €	1	4 Days	48	78	28	6.6	6	14	9	17.5	27.5	29.5	48.5	900	425	0.0409
4.67 €	1	4 Days	48	87	28	6.6	6	14	9	17.5	32.5	29.5	57.5	850	200	0.0436
4.67 €	1	4 Days	48	71	28	6.6	6	14	9	20	20	35.5	35.5	700	400	0.0391
4.67 €	1	4 Days	48	74	28	6.6	6	14	9	20	22.5	35.5	38.5	750	450	0.0365
4.77 €	1	4 Days	48	79	28	6.6	6	14	9	20	25	35.5	43.5	750	450	0.0433
4.77 €	1	4 Days	48	84	28	6.6	6	14	9	20	27.5	35.5	48.5	800	425	0.0432
4.84 €	1	4 Days	48	93	28	6.6	6	14	9	20	32.5	35.5	57.5	800	175	0.0464
4.67 €	1	4 Days	48	77	28	6.6	6	14	9	22.5	22.5	38.5	38.5	750	450	0.0336
4.81 €	1	4 Days	48	82	28	6.6	6	14	9	22.5	25	38.5	43.5	750	450	0.0405
4.84 €	1	4 Days	48	87	28	6.6	6	14	9	22.5	27.5	38.5	48.5	800	425	0.0400
4.93 €	1	4 Days	48	96	28	6.6	6	14	9	22.5	32.5	38.5	57.5	850	175	0.0429
4.77 €	1	4 Days	48	87	28	6.6	6	14	9	25	25	43.5	43.5	750	450	0.0471
4.84 €	1	4 Days	48	92	28	6.6	6	14	9	25	27.5	43.5	48.5	800	425	0.0468
4.84 €	1	4 Days	48	101	28	6.6	6	14	9	25	32.5	43.5	57.5	850	200	0.0499
4.84 €	1	4 Days	48	97	28	6.6	6	14	9	27.5	27.5	48.5	48.5	800	425	0.0470
4.84 €	1	4 Days	48	106	28	6.6	6	14	9	27.5	32.5	48.5	57.5	850	200	0.0499
4.84 €	1	4 Days	48	115	28	6.6	6	14	9	32.5	32.5	57.5	57.5	850	175	0.0527

Basic information

Main material	Thermoplastic	Main colour	black	Kind of fastening	fastening holes
Item	Hinge	Component material	Stainless steel	Product type	Hinge
