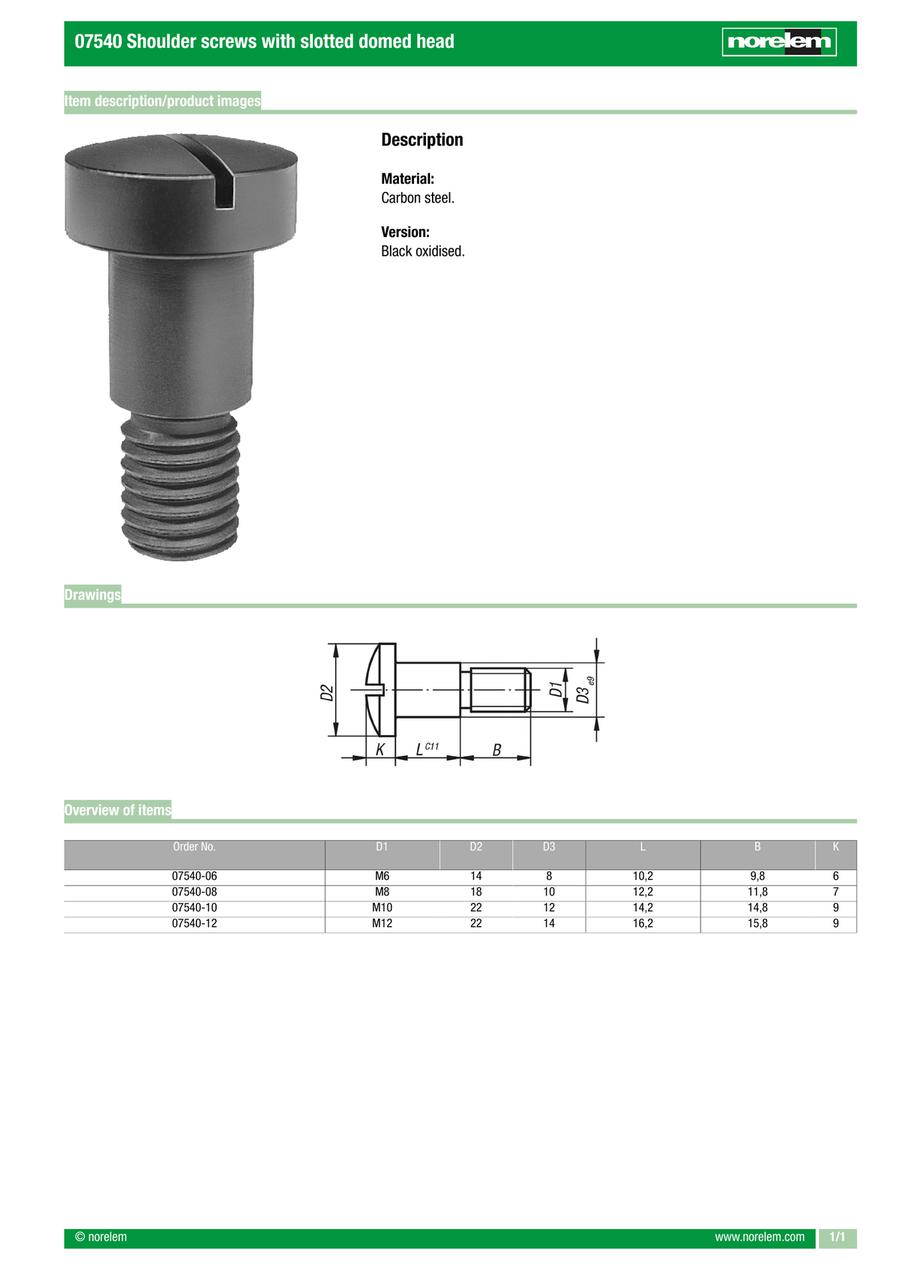

Fillister head screw with seating, carbon steel (07540)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 07540-06 |
| 07540-08 |
| 07540-10 |
| 07540-12 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D2 | K | D1=Thread | B=Thread length | G=thread / for thread | D3 | L=shaft length | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
4.93 € | 1 | 4 Days | 14 | 6 | M6 | 9.8 | M6 | 8 | 10.2 | 0.0115 | ||
5.88 € | 1 | 4 Days | 18 | 7 | M8 | 11.8 | M8 | 10 | 12.2 | 0.0222 | ||
7.51 € | 1 | 4 Days | 22 | 9 | M10 | 14.8 | M10 | 12 | 14.2 | 0.0413 | ||
9.77 € | 1 | 4 Days | 22 | 9 | M12 | 15.8 | M12 | 14 | 16.2 | 0.0521 |
Loading...
Basic information
| Main material | high carbon steel | Surface finish body | black oxidised | Item | Fillister Head Screw |
|---|---|---|---|---|---|
| Kind of fastening | slot | Product type | screw | Version 1 | with seating |
| RoHS | yes |
Configure
Basic Attributes
-
D2
-
K
-
D1=Thread
- M6
- M8
- M10
- M12
-
B=Thread length
-
G=thread / for thread
- M6
- M8
- M10
- M12
-
D3
- 8
- 10
- 12
- 14
-
L=shaft length
- 10.2
- 12.2
- 14.2
- 16.2
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
