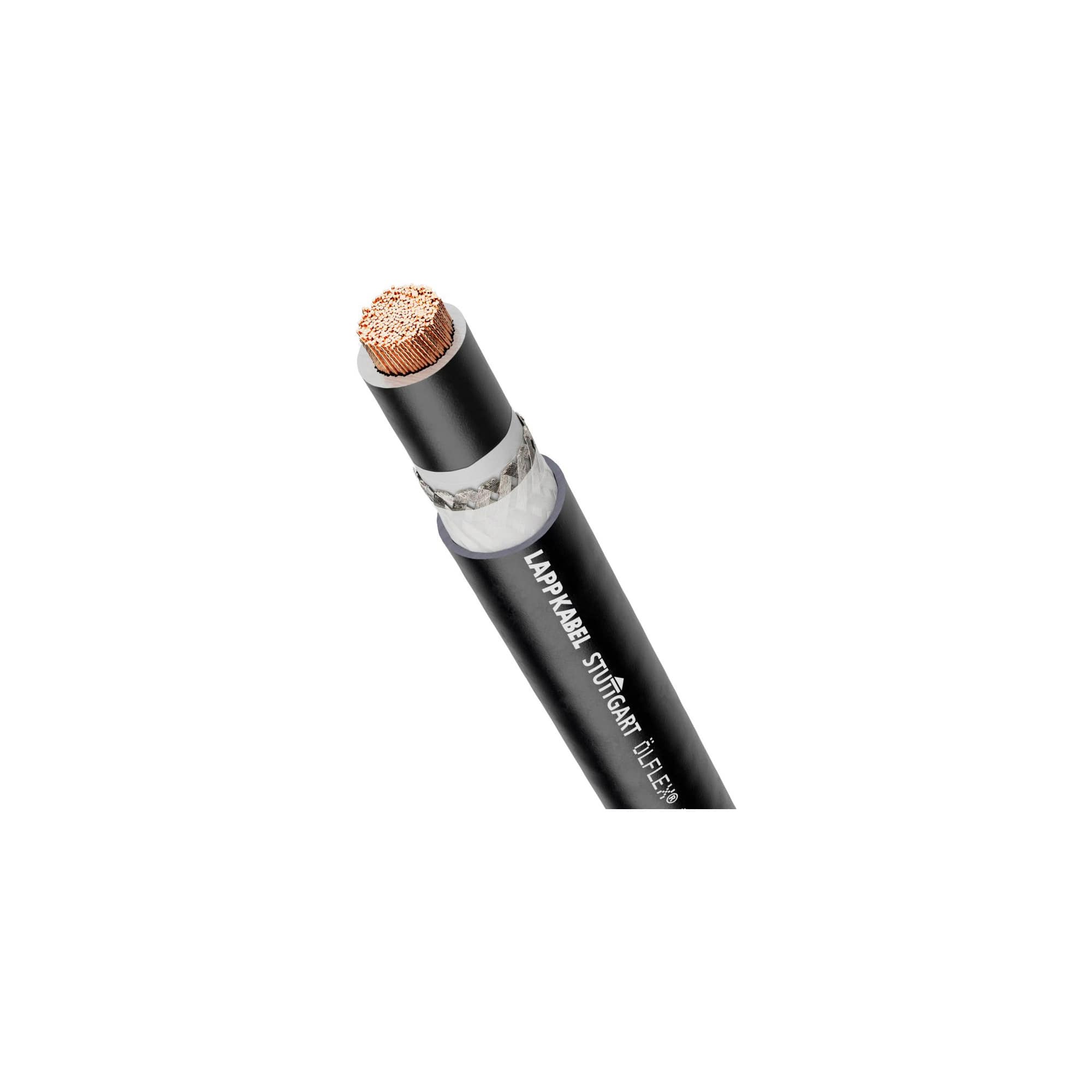

ÖLFLEX® CHAIN 809 SC CY

ÖLFLEX® CHAIN 809 SC CY

Přesunutím myši nad obrázek ho zvětšíte

Číslo dílu:

Nebyly nalezeny žádné nevyřízené. 13 návrhy.
Množství:

Seznam čísel dílů

Počet položek
Související

Length

(m)

Nominal cross section conductor

(mm2)

Outer diameter approx.

(mm)

RoHS?Minimální objednací množství
100
6
8,1
10
1 kusů
50
10
9,7
10
1 kusů
100
10
9,7
10
1 kusů
50
16
10,6
10
1 kusů
100
16
10,6
10
1 kusů
50
25
12
10
1 kusů
50
35
14,8
10
1 kusů
500
70
18,5
10
1 kusů
500
95
20,9
10
1 kusů
500
120
24,1
10
1 kusů
500
150
26,1
10
1 kusů
500
185
28,4
10
1 kusů
500
240
31,9
10
1 kusů
Jednotková cena (bez DPH)(Jednotková cena včetně DPH)
Standardní datum odeslání
420.67 €
(
500.60 €
)
5 pracovních dnů
286.38 €
(
340.79 €
)
8 pracovních dnů
572.77 €
(
681.60 €
)
5 pracovních dnů
374.78 €
(
445.99 €
)
60 pracovních dnů
749.55 €
(
891.96 €
)
80 pracovních dnů
536.48 €
(
638.41 €
)
60 pracovních dnů
724.28 €
(
861.89 €
)
8 pracovních dnů
12,567.50 €
(
14,955.33 €
)
5 pracovních dnů
16,015.08 €
(
19,057.95 €
)
8 pracovních dnů
19,540.17 €
(
23,252.80 €
)
8 pracovních dnů
25,495.00 €
(
30,339.05 €
)
8 pracovních dnů
29,854.92 €
(
35,527.35 €
)
96 pracovních dnů
36,893.00 €
(
43,902.67 €
)
97 pracovních dnů

Podrobné údaje

Základní informace

Benefits
· Ideal protection against electromagnetic interference thanks to copper screening braiding with a high degree of coverage
· Operating voltage of 1000 V according to UL, permitted for North America
· Classified fire behaviour according to EU Directive 305/2011 (BauPVO/CPR) with article number selection on the LAPP website
· Product with multiple certifications enables universal use and reduces the variety of parts, thus guaranteeing logistics savings
· Durable cable chain use with moderate travel distances or acceleration (LAPP performance class “Basic Line”)
· UL/CSA certification according to technical data enables the product to be used in the North American market

Application
· Specially designed for energy circuits of servo motors driven by frequency converters
· Can be used in dry, damp or wet environments
· Especially for environments where electromagnetic compatibility (EMC) is required
· Suitable for light to medium mechanical stress
· Suitable for outdoor use, subject to the temperature range
· The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance
· Cable design also suitable for torsion applications in wind turbines
· Also suitable for fixed wiring in control cabinets and in applications where multi-core cables are difficult to use due to space requirements and minimum bending radii
· The cable design allows flexible, continuously flexing use in moving machine parts and in the cable chain
