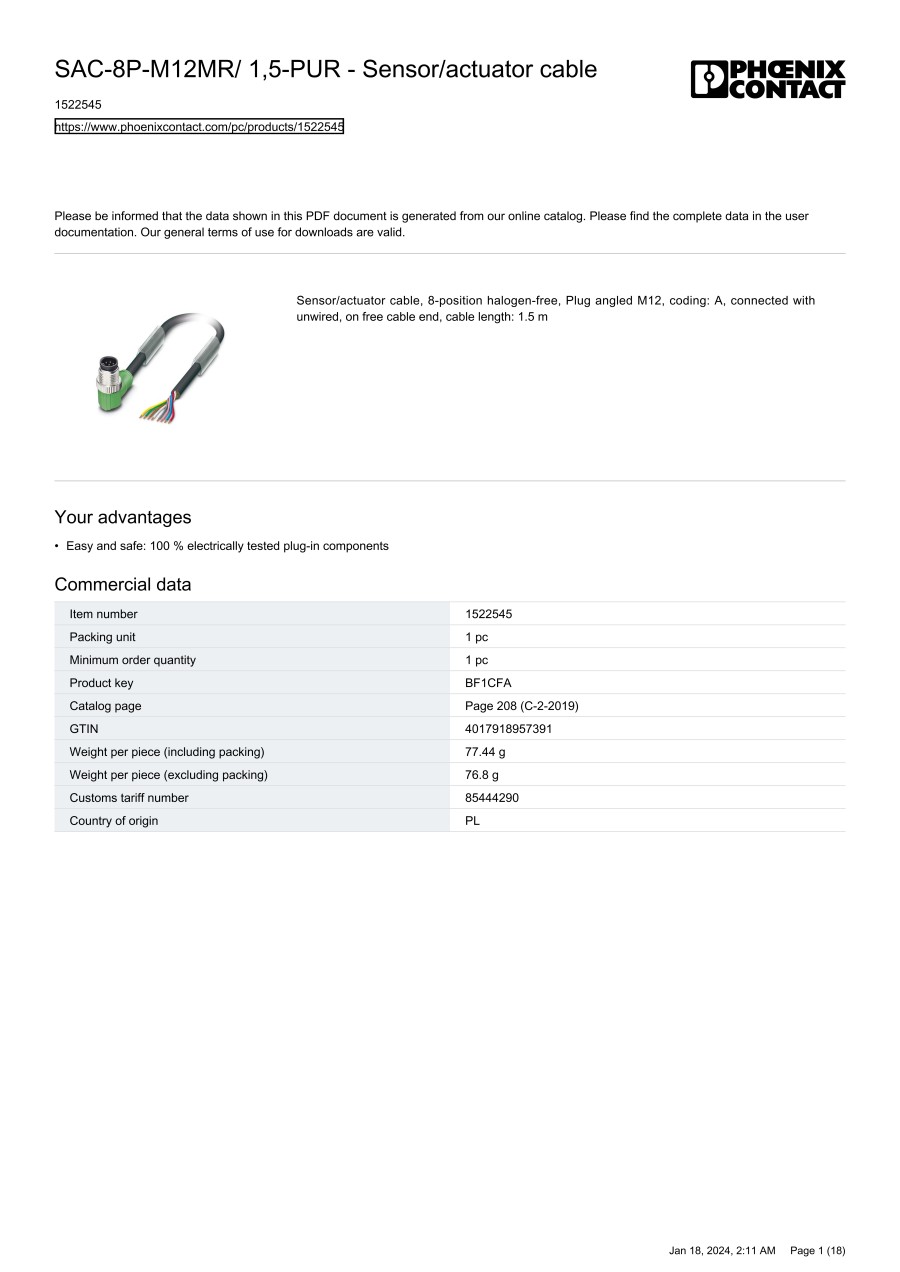

Sensor / Actuator cable SAC-8P, Plug angled M12

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

1522545

Products homepage

Data to be displayed: 30; 45; 60

Part Number
1522545

Part Number	Related to	Standard Unit Price	Minimum order quantity	Volume Discount	Standard Shipping Days ?
	Data sheet	22.78 €	8		7 Days

Basic information

Connection side A (sensors/actuators)	Cable, open end	Connection side B (sensors/actuators)	plug, right angle	Cable length(m)	1.5
Outside diameter(mm)	1.17	Connector cross-section (max.)(mm²)	0.25	Number of pins	8
Nominal current(A)	2	Nominal voltage(V AC)	30	IP rating	IP65
Thread type connection side	M12	Coding	A	Cable colour	Black
Connection (components)	Open end cable	Connector standard	Sensor connector	Connector type	Plug, right angle
Jacket material	PUR	Sensor/actuator wiring type (category)	Sensor/actuator connector (pre-fab)

This page is Sensor / Actuator cable SAC-8P, Plug angled M12, part number 1522545.
You can find the detail information about specifications and dimensions on part number 1522545.
