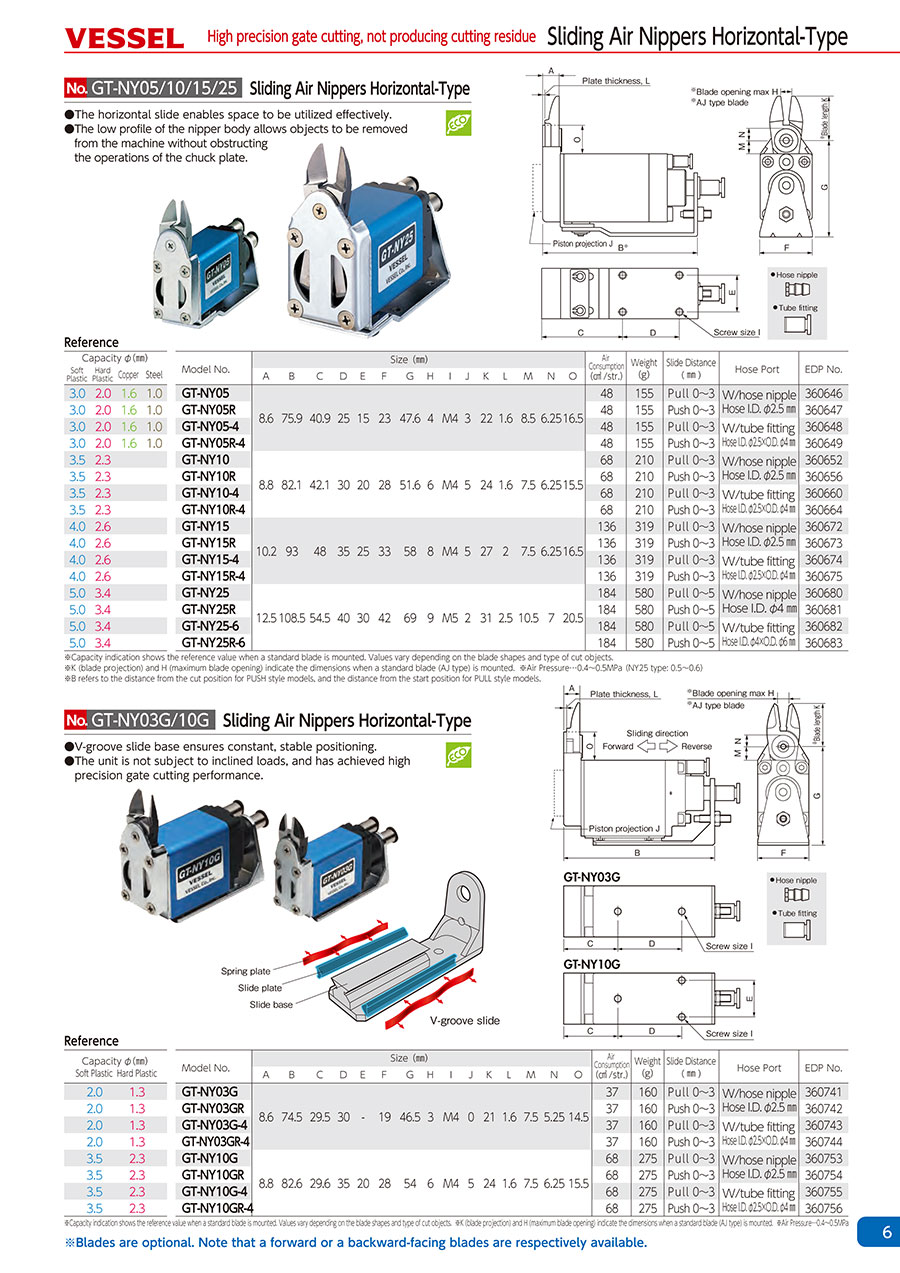

Automatic Sliding Air Nipper body
High precision gate cutting, not producing cutting residue
· The horizontal slide enables space to be used effectively.
· The low profile of the main unit allows molded objects to be removed without obstructing the operations of the chuck plate.
· The horizontal slide enables space to be used effectively.
· The low profile of the main unit allows molded objects to be removed without obstructing the operations of the chuck plate.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| GT-NY05 |
| GT-NY05-4 |
| GT-NY05R |
| GT-NY05R-4 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Hose I.D. (mm) | Hose Mounting Port Specification and Size | Slide direction and range (mm) | |
|---|---|---|---|---|---|---|---|
340.86 € | 1 | 15 Days | I/D 2.5 | W/hose nipple | Pull, 0 to 3 | ||
340.86 € | 1 | 15 Days | I/D 2.5 x O/D 4 | W/tube fitting | Pull, 0 to 3 | ||
340.86 € | 1 | 15 Days | I/D 2.5 | W/hose nipple | Push, 0 to 3 | ||
340.86 € | 1 | 15 Days | I/D 2.5 x O/D 4 | W/tube fitting | Push, 0 to 3 |
Loading...
Basic information
| Cutting Capacity (Copper Wire)(mm) | 1.6 | Air Consumption Amount(cm³/stroke) | 48 | Operating Air Pressure(Mpa) | 0.4 to 0.5 |
|---|---|---|---|---|---|
| Capacity (Soft Resin) φ(mm) | 3 | Capacity (Hard Resin) φ(mm) | 2 | Capacity O/D Steel(mm) | 1 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
